Rompa Mega Pod 21905 Manuale utente
Mega Pod™
21905
This product is Windows-based and allows you to choose an appropriate
Windows Operating System password for your own security if you wish.
If you choose to apply one, please choose a password carefully, making sure
that you and any colleagues who will also need this, have a failsafe way of
remembering the password.
Please be aware that recovery of forgotten passwords in these products is not
straight-forward nor speedy.
Password recovery for Windows is not covered under the terms of our
standard customer support, and as such is a chargeable service.
Should you require additional information please contact ROMPA®.
1. Product Name
Mega Pod™
2. Product Code
21905
3. Colour
As shown
4. Brief Description
9 interactive applications in one panel! Easy to use touch screen technology.
5. Contents
1 x Panel
1 x universal adapter (UK/European/USA)
1 x wireless keyboard and trackball unit
6. Snoezelen® Stimulations
Sight
Sound
7. Best Use
Use in a darkened environment, for maximum visual impact.
8. Compatible ROMPA® Products
20551 - Microphone
9. Starting Up
Wall mount
Plug in and switch on
10. Detailed Description
9 interactive applications in one panel! Easy to use touch screen technology. Exciting
applications include: Kaleidoscope, Light Speed, Trace-A-Shape, Music Studio and
Fireworks. All applications are fully interactive by touching the screen. Modify each
application easily for the user's ability.
High-impact acrylic protective panel over a 37" LCD display, built in speakers,
external jack for handheld microphone and external USB ports for accessories and
software upgrades.
Applications include:
Kaleidoscope
Spiral Sensations
Music Time
Matching Game
Shape Sorter
Fireworks
Paint and Draw
Trace-A-Shape
There are 3 ways to control the Mega Pod™:
1. Using the touchscreen. In this, your finger acts like a mouse. The cursor on screen
should follow your finger when touching the screen. Touching the screen is like
pressing the mouse button down.
2. Use the wireless keyboard and trackball unit (included).
3. Use a mouse (not included) or keyboard (not included) connected to the external
USB port.
System Startup
Make sure that the panel is plugged into a socket that will always be powered (not
switched).
Please note: NEVER disconnect power to the panel without using the Shutdown feature first
(see below). Failure to do so may result in corruption of the data in the system.
1. Press and hold the start button for 3 to 5 seconds. After a few seconds the monitor
should turn on and you will see the device booting up. This should take 1 to 2
minutes to complete.
2. After boot up is complete, you should see the calibration screen for the touchscreen.
Follow the instructions on screen.

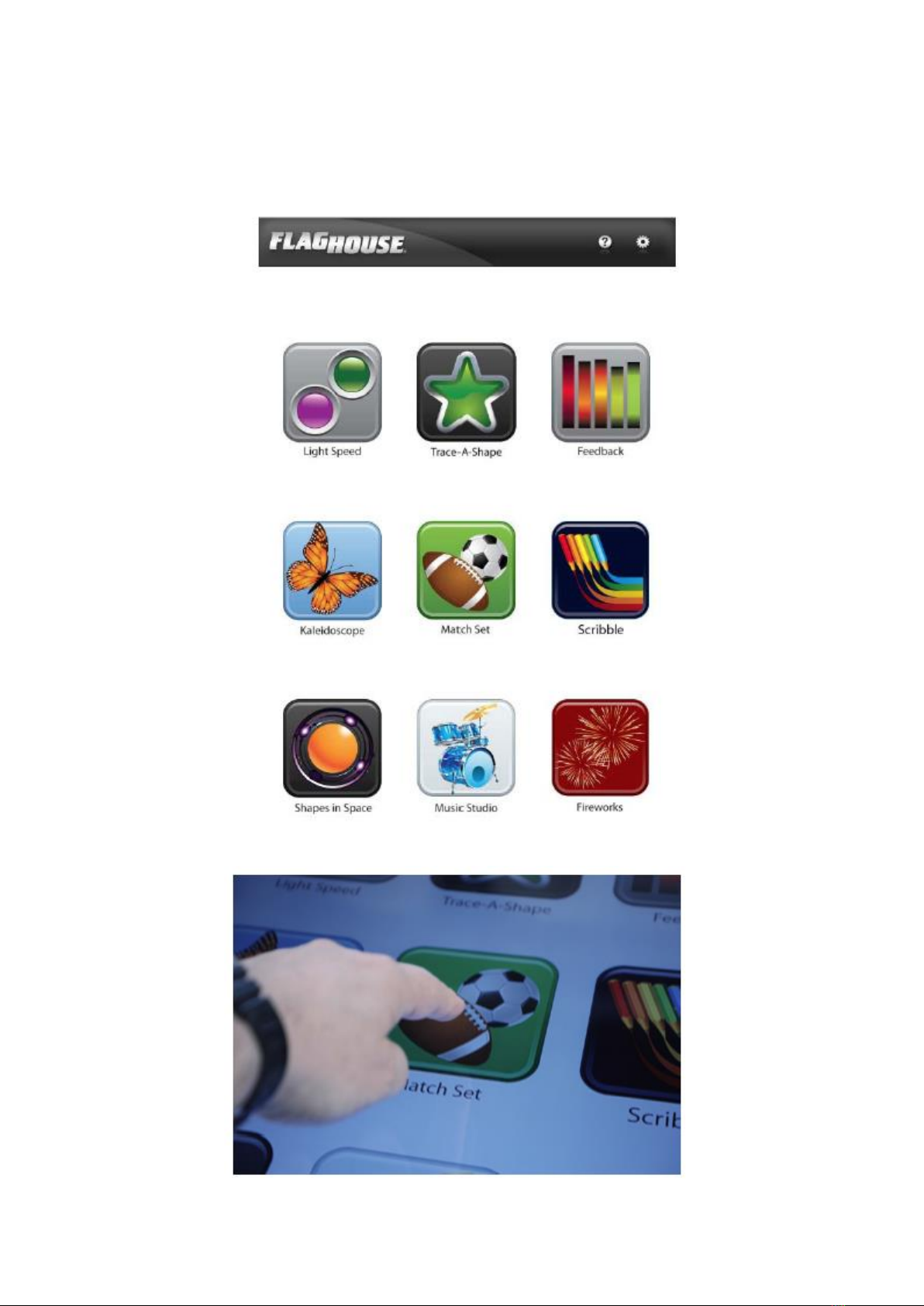

3. Once the calibration is complete, you will be taken to the index screen of the
applications.
4. From the index screen, touch the activity that you want to play.
Within the activity, you can choose of these options:
Administrative Actions
Go to the index screen.
Choose the gear icon in the upper right corner. This will show a drop-down menu
with the various administrative actions.
Calibrate allows you to re-calibrate the touchscreen. This may be necessary from
time to time if the Mega Pod™ has been left on for an extended period. If it
becomes too out of calibration, you may need to use the wireless trackball to access
the calibrate menu option.
Update allows you to update the software on the panel. You will need to have a USB
flash drive provided to you by ROMPA® for this. Please follow the instructions given
to you on the USB flash drive.
Shutdown allows you to turn off the panel. This must be done before disconnecting
power form the unit.
11. Safety
Always supervise the use of this product.
Do not open up the panel when the panel is plugged in and switch off. Do not plug
the panel in until the Mega Pod™ is fully assembled and installed.
12. Technical Specification
Size: Size 114 x 73 x 14cm
Weight: 32Kg
Power supply specification
Input: 90-240Vac 1.5-0.6A 50/60Hz (respectively)
Output: 24V DC 3.75A
Approvals: CE, UL CUL, FCC
13. Installation
Choose a safe and suitable location for your panel. The panel is ONLY to be used in
dry environments. The ambient temperature should not exceed 40°C.
No fixings are included in this product for the wall. When fixing it to the wall please
consult a suitably qualified professional builder or from an estates department to
understand the construction of the wall the panel is to be fixed to, so that the
correct fittings can be used
Attach fixings such as mirror plates to the back of the panel. Check the fixings e.g.
mirror plates you buy can easily support 32kg. You may wish to attach two mirror
plates to the back of the panel at the top and two on the back at the bottom. When
attaching fixings to the back of the panel please proceed with caution –be aware
that there are electrical assemblies inside the panel.
oNote: A short screw (no longer than 20mm) can be used in the safe fixing areas.
