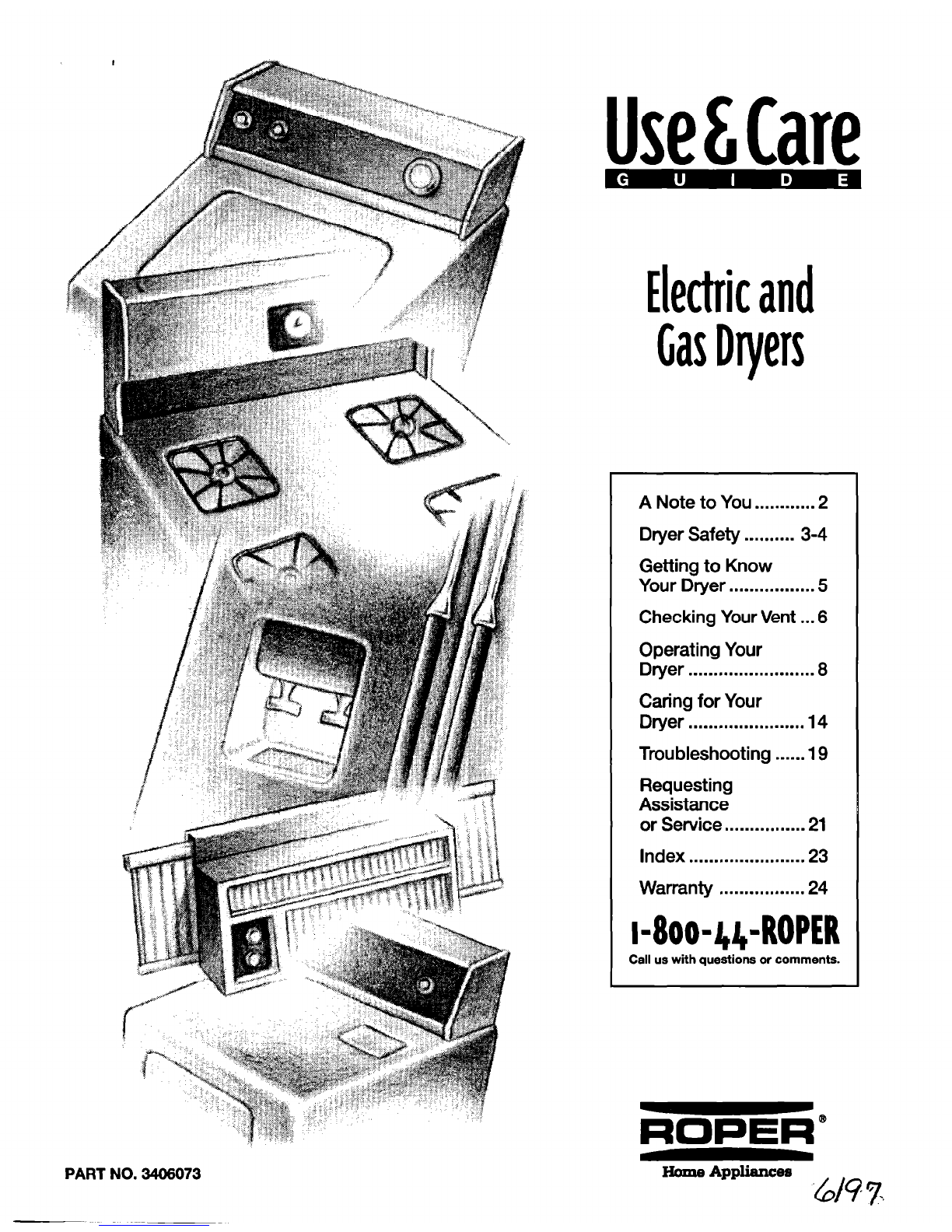

Roper Roper LER5848EQ3 Manuale utente

Electricand

GasDryers

A Note to You ............2

Dryer Safety .......... 3-4

Getting to Know

Your Dryer .................5

Checking Your Vent ...6

Operating Your

Dryer .........................8

Caring for Your

Dryer ....................... 14

Troubleshooting ......19

Requesting

Assistance

or Service ................ 21

Index ......,................ 23

Warranty ,................ 24

I-~oo-~~-ROPER

Call us with questions or comments.

PART NO. 3406073

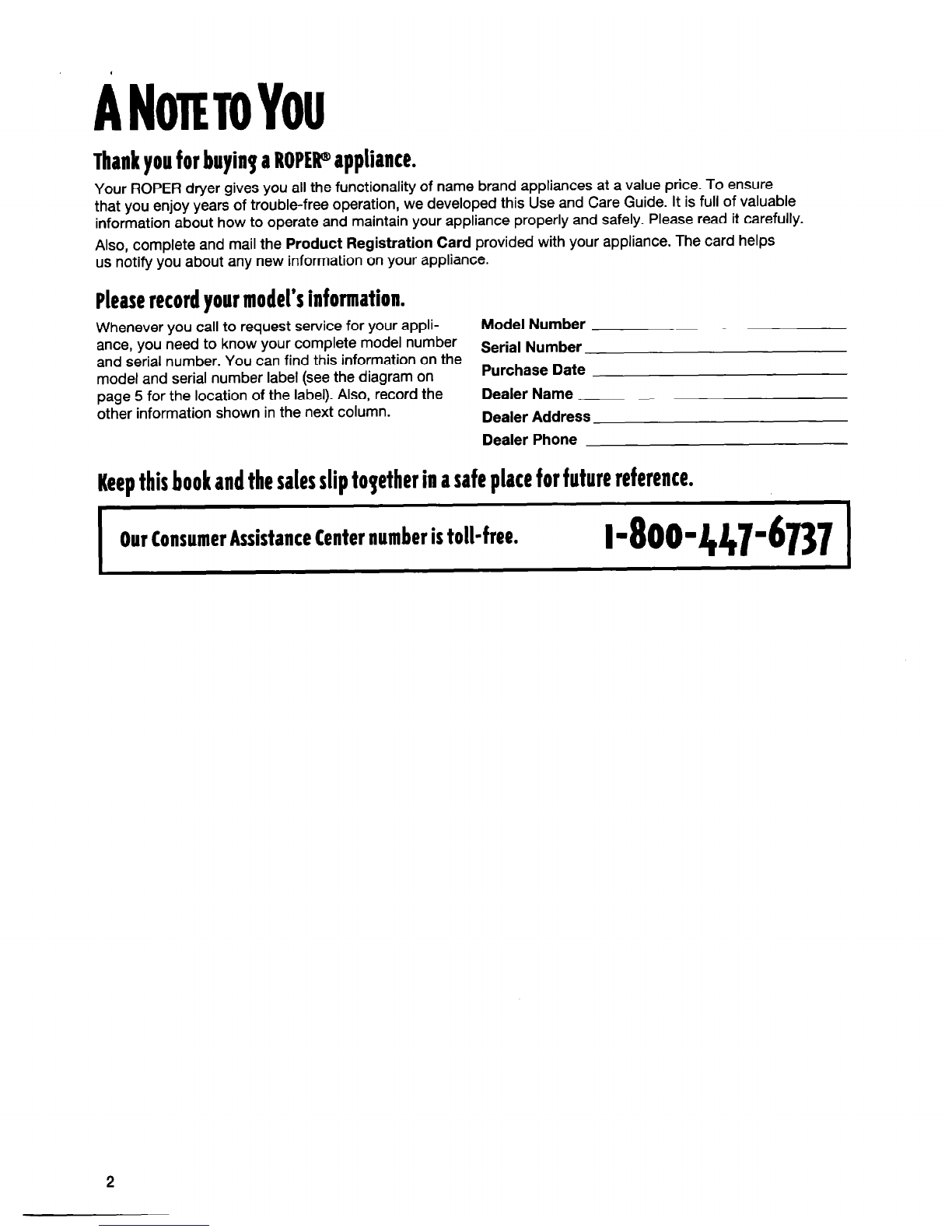

ANOTETOYOU

Thankyouforbuy@ aROPER@appliance.

Your ROPER dryer gives you all the functionality of name brand appliances at a value price. To ensure

that you enjoy years of trouble-free operation, we developed this Use and Care Guide. It is full of valuable

information about how to operate and maintain your appliance properly and safely. Please read it carefully.

Also, complete and mail the Product Registration Card provided with your appliance. The card helps

us notify you about any new information on your appliance.

Pleaserecordyourmodel’sinformation.

Whenever you call to request service for your appli- Model Number

ante, you need to know your complete model number Serial Number

and serial number. You can find this information on the

model and serial number label (see the diagram on Purchase Date

page 5 for the location of the label). Also, record the Dealer Name

other information shown in the next column. Dealer Address

Dealer Phone

Keepthisbookandthesalessliptopetherinasafeplaceforfuturereference.

OurConsumerAssistanceCenternumberistoll-free.

1-800-447-6737

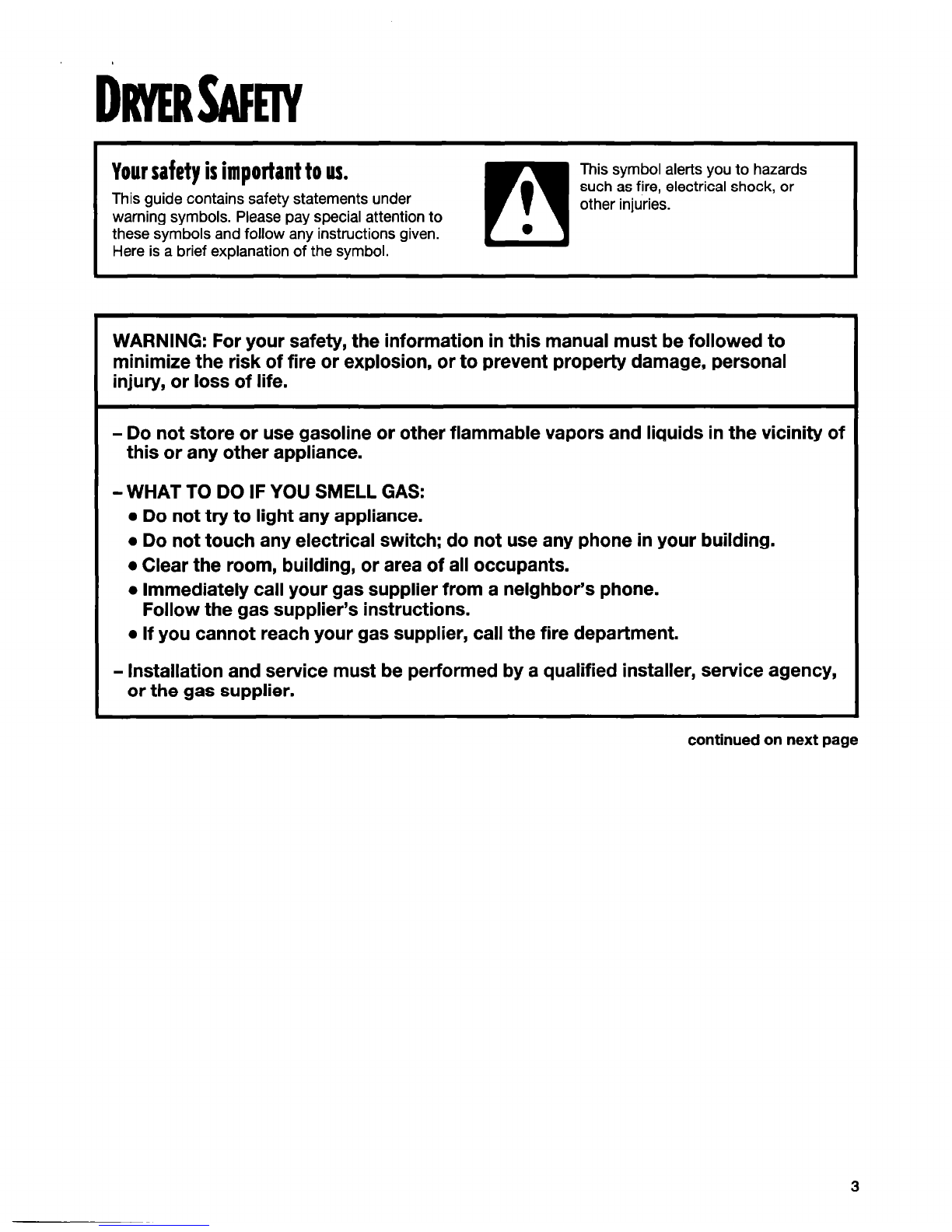

DRIERMY

Yoursafetyisimportantto us.

This guide contains safety statements under

warning symbols. Please pay special attention to

these symbols and follow any instructions given.

Here is a brief explanation of the symbol.

This symbol alerts you to hazards

f such as fire, electrical shock, or

other injuries.

WARNING: For your safety, the information in this manual must be followed to

minimize the risk of fire or explosion, or to prevent property damage, personal

injury, or loss of life.

- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of

this or any other appliance.

-WHAT TO DO IF YOU SMELL GAS:

Do not try to light any appliance.

Do not touch any electrical switch; do not use any phone in your building.

Clear the room, building, or area of all occupants.

Immediately call your gas supplier from a neighbor’s phone.

Follow the gas supplier’s instructions.

a If you cannot reach your gas supplier, call the fire department.

- Installation and service must be performed by a qualified installer, service agency,

or the gas supplier.

continued on next page

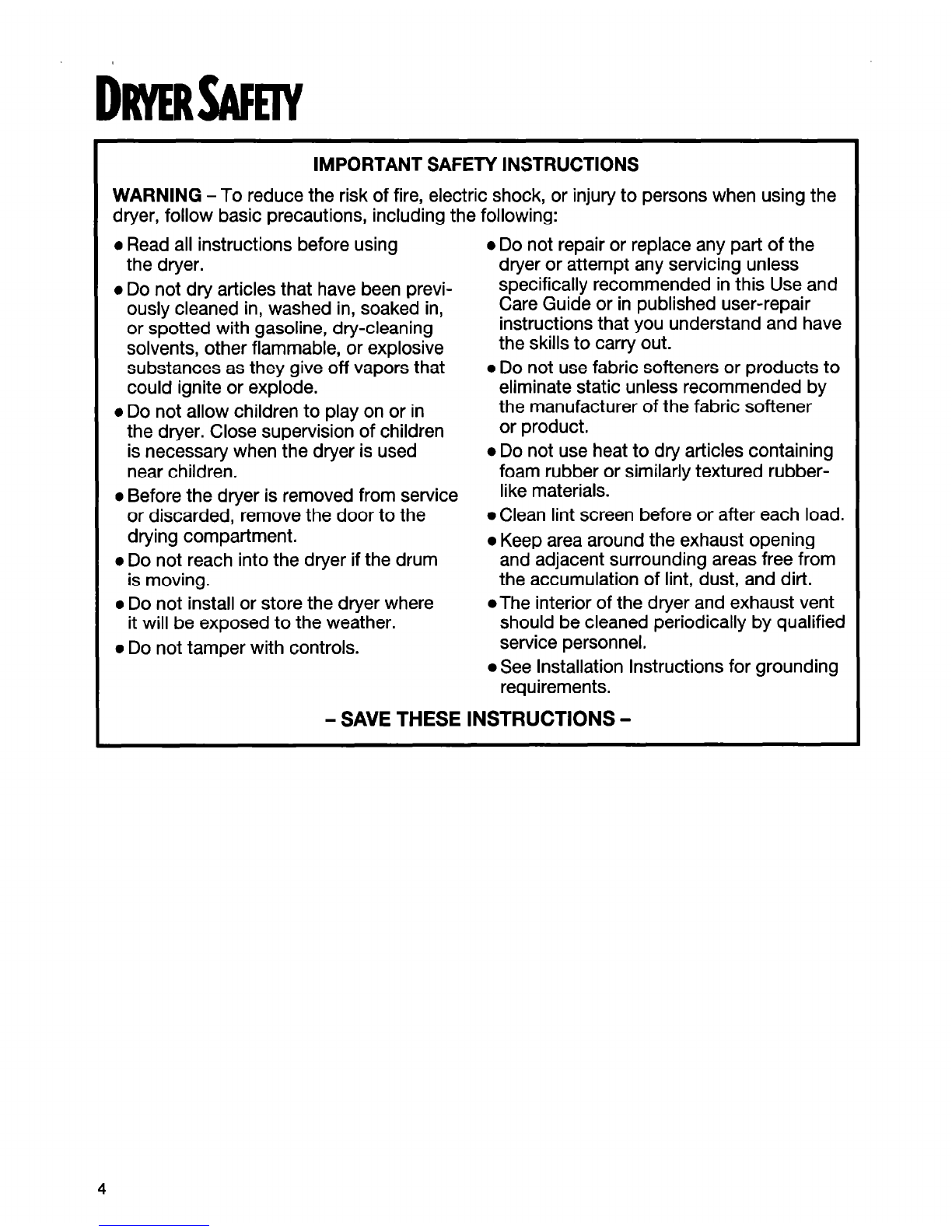

DRIERSAFETY

IMPORTANT SAFETY INSTRUCTIONS

WARNING - To reduce the risk of fire, electric shock, or injury to persons when using the

dryer, follow basic precautions, including the following:

a Read all instructions before using

Do not repair or replace any part of the

the dryer. dryer or attempt any servicing unless

Do not dry articles that have been previ- specifically recommended in this Use and

ously cleaned in, washed in, soaked in, Care Guide or in published user-repair

or spotted with gasoline, dry-cleaning instructions that you understand and have

solvents, other flammable, or explosive the skills to carry out.

substances as they give off vapors that

Do not use fabric softeners or products to

could ignite or explode. eliminate static unless recommended by

Do not allow children to play on or in the manufacturer of the fabric softener

the dryer. Close supervision of children or product.

is necessary when the dryer is used

Do not use heat to dry articles containing

near children, foam rubber or similarly textured rubber-

Before the dryer is removed from service Iike materials.

or discarded, remove the door to the

Clean lint screen before or after each load.

drying compartment.

Keep area around the exhaust opening

Do not reach into the dryer if the drum and adjacent surrounding areas free from

is moving. the accumulation of lint, dust, and dirt.

Do not install or store the dryer where

The interior of the dryer and exhaust vent

it will be exposed to the weather. should be cleaned periodically by qualified

Do not tamper with controls. service personnel.

See Installation Instructions for grounding

requirements.

- SAVE THESE INSTRUCTIONS -

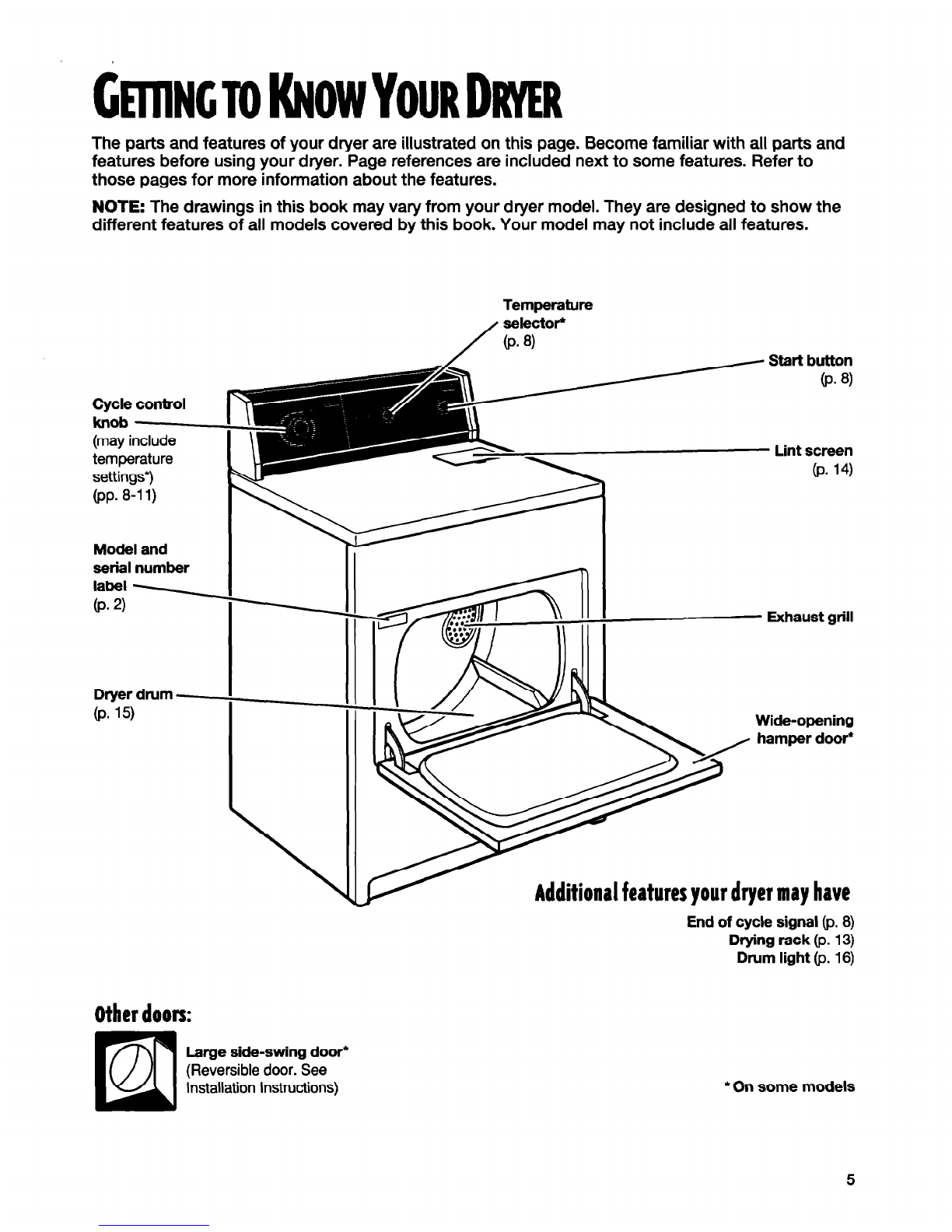

CETTINGMNOWYOURDKVER

The parts and features of your dryer are illustrated on this page. Become familiar with all parts and

features before using your dryer. Page references are included next to some features. Refer to

those pages for more information about the features.

NOTE: The drawings in this book may vary from your dryer model. They are designed to show the

different features of all models covered by this book. Your model may not include all features.

Cycle control

kl?Ob-

(may include

temperature

settings*)

(pp. 8-l 1)

Model and

serial number

DIyer drum -

@. 15)

Otherdoors:

Temperature

Large side-swing door*

(Reversible door. See

Installation Instructions)

Exhaust grill

Wide-opening

hamper door*

Additionalfeaturesyourdryermayhave

End of cycle signal (p. 8)

Drying rack (p. 13)

Drum light (p. 16)

* On some models

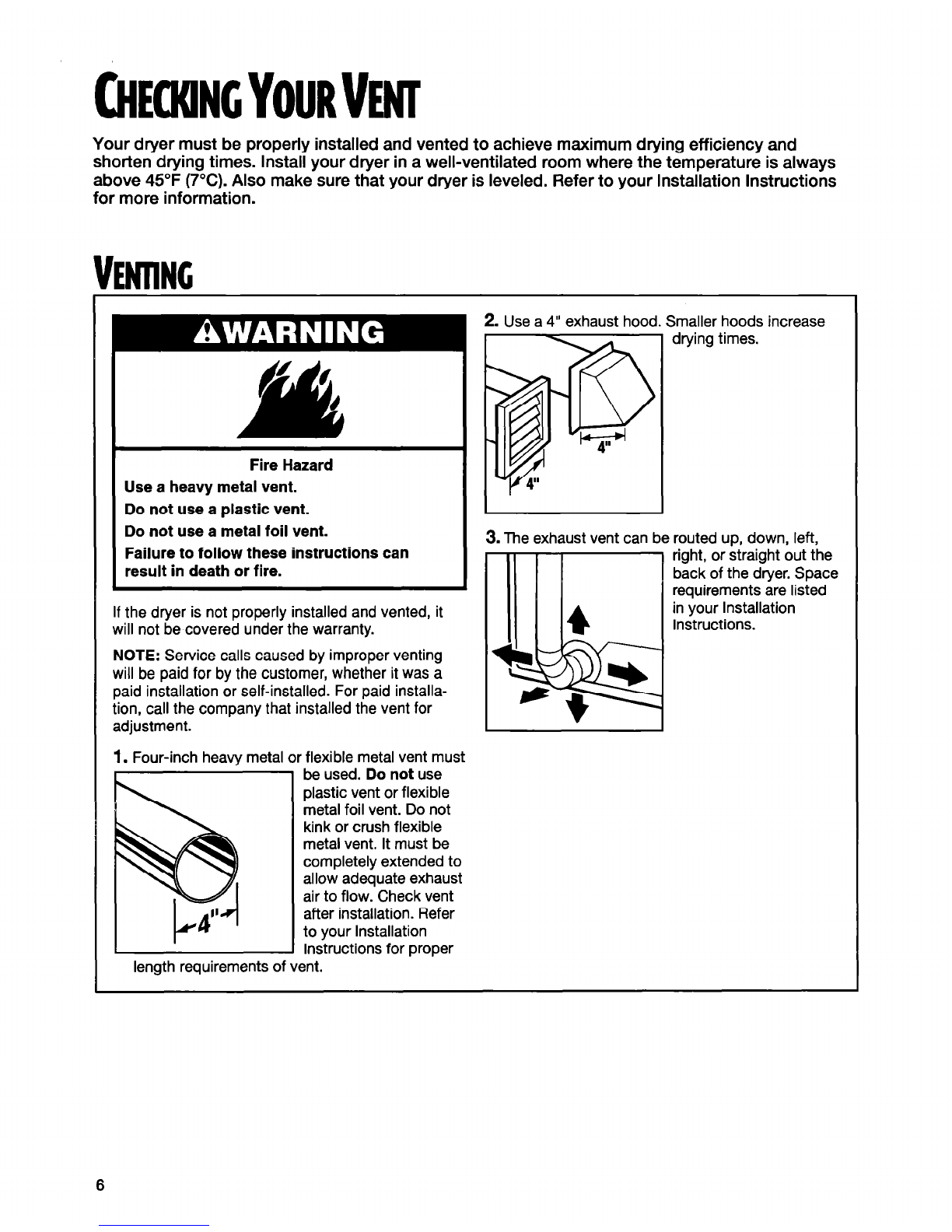

CHECKINGYOURVENT

Your dryer must be properly installed and vented to achieve maximum drying efficiency and

shorten drying times. Install your dryer in a well-ventilated room where the temperature is always

above 45°F (7%). Also make sure that your dryer is leveled. Refer to your Installation Instructions

for more information.

VENTING

Fire Hazard

Use a heavy metal vent.

Do not use a plastic vent.

Do not use a metal foil vent.

Failure to follow these instructions can

result in death or fire.

If the dryer is not properly installed and vented, it

will not be covered under the warranty.

NOTE: Service calls caused by improper venting

will be paid for by the customer, whether it was a

paid installation or self-installed. For paid installa-

tion, call the company that installed the vent for

adjustment.

1. Four-inch heavy metal

length requirements a

2. Use a 4” exhaust hood. Smaller hoods increase

)rflexible metal vent must

be used. Do not

use

plastic vent or flexible

metal foil vent. Do not

kink or crush flexible

metal vent. It must be

completely extended to

allow adequate exhaust

air to flow. Check vent

after installation. Refer

to your Installation

Instructions for proper

vent.

drying times.

3. The exhaust vent can be routed UD, down, let?,

right, or straight but the

back of the dryer. Space

requirements are listed

in your Installation

Instructions.

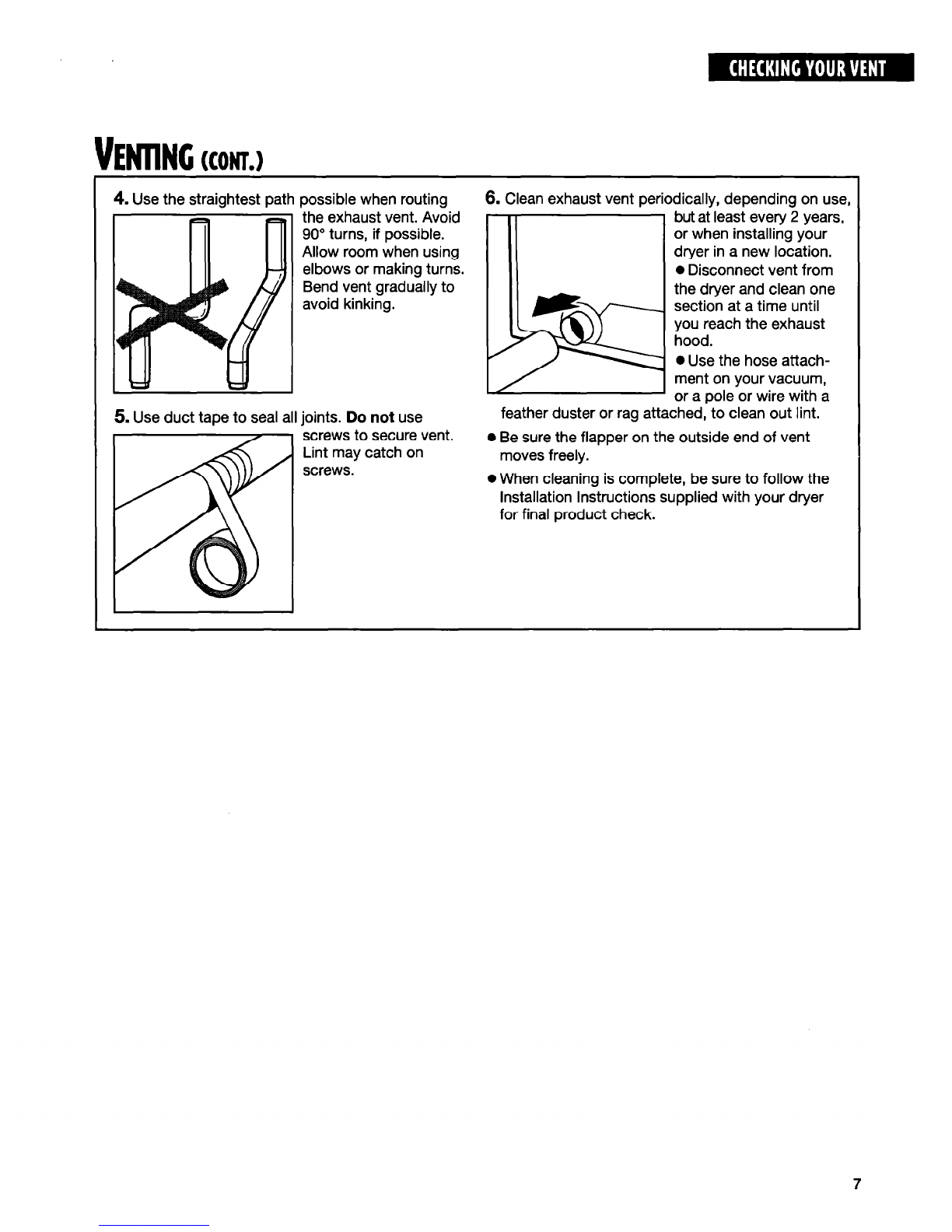

4. Use the straightest path possible when routing

the exhaust vent. Avoid

90” turns, if possible.

Allow room when using

elbows or making turns.

Bend vent gradually to

avoid kinking.

I joints. Do not use

screws to secure vent.

Lint may catch on

screws.

Clean exhaust vent periodically, depending on use,

~~~~~gp

the dryer and clean one

section at a time until

you reach the exhaust

hood.

0 Use the hose attach-

feather duster or rag attached, to clean out lint.

a Be sure the flapper on the outside end of vent

moves freely.

0 When cleaning is complete, be sure to follow the

Installation Instructions supplied with your dryer

for final product check.

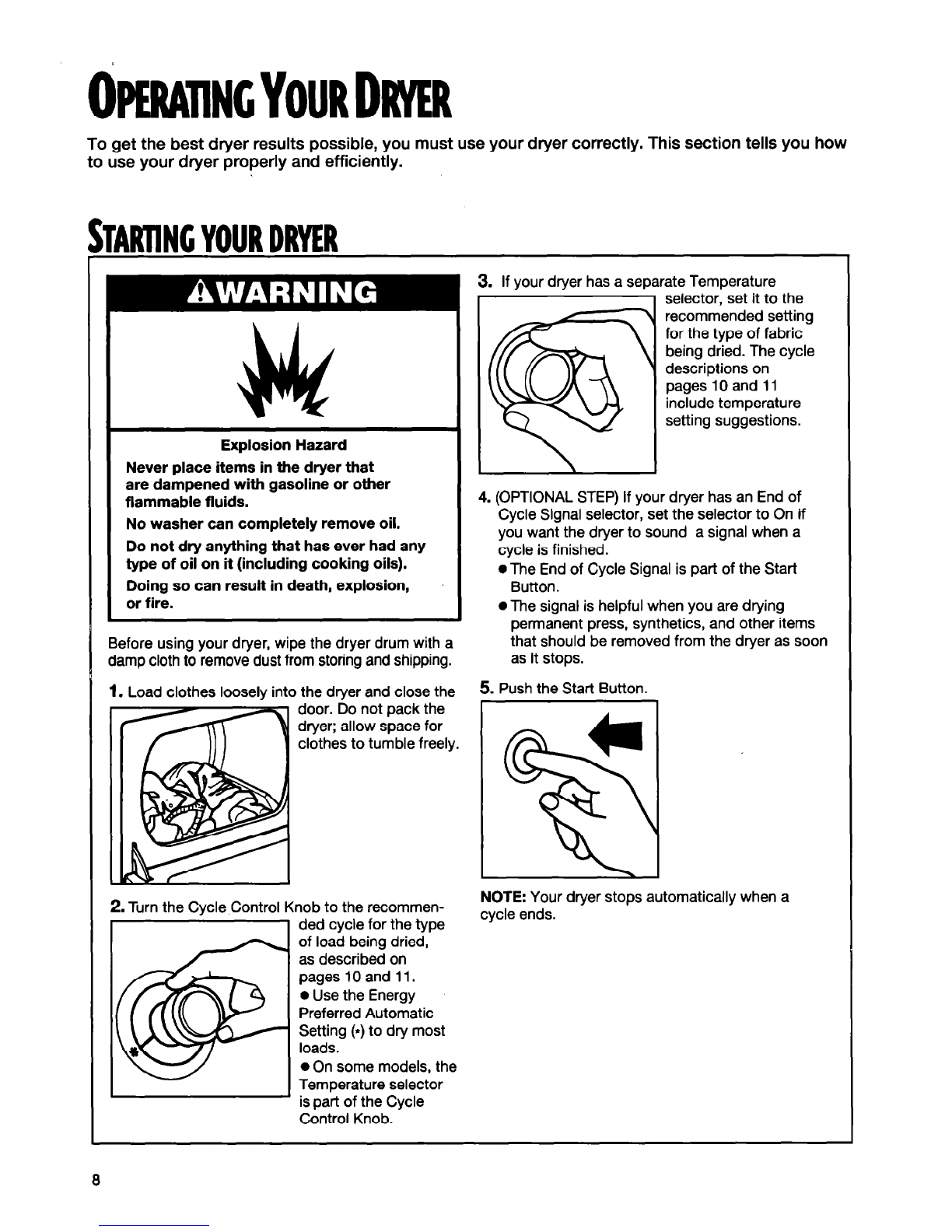

To get the best dryer results possible, you must use your dryer correctly. This section tells you how

to use your dryer properly and efficiently.

;TARTlNCYOURDRYER

Explosion Hazard

Never place items in the dryer that

are dampened with gasoline or other

flammable fluids.

No washer can completely remove oil.

Do not dry anything that has ever had any

type of oil on it (including cooking oils).

Doing so can result in death, explosion,

or fire.

Before using your dryer, wipe the dryer drum with a

damp cloth to remove dust from storing and shipping.

Load clothes loosely into the dryer and close the

door. Do not pack the

dryer; allow space for

clothes to tumble freely.

2. Turn the Cycle Control Knob to the recommen-

- ded cycle for the type

of load being dried,

as described on

pages 10and 11.

0 Use the Energy

I Preferred Automatic

- Setting b) to dry most

loads.

On some models, the

Temperature selector

is part of the Cycle

Control Knob.

3. If your dryer has a separate Temperature

selector, set it to the

recommended setting

for the type of fabric

being dried. The cycle

descriptions on

pages 10 and 11

include temperature

setting suggestions.

4. (OPTIONAL STEP) If your dryer has an End of

Cycle Signal selector, set the selector to On if

you want the dryer to sound a signal when a

cycle is finished.

The End of Cycle Signal is part of the Start

Button.

The signal is helpful when you are drying

permanent press, synthetics, and other items

that should be removed from the dryer as soon

as it stops.

5. Push the Start Button.

NOTE: Your dryer stops automatically when a

cycle ends.

STARTINGYOURDRYER

KONL)

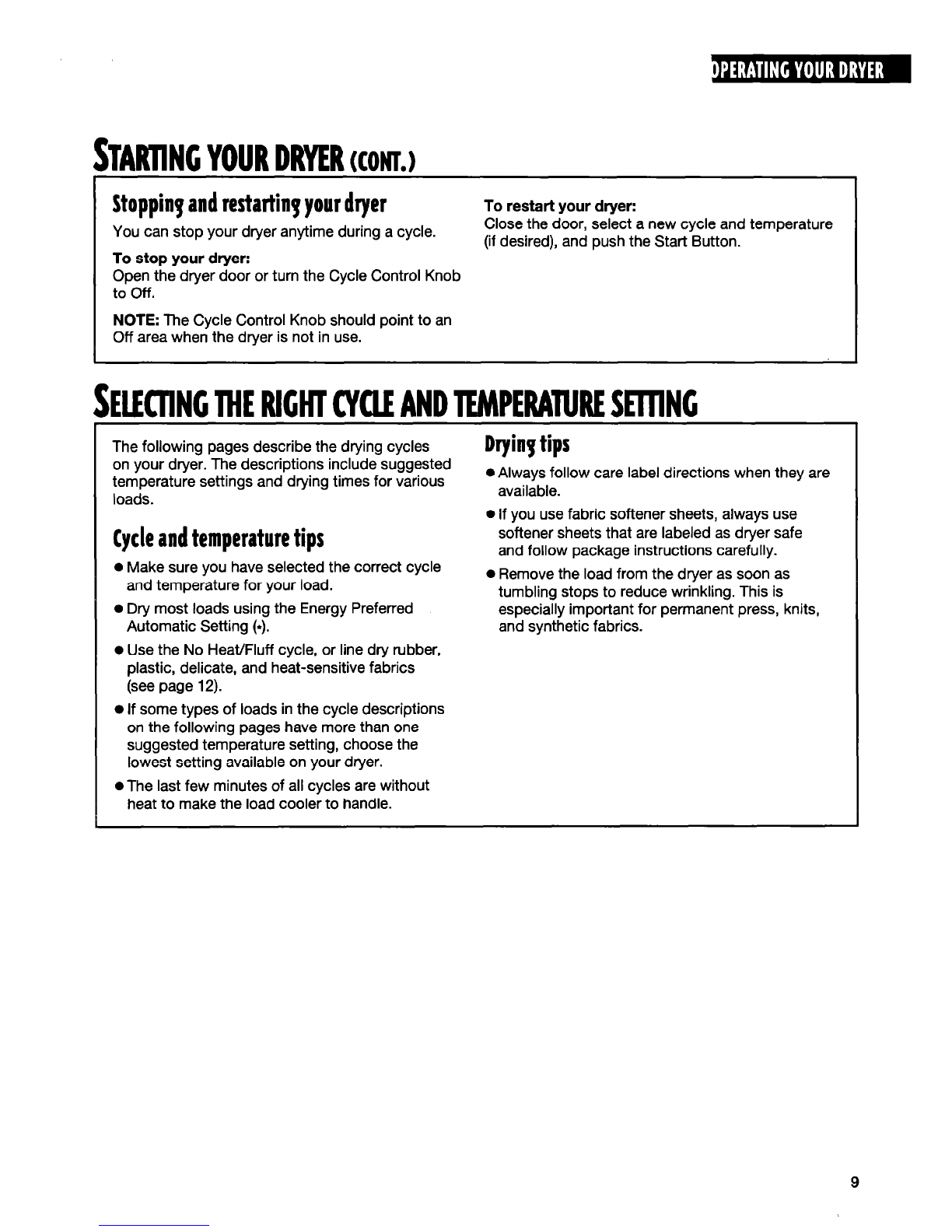

stoppingandrestartingyourdryer

You can stop your dryer anytime during a cycle.

To restart your dryer:

Close the door, select a new cycle and temperature

(if desired), and push the Start Button.

To stop your dryer:

Open the dryer door or turn the Cycle Control Knob

to off.

NOTE: The Cycle Control Knob should point to an

Off area when the dryer is not in use.

SEWING

MERIGHTMII ANDTEMPERATURESEITING

The following pages describe the drying cycles

on your dryer. The descriptions include suggested

temperature settings and drying times for various

loads.

Cycleandtemperaturetips

0 Make sure you have selected the correct cycle

and temperature for your load.

Dry most loads using the Energy Preferred

Automatic Setting (e).

Use the No Heat/Fluff cycle, or line dry rubber,

plastic, delicate, and heat-sensitive fabrics

(see page 12).

If some types of loads in the cycle descriptions

on the following pages have more than one

suggested temperature setting, choose the

lowest setting available on your dryer.

The last few minutes of all cycles are without

heat to make the load cooler to handle.

Dryingtips

0 Always follow care label directions when they are

available.

0 If you use fabric softener sheets, always use

softener sheets that are labeled as dryer safe

and follow package instructions carefully.

0 Remove the load from the dryer as soon as

tumbling stops to reduce wrinkling. This is

especially important for permanent press, knits,

and synthetic fabrics.

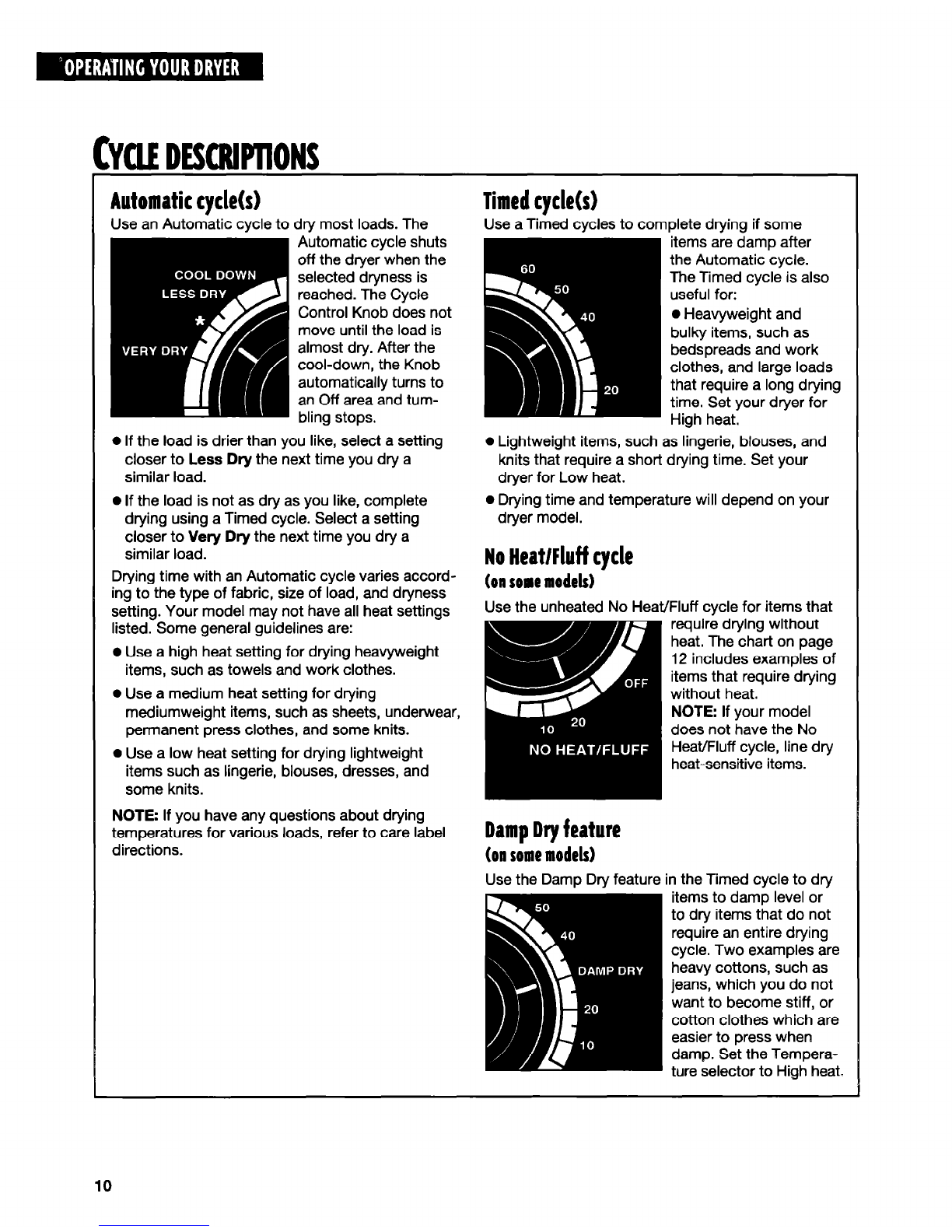

CYCLIDESCRlPllONS

Automaticcycle(s)

Use an Automatic cycle to dry most loads. The

Automatic cycle shuts

off the dryer when the

selected dryness is

reached. The Cycle

Control Knob does not

move until the load is

almost dry. After the

cool-down, the Knob

automatically turns to

an Off area and tum-

bling stops.

0 If the load is drier than you like, select a setting

closer to Less Dry the next time you dry a

similar load.

0 If the load is not as dry as you like, complete

drying using a Timed cycle. Select a setting

closer to Very Dry the next time you dry a

similar load.

Drying time with an Automatic cycle varies accord-

ing to the type of fabric, size of load, and dryness

setting. Your model may not have all heat settings

listed. Some general guidelines are:

0 Use a high heat setting for drying heavyweight

items, such as towels and work clothes.

a Use a medium heat setting for drying

mediumweight items, such as sheets, underwear,

permanent press clothes, and some knits.

Use a low heat setting for drying lightweight

items such as lingerie, blouses, dresses, and

some knits.

NOTE: If you have any questions about drying

temperatures for various loads, refer to care label

directions.

Timedcycle(s)

Use a Timed cycles to complete drying if some

items are damp after

the Automatic cycle.

The Timed cycle is also

useful for:

Heavyweight and

bulky items, such as

bedspreads and work

clothes, and large loads

that require a long drying

time. Set your dryer for

High heat.

0 Lightweight items, such as lingerie, blouses, and

knits that require a short drying time. Set your

dryer for Low heat.

Drying time and temperature will depend on your

dryer model.

NoHeathff cycle

(onsomemodels)

Use the unheated No Heat/Fluff cycle for items that

require drying without

heat. The chart on page

12 includes examples of

items that require drying

without heat.

NOTE: If your model

does not have the No

Heat/Fluff cycle, line dry

heat-sensitive items.

DampDryfeature

(onsomemodels)

Use the Damp Dry feature in the Timed cycle to dry

items to damp level or

to dry items that do not

require an entire drying

cycle. Two examples are

heavy cottons, such as

jeans, which you do not

want to become stiff, or

cotton clothes which are

easier to press when

damp. Set the Tempera-

ture selector to High heat.

Indice

Altri manuali Roper Asciugatrice

Roper

Roper ELECTRIC DRYER RES7646J Guida utente

Roper

Roper Roper REX3615EW0 Manuale utente

Roper

Roper EL2020W Manuale utente

Roper

Roper RGS7648EN2 Manuale utente

Roper

Roper Roper REX4634JQ0 Manuale utente

Roper

Roper Gas 120-Volt Manuale utente

Roper

Roper RED4440VQ Manuale utente

Roper

Roper ELECTRIC AND GAS DRYERS Manuale utente

Roper

Roper YREX4634KQ0 Manuale utente

Roper

Roper Roper REX3614JW0 Manuale utente

Roper

Roper RED4000SW Manuale utente

Roper

Roper YREX5634PQ0 Manuale utente

Roper

Roper EL4030V Manuale utente

Roper

Roper REL3422AW0 Manuale utente

Roper

Roper RGD4400TQ0 Manuale utente

Roper

Roper REL4622BL0 Manuale utente

Roper

Roper Roper Roper by DRYER Manuale utente

Roper

Roper RED4400V Guida utente

Roper

Roper Roper REL3612BW2 Manuale utente

Roper

Roper REK2950KQ1 Manuale utente

Roper

Roper Roper REX4634KQ0 Manuale utente

Roper

Roper REX5634PQ1 Manuale utente

Roper

Roper REC3422A Manuale utente

Roper

Roper RED4300TQ0 Manuale utente

Manuali Asciugatrice popolari di altre marche

Bosch

Bosch WTA79200GB Manuale utente

Amana

Amana W10233410A Manuale utente

Miele

Miele TWH 780 WP Manuale utente

Asko

Asko T760 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuale utente

Bosch

Bosch Logixx 10 WTB76556GB Scheda tecnica

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Manuale di istruzioni

Electrolux

Electrolux EW2H328R2 Manuale utente

Beko

Beko DS8433RX1M Manuale utente

Dawlance

Dawlance Spinner DS 6000 C Manuale utente

Electrolux

Electrolux TP5080TW Manuale utente

AEG

AEG TR838P4OB Manuale utente

Indesit

Indesit IDV 75 Manuale utente

Infiniton

Infiniton SD-DG85C Manuale utente

BOMANN

BOMANN WT 5019 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuale utente

Asko

Asko T793C Manuale utente

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuale utente
