Rosewill RC-600 Manuale utente

USB 2.0 Cardbus Adapter RC600

User Manual

OVERVIEW

USB 2.0 Cardbus Adapter RC600 User Manual

This USB 2.0 CardBus Card provides a simple and affordable way to add four Hi-Speed USB ports to your laptop.

The card supports all USB 1.1 and USB 2.0 devices. USB devices continue to operate at USB 1.1 speeds (12 Mbps).

USB 2.0 devices operate at speeds up to 480 Mbps.

GENERAL FEATURES

•4 built-in type A USB 2.0 connections

•Features VIA VT6212L USB 2.0 host controller

•Fully backwards compatible to USB 1.1

•Support 500mA power to each USB port

•Supports up to 127 downstream USB devices

•Supports 32-bit CardBus PC Card Type II slot

•Supports high speed data transfer rates of up to 480 Mbps

•Hot Swappable – Plug-n-Play

•USB 1.1 and USB 2.0 compliant

SYSTEM REQUIREMENTS

ForPC

•Windows 98SE, ME, 2000, XP

•Available 32 bit PCMCIA slot(CardBus slot)

Cautions

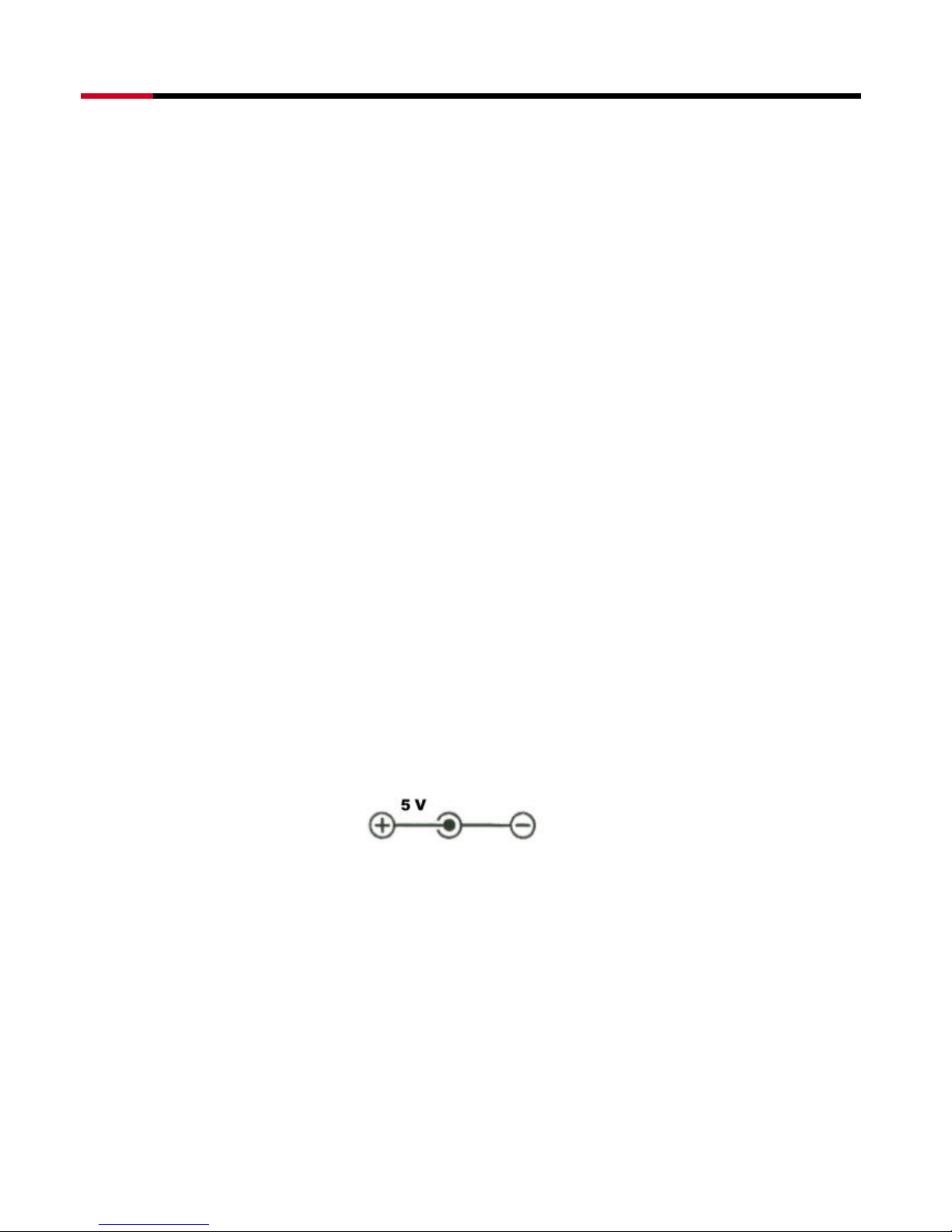

1. Use only switching power adapter with following specifications:

Switching AC adapter (Option) DC 5V, 2A for PC CARD

Polarity: outside negative voltage (-) & inside positive voltage (+);

3.5mm power jack; length: 9-9.5mm

2. Plug switching power adapter to wall outlet before you connect the PC CARD to your computer.

Package contents

y1 x USB 2.0 CardBus Adaptor

y1 x Driver CD

y1 x User Manual

DRIVERS INSTALLATION:

USB 2.0 Cardbus Adapter RC600 User Manual

Windows 98 SE Installation

Make sure your Windows is Windows 98 Second Edition by checking the “Properties” of “My Computer”. If you can

find “Second Edition”, you have Windows 98 Second Edition.

Please follow the procedure to install the VIA VT6212L PCMCIA 4 port USB 2.0 card. Make sure you external USB

devices are not connected when installing the card.

1. Locate an available CardBus

slot on your notebook, and

insert the USB 2.0 CardBus

card into the slot.

2. Start the notebook. Windows

will detect the CardBus card

and find a “VIA Tech 3038 PCI

to USB Universal Host

Controller” device. Click

[Next].

3. When asking for what to do.

Select [Search for the best

driver for your device

(Recommended)] and click

[Next].

USB 2.0 Cardbus Adapter RC600 User Manual

4. When asking for driver

location, uncheck all boxes

and let Windows search its

own driver database. Click

[Next].

5. When asking for which driver

to install, select [The updated

driver(Recommended) VIA

Tech 3038 PCI to USB

Universal Host Controller]

and click [Next].

6. Click [Next] again to confirm

the driver and begin

installation.

7. When installing the driver, this

screen may appear. Insert the

Windows 98 SE CD-ROM into

the CD-ROM drive and click

[OK].

8. If the following windows

appears, type “D:\WIN98” or

“C:\Windows\options\cabs”

in the Copy files from box,

where “D” means the

CD-ROM drive. After that,

click [OK]. If your CD-ROM

drive is not “D”, you must

replace “D” to the appropriate

drive name.

USB 2.0 Cardbus Adapter RC600 User Manual

9. After driver installation

finished, click [Finish].

10. Next, you will see Windows

find a “VIA Tech 3038 PCI to

USB Universal Host

Controller” device again.

Repeat the above process for

the second VIA Tech 3038 PCI

to USB Universal Controller.

11. Next, you will see Windows

find a “PCI Universal Serial

Bus” device. Click [Cancel] to

cancel the driver installation for

this device at this moment. We

will install driver at next step.

12. Please open the VIA VT6212L

PCMCIA CardBus Driver

Folder “\RC-600” on the

Driver CD, then double-click

the installation file

“Setup.exe”. Follow on-screen

instruction, then reboot. This

will automatically install the

driver for the “PCI Universal

Serial Bus” device you found

on step 11.

USB 2.0 Cardbus Adapter RC600 User Manual

13. Once you have rebooted, your USB 2.0 CardBus Card is ready for operation. Open Device

Manager, you will see the newly installed devices below.

Windows ME Installation

1. Locate an available CardBus

slot on your notebook, and

insert the USB 2.0 CardBus

card into the slot.

2. Start the notebook. Windows

will detect the Cardbus card

and automatically install drivers

for all known USB devices.

Follow the installation to restart

the computer.

USB 2.0 Cardbus Adapter RC600 User Manual

3. After you have rebooted,

Please open the VIA VT6212L

PCMCIA CardBus Driver

Folder “\RC-600” on the

Driver CD, then double-click

the installation file

“Setup.exe”. Follow on-screen

instruction, then reboot. This

will automatically install driver

for the “PCI Universal Serial

Bus” device you found on step

4. Once you have rebooted, your USB 2.0 CardBus Card is ready for operation. Open Device

Manager, you will see the newly installed devices below.

Windows 2000 Installation

To use the VIA VT6212L PCMCIA 4 port USB 2.0 Card on Windows 2000, follow the steps through.

Windows 2000 operating system natively support this PCMCIA 4 port USB 2.0 Card-No Drivers are necessary!

However, please ensure you have the latest Service Pack installed…

• Windows 2000 – Service Pack 4

Confirming the Installation of the Driver

When you start the Notebook PC, the drivers are installed automatically by the Hardware Wizard. To confirm the driver

Installation, follow the steps through.

USB 2.0 Cardbus Adapter RC600 User Manual

1. Click My Computer with the right

button of the mouse.

2. Select Properties.

3. You will see this screen. Click the

Hardware tab.

4. Click the “Device Manager” button.

5. Confirm there are no visible yellow “!”

marks or red “X” marks in front of the

“USB 2.0 Root Hub”,“USB Root

Hub”,“USB Root Hub”, “VIA USB

Enhanced Host Controller”, “VIA

USB Universal Host Controller”, “VIA

USB Universal Host Controller” string

under Universal Serial Bus

controllers.

Windows XP Installation

To use the VIA VT6212L PCMCIA 4 port USB 2.0 Card on Windows XP, follow the steps through.

Windows XP operating system natively support this PCMCIA 4 port USB 2.0 Card-No Drivers are necessary!

However, please ensure you have the latest Service Pack installed…

• Windows XP – Service Pack 1

USB 2.0 Cardbus Adapter RC600 User Manual

Confirming the Installation of the Driver

When you start the Notebook PC, the drivers are installed automatically by the Hardware Wizard. To confirm the driver

Installation, follow the steps through.

1. Click My Computer with the right

button of the mouse.

2. Select Properties.

3. You will see the screen below. Click the

Hardware tab.

4. Click the “Device Manager” button.

5. Confirm there are no visible yellow “!”

marks or red “X” marks in front of the

“Standard Enhanced PCI to USB

Host Controller”,“USB Root Hub”,

“USB Root Hub”, “USB Root Hub”,

“VIA Rev 5 or later USB Universal

Host Controller”, “VIA Rev 5 later

USB Universal Host Controller” string

under Universal Serial Bus

controllers.

USB 2.0 Cardbus Adapter RC600 User Manual

Thank you for purchasing a quality Rosewill Product.

Please register your product at : www.rosewill.com/ for complete warranty information and future support for your product.
