Rosewill RNX-G100 Manuale utente

Wireless G USB Adapter RNX-G100

Wireless G PCMCIA Adapter RNX-G200

Wireless G PCI Adapter RNX-G300(E)

Quick Installation Guide

RNX-G100 / RNX-G200 / RNX-G300(E) User Manual

1. About This Guide

This Quick Installation Guide only provides you some basic instructions. For more detailed

information, please refer to the User Manual.

Before you begin, you must have at least the following:

zA notebook /desktop pc with an available 32-bit Cardbus/PCI/USB slot

zAt least a 300MHz processor and 32MB of memory

zCardbus/PCI/USB controller properly installed and working in the computer

zAn 802.11g or 802.11b Access Point (for infrastructure Mode) or another 802.11g or 802.11b

wireless adapter (for Ad-Hoc; Peer-to-Peer networking mode.)

2. Install Driver and Utility

Windows Vista

zThe operating system will install all necessary driver files when a wireless adapter is plugged

into your computer. After approximately 1 minute, a message will appear at the lower

right-hand corner “Your new hardware is now installed and can be used.” The hardware and

software installation is completed.

Windows 98SE/ME/2000/XP/VISTA

zInsert the Driver and Utility CD-ROM into the CD-ROM driver.

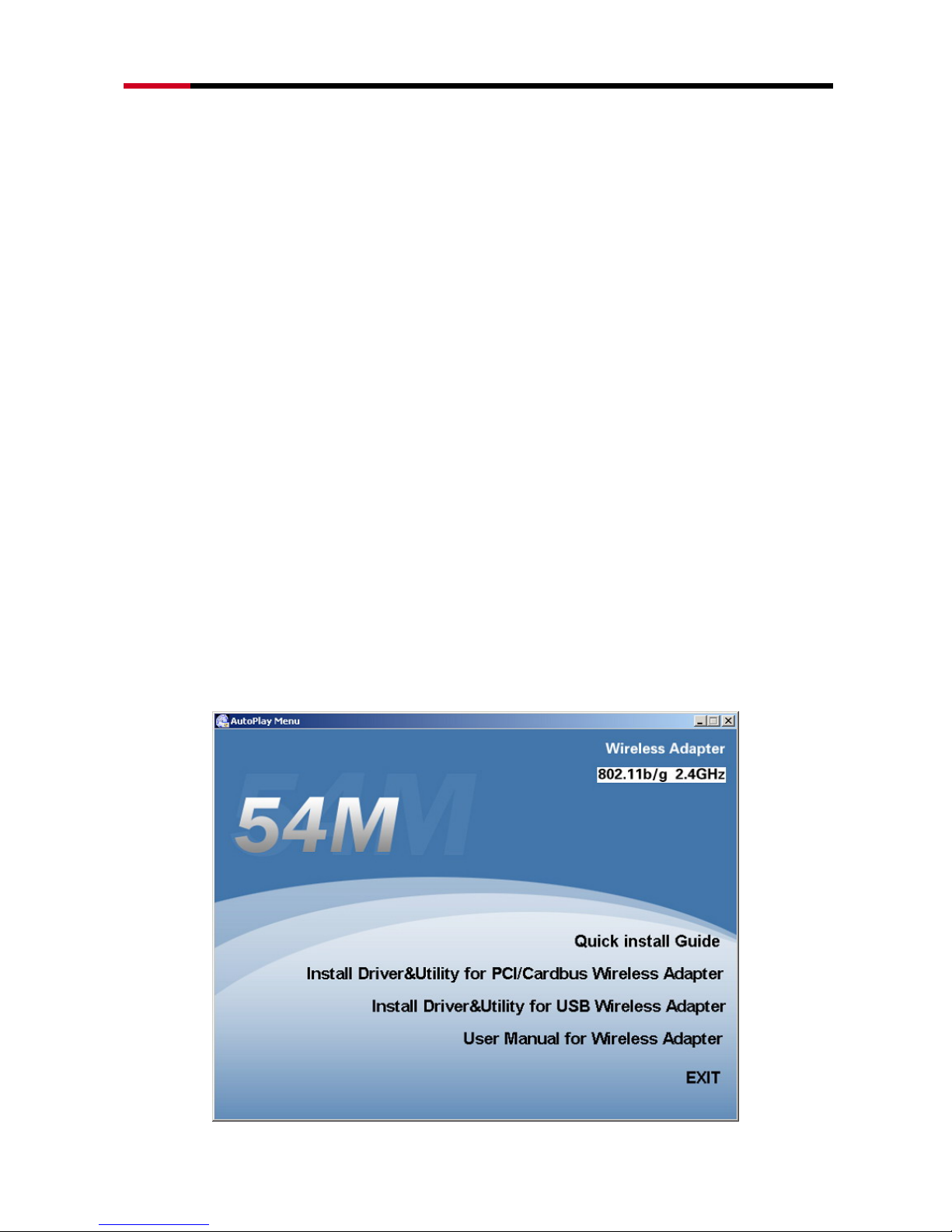

zThe Wizard should run automatically, and Figure 2-1 should appear. If it doesn’t, click the

Start button and choose Run. In the field that appears, enter C:\autorun.exe (if ‘’C’’ is the

letter of your CD-ROM drive).

Figure 2-1

RNX-G100 / RNX-G200 / RNX-G300(E) User Manual

zClick Install Driver & Utility on the Wireless Client Configuration Utility screen

Figure 2-2

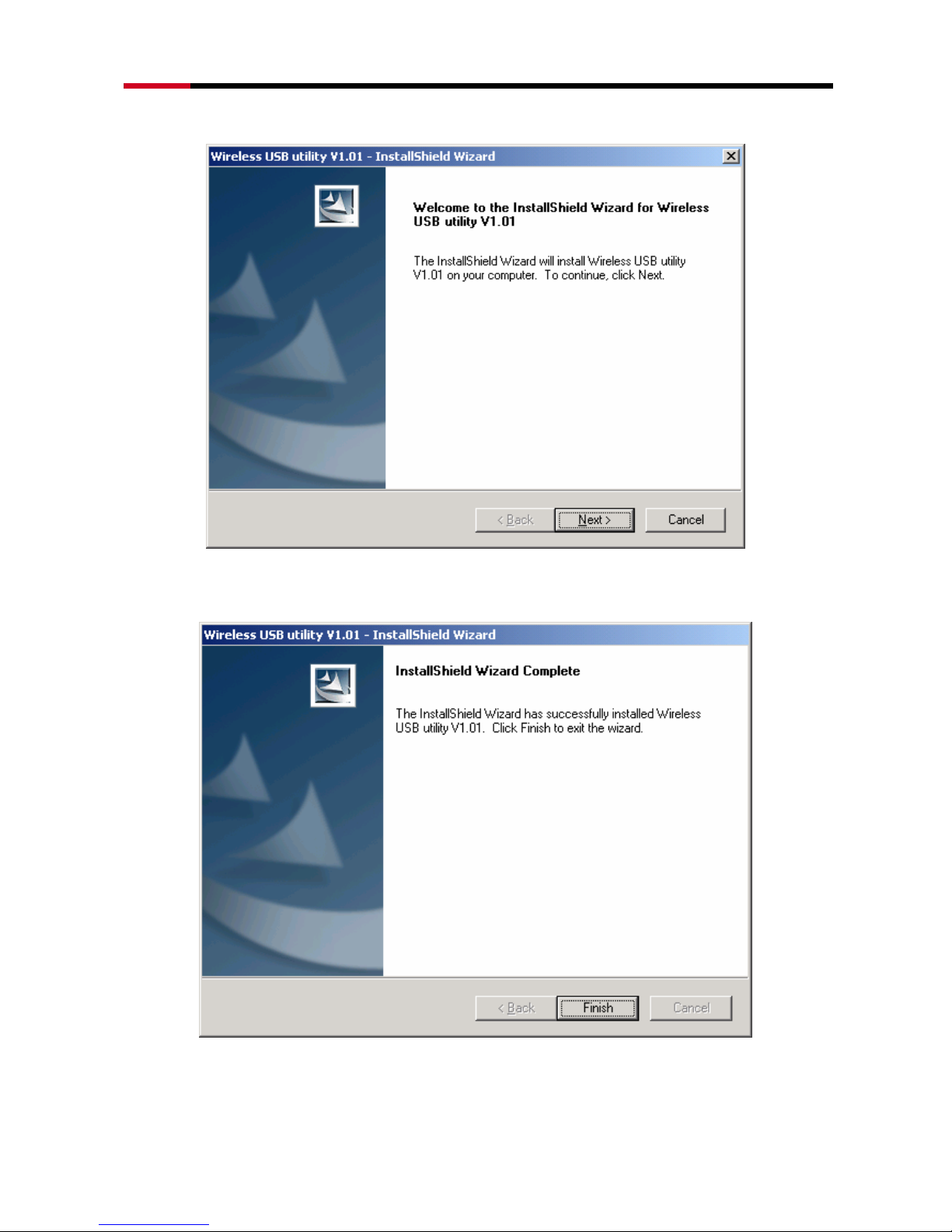

zFollow the Install Shield Wizard steps, and click Finish when done.

Figure 2-3

zNow the installation is complete

RNX-G100 / RNX-G200 / RNX-G300(E) User Manual

3. Install Wireless adapter

3.1 Cardbus Adapter - RNX-G200

zPower on your notebook, let the operating system boot up completely, and login as needed.

zHold the adapter with the LOGO facing up and insert it into a Cardbus slot.

Figure 3-1

zIf the Found New Hardware Wizard displays, choose install the software automatically

(Recommended), and click Next button. The driver will be installed automatically.

Figure 3-2

RNX-G100 / RNX-G200 / RNX-G300(E) User Manual

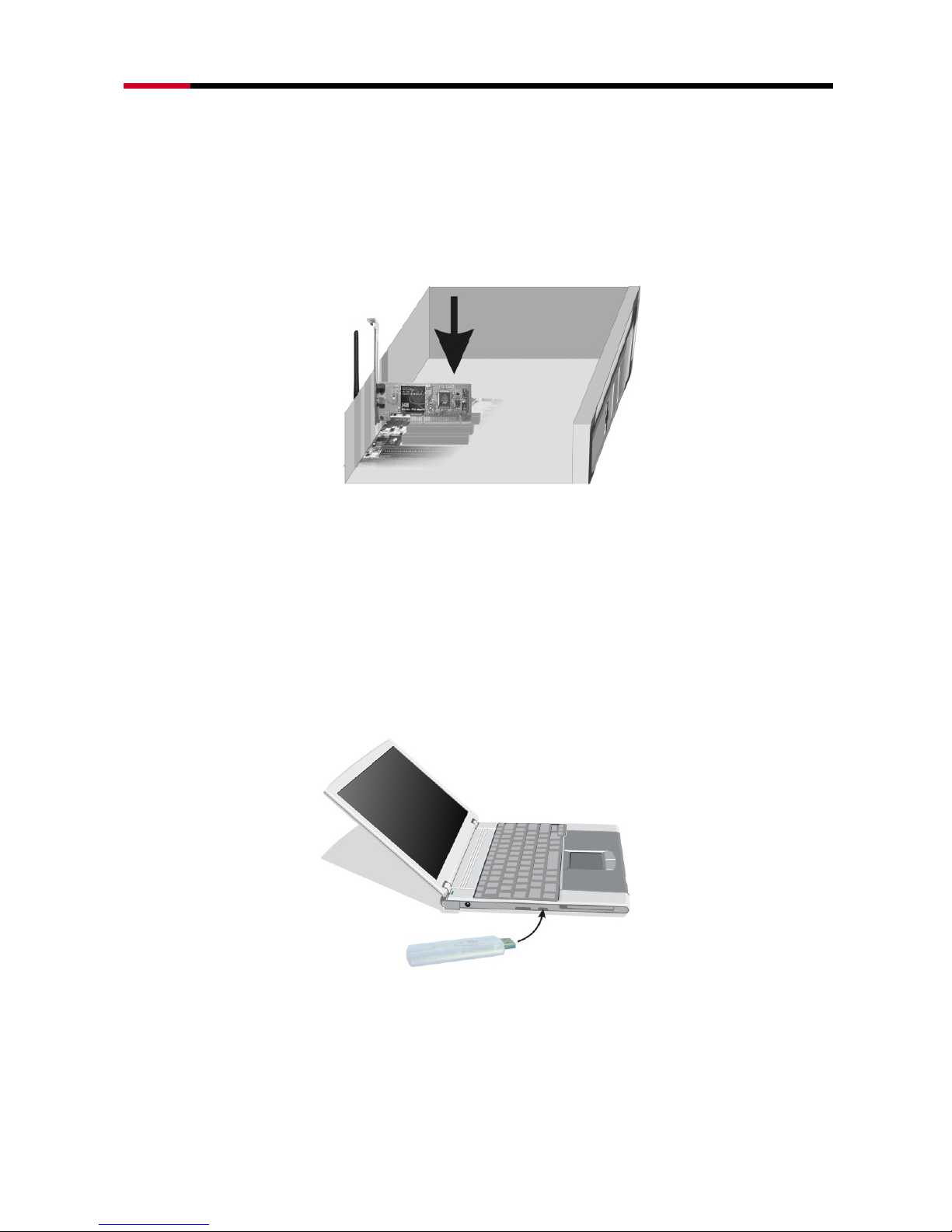

3.2 PCI Adapter - RNX-G300(E)

zOpen your PC case and locate an available PCI on the motherboard.

zSlide the PCI Adapter into the PCI slot. Make sure that all of its pins are touching the slot’s

contacts. You may have to apply a bit of pressure to slide the adapter all the way in. after the

adapter is firmly in place, secure its fastening tab to your PC’s chassis with a mounting screw.

Then close your PC.

zAttach the external antenna to the adapter’s antenna port.

zPower on the PC.

Figure 3-3

zIf the Found New Hardware Wizard displays, choose install the software automatically

(Recommended), and click Next button. The driver will be installed automatically.

3.3 USB Adapter - RNX-G100

zPower on your PC, let the operating system boot up completely, and login as needed.

zHold the adapter and insert it into a USB slot.

zIf the Found New Hardware Wizard displays, choose install the software automatically

(Recommended), and click Next button. The driver will be installed automatically.

Figure 3-4

You have now completed the driver and hardware installation for the Adapter

4 Configuration your wireless adapter

zThe Wireless Client Configuration Utility screen will appear automatically.

RNX-G100 / RNX-G200 / RNX-G300(E) User Manual

Figure 4-1

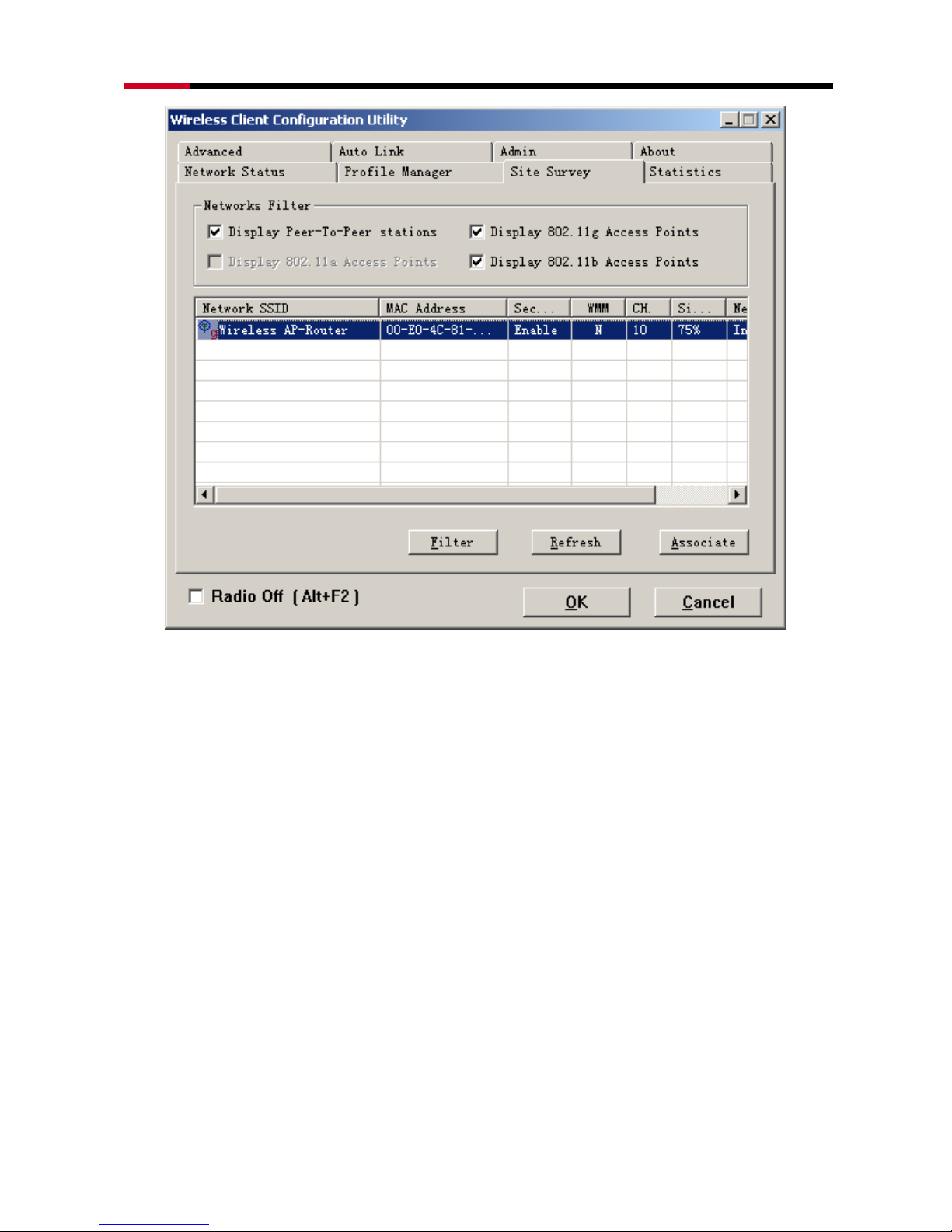

zClick the Site Survey tab then click the Refresh button to search for available wireless

networks.

RNX-G100 / RNX-G200 / RNX-G300(E) User Manual

Figure 4-2

zTo connect to one of the networks on the list, select the wireless network, and click Associate

button.

Congratulations! You’ve successfully configured your wireless adapter!

Please read detail user manual and trouble shooting from the driver disk.

Or contact [email protected] for more support.

Thank you for purchasing a quality Rosewill Product.

Please register your product at : www.rosewill.com for complete warranty information and future support for

your product.
