Rosewill RX81US-HT35B-BLK Manuale utente

External Enclosure for

3.5" SATA to USB + eSATA

RX81US-HT35B-BLK

User Manual

External Enclosure For 3.5” SATA to USB + eSATA User Manual

Please read this installation carefully before you use the

products.

Precaution:

zIf it is a new HDD, needs to processing the disk partition

zWin98SE and WinME do not recognize NTFS formatted drives,

so if you want to use your drive on those platforms, we

recommend you to use FAT32 instead.

zMac OS does not recognize NTFS formatted drives, to use your

device on both platforms, we recommend you using FAT32.

zIf you use Win2000 / WinXP / Win Vista and FAT32, the biggest

single partition you can create will be 32GB. To create larger

partitions, you need to use the DOS command under Win98SE

or WinME or change to NTFS format.

zMake sure the jumper settings of your hard drive is “master”.

zGreen light (access light) only light on when HDD accessing.

System Requirement:

zMinimum Intel Processor II 350MHz, 64MB RAM

zCompatible with IBM PC, USB interface included，Windows

98SE/ME/2000/XP/Vista operate system.

zMinimum Apple G3 processor, 64MB RAM

zMAC computer system MAC OS V8.6 or higher.

zLinux OS : please download kernel USB stack.

External Enclosure For 3.5” SATA to USB + eSATA User Manual

Available Interfaces

USB 2.0 + e-SERIAL ATA

Protection of DC adapter

a. Primary (Input) Protection

The input power line will be fused with a fuse 2.0A, 250 VAC.

b. Secondary (Output) protection

b.1. Over Current (OC) Protection

When an internal fault occurs, or an external fault is applied to the

power, such that an overload or short circuit is applied to the

output, the power will be shutdown. Power latch is not allowed.

b.2 Over Voltage (OV) Protection

If an over-voltage fault occurs on the adapter output, the power

will shutdown.

b.3 Short Circuit Protection

The power will protect itself, and shut down, if a short circuit is

placed between DC return and the output. This condition will

cause no damage to the power. Power latch is not allowed.

External Enclosure For 3.5” SATA to USB + eSATA User Manual

Package Contents

z3.5 inch external enclosure

zDriver Disk

zInstallation Guide

zAC adapter

zUSB cable

zeSATA cable

zFootstand

zScrew Kit

FEATURE

zStandard USB 2.0 high speed transfer rate.

zSupport Serial ATA. (USB + e-SATA)

zAluminum HDD frame for easy installation.

zCrystal acrylic casing with blue & green LED illumination.

zSuitable for all 3.5" SATA HDD.

zAll aluminum, to enhance heat dissipation.

zCrystal footstand for vertical style.

zPlug and play / hot swappable.

zOS support Windows 98SE/ME/2000/XP/Vista/Mac OS 8.6

above.

External Enclosure For 3.5” SATA to USB + eSATA User Manual

Technical Specifications

Bus

Interfaces: USB v 2.0 / eSATA

Data Speeds USB 2.0 = 480 Mbps

eSATA = 3.0 Gbps (NCQ Support)

Connectors USB B receptacle / eSATA connectors

SATA

Standard

Compliant with SATA I / II with NCQ

support

LED Power On / Access

Power Supply AC Adapter 12V 2A

AC Input 100V ~240V full range

Dimensions 208 (D)*128 (W)*36(H) mm

Weight: 0.84Kg

Certification CE

External Enclosure For 3.5” SATA to USB + eSATA User Manual

Installation Guide

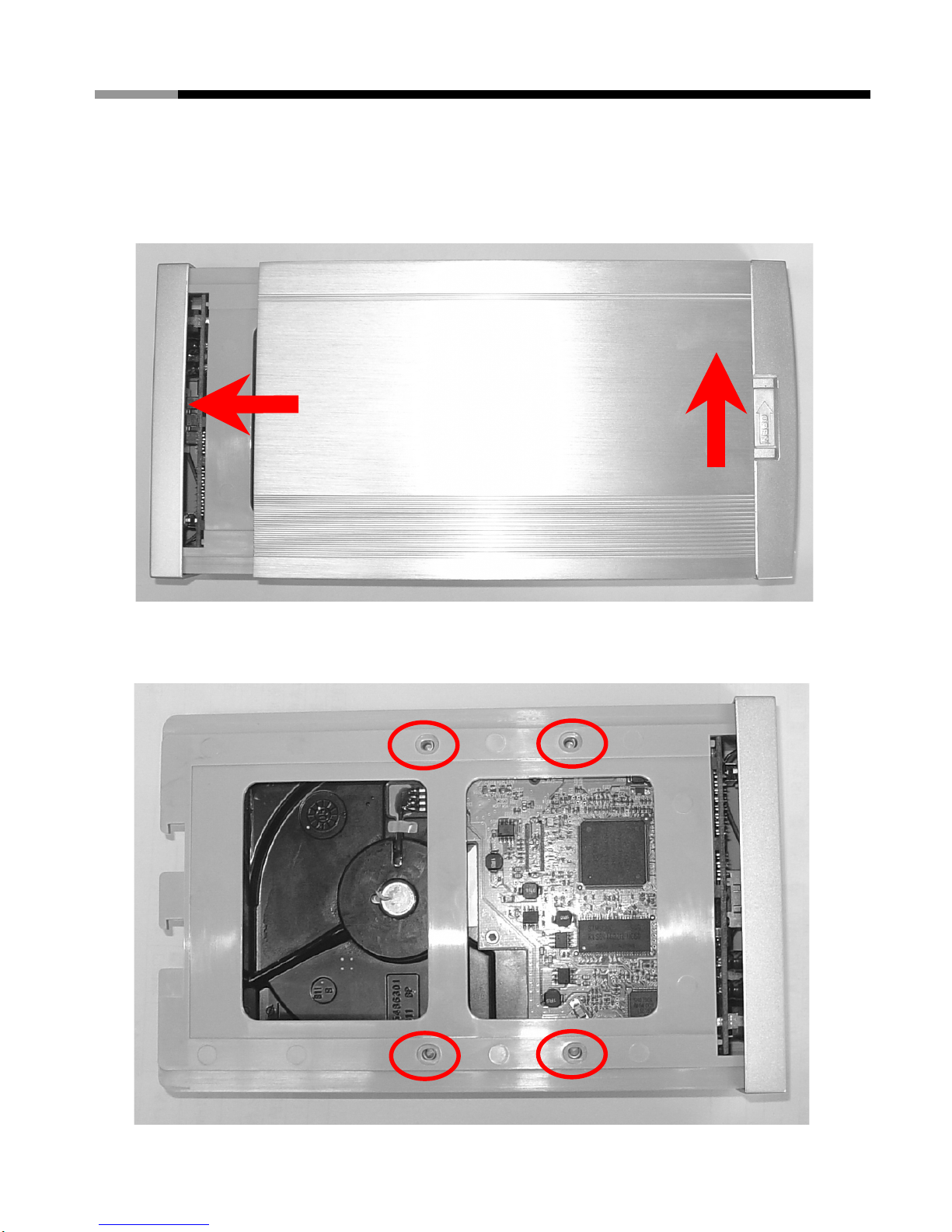

1. Pull the bottom (as fig.1) to release the HDD tray.

2. Fix the HDD by screws after HDD located with the connecter.

External Enclosure For 3.5” SATA to USB + eSATA User Manual

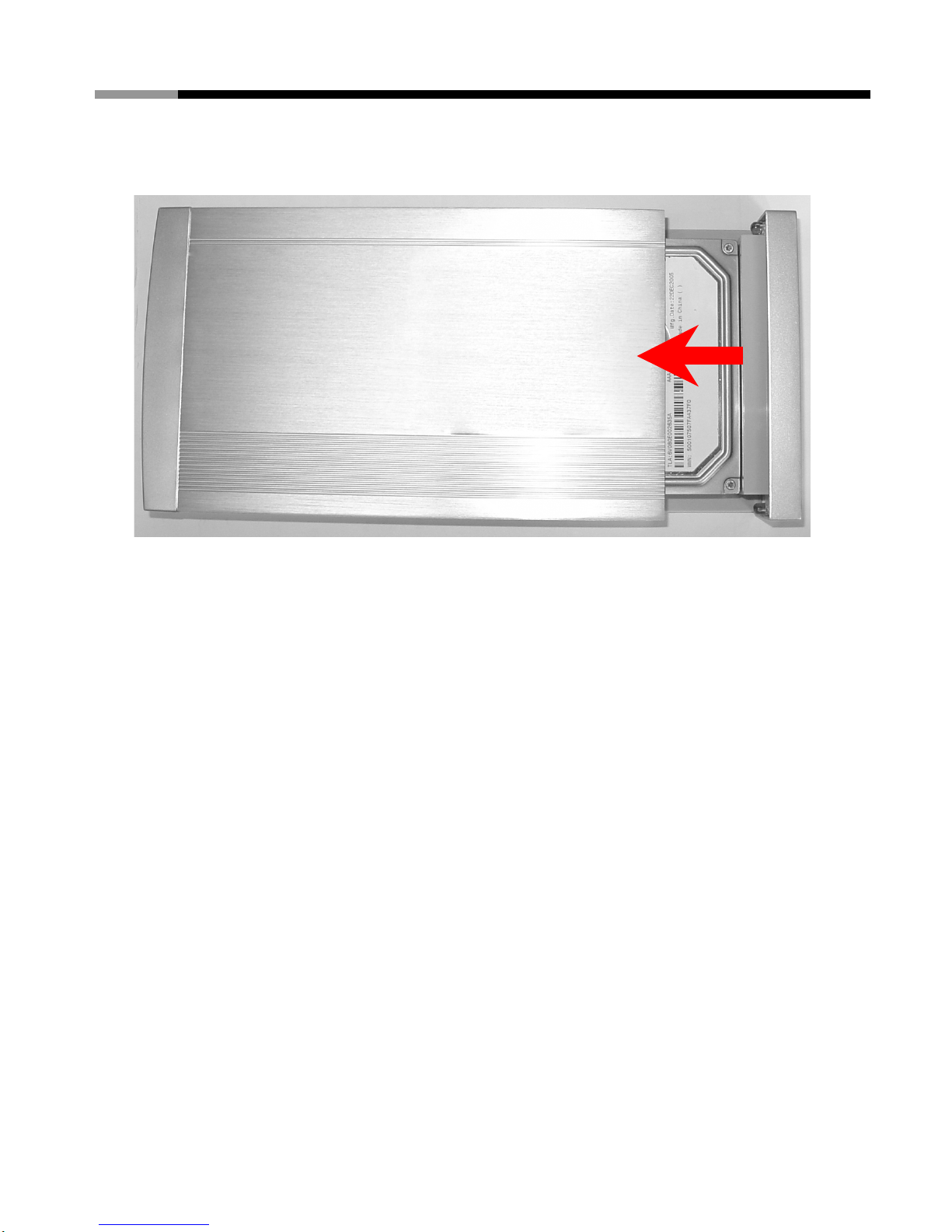

3. Aims at trail and pull in the tray into external box.

4. After connect USB / SATA and Power cable, HDD will appear

the relativity.

Attention:

zMake sure your PCI Host Card is installed correctly

zIf required, update your OS (win 2000 to SP4, Win xp to SP1a)

zOnly one interface at the time can be used (combo model)

External Enclosure For 3.5” SATA to USB + eSATA User Manual

Driver Installation:

Windows 98SE

zAfter plug the external box into, the system will remind you

there is a new hardware of USB Storage Adapter add into.

zDesign the driver of the safe path (in the driver), the system will

active the installation automatically.

zAfter for a while, click "My Computer", USB HDD will appear the

relativity on the PC.

Windows ME/2000/XP/Vista

The system already provided support for the software.

MAC OS 8.6/9.x/above

OS 8.6 edition:

zThe Driver is the “GeneUSBIDE_05E3_0702.sit” under the

catalogue of the MAC, copy the document to the tope a table

and clicks the document out, and then it will occur

the document of the driver automatically.

zPlease copy the driver document to the system folder of the PC.

-- (System Folder) -(extensions).

zConnect with the USB HDD

OS 9.X edition:

The system already provides support for the software.

External Enclosure For 3.5” SATA to USB + eSATA User Manual

The divided partition of the external HDD

Win 98SE/ME SYSTEM

FDISK is command that doing the divided partition to HDD, The

step of how to divided partition from the HDD by using FDISK as

follows:

zPlug the cable of USB into PC, and be sure that the PC has

identified HDD.

zExecute "FDISK" under the model of COMMAND.

zAfter enter the FDISK program [If the FDISK program does not

work, please restart your PC again (don't plug out the USB

HDD) then it will be work]. Firstly select "The fifth item" -- select

the USB HDD you want to divided partition for, then just see

the illustration as follows: Then just follow the instruction to

divided partition for the HDD of USB.

Windows 2000/XP/Vista

Plug the HDD into your system, it will appear the hot plug a play.

Just click “Control Panel”/ “manage tool” / “computer

management” / “Disk management”. All the disk connects to the

PC will appear on the chart, as well as the state of the HDD. Find

out the HDD and click the right bottom of the mouse under the

state of chart, just follow the step. Take a look of the icon on the

bottom.

Mac OS

Mac OS9.2 and earlier version does not support creating partition

on an external HDD. For your new HDD, you need to purchase

additional 3rd party software to creating your HDD partition.

For Mac OS X, use the Disk Utility to format and divided partitions

on your external disk.

• Select “Disk Utilities” in the utilities folder.

• Choose your external drive and format it.

External Enclosure For 3.5” SATA to USB + eSATA User Manual

Notice: If you want your ENCLOSURE on a Windows as well as on

your Mac OS, we recommend you to use a PC to format the drive.

Choose FAT32 format and do not change anything on the partition

or format on your Mac, otherwise the Windows OS can not be able

to recognize the enclosure.

To remove the device:

For Windows 98SE Users

Before you remove your device please wait for “Access LED” on

reader stops blinking to prevent data loss.

For Windows ME/2000/XP/Vista Users

Please double-click the icon on the system tray. A dialog

box will appear.

Double-click the Generic USB Storage Device to remove the

device for preventing from data loss.

Mac OS

You can remove the cable of USB after putting the icon of USB

HDD on the desktop into the trash can.
