Rosewill ZIRCON I Manuale utente

PRODUCT OVERVIEW

Disassembly Chart (components vary by country)

Thank you for purchasing a Rosewill Case.

Please read the instruction manual before use and retain for future reference.

ZIRCON I

Dimensions: 210 x 440 x 470 mm (W x D x H)

Left Side View

Front View

440 mm210 mm

470 mm

Front Panel

Right Side Panel

120mm Fan

Bottom Dust Filter

Left Side Panel

Rosewill/11-147-313_ZIRCON I/UM/單色雙面印刷/

左翻摺頁騎馬釘/完成尺寸:148x210mm(A5)/20190830

折線

正面

背面

2 3

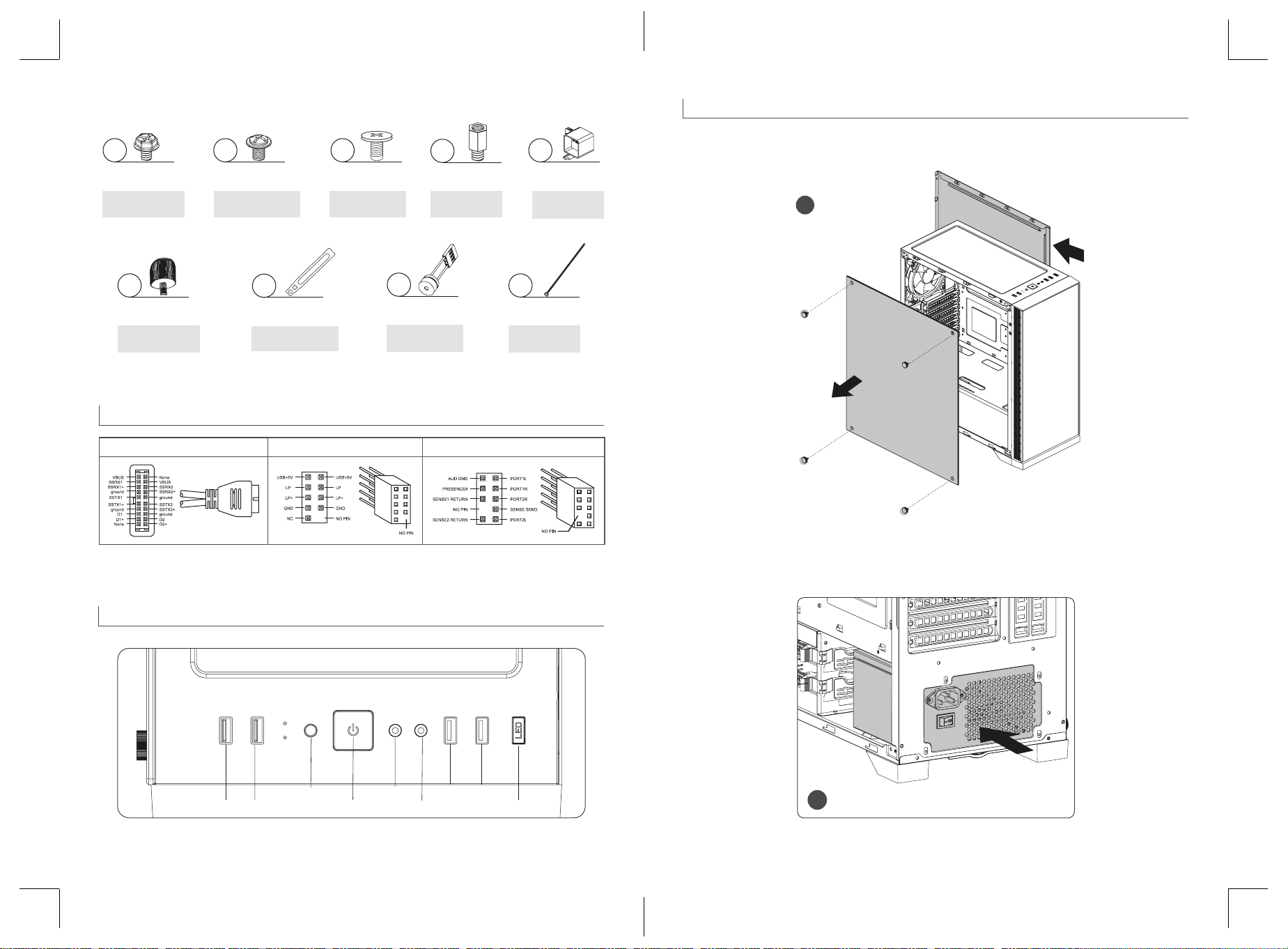

INSTALLATION GUIDE

FRONT I/O

2. Install Power Supply

2-1. Set the power supply unit (PSU) at the bottom-rear of the case and secure with Screw-A

(Figure 2).

1. Open the Unit

1-1. Remove the thumb screws and take off panel R and L (Figure 1).

Accessory Box

FRONT I/O CABLE PINOUT

x8 x18 x8 x1

Screw-A

(6-32 x 6 mm)

Screw-B

(M3 x 5 mm)

Screw-C

(8mm)

VGA Holder

PSU

Add-on Card

Motherboard

2.5” HDD/SSD

3.5” HDD Vertical VGA

Installation

x1 x1 x5

Thumb screw Speaker Cable Tie

VGA Holder Motherboard Cable

Management

Standoff

Motherboard

Slot Cover

PCI-e Slot

Speaker

MIC

USB 3.0

Reset

LED

Power

USB 2.0

USB 3.0 CONNECTOR USB 2.0 CONNECTOR HD Audio CONNECTOR

4 5

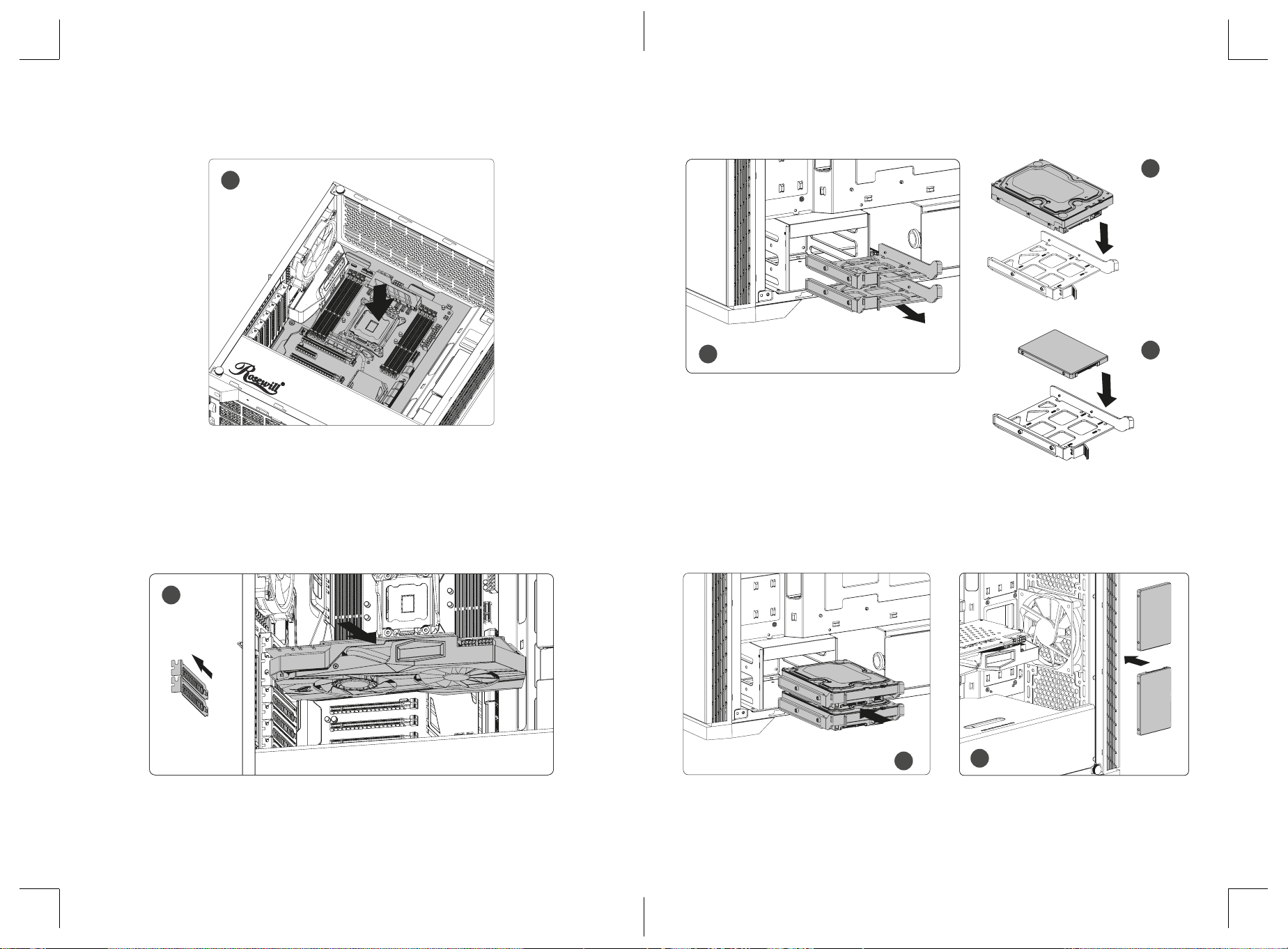

3. Install Motherboard

3-1. Secure the motherboard onto the pre-installed standoffs with Screw-B (Figure 3).

4. Install Add-on Card

4-1. Bend to remove the slot covers, then install the add-on card and secure with Screw-A

Figure 4).

5. Install 3.5”/2.5” HDD/SDD

5-1. Slide the trays out from drive cage (Figure 5a).

5-2. Install SSD/HDD onto the trays and secure with Screw-B or C (Figure 5b/5c).

5-3. Insert the trays back into drive cage (Figure 5d).

5-4. Alternatively, you can also install 2.5” SSD directly onto the front of chassis, securing

with Screw-B (Figure 5e).

5a 5c

6 7

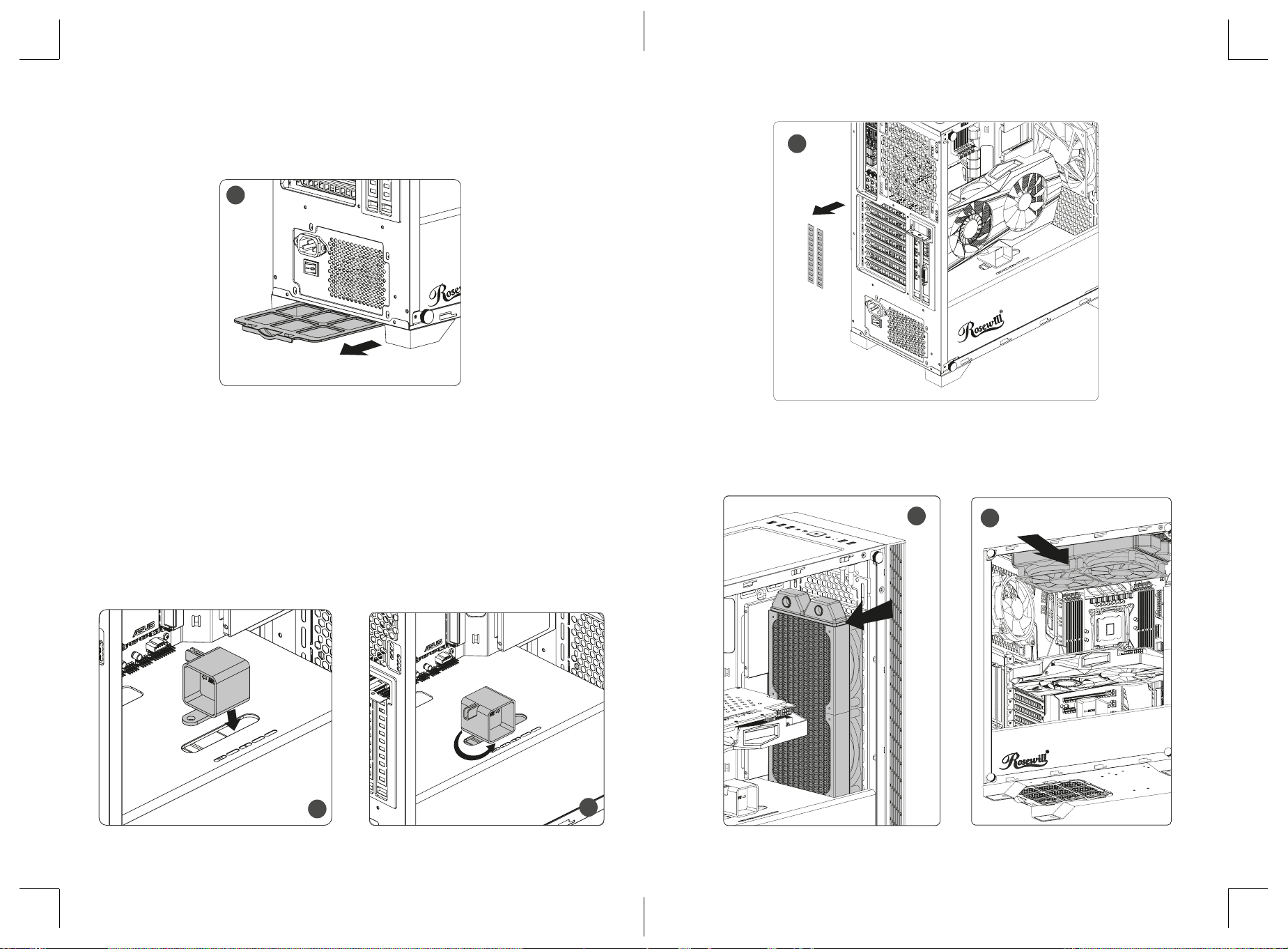

6. Care

To prevent damage, keep all panels closed and secured.

6-1. Put the side panels back in place and secure with thumb screws.

6-2. Clean the dust lters on top/bottom regularly to ensure adequate airow (Figure 6).

7. Options

7-1. Additional Fan Installation

The ZIRCON I features ample space for additional cooling fans. Please refer to the

Specications Table for options.

7-2. LED Light Mode

Briey press the LED light button to select desired mode:

Rainbow > Red > Green > Blue > Purple > Cyan > Lime > White > RGB-1 (seven-color-

breathing) > RGB-2 (seven-color-blinking) > Off

7-3. Vertical VGA Installation

The ZIRCON I supports vertical VGA installation:

7-3-1: Insert the VGA holder into the slot and twist it counterclockwise (Figure 7a/7b).

7-3-2: Bend to remove the vertical slot cover, then install the VGA card (optional, not

included). Adjust the position of VGA holder and secure with thumb screw (Figure 7c).

7-4. Liquid Cooling Radiator Installation

The ZIRCON I supports the option of installing a 360 mm radiator in the front (Figure

7d) and a 240 mm radiator on the top (Figure 7e) to more effectively cool high-

performance systems:

SPECIFICATIONS TABLE

Model

Model Name ZIRCON I

Specifications

Type Mid Tower

Color Black

Case Material Steel/Plastic/Tempered Glass

With Power Supply No

Power Supply Mounted Bottom

Motherboard Compatibility ATX, Micro ATX, Mini ITX

With Side Panel Window Yes/Tempered Glass Side Window

Expansion

Internal 3.5" Drive Bays 2 (0)

Internal 2.5" Drive Bays 2/4

Expansion Slots 7+2

I/O Ports

Front Ports

2 x USB 3.0

2 x USB 2.0

Audio In/Out

LED Modes

Cooling System Options

120 mm Fans

3 x Front (1 x Black Fan pre-installed)

2 x Top (optional)

1 x Rear (1 x RGB Dual Ring Fan pre-installed)

140 mm Fans

2 x Front (optional)

2 x Top (optional)

1 x Rear (optional)

Physical Specifications

Dimensions 8.27 x 18.50 x 17.32 in (W x H x D)

Weight 15.43 lb

ZIRCON I_B

Technical Support Information [email protected] 1-800-575-9885

Please register your product at www.rosewill.com for complete warranty information and support for your product.
