Rosewill SRM-01B-450 Manuale utente

Thank you for purchasing a Rosewill Case.

Please read the instruction manual before use and retain for future reference.

SRM-01B-450

Panel R

Front Panel

80 mm Fan

x8 x6 x16

M/B Standoff Screw-A Screw-C

Screw-B Buzzer

Motherboard 3.5” HDD

PSU

GPU

Motherboard

5.25"Device

2.5" SSD/HDD

Motherboard

Alarm

Accessory Kit

x8 x1

Panel L

PRODUCT OVERVIEW

Disassembly (components vary by country)

450W PSU

2. Install Motherboard

2-1. Unscrew to release the HDD panel (Figure 2a).

2-2. Line up the standoffs with the screw holes on the motherboard (Figure 2b).

INSTALLATION GUIDE

1. Open the Unit

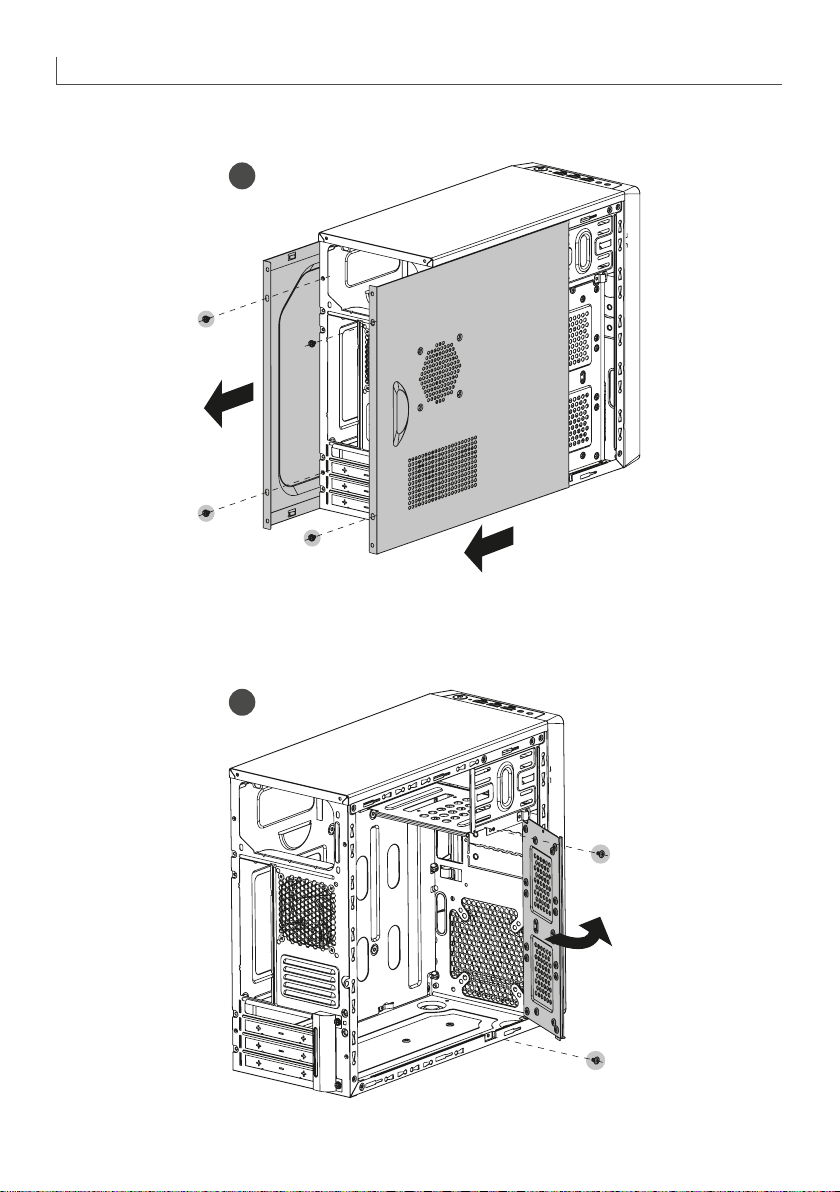

1-1. Untwist the thumb screws and slide out panels Rand L (Figure 1).

2-3. Screw the motherboard down with Screw-B (Figure 2c) .

3. Install Add-on Card

3-1. Unscrew to release the HDD panel (Figure 3a).

3-2. Install the add-in card and secure with the screws (Figure 3b).

4. Install a 5.25" Drive

4-1. Pull the front panel out and remove it (Figure 4a).

4-3. Install the front panel back onto the case (Figure 4c).

4-2. Insert the 5.25" drive and secure with screws (Figure 4b).

5. Install a 3.5" or 2.5" Drive

5-1. Unscrew to release the HDD panel (Figure 5a).

5-2. Secure a 3.5" HDD/2.5" SSD onto the panel and with screws, and then screw the panel

back on (Figure 5b).

6. Care

To prevent damage, it is recommended that all panels remain closed and secured.

6-1. Slide the side panels back into place and secure with thumbscrews (Figure 6).

I/O DIAGRAM

Power

Button

Power LEDUSB 3.0 USB 2.0SPK MIC

USB 3.0 CONNECTOR USB 2.0 CONNECTOR HD Audio CONNECTOR

I/O PIN-OUT

SRM-01B-450_A

Model

Model Name SRM-01B-450

Specs

Type Mini Tower

Color Black

Case Material Steel / Plastic

Power Supply 450W

Power Supply Mounted Top

Motherboard Compatibility Micro ATX, Mini ITX

With Side Panel Window No

Expansion

External 5.25" Drive Bays 1

Internal 3.5" Drive Bays 2(0)

Internal 2.5" Drive Bays 1(4)

Expansion Slots 4

I/O Ports

Front Ports

1 x USB 3.0

2 x USB 2.0

Audio In / Out

Cooling System

80 mm Fans 1 x Front (optional)

1 x Rear (pre-installed)

120 mm Fans 1 x Front (optional)

Physical Specs

Dimensions 6.69" x 13.78" x 14.96" (W x H x D)

Weight 9.15 lb

SPECIFICATIONS TABLE

Technical Support Information [email protected] 1-800-575-9885

Please register your product at www.rosewill.com for complete warranty information and support for your product.
