Rosewill RX20-U2 Manuale utente

- 1 -

Rosewill RX20-U2 USB 2.0

User Manual

Rosewill 2.5” ATAto USB2.0 High Speed External Hard Drive Enclosure

Table of Contents

Chapter 1 Introduction................................................................................ P.02

Chapter 2 Package Contents...................................................................... P.03

Chapter 3 Hardware Installation Guide...................................................... P.04

Chapter 4 Installation Procedure................................................................ P.09

Chapter 5 Unplug Procedure...................................................................... P.12

Chapter 6 Partitioning & Formatting..............................................................P.15

Chapter 7 Performance Test..........................................................................P.18

- 2 -

Chapter 1

Introduction

1.1 The Rosewill RX20-U2 is a slim, compact and outstanding looking

IDE to USB 2.0 external Hard Drive enclosure. The case is made of

aluminum and as one of the smallest enclosures available nowadays,

a 2.5” HDD with a thickness of 9.5mm fits exactly. Being small enough

to fit in your pocket, makes it very convenient for carrying your data

while on the go, no matter if used on a PC or a Mac.

1.2 System Requirement

a. Hardware: PC or MAC with USB interface

b. OS requirement: Windows 98/SE, Windows ME

Windows 2000, Windows XP

Mac OS 8.6 and above

1.3 Product Dimension: 12.5cm x 7.6cm x 1.3cm

4.92”x2.99”x0.53”

- 3 -

Chapter 2

Package Contents (may vary between your product and the items stated below)

1. RX20-U2 (ATAto USB 2.0 External Hard Drive Enclosure)

2. USB 2.0 Cable

3. CD with Driver

- 4 -

Chapter 3

Hardware Installation Guide

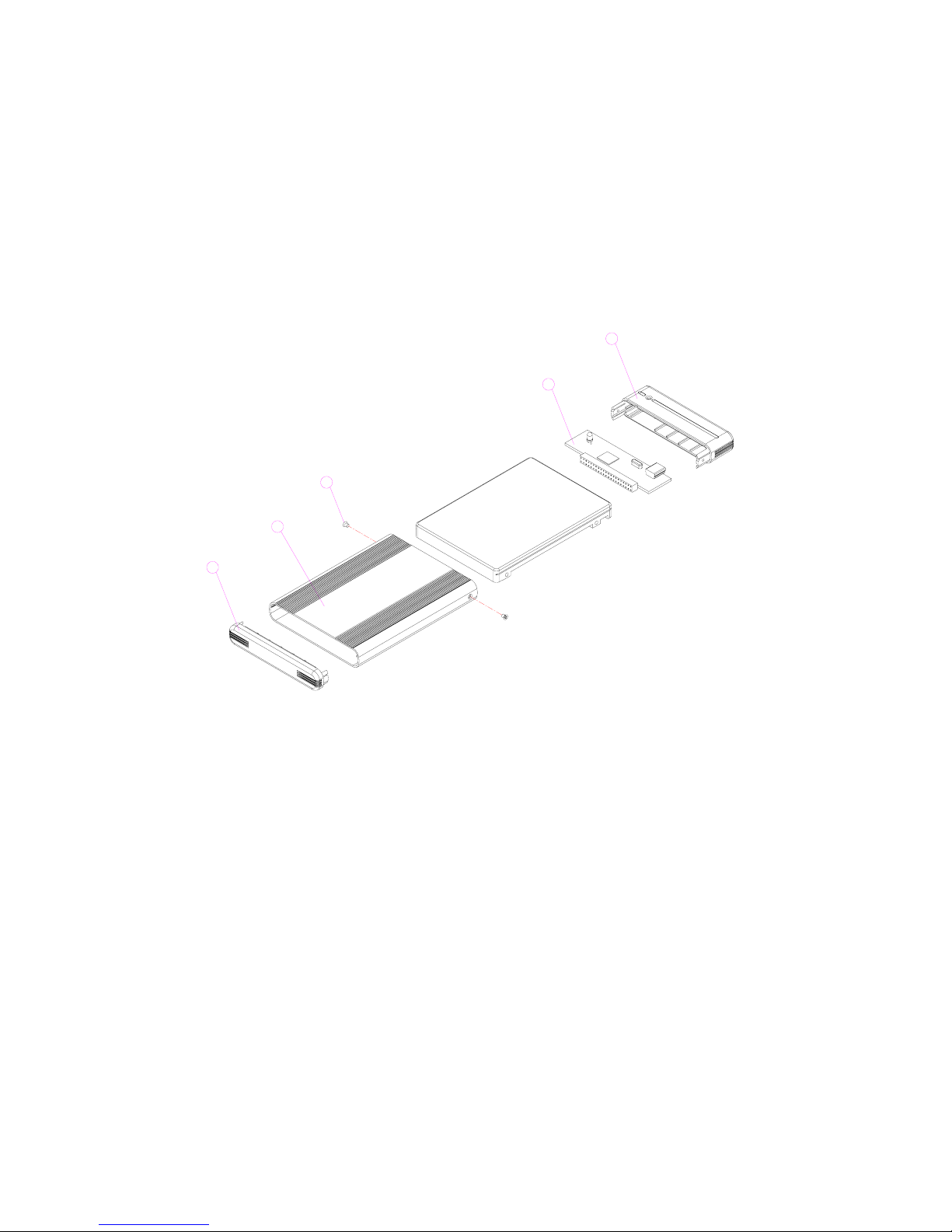

3.1 Exploded View

(See Figure A)

Figure A

- 5 -

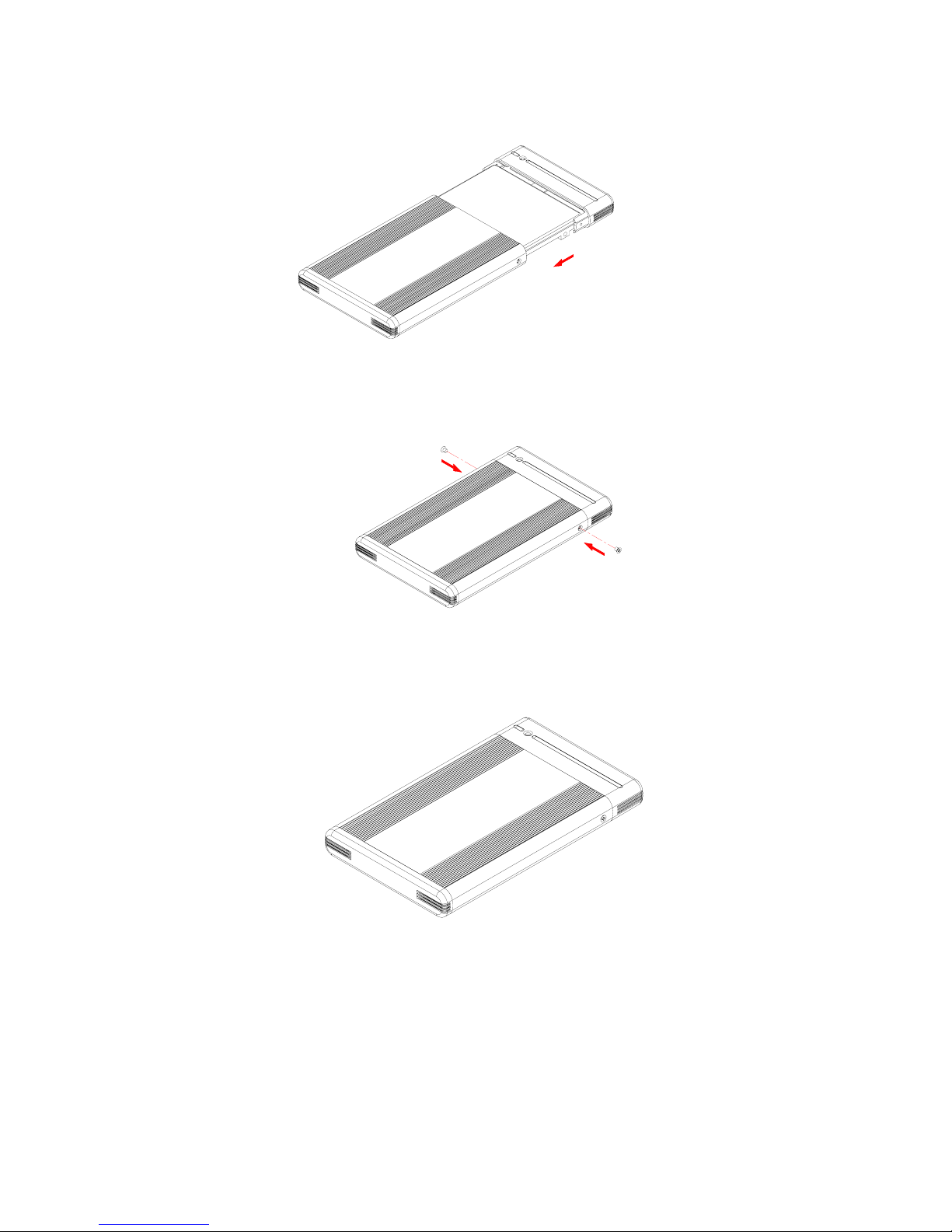

3.2 Chassis Assembly

Unscrew the two screws, then remove the back panel

(See Figure B - D)

Figure B

Figure C

Figure D

- 6 -

3.3 Hard Drive Installation

Connect the hard drive, install it and fasten the screws

(See Figure C - G)

Figure C

Figure D

Hard Drive jumper settings: Set to “Master”!

Hard Disk maximum thickness: 9.5mm

- 7 -

Figure E

Figure F

Figure G

- 8 -

3.3 System Set Up

(See Figure H)

COMPUTER

Figure H

- 9 -

Chapter 4

Installation Procedure

4.1 Installation on Windows 98/SE (USB 2.0)

Turn on your computer and start Windows

Connect the RX20-U2 to your computer’s USB port

Driver Installation

Insert the included driver CD and follow the onscreen instruction

(See Figure 1 – 3)

Step 1

Figure 1

- 10 -

Step 2

Figure 2

Step 3

Figure 3

RX20-U2
