Rosewill SPECTRA D100 Manuale di istruzioni

Gaming Case

Quick User Guide

Table of Contents

Thank you for purchasing a Rosewill Computer Case.

Please read the instruction manual before use and

retain for future reference.

1

• Product Overview

Disassembly Chart ............................................. 02

Accessory Box ................................................... 03

• Installation Guide

1. Open the Unit ................................................ 04

2. Install Power Supply ...................................... 04

3. Install Motherboard ........................................ 05

4. Install Add-on Card ........................................ 05

5. Install 3.5”/2.5” HDD/SSD ............................. 06

6. Care ............................................................... 08

7. Options .......................................................... 09

• Specications Table ........................................... 12

Front I/O Cable Pinout ....................................... 13

Front I/O ............................................................. 13

2

SPECTRA D100

Gaming Case

Product Overview

Disassembly Chart (components vary by country)

Dimensions: 210 x 470 x 440 mm (W x D x H)

Front View Left Side View

210 mm

470 mm

440 mm

Dust Filter

Right Side Panel

Front Panel

Left Side Panel Hard Drive

Bracket

Dust Filter

3

SPECTRA D100

Gaming Case

Accessory Box

Image Part Name Qty Function/Component

Screw-A (6-32 x 6 mm) 8PSU

Add-on Card

Screw-B (M3 x 5 mm) 18 Motherboard

2.5” HDD/SSD

Screw-C (6-32 x 6 mm) 8 3.5” HDD

Standoff 6+3 Motherboard

(6 pre-installed)

PCI-e Slot Cover

2 PCI-e Slot

VGA Holder

1 Vertical VGA Installation

Cable Tie 5 Cable Management

Speaker 1 Motherboard

4

SPECTRA D100

Gaming Case

Installation Guide

1. Open the Unit

1-1. Remove the thumb screws and take off panels R and L (Figure 1).

1

2

2. Install Power Supply

2-1.

Seat the power supply unit (PSU) at the bottom-rear of the case and secure with Screw-A (Figure 2).

5

SPECTRA D100

Gaming Case

3. Install Motherboard

3-1. Secure the motherboard down with Screw-B (Figure 3).

3

4. Install Add-on Card

4-1. Bend to remove the slot cover, then install the add-on card and secure with Screw-A (Figure 4).

4

6

SPECTRA D100

Gaming Case

5. Install 3.5”/2.5” HDD/SSD

5-1. Slide the trays out from drive cage (Figure 5a).

5a

5-2. Install SSD/HDD onto the trays and secure with Screw-B or C (Figure 5b).

5b

7

SPECTRA D100

Gaming Case

5c

5d

5-3. Insert the trays back into drive cage (Figure 5c).

5-4. Alternatively, you can also install 2.5” SSD directly onto the front of chassis, securing with

Screw-B (Figure 5d).

8

SPECTRA D100

Gaming Case

6

6. Care

To prevent damage, keep all panels closed and secured.

6-1. Put the side panels back in place and secure with thumb screws.

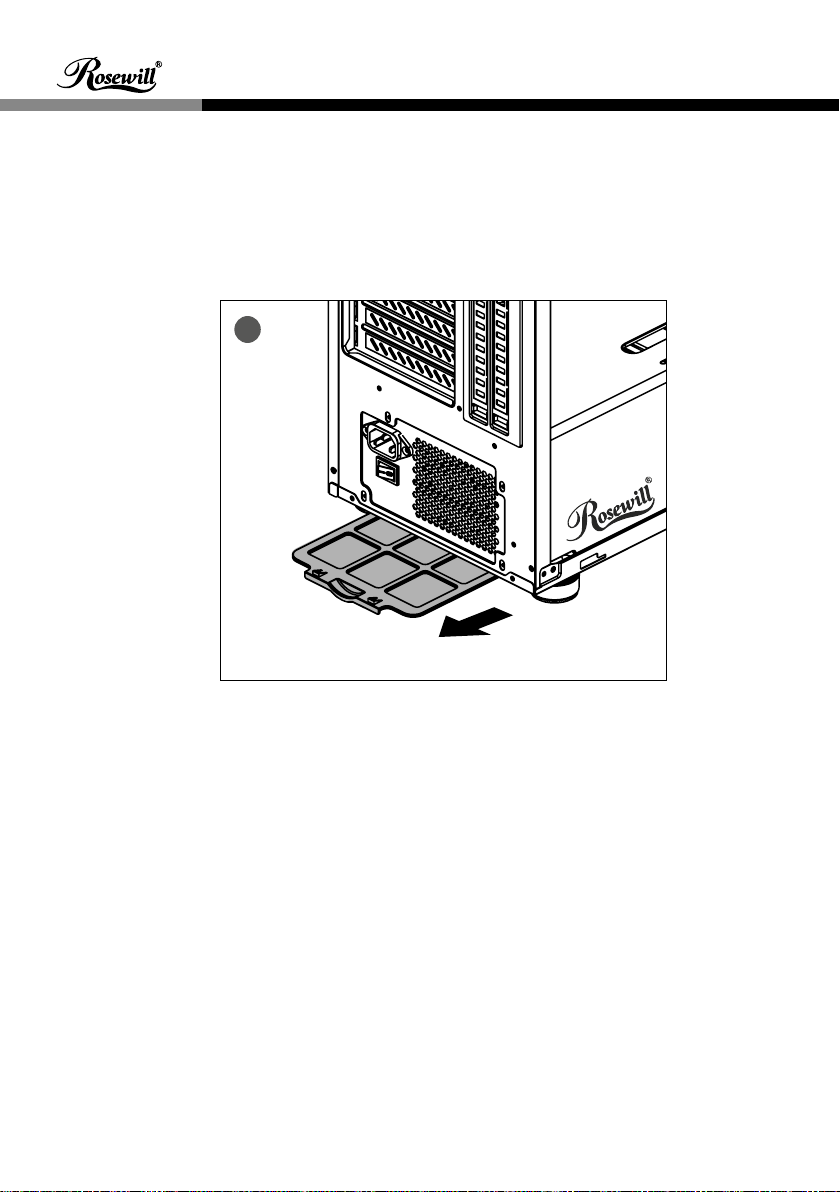

6-2. Clean the dust lters on top/bottom regularly to ensure adequate airow (Figure 6).
