Rosewill RC304-E Manuale utente

2 ports Parallel PCIe Card RC304-E

User Manual

2 ports Parallel PCIe Card RC304-E User Manual

Features and Benefits

zCompliant with PCI Express Base Specification 1.0a

zSupports Standard Parallel Port(SPP), Enhanced Parallel Port(EPP) & Enhanced Capability Port(ECP)

zData transfer rate up to 1.5MB/Sec

zPCI-Express X1

z2 x 25 pins parallel connectors

Package Contents

zPCIe Parallel Card 2 Ports

zDriver CD

zUser Manual

System Requirements

zWindows® 2000/XP/Server 2003

zPCI Express-enabled system with an available PCI Express slot

Hardware Installation

1. Turn Off the power to your computer.

2. Unplug the power cord and remove your computer’s cover.

3. Remove the slot bracket from an available PCIe slot.

4. To install the card, carefully align the card’s bus connector with the selected PCIe slot on the motherboard. Push the

board down firmly.

5. Connect the system power source to the board’s power connector.

6. Replace the slot bracket’s holding screw to secure the card.

Replace the computer cover and reconnect the power cord.

Driver Installation

Please make sure the board is installed before proceeding with driver installation.

For Windows® 2000

1.At the Found New Hardware Wizard, click Next.

2.Select Search for a suitable driver for my device(recommended), and click Next.

2 ports Parallel PCIe Card RC304-E User Manual

3.Check Specify a location, uncheck the other boxes, then click Next.

4.Insert the Driver CD, type in D:\PCIe\2P\2000, then click OK. (Change D: to match your CD-ROM driver letter)

5.Click Next and Finish.

6.Restart Windows to complete the installation.

For Windows® XP

1.At the Found New Hardware Wizard, select Install from a list or specific location(Advanced), then click Next.

2.Insert the Driver CD, check Include this location in the search, uncheck the other box, type in D:\PCIe\2P\XP, then

click OK. (Change D: to match your CD-ROM drive letter)

2 ports Parallel PCIe Card RC304-E User Manual

3.If the Hardware Installation window pops up, click Continue Anyway, then Finish. Our driver has been thoroughly

tested for stability and compatibility.

4.Repeat steps 1-3 two more times.

5.Restart Windows to complete the installation.

For Windows® Server 2003

1.At the Found New Hardware Wizard, select Install from a list or specific location(Advanced), then click Next.

2.Insert the Driver CD, check Include this location in the search, uncheck the other box, type in D:\PCIe\2P\2003, then

click OK. (Change D: to match your CD-ROM drive letter)

3.If the Hardware Installation window pops up, click Continue Anyway, then Finish. Our driver has been thoroughly

tested for stability and compatibility.

4.Repeat steps 1-3 two more times.

2 ports Parallel PCIe Card RC304-E User Manual

Restart Windows to complete the installation.

To Verify Windows® 2000/XP/Server 20003 Installation

1.Right click My Computer, then click Manage. Click Device Manager.

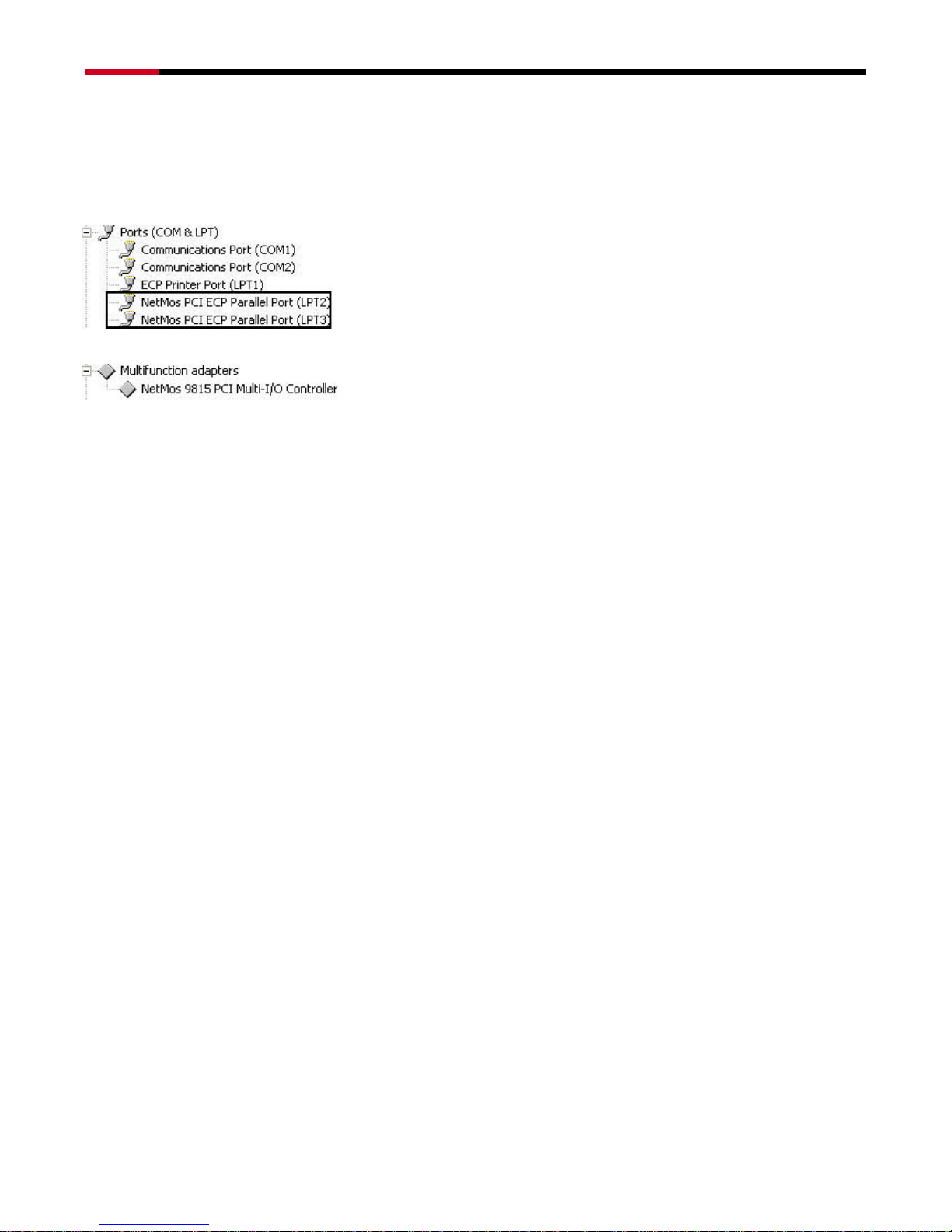

2.Click on the +(plus sign) in front of Ports(COM & LPT), two NetMos PCI ECP Parallel Port … should be displayed.

3.Double click Multifunction adapters, NetMos 9815 PCI Multi-I/O Controller should be displayed.

Change Parallel Port Address

Some parallel devices need a specific parallel port in order to work. If your parallel devices works properly, do not change

this settings.

For Windows® 2000/XP/Server 20003 Installation

1.From the Device Manager window double click Ports(COM & LPT), then double click the NetMos PCI ECP Parallel

Port …

2.Click Port Settings tab.

3.At the LPT Port Number box, click the down arrow and select an LPT port that is not in use.

Click OK, then close Device Manager to save the changes.

Thank you for purchasing a quality Rosewill Product.

Please register your product at : www.rosewill.com for complete warranty information and future support for your product.
