Rosewill RC-300 Manuale utente
1-Port Serial PCI Adapter RC300
User Manual
1
User Manual
1-Port Serial PCI Adapter RC300
Overview
This PCI I/O card is a single RS-232 port controller with PCI bus interface and uses an all-in-
one solution from NetMos Technology, which provides superior performance and unmatched
data transfer rates. The most advanced feature is it uses of a single interrupt, which is set
automatically by the host system and share among all on-board I/O ports and supports printer
interface as well as PS2, EPP & ECP modes.
Features
• Chipset: NetMos Nm9820
• OS power: Single 5V operation
• Bus: PCI 2.1s 32bit, 33MHz
• Data Transfer Rate: 1Mbytes/s (serial port)
• Selectable receive trigger levels
• PCI compatible single UART
• Modem control signals
• On chip oscillator
• 16Byte transmit-receive FIFO (UART)
• Software programmable mode selects
• Programmable baud rate generator
• Support plug & play features and makes installation fast and easy.
• Supports WindowsXP, Windows98, Windows95, Windows2000 & Windows NT 4.0.
Installing the PCI I/O controller card into your computer
1. Turn off your computer and all external devices connect it.
2. Remove the computer’s cover. Refer to your computer user’s manual for more details.
3. Find an available PCI slot and remove the metal bracket. Save the bracket screw for later
use.
4. Align the PCI I/O controller horizontally with respect to the PCI slot and insert it into the
slot firmly and evenly. Take care not to force it into the slot. Once you have properly
positioned the PCI I/O controller card into the slot, fasten it to the computer case with the
bracket screw you have saved.
5. Replace the computer’s cover.
6. Turn your computer on. You are now read to install the driver!
Driver Installation
Windows 95/98/2000/XP
Once the PCI I/O card is installed and the computer is restarted, Windows will detect the board
2
User Manual
1-Port Serial PCI Adapter RC300
and attempt to install driver for it.
1. Start Windows 95/98/2000/XP

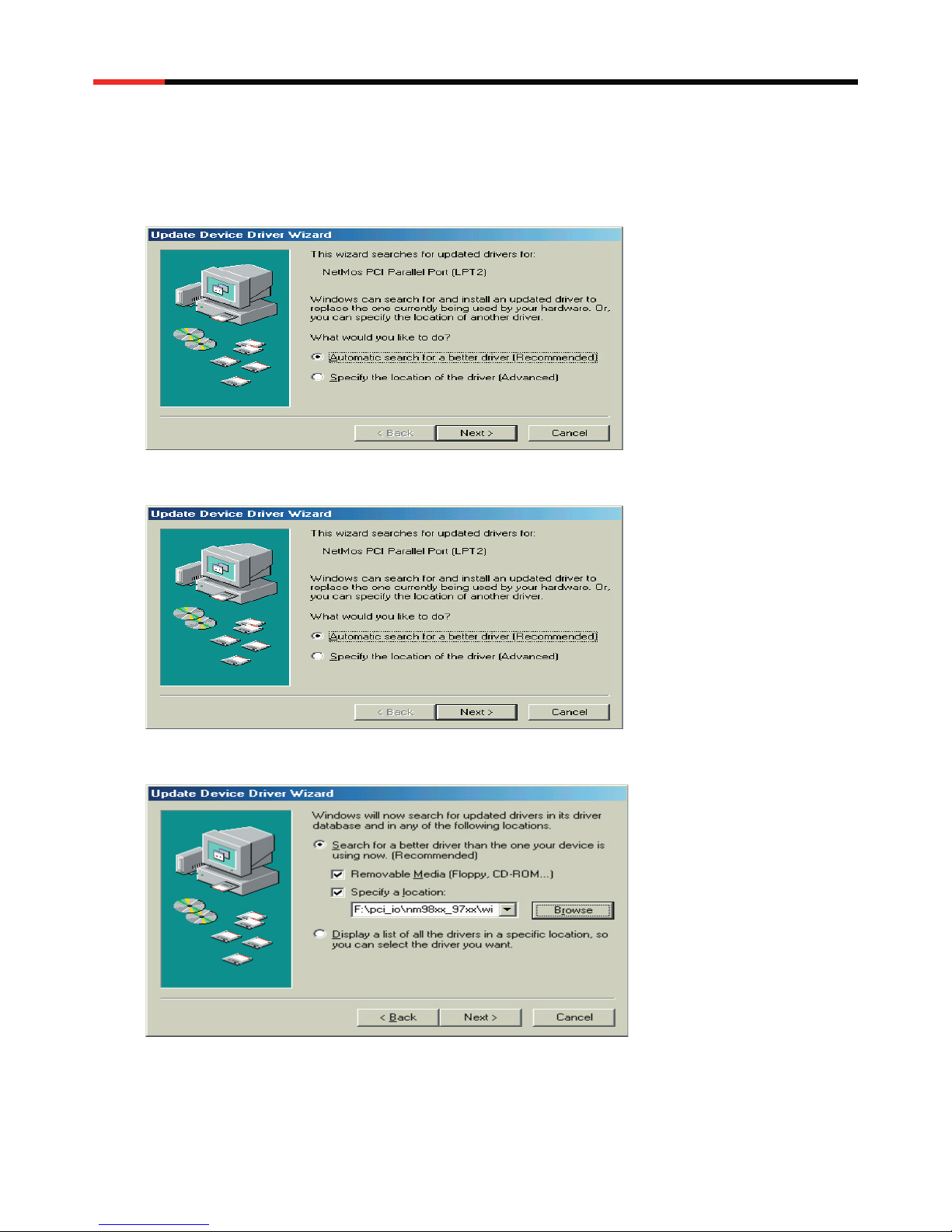

2. The“Update Device driver Wizard” will appear, informing you that it has found a “PCI I/O
Card”. Click the “Next” button.
3. Click “Other Location” for Windows 95 or “Specify a location” for Windows 98 to install the
driver.
4. Insert the driver CD in CD-ROM drive (D) and click on the “Browse” button.
5. Windows 98/95/2000 will automatically locate the driver in the driver diskette. Click the
3
User Manual
1-Port Serial PCI Adapter RC300
“OK” button to continue.
6. Click on the finish button to start copying files from driver diskette.
7. Windows 98/95/2000 will automatically restart in order to update the hardware
configuration.
8. Once Windows 98/95/2000 has restarted, you can now connect your external devices to
the PCI I/O card. To install the driver for the external devices, please refer to the external device
user’s manual.
Windows NT 4.0
Make sure Windows NT 4.0 is properly installed into your system first.
1. Start Windows NT.
2. Insert Windows NT 4.0 driver diskette (disk 2) into the floppy drive.
3. Select “RUN” option in Windows NT.
4. At the “RUN” option, click on the“Browse” button.

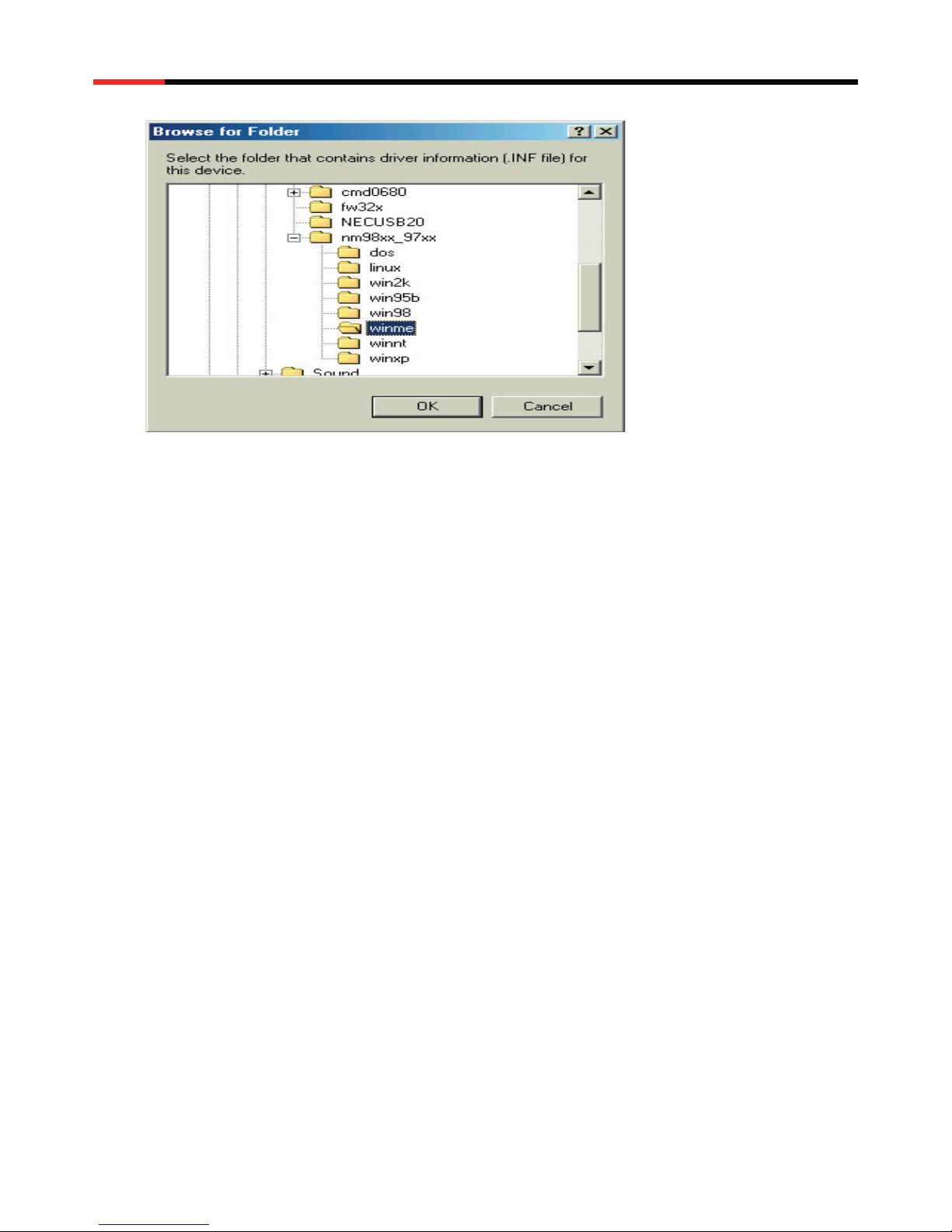

5. At the Browse for Folder window:
Select “Floppy (A)”
Double click on the winnt folder
Select NetMosXXX drivers.exe
Click on the Open button
6. Finally, click the“OK” button
7. Follow the instructions to finish up the driver installation. Your system will automatically
4
User Manual
1-Port Serial PCI Adapter RC300
restart in order to complete the driver installation.
Installing DOS Driver
Copy “NMDOSIN.EXE” to your hard disk and run “NMDOSIN.EXE”
Update Drivers
Please visit this website: http:/www.netmos.com/for all the latest drivers for your PCI I/O card.
Thank you for purchasing Rosewill Product.
Please register your product at www.rosewill.com for complete warranty information and future
support for your product.
