Royal Sovereign NB-1900N Manuale utente
OWNER'S MANUAL
PLEASE READ AND SAVE INSTRUCTIONS
PROFESSIONAL PHOTO LAMINATOR
NB-1900N
1
EDNord - Istedgade 37A - 9000 Aalborg - Telefon 9633 3500
TOPICS PAGE
INTRODUCTION -----------------------------------------
-
SAFETY PRECAUTIONS -----------------------------------
-
CHARACTERISTICS OF NB-1900N ---------------------------
-
SPECIFICATIONS ----------------------------------------
-
SETUP ------------------------------------------------
NAME OF MAJOR PARTS OF MACHINE -----------------------
-
INSTRUCTION OF CONTROL PANEL AND DISPLAY ---------------
-
1.FUNCTION OF BUTTONS ------------------------------
-
2.DISPLAY ------------------------------------------
-
3.INSTRUCTION BOTTONS AND LED -----------------------
-
LAMINATING STEPS --------------------------------------
1.HOT LAMINATING -----------------------------------
-
2.COLD LAMINATING ----------------------------------
-
3.COLOR FOIL LAMINATING -----------------------------
-
4.MOUNT BOARD LAMINATING ---------------------------
-
HOW TO CLEAN ROLLERS AND REMOVE JAMMED FILMS ----------
IMPORTANT SAFETY CONCERNS ----------------------------
-
MAINTENANCE -----------------------------------------
-
ASSEMBLY PARTS ---------------------------------------
-
TROUBLESHOOTING -------------------------------------
-
ONE YEAR LIMITED COMMERCIAL/PROFESSIONAL WARRANTY -----
-
12
13
14
11
3
14
14
14
8
9
9
6
7
7
3
4
5
15
10
5
7
TABLE OF CONTENTS
2
EDNord - Istedgade 37A - 9000 Aalborg - Telefon 9633 3500
Thank you for purchasing a Royal Sovereign Laminator.
To insure high quality lamination, please read this instroduction manual thoroughly.
For additional product support or factory-direct ordering information.
Call Royal Sovereign Customer Service at (800) 397-1025.
The safety recommendations outlined in this section are to be read,
understood and followed before operating the machine.
Keep this information for future reference. Failure to comply with any of
the following safety procedures could result in serious personal injury.
1. To prevent the possibility of electrical shock, do not immerse machine
in water or permit liquids to get inside.
2. Do not allow articles of clothing (neckties, scarves, etc.) or papers near
the front or rear of the machine while operating as they could get cought
by the rollers and be pulled inside, causing personal injury.
3. Do not insert sharp objects into front or rear machine openings.
4. Do not attemp to laminate items that exceed total recommended material
thickness.
5. Do not operate machine for any other purpose other than its intended use.
6. Do not operate machine if electrical plug or power cord is damaged.
7. Turn off the power when unattended or not in use. Unplug machine
before moving it or when it is not in use for an extended period of time.
8. This machine is intended for indoor use only.
9. Do not alter the electric plug in any way.
10. The electrical outlet should be installed near the equipment and should
be easily accessible.
SAFETY PRECAUTIONS
INTRODUCTION
3
EDNord - Istedgade 37A - 9000 Aalborg - Telefon 9633 3500
LAMINATOR NB-1900N is an advanced laminator of contemporary
design, utilizing the lastest in laminating technology.
1. Contemporary design and rounded shape will enhance any decor.
2. A microprocessor is used for added protection.
1) The microprocessor protects the rollers
①Even when power is off, rollers continue to turn until properly cooled down.
②In the event of a power failure, rollers continue turning until properly cooled
down.
2) The microprocessor prevents overheating
If a temperature sensor fails, the microprocessor prevents rollers
from overheating.
3. Designed to prevent heat from radiating through the housing, using
powerful fans.
4. Eight function settings, allow you to laminate various types of film.
6. Every time a button is pressed, a buzzor sounds.
7. Temperature is controled automatically for energy efficiency.
CHARACTERISTICS OF LAMINATOR NB-1900N
4
EDNord - Istedgade 37A - 9000 Aalborg - Telefon 9633 3500
Place laminator on a sturdy, flat work surface. Allow ample clearence behind laminator
for laminated document or photograph to exit completely without bending.
Connect laminator to an electrical outlet that matches laminator's rated voltage and
power requirements.
If an extension cord is required, use a cord rated higher than the laminator's capacity.
DC FAN
Voltage / Cycle
11Kg (24 lbs.)
A
C 100V 50/60Hz, AC 120V 60Hz , AC 220-240V 50/60H
z
AC MOTOR
520mm (20.5") per min.
Power Consumption
Temp. Operating Range
Film thickness
Transport Type
Weight
Cooling Fan Type
Motor Type
Max. Laminating Speed
SETUP
1000W
Max.Laminating Thickness
445mm (17.5")
8 SETTINGS
4~5 min
Four Roller (no carrier)
Hot roller
Description NB - 1900N
680x225x127mm (26.8"x10"x5")
SPECIFICATIONS
Dimensions(w x d x h)
Max.Laminating Width
Heat Source
Pre-Heating Time
2mm (1/12")
75~250mic(3~10 mil)
5
EDNord - Istedgade 37A - 9000 Aalborg - Telefon 9633 3500

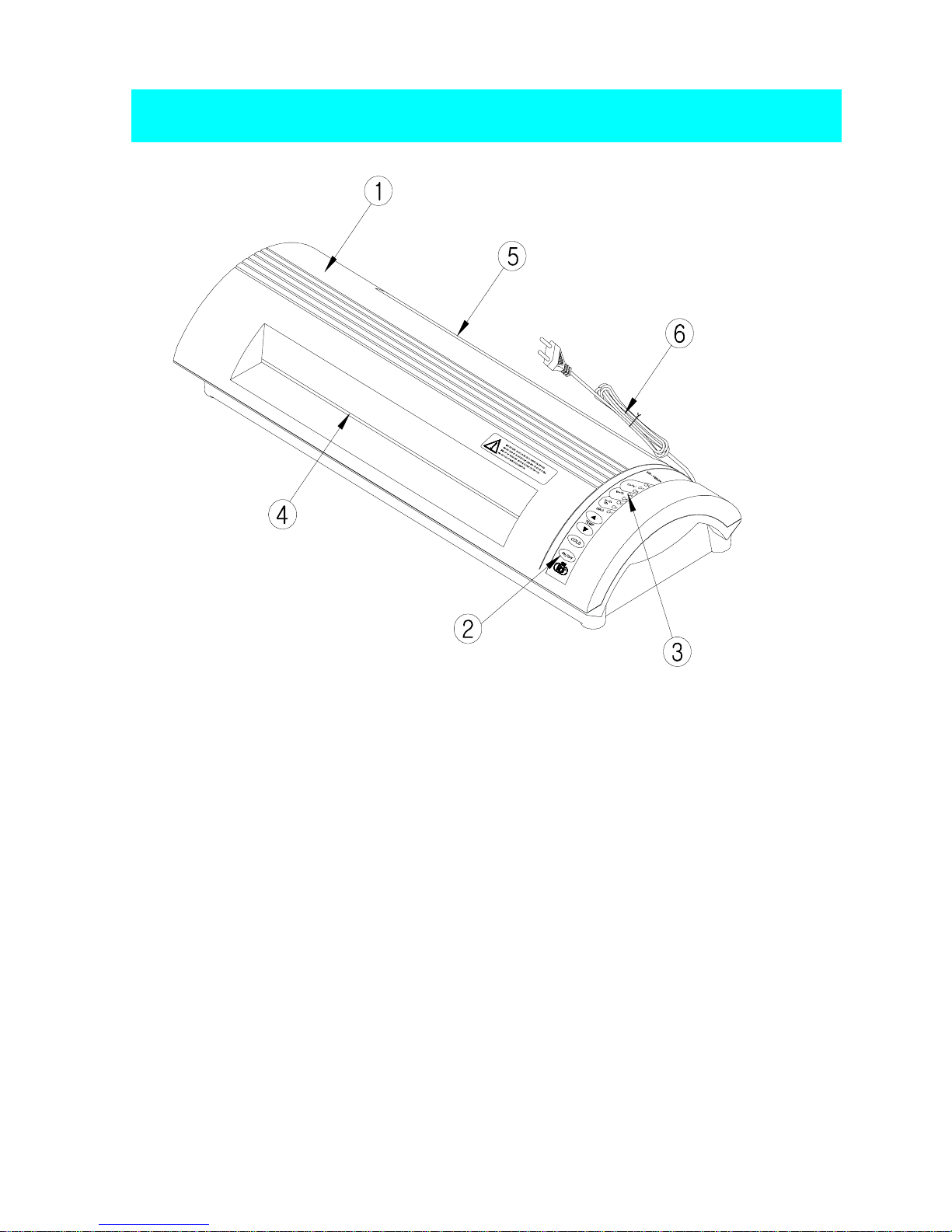

1. Top Cabinet
2. Control Button Panel
3. LED
4. Input
5. Output
6. Power Cord
MAJOR PARTS IDENTIFICATION
6
EDNord - Istedgade 37A - 9000 Aalborg - Telefon 9633 3500

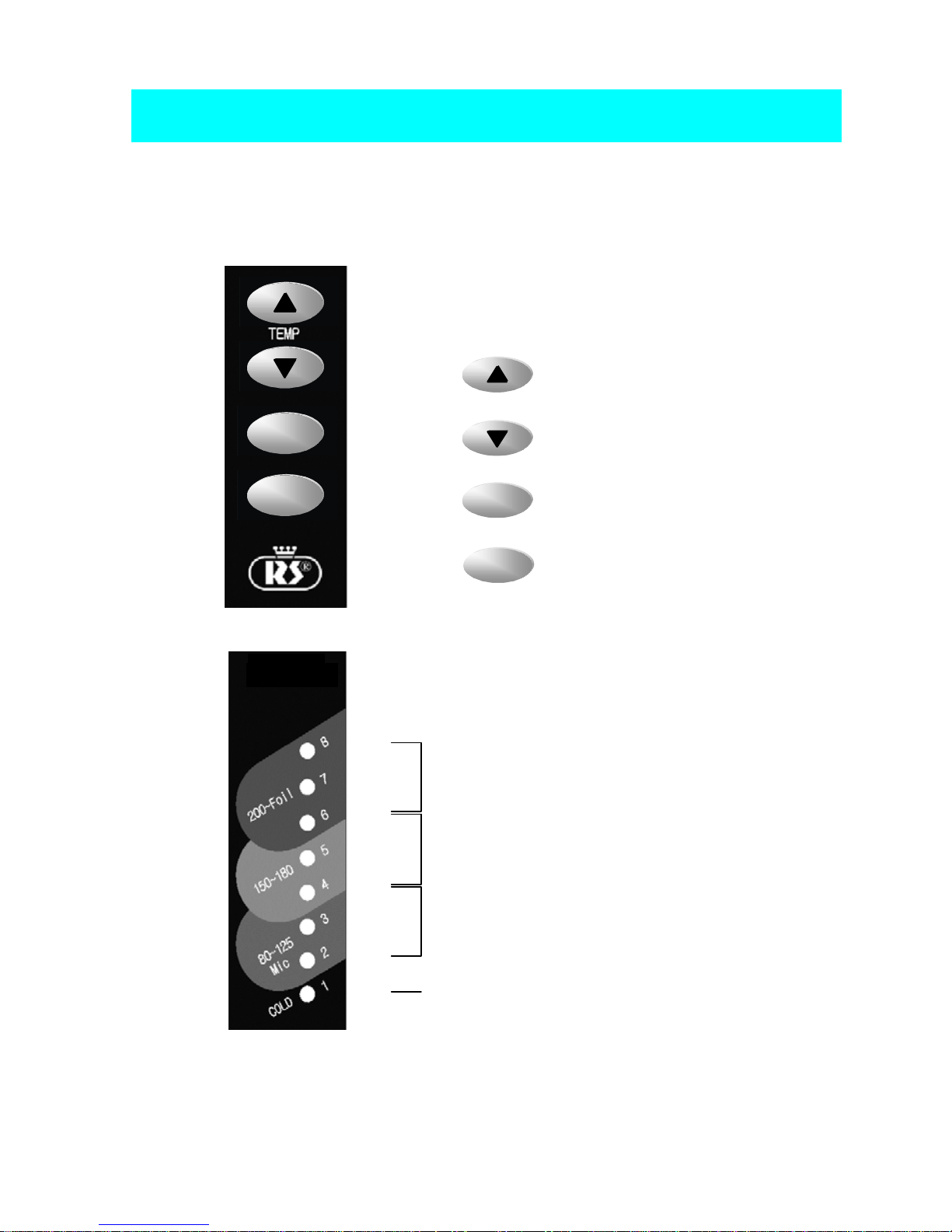

Eight Functions allow you to laminate as necessary.
TACT-BUTTON and LED were designed for your convenience.
1.FUNCTION OF BUTTONS
: Increase setting
: Decrease setting
: COLD Function
: Power On/off
2.DISPLAY
200~250 micron (8~10 mil) film, color foil and
mount board laminating
150~180 micron (6~7 mil) film laminating
80~125 micron (3~5 mil) film laminating
CONTROL PANEL SETTINGS
Cold film laminating
COLD
ON/OFF
COLD
ON/OFF
NB-1900N
7
EDNord - Istedgade 37A - 9000 Aalborg - Telefon 9633 3500

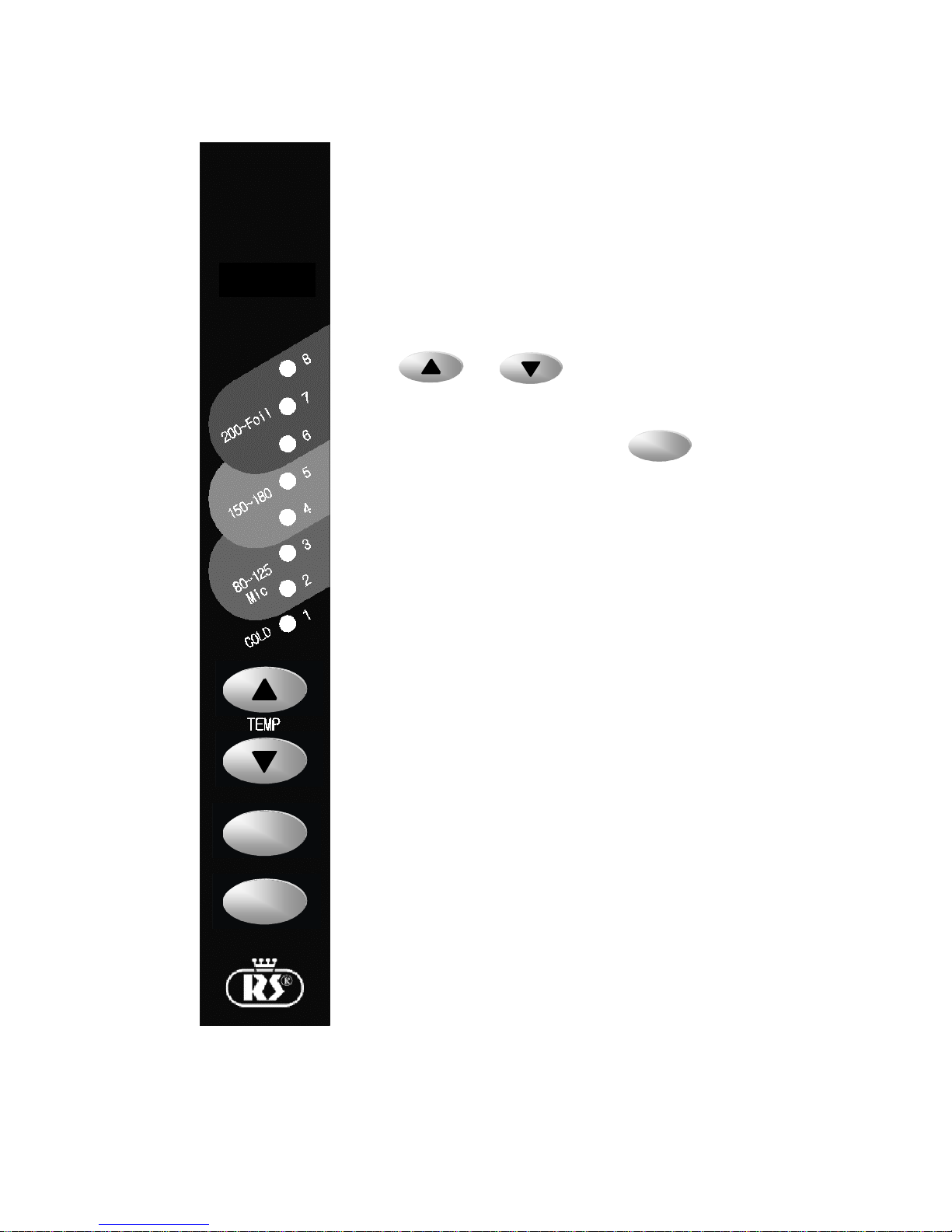

3.INSTRUCTION OF BUTTONS AND LED
1. Press power button to turn laminator on or off.
2. When you press power button, "FUNC 2"
LED is blinking. At this time, function
buttons become available.
3. To choose film thickness, press
or and you will see
the LED read-out.
4. For cold laminating, press
then green LED will light up.
5. When you choose any function, a blinking LED light
means it's not ready. When the blinking stops, the
laminator is ready.
6. When blinking stops, a buzzer will ring once
every two minutes.
7. Even if you turn off as soon as finishing laminating,
rollers will continue to turn until cooled
down properly, and then stop.
COLD
COLD
ON/OFF
NB-1900N
8
EDNord - Istedgade 37A - 9000 Aalborg - Telefon 9633 3500
1. HOT LAMINATING
1. Press the power button.
2. Choose setting by or
3. When red LED stops blinking and buzzer rings, you're ready to laminate.
(It takes 4~5 minutes depending on setting function.)
4. Put document to be laminated, into a laminating pouch. Leave a minimum
border of about 3mm(1/8"), to provide a proper edge seal.
5. Insert pouch squarely into opening slot.
6. Finished lamination will exit through rear of machine.
7. Emerging laminated document is hot to the touch.
(Always allow lamination to cool down on a flat surface for about a minute before
handling, to prevent permanent bending. If document is not laminated well,
re-insert it and run it through a second time.)
8. When continuously laminating, run the laminator at a lower setting
because the internal machine temperature may be higher than
the required temperatur, causing the document to bend or ripple.
9. When finished laminating, turn off the machine.
* Sometimes, when continuously laminating, LED may begin blinking.
If this happens, finish laminating the current document, then wait
until the LED stops blinking, before inserting the next lamination.
* Do not laminate empty or thin pouch on a thick film setting.
The pouch could stick to the roller.
* Do not unplug laminator while laminating.
This could be fatal for the rollers due to the high internal temperature.
LAMINATING STEPS
***USEFUL INFORMATION***
9
EDNord - Istedgade 37A - 9000 Aalborg - Telefon 9633 3500
2. COLD LAMINATING
1. Press the power button to turn laminator on.
2. Press
3. It is ready when green LED blinking stops and buzzer rings.
4. Insert document into Royal Sovereign cold laminating pouch as
follows.
1) Prepare cold pouch film.
2) Remove protective paper inside cold pouch.
(Be careful not to allow the pouch to close and
seal itself closed. If the pouch closes on itself
and seals,you will not be able to the document
to be laminated inside.)
3) Place document squarely into the pouch, where
the protecting paper was.
Cold film's minimum border of about 3mm(1/8")
is necessary to provide a proper edge seal.
4) Beware of dust while inserting document.
5) Feed pouch squarely into opening slot.
5. Finished laminated pouch will exit through rear of machine.
6. When you are finished laminating, press the power button to turn off.
If it has recently been used for hot lamination, allow the rollers to be cooled
down about 20~30 minutes.

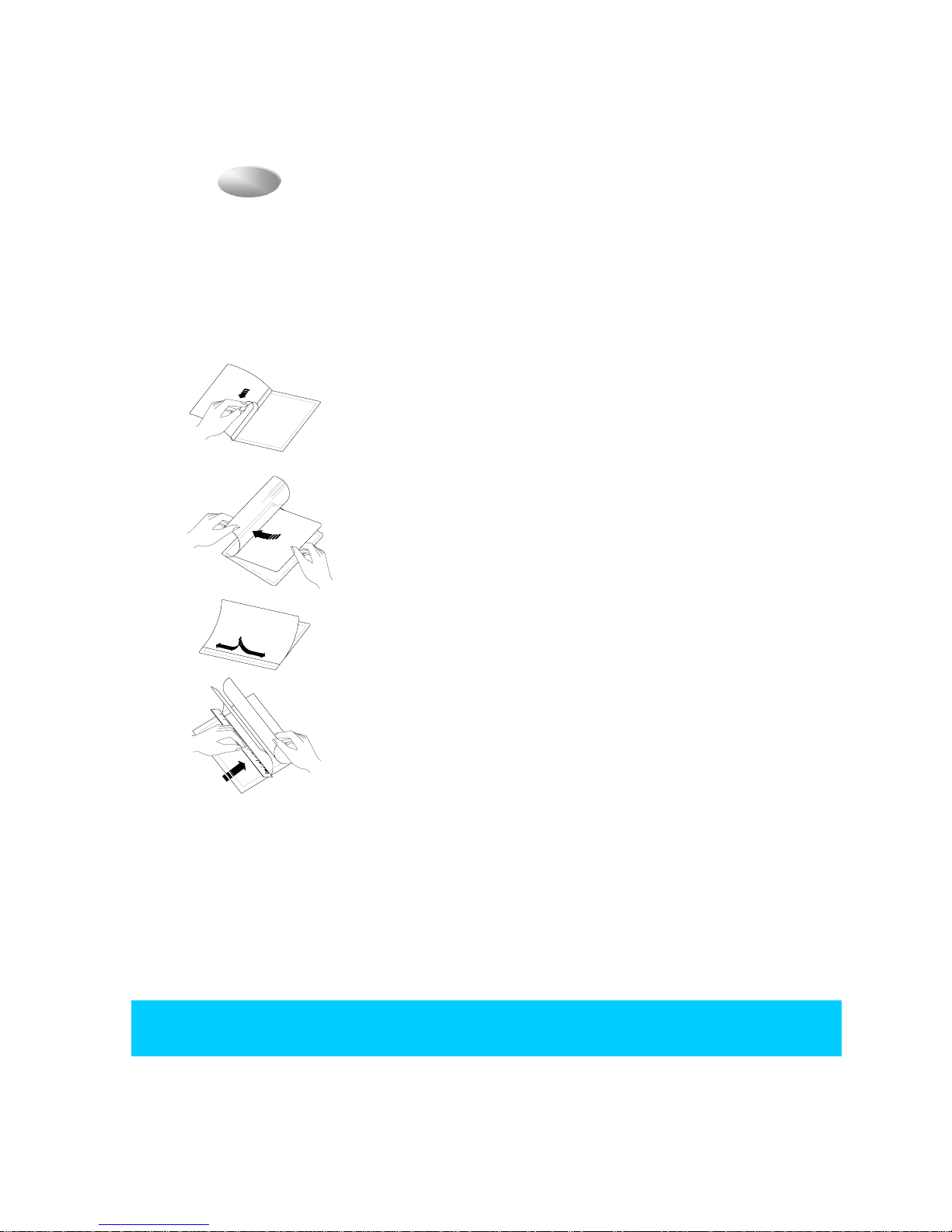

**HOW TO ATTACH DOCUMENT ON COLD POUCH FILM**
***USEFUL INFORMATION***
COLD
Front
Back
Back
10
