User Guidance

1.1 Development model

1.1.1 Connection method

1.1.2 Connection method of expansion accessories

1.2 Flexible display mode

Precautions

Technical Support

User Guidance

1.1

Development model

By connecting the fully flexible display (FFD) and the development

motherboard to build a basic development kit, users can use the basic

development kit to carry out creative development such as building

applications or flexible interactions, with sensors included in the system for

developers to use.

1.1.1 Connection method

• Connect the components as shown.

• Press and hold for 3 seconds [Power on/off button] to enter boot.

• Type-C connected to the computer for development and

debugging

• Please use a matching adapter for power supply (not included), or

through the power bank (5V2.0A).

• To enhance Wi-Fi signal reception, please connect a Wi-Fi antenna.

1.1.2 Connection method of expansion accessories

Expansion

Accessories

Connection Method

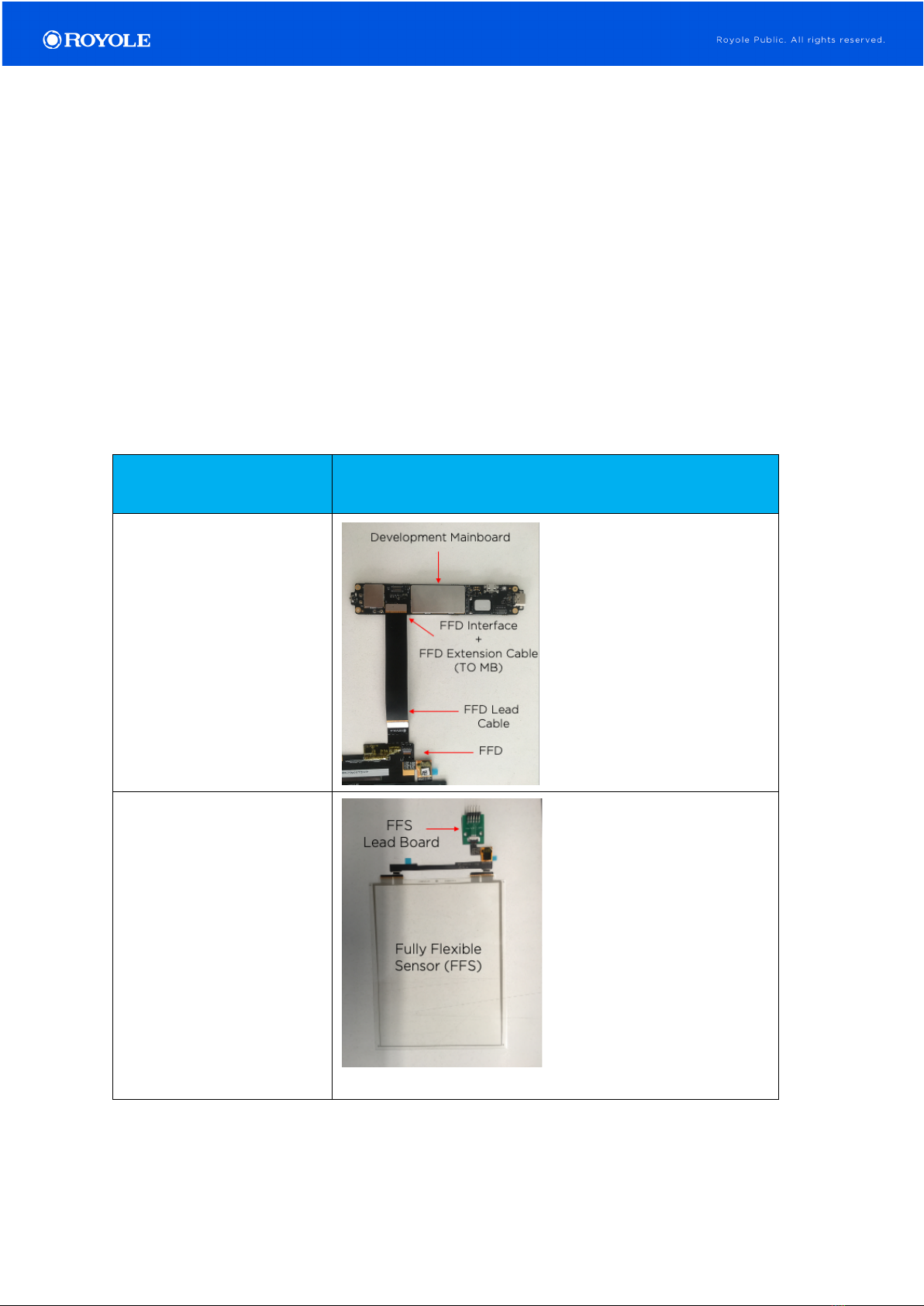

FFD extension cable

FFS lead board

FFS lead board pin definition

FFS expansion board

Microphone

expansion board

Optical distance

sensing expansion

board

1.2 Flexible display mode

Assemble the flexible display by connecting the FFD and HDMI adapter

board, the signal is then provided through the HDMI connection.

• Connect the components as shown.

• The output resolution of the host must be set as 1440*1920.

Power conversion

board

Wi-Fi antenna

Precautions

Structural FFD Lamination Structural FFS Lamination

The thickness of the complete flexible display is only about 0.01 mm (10

micrometers).

In order to adapt to the daily use scenarios of developers, the thickening

protection treatment is carried out.

Please abide by the following guidance for daily operation of the FF and FFS:

Unless you are a professional, do not tear or disassemble any laminated

or protective films of the fully flexible display or fully flexible sensor

which could result in ineffectiveness.

Please use your fingers only for touch operation to avoid any violent

touch of sharp objects or other objects.

Please use even force to fold the fully flexible display and fully flexible

sensor.

• FFD bending zone

DO NOT bend the line interface area, otherwise it will cause damage to the

line/device and cause malfunction.

• FFD outer/inner bending minimum bending radius

The thickness of the Royole flexible display is only about 0.01 mm, and the

bending radius can reach 1 mm. Taking into account the actual use of the

development and application, the corresponding cover and laminate have

been added to the original flexible display. Therefore, the bending radius of

the fully flexible display in the flexible development kit is 15 mm to meet the

needs of different usage scenarios.

If you have a customized requirement for a fully flexible display, you can send

an email to Sales.B2B@royole.com

• FFD bending ways and area

Technical Support

For more development guides and technical support, please visit our

official website address:

https://global.royole.com/us/developer-rokit

Thank you for your support!

Wishing your flexible ideas can become reality in your hands!
