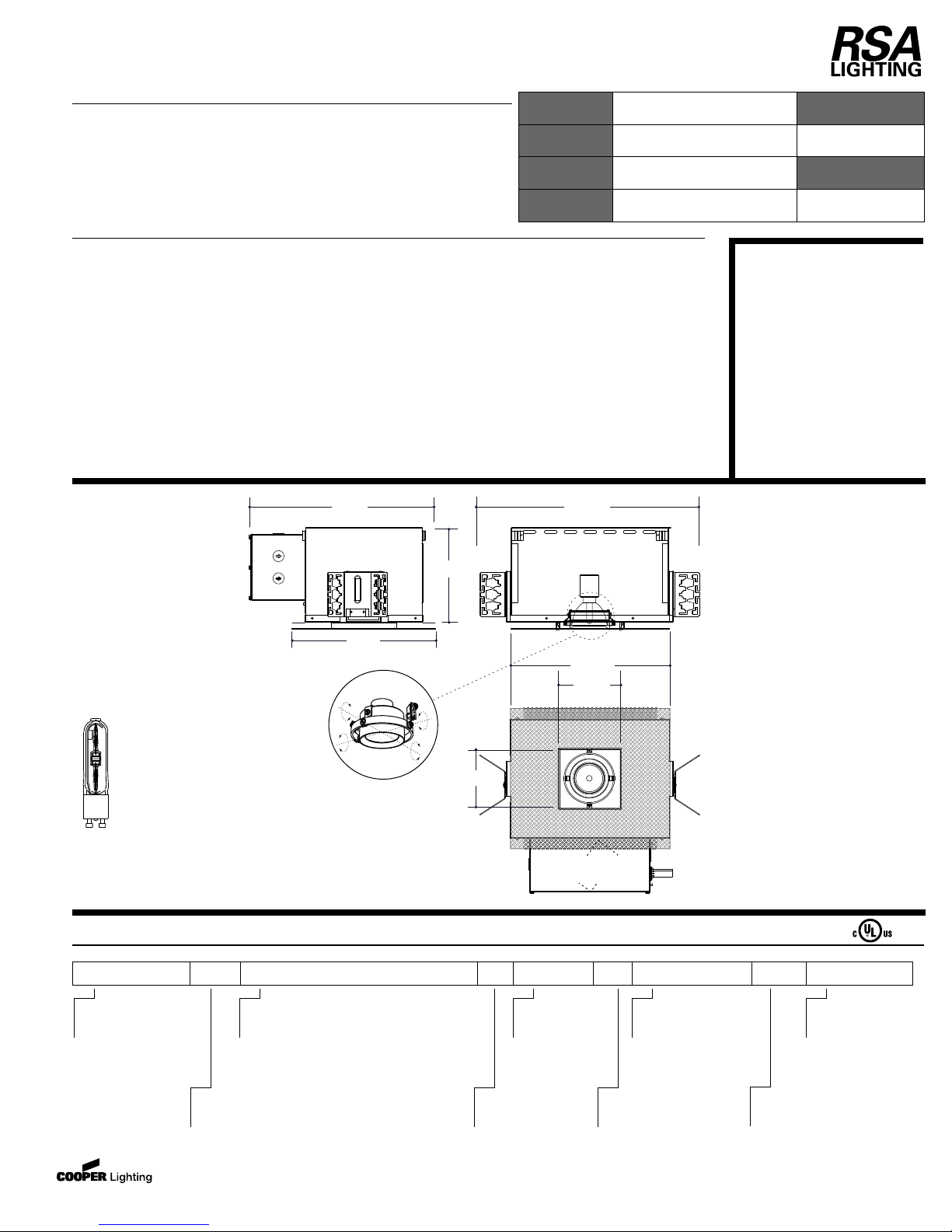

RSA Lighting COMBOLIGHT T4 GU6.5 Manuale utente

DESCRIPTION Catalog # Type

Project

Comments Date

Prepared by

SPECIFICATION FEATURES

www.cooperlighting.com

Perforated

Meshplate

Thermal

Protector

7.45”

4.65”

12.01”

4.65”

16.14”

15.01”

10.96”

Integral Electronic

Metal Halide Ballast

45º x 45º

Adjust

Double

Gimbal

A ... Housing

Housing, junction box & trimless

meshplate assembly are all steel

construction. Perforated meshplate allows

for trimless installation in drywall/plaster

ceilings by allowing the ceiling’s mudding

compound to be applied right up to the

edge of the ﬁxture opening. Includes

a beveled “knife-edge” lips to ensure a

clean edge. Can accommodate 0.50” to

1.25” ceiling thickness. Optional Chicago

Plenum conﬁguration available.

B ... System Protection:

Thermal protection provided to guard

against overheating and misuse of

insulation over and around ﬁxture. Vent

holes in housing provide cooler operation.

C... Junction Box

Junction Box is UL listed for through

branch wiring, 6 #12 90º C supply

conductors or 60º C for end of run. The

ﬁxture is also UL listed as ‘access above

ceiling not required’.

D... Electrical

Electrical accessible through ceiling

opening. J-Box located on the side wall

of the housing behind removable access

doors. Integral electronic metal halide

ballasts on individually removable “trays”

for easy maintenance. May also be con-

ﬁgured for remote power.

E ... Lamps

One (1) T4 GU6.5 Metal Halide lamp with

reﬂector mounted in adjustable double

gimbal. Lamp holder is individually remov-

able and may be regressed 1” for additional

cut-off. Lamp can accept up to three opti-

cal accessories (i.e. lens + hex louver +

snoot). 45º x 45º locking lamp adjustment.

Beveled-edge lamp ring is secured with

threadless, bayonet action. Optional

retractable arm is available for lamp pull-

down and extreme aiming. Includes GU6.5

TAL socket.

F ... Mounting

Butterﬂy Brackets accept 1/2” EMT,

C Channel, Tbar fasteners, and bar

hangers. Four tabs on housing for

securing to structure. Perforated ﬂaps

along housing sides for securing trimless

insert to ﬁxture and drywall.

G... Labels

cULus listed for non-type IC

applications, suitable for use in damp

locations.

Ceiling Cut-Out: 5.44” x 5.44”

COMBOLIGHT®

Next Generation

Recessed

Single-Lamp Fixture

One (1) Light

T4 GU6.5 Metal Halide

New Construction

Housing

Trimless

ORDERING INFORMATION

An adjustable Single-lamp Recessed ﬁxture for trimless installation suitable for

downlighting and accent applications. Utilizes ONE (1) T4 GU6.5 Metal Halide

(GE® Constant Color Super Mini) lamp.

For new construction applications. Insulation must be kept 3” from all sides

and at least 1” above the housing.

Speciﬁcations and Dimensions subject to change without notice.

RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349-3031

rev 022408

Conﬁguration

C1 =COMBOLIGHT Recessed

One (1) Light

Housing

N =New Construction

C =Chicago Plenum

C1 E N

Lamp Type / Wattage Label / Reﬂector Type

020MCN =20 Watt T4 GU6.5 SuperMini Narrow

020MCM =20 Watt T4 GU6.5 SuperMini Medium

020MCW =20 Watt T4 GU6.5 SuperMini Wide

Power Supply

E =Electronic Metal Halide

Ballast

Power Supply

Voltage

1 =120V

2 =277V

Lamp Mechanism

G =Double Gimbal

R =Retractable Double Gimbal

Trim Finish

W =White

B =Black

S =Industrial Silver

Trim Insert

N =Trimless

Housing Interior/Electrical Door

/Sleeve Finish

W =White

B =Black

S =Industrial Silver

T4 GU6.5 Lamp with Reﬂectors

This ﬁxture utilizes the GE® SuperMini Constant Color

Lamp and includes high-performance clear aluminum reﬂec-

tors in narrow, medium, or wide distributions. Non-standard

color reﬂectors are available upon request.
