RSA Lighting Combolight 12V AR70 Manuale utente

DESCRIPTION Catalog # Type

Project

Comments Date

Prepared by

SPECIFICATION FEATURES

www.cooperlighting.com

45º x 45º

Adjust

Double

Gimbal

Thermal

Protector

7.45”

4.65”

23.23”

34.77”

38.90”

15.01”

10.96”

4.64”

Perforated

Meshplate

Integral Electronic

Low Voltage Transformers

A ... Housing

Housing, junction box & trimless

meshplate assembly are all steel

construction. Perforated meshplate allows

for trimless installation in drywall/plaster

ceilings by allowing the ceiling’s mudding

compound to be applied right up to the

edge of the ﬁxture opening. Includes

a beveled “knife-edge” lips to ensure a

clean edge. Can accommodate 0.50” to

1.25” ceiling thickness. Optional Chicago

Plenum conﬁguration available.

B ... System Protection:

Thermal protection provided to guard

against overheating and misuse of

insulation over and around ﬁxture. Vent

holes in housing provide cooler operation.

C... Junction Box

Junction Box is UL listed for through

branch wiring, 6 #12 90º C supply

conductors or 60º C for end of run. The

ﬁxture is also UL listed as ‘access above

ceiling not required’.

D... Electrical

Electrical accessible through ceiling

opening. J-Box located on the side wall

of the housing behind removable access

doors. Integral electronic or magnetic

low voltage transformers on individually

removable “trays” for easy maintenance.

May also be conﬁgured for remote power.

E ... Lamps

Five (5) 12V AR70 lamps mounted in

adjustable double gimbals. Lamp holders

are individually removable and may be

regressed 1” for additional cut-off. Lamp

can accept up to three optical accessories

(i.e. lens + hex louver + snoot). 45º x 45º

locking lamp adjustment. Beveled-edge

lamp ring is secured with threadless,

bayonet action. Optional retractable arm is

available for lamp pulldown and extreme

aiming. Double contact bayonet base

sockets included.

F ... Mounting

Butterﬂy Brackets accept 1/2” EMT,

C Channel, Tbar fasteners, and bar

hangers. Four tabs on housing for

securing to structure. Perforated ﬂaps

along housing sides for securing trimless

insert to ﬁxture and drywall.

G... Labels

cULus listed for non-type IC

applications, suitable for use in damp

locations.

Ceiling Cut-Out: 5.44” x 24.02”

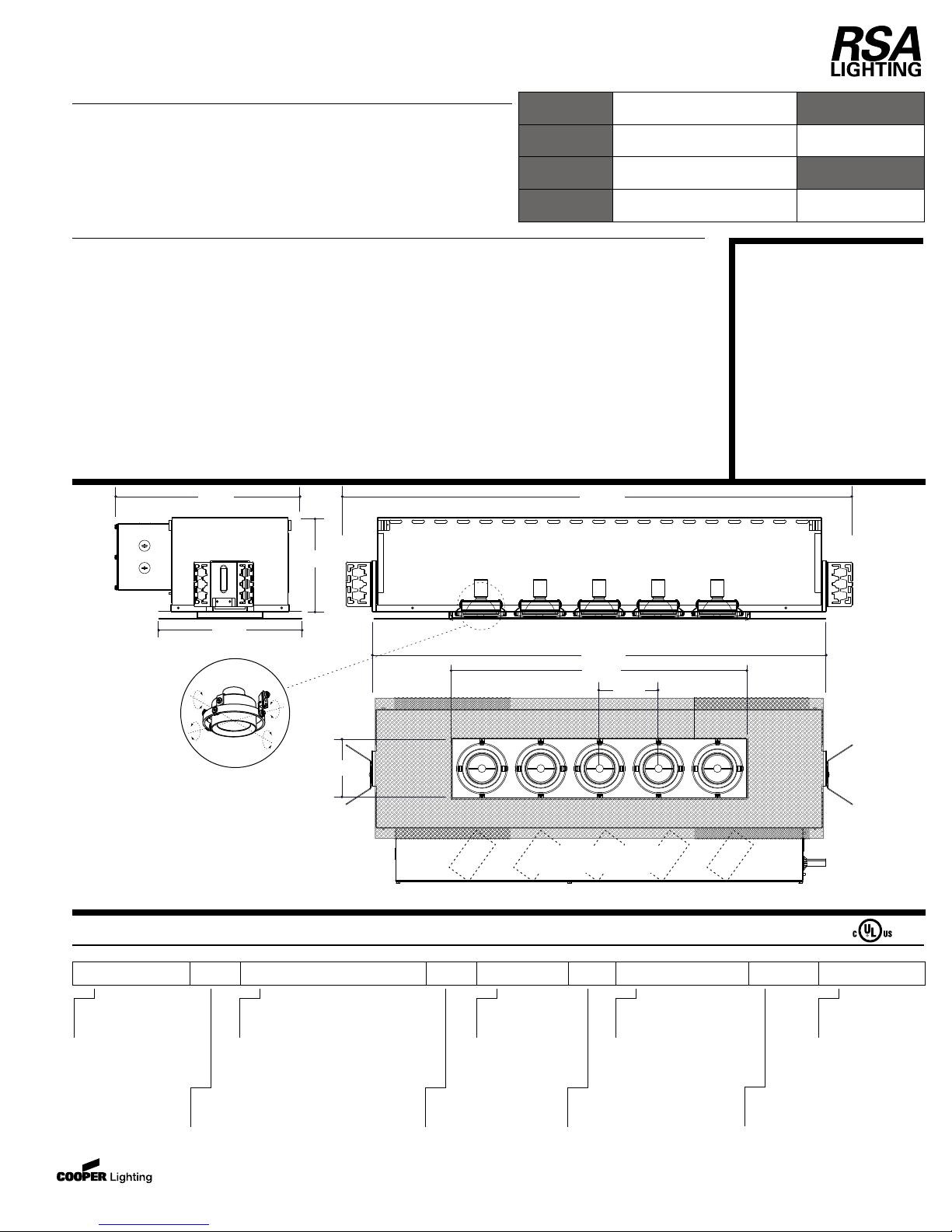

COMBOLIGHT®

Next Generation

Recessed

Multi-Lamp Fixture

Five (5) Light

12V AR70

New Construction

Housing

Trimless

ORDERING INFORMATION

An adjustable Multi-lamp Recessed ﬁxture for trimless installation suitable for

downlighting and accent applications. Utilizes FIVE (5) 12V AR70 lamps.

For new construction applications. Insulation must be kept 3” from all sides

and at least 1” above the housing.

Speciﬁcations and Dimensions subject to change without notice.

RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349-3031

Conﬁguration

C5 =COMBOLIGHT

Recessed Five (5) Light

Housing

N =New Construction

C =Chicago Plenum

C5 N N

Lamp Type / Wattage Label

050A70 =50 Watt max. AR70 12V

Power Supply

E =Electronic Low Voltage

Transformer

M =Magnetic Low Voltage

Transformer

Power Supply

Voltage

1 =120V

2 =277V

Lamp Mechanism

G =Double Gimbal

R =Retractable Double Gimbal

Trim Insert Finish

N =Trimless

Trim Insert

N =Trimless

Housing Interior/Electrical Door/Sleeve

Finish

W =White

B =Black

S =Industrial Silver

rev 022408

NOTES:

De-Rated wattage labels are available.

12V Primary voltage is available.
