Rugged Radios GMR2 Manuale utente

GMR2

USER MANUAL

The GMR2 operates on GMRS (General Mobile Radio Service) frequencies, which require a

Federal Communications Commission (FCC) license. You must be licensed prior to operating

on channels 1-7, 15-22 or RP15-22, and RUGGED which comprise the GMRS channels of

the GMR2. Serious penalties may result from unlicensed use of GMRS channels, in violation

of FCC rules, as stipulated in the Communications Act’s Sections 501 and 502 (amended).

You will be issued a call sign by the FCC that should be used for station identiﬁcation when

operating your radio on GMRS channels. You should also cooperate by engaging in permissible

transmissions only, avoiding channel interference with other GMRS users, and being prudent

with the length of your transmission time

To obtain a license or ask questions about the license application, contact the FCC at

1-888-CALL-FCC or go to the FCC’s website: http://www.fcc.gov and request Form 605.

FCC NOTICE

User Safety Information

Package Includes

Charging Your Battery Pack

Charging Preparation

Charging Operation

Accessories Connections

Battery Pack

Belt Clip

Ext. Mic/Speaker

Getting Acquainted

Front Panel Operation

Side Panel Operation

LCD Display

Keypad Functions

Working Mode

Set Menu Mode

Menu Operation

Detailed Function Description

CTCSS Tone Frequency

DCS Code

Advanced Functions

Speciﬁcations

General

Transmitter

Receiver

Notes

CONTENTS

• Please read the following brief instructions, non-compliance with these rules may

cause danger or violate the law.

• Obey the local government regulation before using this radio, improper use may violate

the law and be punished.

• Turn oﬀ the radio before entering ﬂammable or explosive areas.

• Do not charge or change the battery in ﬂammable or explosive areas.

• Turn oﬀ the radio before getting close to the blasting zone or detonator areas.

• Do not use radio whose antenna is damaged, touching of damaged antenna will cause

heat injury.

• Do not attempt to open the radio; the maintenance work should be done by technical

expert only.

• To avoid troubles caused by electromagnetic interference or electromagnetic

compatibility, please turn oﬀ the radio in places where the banner displays “Do not use

wireless equipment”, such as hospitals and other healthcare locations.

• In vehicles, do not put the radio within the area of airbag deployment.

• Do not store the radio under the direct sunshine or in hot areas.

• When you transmit with the radio, do keep away from its antenna for 5cm at least.

• If the radio appears defective or starts to smoke, please shut oﬀ its power immediately

and contact your local dealer.

• Do not transmit too long, for the radio may heat and cause injury.

USER SAFETY INFORMATION

• Radio Unit x 1

• Antenna

• Li-ion Battery (1400mAh)

• Charging Kit

• Belt Clip

• User Manual

• Charger

• Li-ion Battery (3200mAh)

• Adapter

Please check if any damage to the package when you receive it. Carefully unpack the

transceiver. We recommend that you check the items listed in the following table. If any items

are missing or damaged during shipment, please contact with your local dealer immediately.

Note: See to the annular label at the bottom of the antenna for the antenna frequency range.

PACKAGE INCLUDES

OPTIONAL ITEMS

CHARGING YOUR BATTERY PACK

Precaution: The supplied battery pack of this radio is a high –performance Li-ion with 7.4V

standard voltage 1400mAh high capacity in a very compact package. Under normal use,

the battery pack may be used for approximately 500 charge cycles and more, after which

operating time maybe expected to decrease. If you have an old battery pack which is displaying

capacity which has become diminished, you should replace the pack with a new one.

Warning: When the conductive metals such as jewelry, keys, or decorative chains touch the battery terminals, all the

batteries are likely to cause damage to the items or personal injury. These conductive metals may form a short circuit and

generate heat. Handle the battery carefully, especially when placed in a pocket or metallic container.

• Please do not short-circuit the battery terminals or expose to ﬁre. Do not disassemble

the battery.

• Charge the battery between 32°F and 113°F. The battery cannot normally be charged

beyond this temperature range.

• Please turn oﬀ the transceiver when you charge it. Transmitting with the transceiver in

charge will aﬀect its normal charge.

• Do not unplug the Power Adapter or battery when it is charging.

• If the battery does not last its normal charge, it shows that the battery is depleted,

please change the battery pack.

• Please do not charge when the battery or the radio is wet. Please dry it with a cloth

and wait for it to be fully dry before charging to avoid any danger.

CHARGING PREPARATION

CHARGING YOUR BATTERY PACK

Battery Tips

• The battery is not fully charged at the factory, please charge it before using it.

• Charge and discharge the battery two or three times, the battery capacity will reach

the best condition. When the battery capacity is low, please charge or change the

battery.

• If the battery lasts a short time, even if it is fully charged, the battery is depleted,

please contact your local dealer to buy a new battery.

After installing the battery pack, if the battery icon shows [ ], it means that the battery

pack is out of power. Please charge it.

CHARGING OPERATION

Charging indicator light conditions:

Indicator Display Status

Red Charging

Green Completed

ACCESSORIES CONNECTIONS

1. Align the two grooves of battery and the guide rail on the back of the aluminum shell,

ensure full contact and in parallel, then push the battery up to the radio base along the

rail on the back of the aluminum shell, until the battery latch locks up. (Picture 1)

2. To remove the battery, please make sure the radio is closed, push the battery latch

down, and make sure the radio and battery is on the releasing state, and then push the

battery out from the radio. (Picture 2)

BATTERY PACK

PICTURE 1 PICTURE 2

ACCESSORIES CONNECTIONS

Align the two holds of belt clip and the two holes of the radios, ﬁx them with the supplied

M2.5x5 screws. Loosen the screw set to remove belt clip. (Picture 5)

BELT CLIP

PICTURE 5

ACCESSORIES CONNECTIONS

EXTERNAL MICROPHONE/SPEAKER

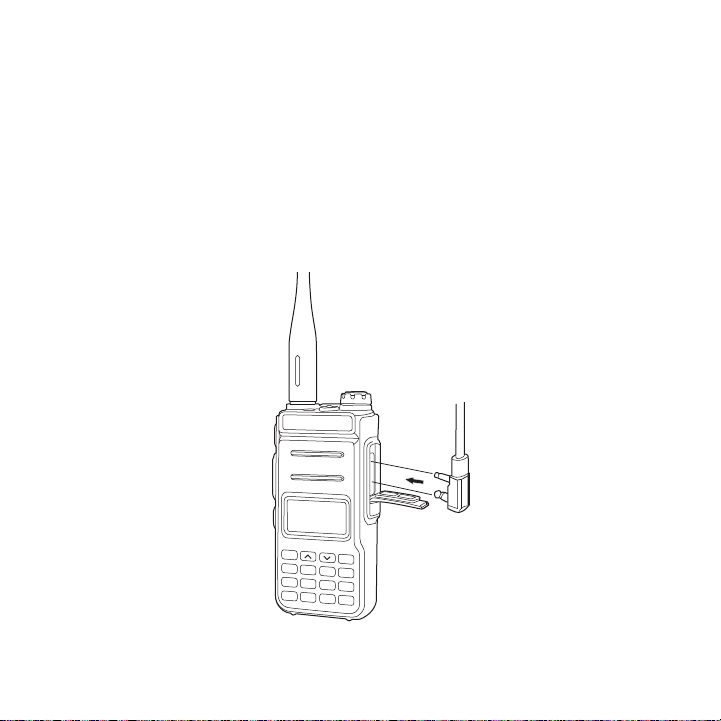

Open the cover of the microphone/speaker jack and insert the microphone/speaker plugs

into the jack. (Picture 6)

• Using the external headset or mic/speaker will aﬀect the water-tightness performance

of radio.

A/B

456

789#

PICTURE 6
