Ruijie RG-ES200 Series Manuale utente
Ruijie RG-ES200 Series Switches
Web-Based Configuration Guide
Copyright Statement
Ruijie Networks©2020
Ruijie Networks reserves all copyrights of this document. Any reproduction, excerption, backup, modification,
transmission, translation or commercial use of this document or any portion of this document, in any form or by anymeans,
without the prior written consent of Ruijie Networks is prohibited.
Exemption Statement
This document is provided “as is”. The contents of this document are subject to change without any notice. Please obtain
the latest information through the Ruijie Networks website. Ruijie Networks endeavors to ensure content accuracy and will
not shoulder any responsibility for losses and damages caused due to content omissions, inaccuracies or errors.
Preface
Thank you for using our products.
Audience
This manual is intended for:
Network engineers
Technical support and servicing engineers
Network administrators
Obtaining Technical
Assistance
Ruijie Networks Website: https://www.ruijienetworks.com/
Technical Support Website: https://ruijienetworks.com/support
Case Portal: https://caseportal.ruijienetworks.com
Community: https://community.ruijienetworks.com
Technical Support Email: service_rj@ruijienetworks.com
Skype: service_rj@ruijienetworks.com
Related Documents
Documents
Description
Command Reference
Describes the related configuration commands, including command modes,
parameter descriptions, usage guides, and related examples.
Hardware Installation and Reference
Guide
Describes the functional and physical features and provides the device
installation steps, hardware troubleshooting, module technical specifications,
and specifications and usage guidelines for cables and connectors.
Conventions
This manual uses the following conventions:
Convention
Description
boldface font
Commands, command options, and keywords are in boldface.
italic font
Arguments for which you supply values are in italics.
[ ]
Elements in square brackets are optional.
{ x | y | z }
Alternative keywords are grouped in braces and separated by vertical bars.
[ x | y | z ]
Optional alternative keywords are grouped in brackets and separated by
vertical bars.
1
Configuration Guide
Overview
1 Overview
eWeb is a Web-based management system that manages or configures devices. You can access eWeb via browsers such
as Google Chrome.
Web-based management involves the Web server and Web client. The Web server is integrated in a device, and is used to
receive and process requests from the client, and return processing results to the client. The Web client usually refers to a
browser, such as Google Chrome, IE, or Firefox.
1.1Conventions
In this document:
Texts in bold are names of buttons (for example, Save) or other graphical user interface (GUI) elements (for example,
VLAN).
Devices of different models have slightly different functions. This document uses RG-ES218GC-P as an example for
description.
Only RG-ES226GC-P, RG-ES218GC-P, RG-ES209GC-P, RG-ES209C-P, RG-ES205GC-P, and RG-ES205C-P
support the PoE function and configuration.
Only RG-ES226GC-P, RG-ES218GC-P, RG-ES224GC, and RG-ES216GC support the multi-DHCP alarm function.
The device initially adopts an English OS by default. After it is accessed, the device language can be set to the
language used by the current browser. A manually set device language has a higher priority than the language of the
browser.
The cloud status and online upgrade are not supported in the English OS.
2 Configuration Guide
2.1Preparations
Scenario

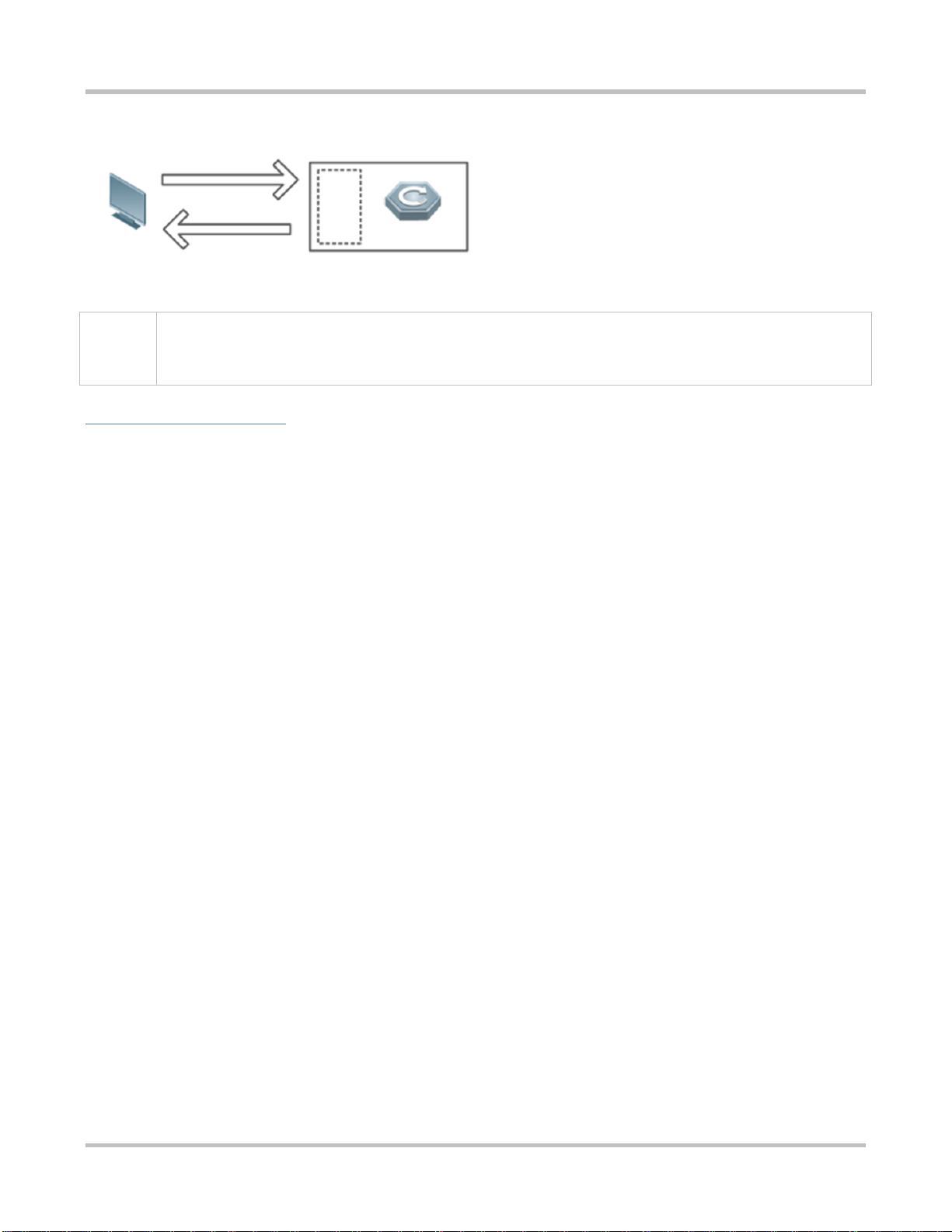

As shown in the figure below, administrators can access the device from a browser and configure the device through the
eWeb management system.
2
Configuration Guide
Configuration Guide
Deliver or request
commands
through AJAX.
Administrator Return data
Web
service
Device
Remarks
The eWeb management system combines various device commands and then delivers them to the device
through AJAX requests. The device then returns data based on the commands. AWeb service is available on the
device to process basic HTTP protocol requests.
Deployment
Configuration Environment Requirements
Client requirements:
An administrator can log into the eWeb management system from a Web browser to manage the device. The client
refers to a PC or some other mobile endpoints such as laptops or tablets.
Google Chrome, Firefox, IE9.0 and later versions, and some Chromium-based browsers (such as 360 Extreme
Explorer) are supported. Exceptions such as garble or format error may occur if an unsupported browser is used.
1024 x 768 or a higher resolution is recommended. If other resolutions are used, the page fonts and formats may not be
aligned, the GUI is less artistic, or other exceptions may occur.
Ensure that the client IP address is set to be in the same network segment as the device management address. Then
you can open the browser and enter the device management address to configure the device. When you use the
reserved management address 10.44.77.200 of the device, ensure that the client is directly connected to the switch.
To log into the eWeb management system, open Google Chrome, enter 10.44.77.200 in the address bar, and press Enter,
as shown in the figure below.
3
Configuration Guide
Configuration Guide

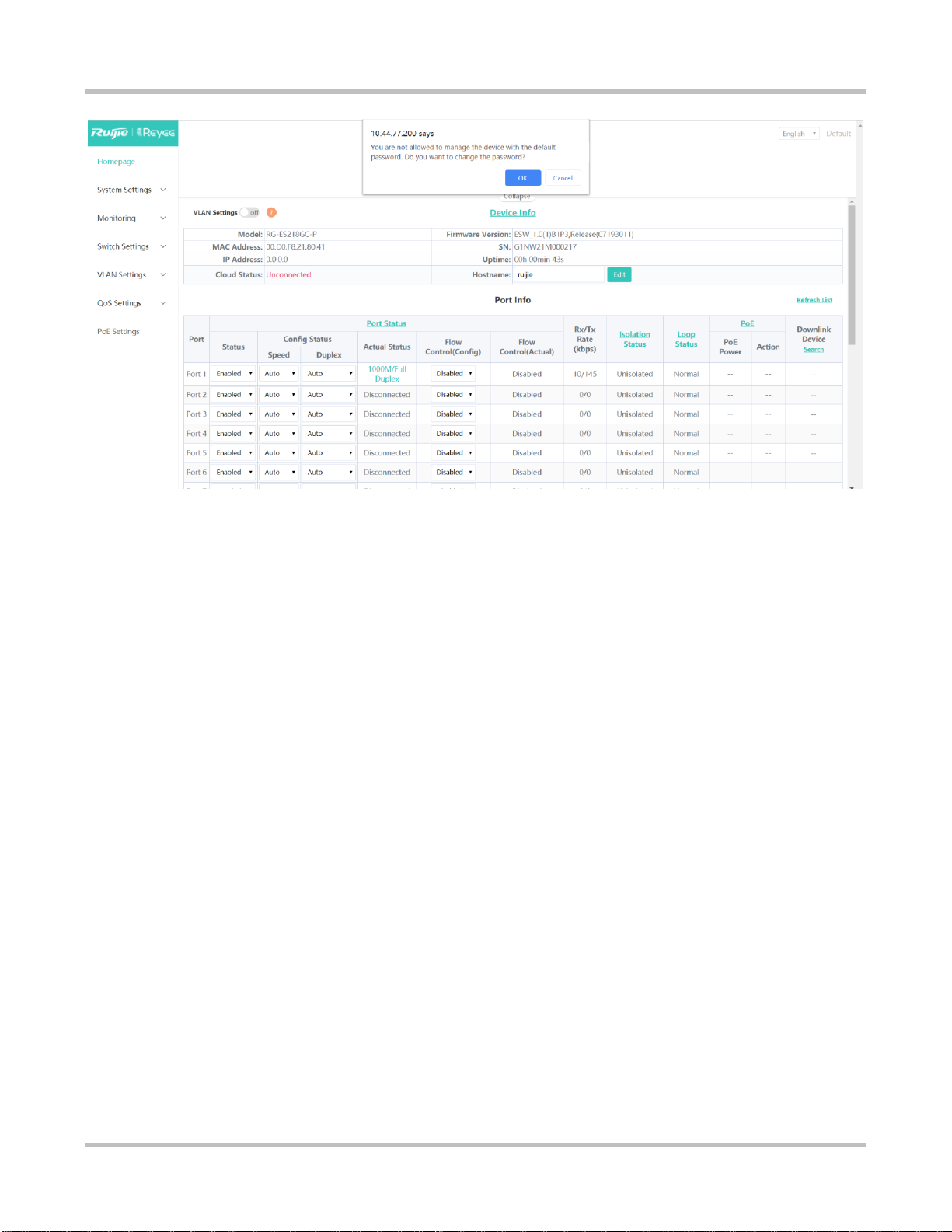

The device homepage appears by default. In addition, a dialog box is displayed, asking you whether to change the default
password. (The factory settings of the device can be modified only after the password is changed as prompted.)
2.2Default Password Configuration
Under factory default settings, the eWeb management system displays a prompt, asking you whether to change the
password. (You can configure switch functions only after changing the password.)

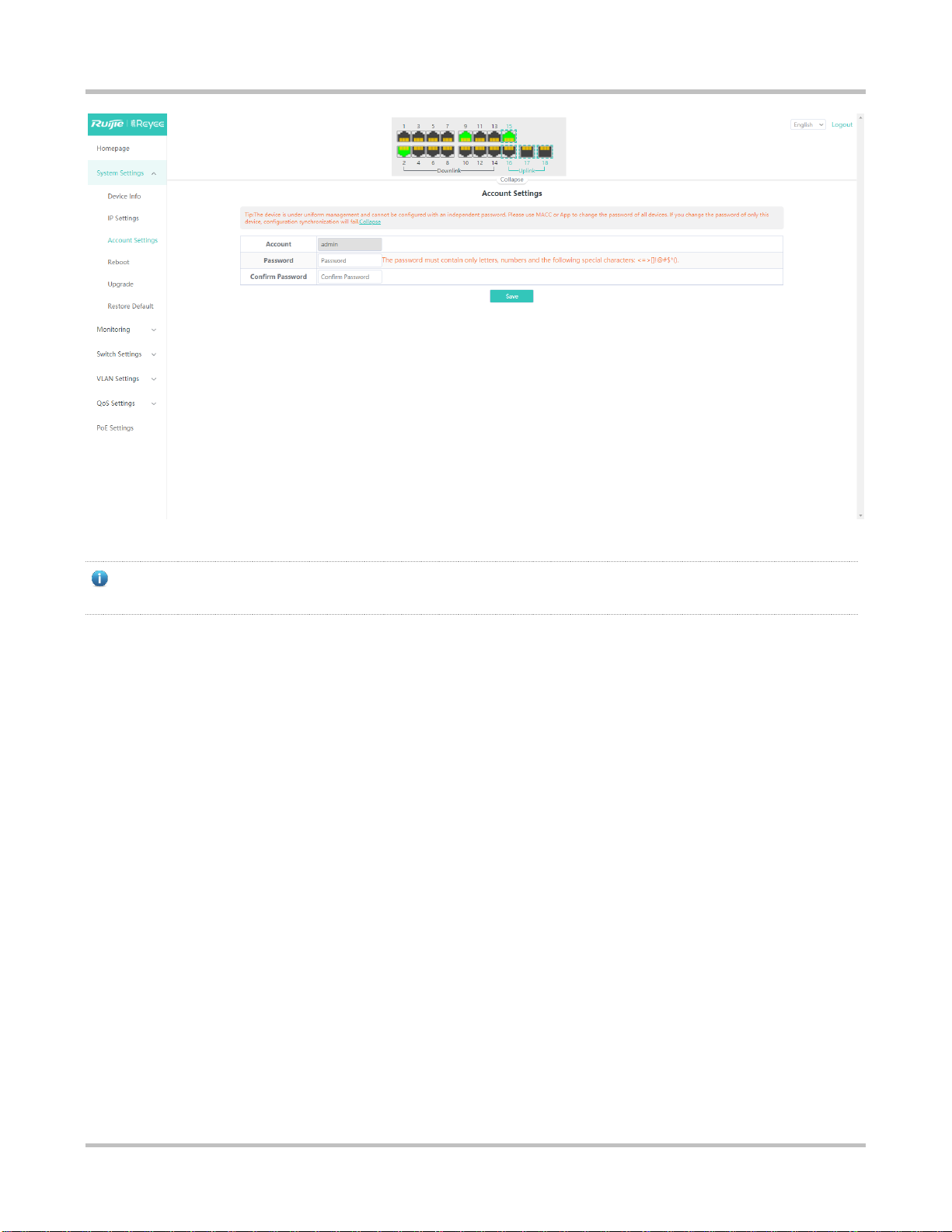

Click OK. The Web management system automatically redirects to the Account Settings page (or you can choose System
Settings >Account Settings to configure the login password).
4
Configuration Guide
Configuration Guide
Enter a new password according to password rules and then click Save. In the displayed dialog box, click OK.
Keep in mind the configured device management password. After password change, the eWeb management system
may need re-authentication and login.
2.3Introduction to the Web GUI

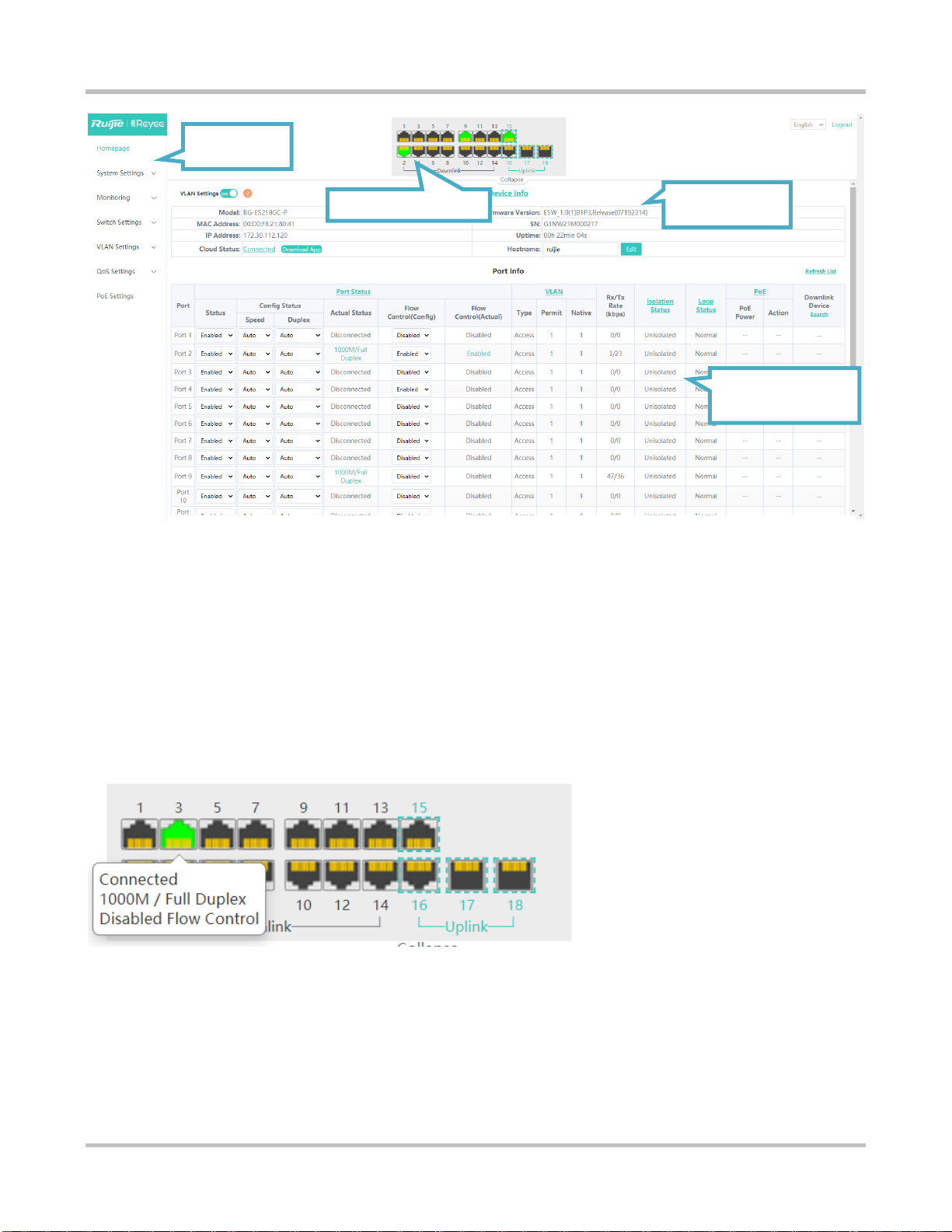

The figure below shows theWeb GUI of RG-ES226GC-P.
5
Configuration Guide
Configuration Guide
The Web GUI consists of the left and right portions.
The left portion is the menu bar and provides links to all configuration functions of the device, such as Monitoring and VLAN
Settings.
The right portion is the content area, which is divided into two parts. The upper part displays the port status bar and the
Logout button while the lower part displays the content and configuration area.
Port status bar:
Move the cursor over a port. Basic information about the port (including the port connection status, speed, duplex mode, and
flow control status) is displayed. There are uplink and downlink ports. You can click Collapse to hide the port status bar so
that a larger content area is displayed for viewing configuration details.
Function
menu bar
Switch port status bar
System
information bar
Port details list
and basic function
configuration bar
6
Configuration Guide
eWeb Configuration

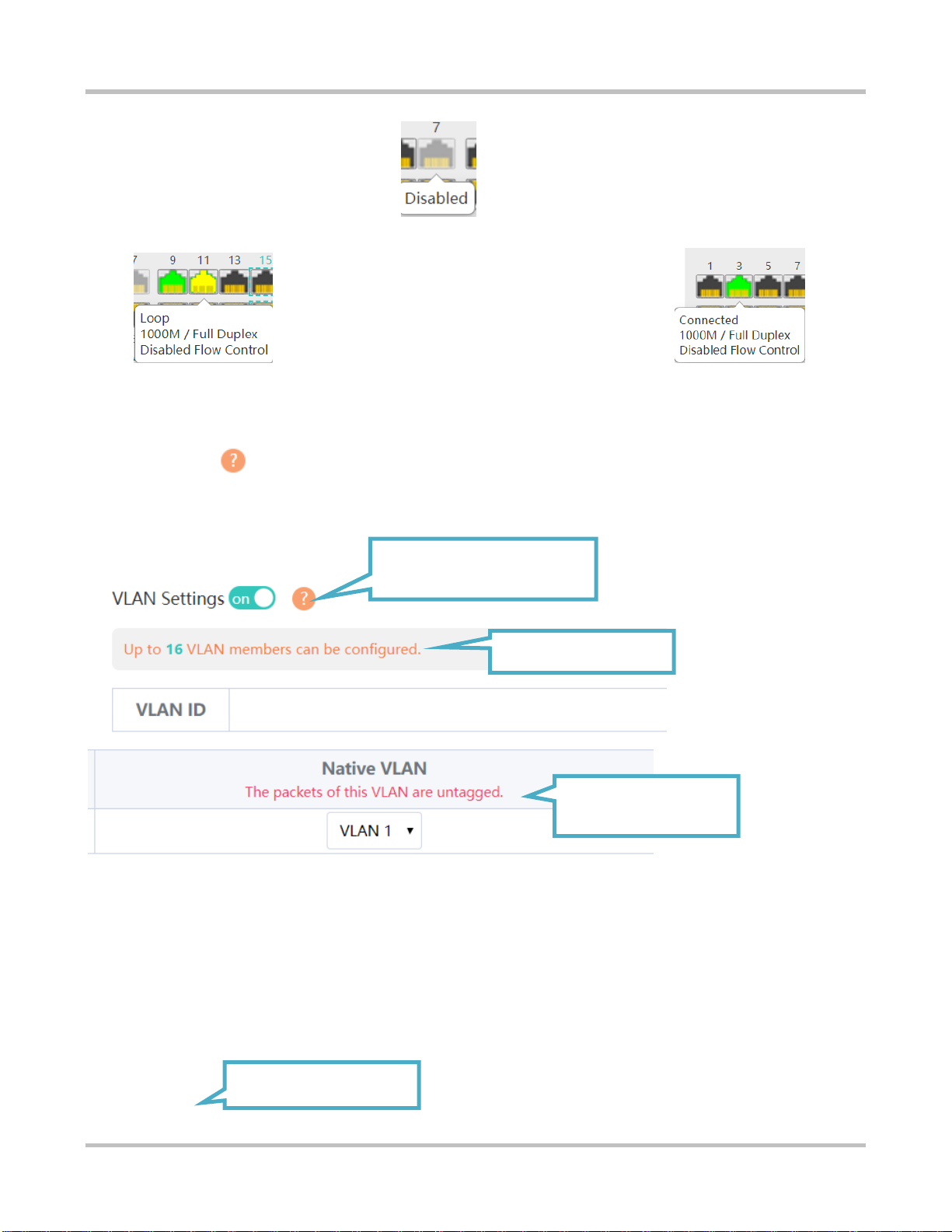

When a port is down, the port icon is grayed out . When a loop occurs on a port, the port icon is displayed in
yellow . When a port works properly, the port icon is displayed in green .
Description of the content area:
Texts in orange indicate a description of a function. Texts in red indicate notes of a function. A question mark (?) against an
orange background indicates an operation prompt, and the prompt pops up when the cursor is moved over the
question mark.
3 eWeb Configuration
3.1Homepage
The homepage displays basic information about the device, interface status, and VLAN Settings.
Enable or disable
the VLAN function.
Move the cursor over the
question mark to pop up a
description of the operation.
Description of
the content area
Supplementary
description for
the field or function
