Ruijie RG-S8600E Series Manuale dell'operatore

RG-S8600E Series Switches

Quick Installation Guide V1.02

Ruijie Networks reserves all copyrights of this document. Any reproduction, excerption, backup, modification, transmission, translation

or commercial use of this document or any portion of this document, in any form or by any means, without the prior written consent of

Ruijie Networks is prohibited.

Exemption Statement

This document is provided “as is”. The contents of this document are subject to change without any notice. Please obtain the latest

information through the Ruijie Networks website. Ruijie Networks endeavors to ensure content accuracy and will not shoulder any

responsibility for losses and damages caused due to content omissions, inaccuracies or errors.

Preface

Thank you for using our products. This manual will guide you through the installation of the device.

This manual describes the functional and physical features and provides the device installation steps, hardware

troubleshooting, module technical specifications, and specifications and usage guidelines for cables and connectors.

Audience

It is intended for the users who have some experience in installing and maintaining network hardware. At the same time, it

is assumed that the users are already familiar with the related terms and concepts.

Obtaining Technical Assistance

Ruijie Networks Website: http://www.ruijienetworks.com/

Service Email: [email protected]

Technical Support: http://www.ruijienetworks.com/service.aspx

Technical Support Hotline: +86-4008-111-000

Related Documents

Documents

Description

Configuration Guide

Describes network protocols and related mechanisms that supported by the

product, with configuration examples.

Command Reference

Describes the related configuration commands, including command modes,

parameter descriptions, usage guides, and related examples.

Symbol Conventions

Means reader take note. Notes contain helpful suggestions or references.

Means reader be careful. In this situation, you might do something that could result in equipment damage or loss of

data.

1 Product Overview

Launched by Ruijie independently, RG-S8600E series next generation core switches adopt the Full Mesh/Clos architecture and

support large buffer. RG-S8600E series support dual supervisor modules and power supply redundancy, which are available in three

models, namely, RG-S8605E, RG-S8607E, RG-S8610E and RG-S8612E.

RG-S8605E adopts Full Mesh architecture and supports dual supervisor modules and provides 3 slots for service modules.

RG-S8607E adopts Full Mesh architecture and supports dual supervisor modules and provides 5 slots for service modules.

RG-S8610E adopts Clos architecture and supports dual supervisor modules and provides 8 slots for service modules.

RG-S8612E adopts Clos architecture and supports dual supervisor modules and provides 8 slots for service modules.

2 Safety Precautions for Movement

RG-S8600E series is large and heavy. When you carry them, please pay attention to the following requirements:

Unplug all power cords before you move the switch. Note: There may be more than one power cord.

Remove the power supply, fans and service modules to reduce the chassis weight before moving the switch for a long distance.

At least 4 people are needed to move the switch.

Keep balance when moving the switch by 4 people, and keep the pace with each other.

Grasp the handles on both sides of the chassis, not the power supply handle, fan handle or the rear panel handle. Those handles

are just used to install and remove corresponding parts, and cannot bear the whole switch weight.

The whole switch weight may be higher than 80 kg during the movement.

To correctly move the RG-S8605E, refer to the Figure 2-1. For the RG-S8607E, refer to Figure 2-2. For the RG-S8610E, refer to

Figure 2-3. And for RG-S8612E, refer to Figure 2-4.

Note that the following figures are just the schematic diagrams, do not insert the line card and power supply when moving the

chassis to avoid the chassis weight increment or line card damage.

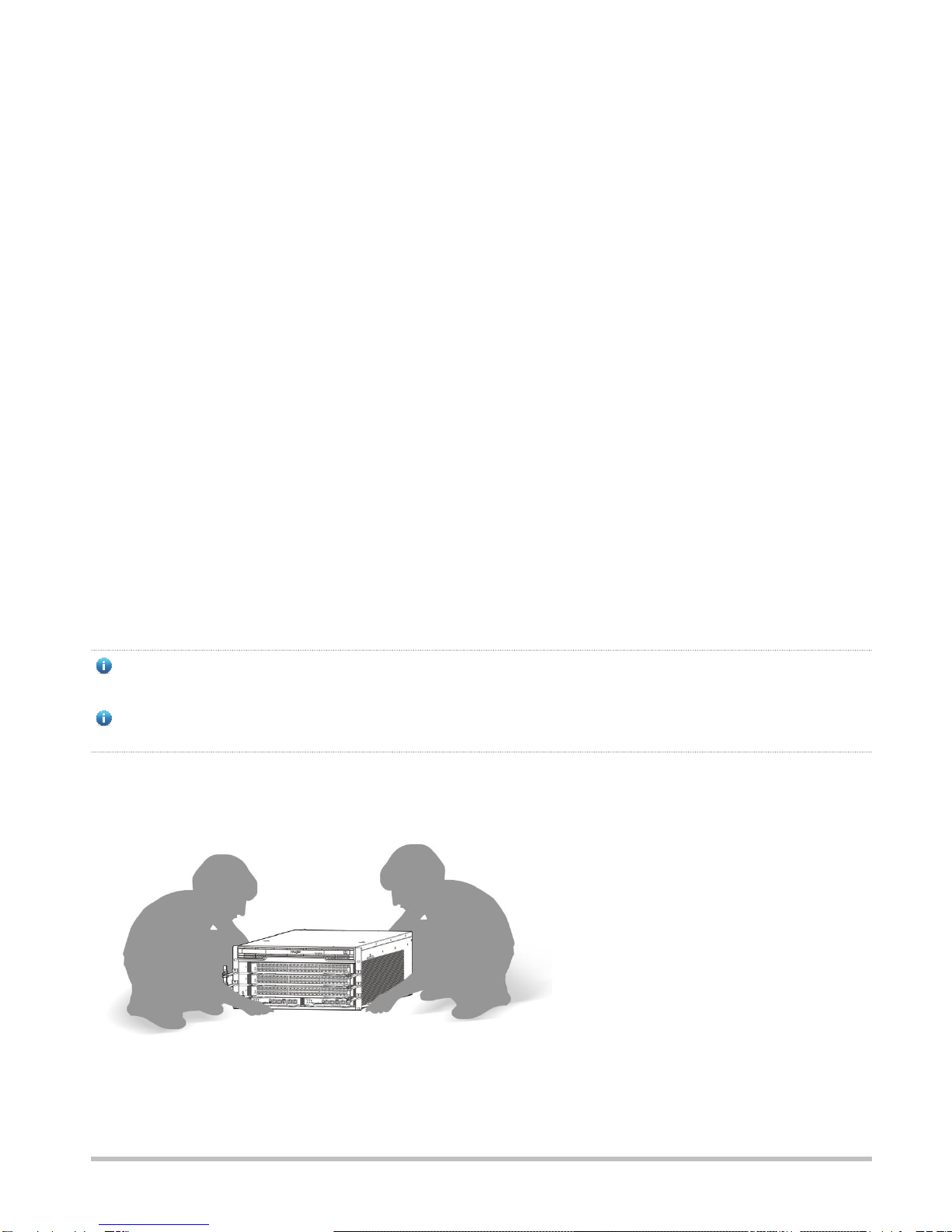

Figure 2-1 Moving the RG-S8605E Switch

Figure 2-2 Moving the RG-S8607E Switch

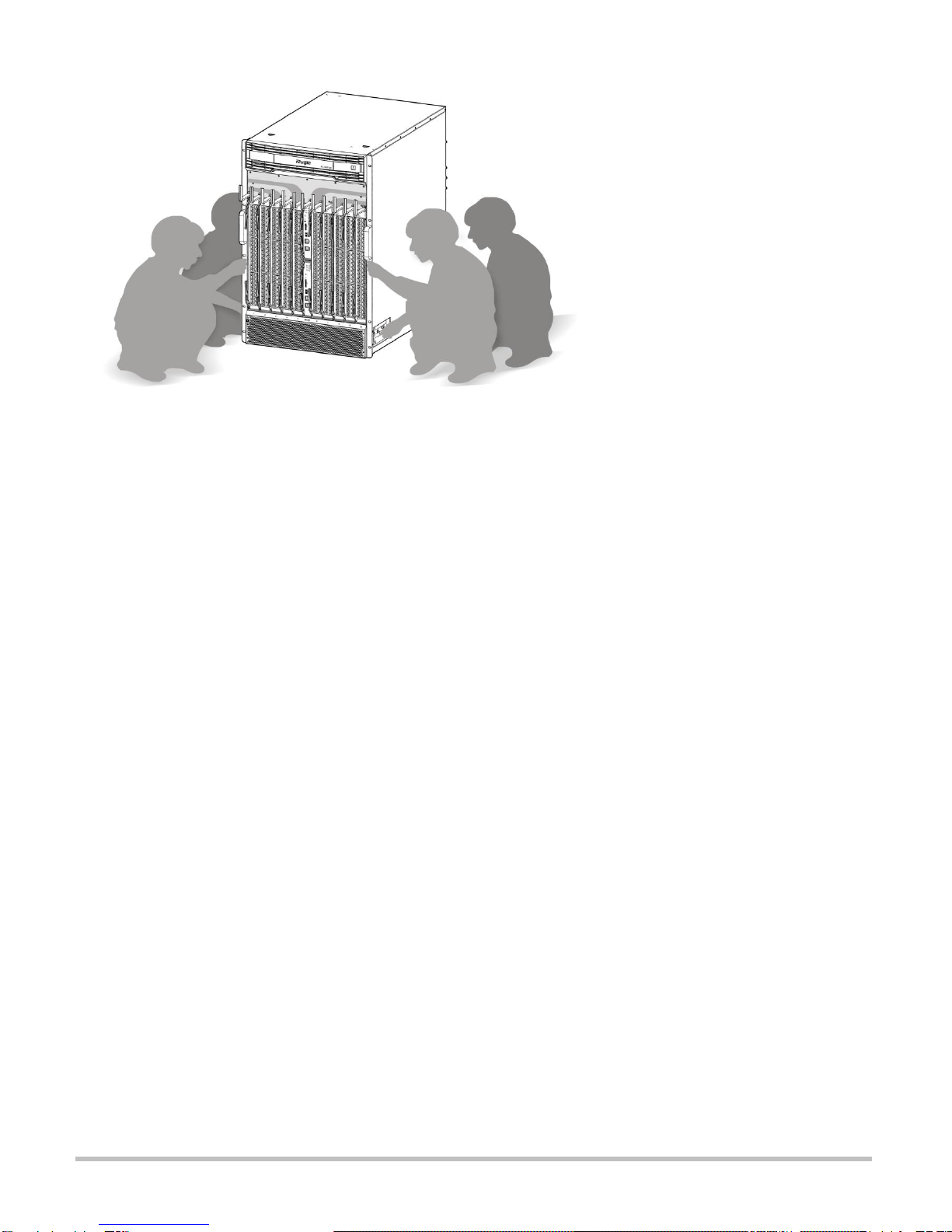

Figure 2-3 Moving the RG-S8610E Switch

Figure 2-4 Moving the RG-S8612E Switch

3 Preparations Before Installation

3.1 ESD Prevention

Precaution

To avoid the damages from static electricity to the internal parts of switches, do as follows:

ESD prevention measures are taken in the sites where switches are installed.

Wear the antistatic wrist strap while installing various switch parts, especially when you may touch circuit boards with hands.

Grasp the edge of modules. Do not touch the parts or printed circuits directly.

Wearing the anti-static wrist strap

The antistatic wrist strap is shipped with RG-S8600E, which is used as follows:

1. Stretch out your hand into the antistatic wrist strap.

2. Lock the wrist strap and make sure that the metal part of the antistatic wrist strap is in good contact with skin.

3. Insert the antistatic wrist strap in the antistatic wrist strap jack of the switch chassis or clip on the grounding pole of the chassis.

The antistatic wrist strap jack is located on the front panel of the chassis marked with yellow ESD.

4. The antistatic wrist strap is grounded well and the DC electric resistance between the body and the ground is in the range of 1 to

10 mega ohms.

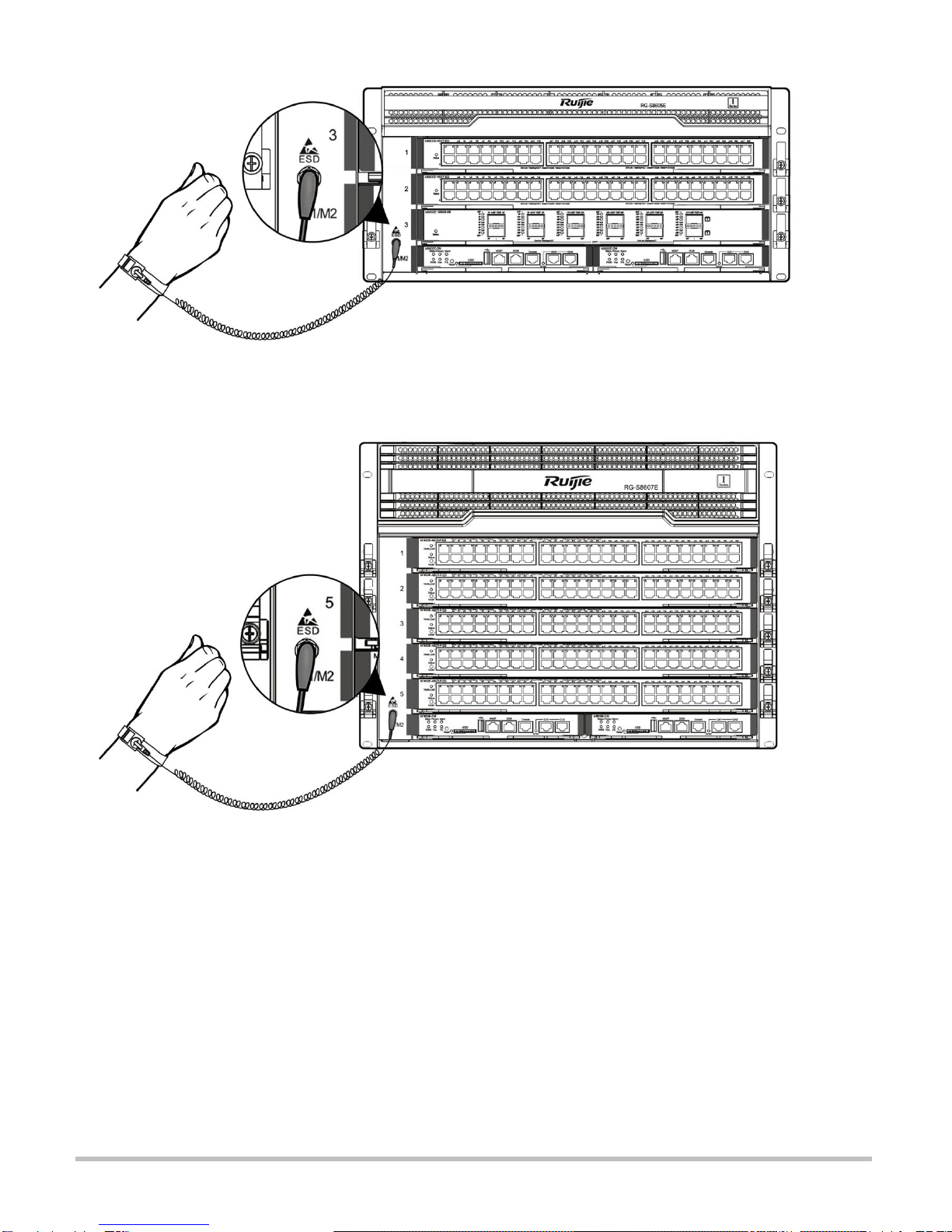

Figure 3-1 ESD Prevention on RG-S8605E

Figure 3-2 ESD Prevention on RG-S8607E

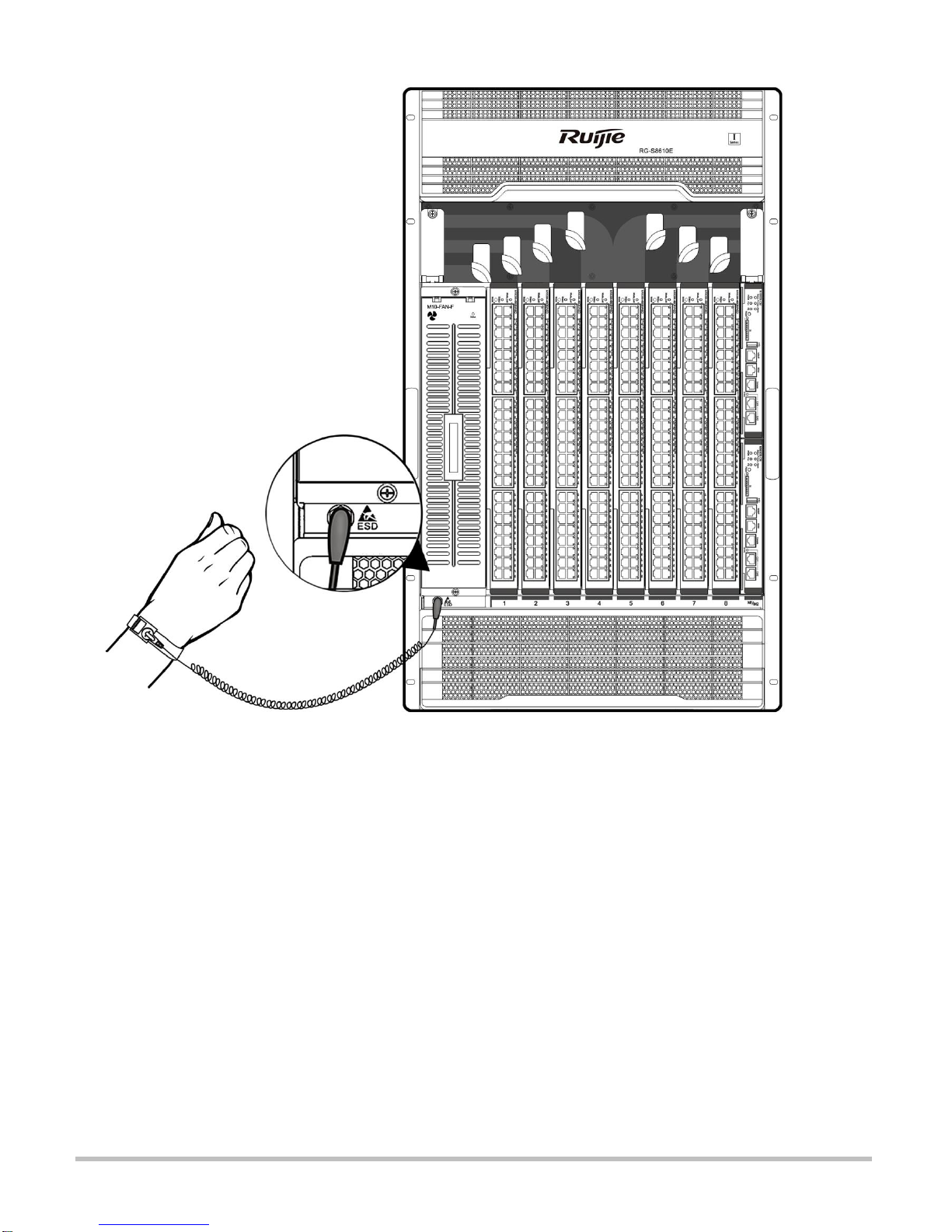

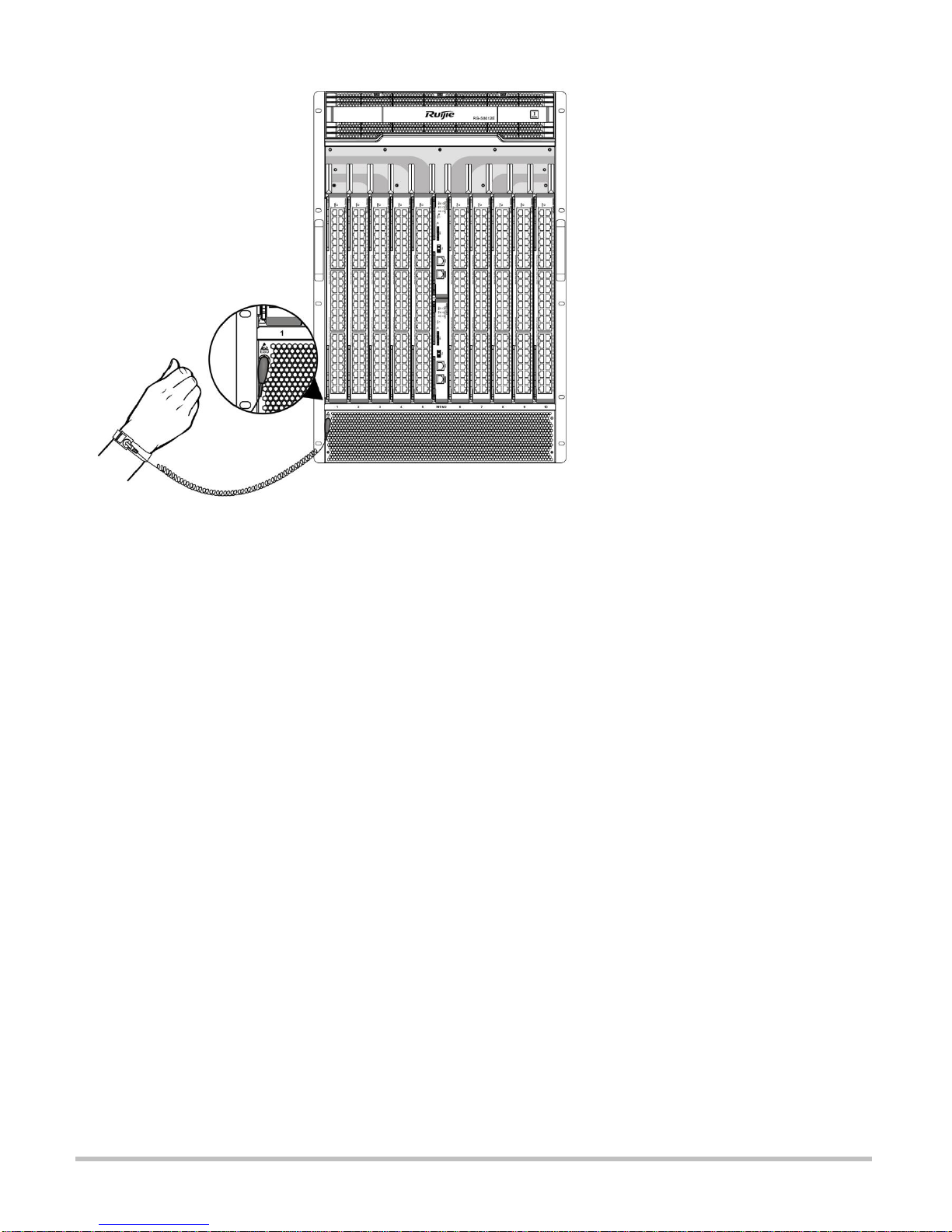

Figure 3-3 ESD Prevention on RG-S8610E

Figure 3-4 ESD Prevention on RG-S8612E

3.2 Installation Site

RG-S8600E series must be used in the room. To ensure normal operation and a prolonged use life of the device, the installation site

must meet the requirements of weight capacity, humidity , cleanness, EMI consideration, grounding system, power, and ventilation.

See the Preparation before Installation chapter of RG-S8600E Series Switches Hardware Installation and Reference Guide for details.

3.3 Cabinet Mounting

Make sure the cabinet complies with the following conditions:

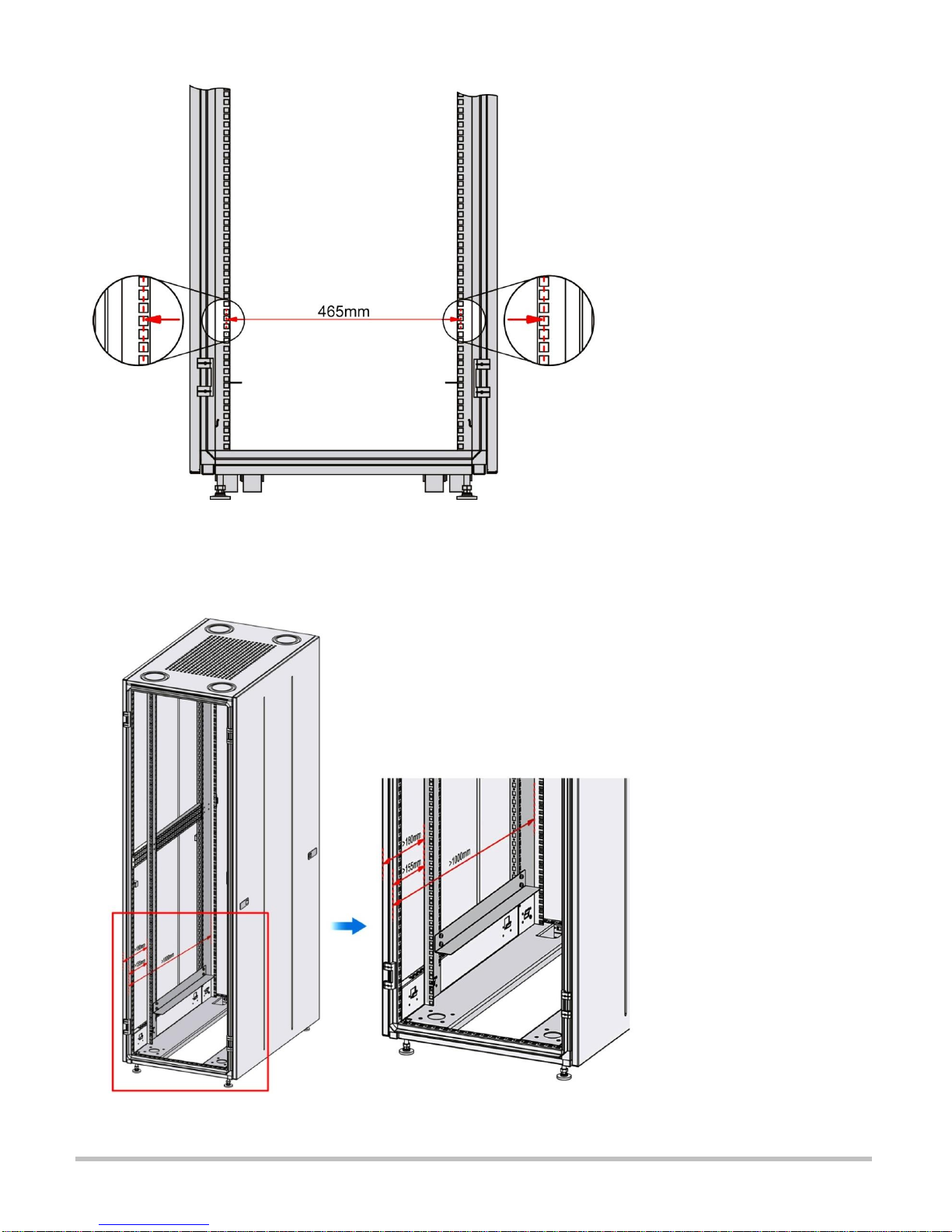

Install the switch in a 19-inch cabinet in 4-port form hold.

Be sure the distance between two square hole strips, one on each side, is 465 mm.

Figure 3-4 19-inch Cabinet

Be sure that the square hold strip is at least 180 mm far from the outboard front door and the door is at most 25 mm thick to

ensure a minimum available distance of 155 mm. The front door is at least 1000 mm far from the back door,

Figure 3-5 Cabinet Dimensions

Be sure that the slide rail in the cabinet is enough to bear the weight of a RG-S8600E and its installation accessories.
