INSTRUCTIONS AND WARRANTY
MODEL NO. RTF-40
RUSSELL HOBBS TOWER FAN
2
Congratulations on purchasing your Russell Hobbs Tower Fan. Each
unit is manufactured to ensure safety and reliability. Before using this
appliance for the first time, please read the instruction manual carefully
and keep it for future reference.
FEATURES OF THE RUSSELL HOBBS TOWER FAN
The Russell Hobbs Tower Fan has 3 speed settings to suit any
cooling requirement.
The 90˚ oscillation function ensures that the whole room is cooled.
The Russell Hobbs Tower Fan has 3 built-in preset timer levels
(i.e. 2, 4 and 8 hours) that switches the unit off after the preset
period of time.
The stylish modern design will suit any décor.
The sturdy round base ensures the unit is stable.
The tower fan has a built-in carry handle to make mobility easy
and convenient.
The Russell Hobbs Tower Fan uses a powerful 40w motor for fast
and effective cooling.
3
IMPORTANT SAFEGUARDS
When using any electrical appliance, basic safety precautions should
always be followed including the following:
1. Please read these instructions carefully before using this
appliance.
2. Always ensure that the voltage on the rating label corresponds to
the mains voltage in your home.
3. Incorrect operation and improper use can damage the appliance
and cause injury to the user.
4. The appliance is intended for household use only. Commercial
use invalids the warranty and the supplier can not be held
responsible for injury or damage caused when using the appliance
for any other purpose than that intended.
5. Avoid any contact with moving parts.
6. Close supervision is required when any appliance is used near or
by children or invalids.
7. Check the power cord and plug regularly for any damage. If the
cord or the plug is damaged, it must be replaced by the
manufacturer or a qualified person in order to avoid an electrical
hazard.
8. Do not use the appliance if it has been dropped or damaged in
any way. In case of damage, take the unit in for examination
and/or repair by an authorised service agent
9. To reduce the risk of electric shock, do not immerse or expose the
motor assembly, plug or the power cord to water or any other
liquid.
10. Never immerse the unit in water or any other liquid for cleaning
purposes.
4
11. Remove the plug from the socket by gripping the plug. Do not pull
on the cord to disconnect the appliance from the mains. Always
unplug the unit when not in use, before cleaning or when adding
or removing parts.
12. The use of accessory attachments that are not recommended or
supplied by the manufacturer may result in injuries, fire or electric
shock.
13. A short cord is provided to reduce the hazards resulting from
becoming entangled in or tripping over a longer cord.
14. Do not let the cord hang over the edge of a table or counter.
Ensure that the cord is not in a position where it can be pulled on
inadvertently.
15. Do not allow the cord to touch hot surfaces and do not place on or
near a hot gas or electric burner or in a heated oven.
16. Do not use the appliance on a gas or electric cooking top or over
or near an open flame.
17. Use of an extension cord with this appliance is not recommended.
However, if it is necessary to use an extension lead, ensure that
the lead is suited to the power consumption of the appliance to
avoid overheating of the extension cord, appliance or plug point.
Do not place the extension cord in a position where it can be
pulled on by children or animals or tripped over.
18. This appliance is not suitable for outdoor use. Do not use this
appliance for anything other than its intended use.
19. DO NOT carry the appliance by the power cord.
20. Do not leave this appliance unattended during use. Always unplug
the unit when not in use or before cleaning.
21. Always operate the appliance on a smooth, even, stable surface.
Do not place the unit on a hot surface.
22. Ensure that the switch is in the “Off” position after each use.
23. The manufacturer does not accept responsibility for any damage
or injury caused by improper or incorrect use, or for repairs carried
out by unauthorised personnel.
5
24. In case of technical problems, switch off the machine and do not
attempt to repair it yourself. Return the appliance to an authorised
service facility for examination, adjustment or repair. Always insist
on the use of original spare parts. Failure to comply with the
above mentioned precautions and instructions, could affect the
safe operation of this machine.
PARTS NAME & LOCATION
1. Remote Control
2. Main Body
3. Base
4. Base screws
5. Clamp screws
6. Power cord & Plug
6
ASSEMBLING YOUR FAN
1. Lay the fan down, with the front grill and control panel facing up.
2. Assemble the base of the fan by interlocking the guides on base A
with base B, ensuring the power cord is threaded through the
large hole in the centre of the bases. See Figure 1.
3. Align the base with the fan, ensuring that the power supply cord is
tightly routed to the back of the base and secure by using the
six long screws supplied. See Figure 2.
4. Ensure that the power supply cord is tightly routed to the back of
the base, and secure the cord under the „Wire locating trough‟at
the back of the base and secure with the two short screws.
7
5. Check that all screws are secured tightly, and place the fan on its
base. The Tower Fan is now ready for use.
REMOTE CONTROL:
This Fan may be operated by manual controls located at the top of the
unit or by Remote Control. The functions on the remote control are
identical to those on the Control panel.
The Remote Control can be extracted from the top enclosure at
the back of the fan as indicated below:
8
To replace battery, see instruction below:
Note: For initial use, please remove clear plastic sticker.
OPERATING INSTRUCTIONS
1. Place the fan on a clean, dry, stable surface.
2. Plug the Power Supply Cord into a 220-240V, 50Hz outlet.
3. Turn the fan on by pressing the Power button ( ). A light will
appear when the fan is turned on. This light will remain lit until the
unit is turned off.
4. SPEED: Press the Fan speed button ( ) to the desired speed
setting. Each time the Fan speed button is pressed, the speed
(and the button light) will change from low (red light), medium
(orange light), to high (green light)
5. OSCILLATION: Press the Oscillation Button ( ) to start and stop
the oscillation function. As well as oscillating from side to side, you
can select the direction most desired by pressing the oscillation
button to stop in the direction you require.
9
6. TIMER: The timer function allows the unit to be set to operate for
2, 4 and 8 hours respectively. Press the Timer button ( ) to set
the time desired. Each time the timer button is pressed, the time
increases as follows:
Red light: Two hours
Orange light: Four hours
Green light: Eight hours
7. NATURAL WIND FEATURE: This function allows a fluctuation of
the airflow as natural wind does outside. When you select the
wind speed button ( ) a green light will be illuminated. Press the
wind speed button again to deactivate this function (the light will
no longer be illuminated).
CLEANING AND MAINTENANCE
This appliance is for household use only and is not user-
serviceable.
Do not open or change any parts by yourself. Please refer to a
qualified electrical service department or return to the supplier if
servicing is necessary.
Always remember to unplug the unit from the electrical outlet
when not in use and before cleaning.
The body of the appliance should be cleaned with a damp cloth.
Do not let water enter the appliance.
10
Do not use bleach or other abrasive substance or solvents to
clean your appliance as it can be damaging to the finish.
Do not immerse the appliance in water or any other liquid, or hold
it under a running tap to clean.
To remove stubborn spots/marks, wipe the surfaces with a cloth
slightly dampened in soapy water or mild non-abrasive cleaner.
Rinse and dry with a clean, dry, soft cloth.
STORING THE APPLIANCE
Unplug the unit from the wall outlet and clean all the parts as
instructed above. Ensure that all parts are dry before storing.
Store the appliance in its box or in a clean, dry place.
Never store the appliance while it is still wet or dirty.
Never wrap the power cord around the appliance.

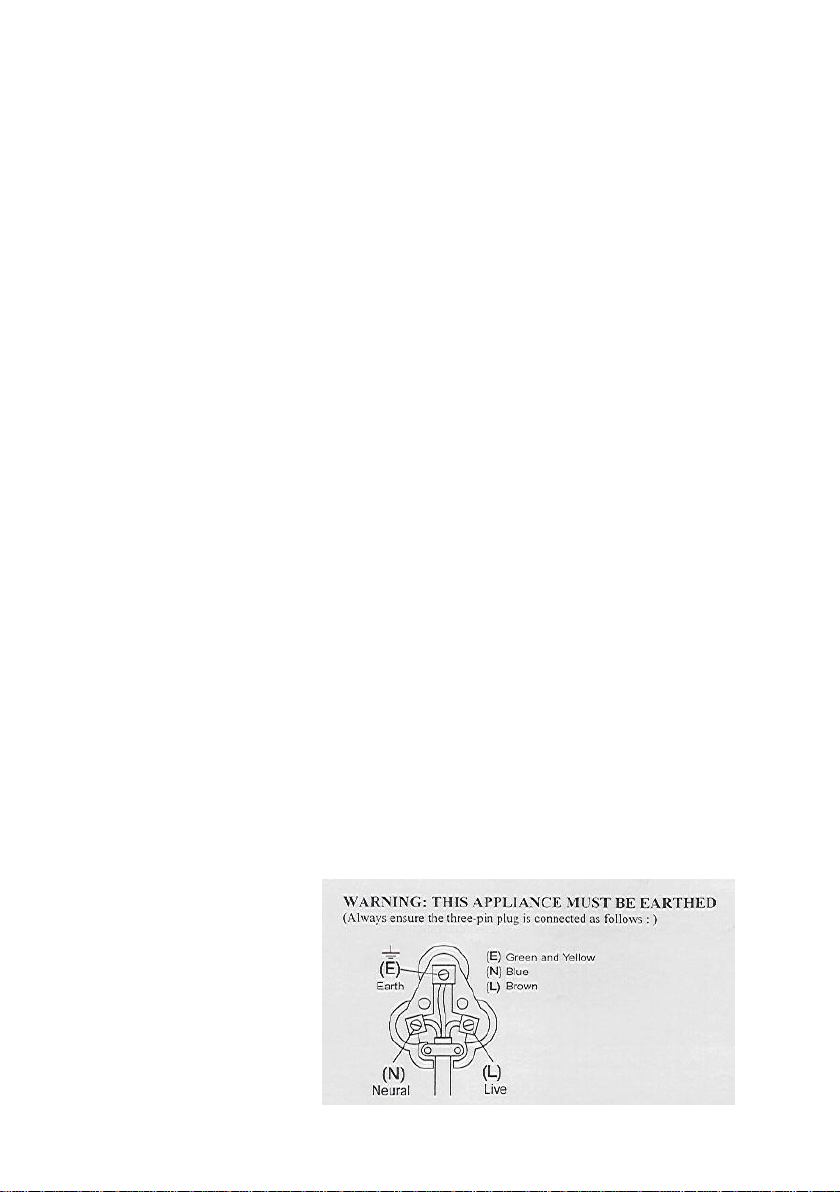

CHANGING THE PLUG
Should the need arise to change the fitted plug, follow the instructions below.
This unit is designed to operate on 220V-240V current only. Connecting to
other power sources may damage the appliance. Connect a three-pin
plug as follows:
The wires in this mains lead are coloured in accordance with the following
code:
Green/Yellow = Earth
Blue = Neutral
Brown = Live
