RUSTA 906512310101 Manuale utente
Manual/Bruksanvisning/Gebrauchsanweisung/Käyttöohje
NOSEENG DE FI
Item. no 906512310101

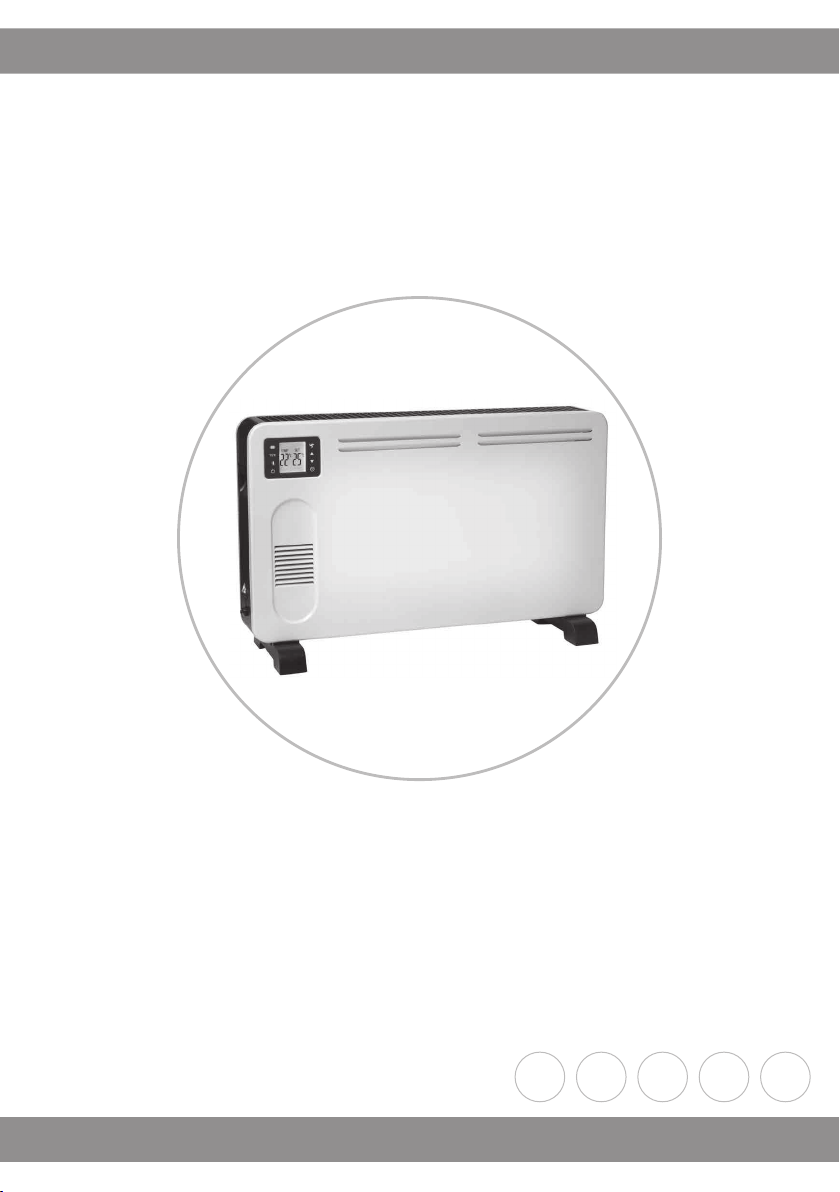

Convector heater
Konvektorelement / Konvektorelement /
Konvektor / Konvektorilämmitin
2300 W DIGITAL
2
ENG
Convector heater, 2300 W Digital
Read the user manual carefully to make sure that the product is assembled, used and
maintained correctly, as described in the instructions in this user manual. Keep the user
manual for future reference.
SAFETY INSTRUCTION
• This product is only suitable for well insulated spaces or occasional use.
• Do not use the heater unless the feet are correctly attached.
• Ensure the power supply to the socket into which the heater is plugged is in
accordance with the rating label on the heater and that the socket is earthed.
• Keep the power cord away from the hot body of the heater.
• If the supply cord is damaged, it must be replaced by the manufactu-
rer, its service agent or similarly qualified persons in order to avoid a
hazard.
• CAUTION! Do not use this heater in the immediate surroundings of a
bath, a shower or a swimming pool.
• CAUTION! In order to avoid overheating, do not cover the heater.
• Indoor use only.
• Do not place the heater on carpets having a very deep pile.
• Always ensure that the heater is placed on a firm level surface.
• Do not place the heater close to curtains or furniture in order to avoid
a fire hazard.
• CAUTION! heater is not located immediately below a socket-outlet.
• CAUTION! heater can’t be mounted on the wall.
• Do not insert any object through the heat outlet or air grilles of the heater.
WARNING!
If these instructions are not followed, an accident may
lead to serious personal injury or property damage.
Thank you for choosing to
purchase a product from Rusta!
Read through the entire manual
before installation and use!
3
• Do not use the heater in areas where flammable liquids are stored or
where flammable fumes may be present.
• Always unplug the heater when moving it from one location to another.
WARNING! If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or a similarly qualified person in
order to avoid a hazard.
• This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and
understand the hazards involved.
• Children shall not play with the appliance. Cleaning and user mainte-
nance shall not be made by children without supervision.
• Children of less than 3 years should be kept away unless continuously
supervised.
• Children of less than 8 years shall only switch on/o the appliance
provided that it has been placed or installed in its intended normal
operating position and they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the
hazards involved.
• Children of less than 8 years shall not plug in, regulate and clean the
appliance or perform user maintenance.
CAUTION! Some parts of this product can become very hot and
cause burns. Particular attention has to be given where children and
vulnerable people are present.
TECHNICAL DATA
Voltage 220–240V ~50/60Hz
Power 2300 W
Dimensions 77,5 x 16 x 43,5 cm
4
ENG
PRODUCT DESCRIPTION
INSTALLATION
Warning! Ensure the 2 feet assembled before using the hea-
ter, to secure enough distance from the standing surface.
1. Take the appliance and all the accessory parts out of the
packaging and check that the appliance shows no signs of
damage.
2. Overturn the main unit, assemble the two feet by using the
four ST4 * 16 screws.
3. After completing the installation, put the heater on a firm
level surface, ready to use.
CONTROL PANEL
Mode button
Fahrenheit/Celsius toggle button
On/O
Fan
+/UP-button
-/DOWN-button
Timer
Front cover
Control panel & display
Turbo Front view
Top view
Rear cover
Remote control Control panel
Feet
5
OPERATION
Warning! Ensure that there is sucient distance from the wall, fixtures or other applian-
ces. The distance must be at least 1.5 m from the front and sides wall of the appliance to
exclude the risk of fire.
1. Take the appliance and all the accessory parts out of the packaging.
2. Check that the appliance shows no signs of damage.
3. Select a location that is firm, level and incombustible.
4. Insert the mains plug into a suitable wall socket with 220 – 240 V~50/60Hz and be sure
power switch is on “ OFF” position.
OPERATION INSTRUCTION
1. Remove heater products and spare parts from the paper box, place on firm level ground or
desktop.
2. Before inserting the plug into an electrical outlet, make sure that the electrical supply in
your area matches that on the rating label on the unit.
3. Setting the master button to “o”. Plug the cord set into a 220-240v~AC electrical outlet.
Turning the master button “on” position.
4. Turn the heater ON by pressing the ON/OFF main button.The unit will display the current
Room temperature.
5. Press the -button to start the unit.
6. Press the and -button to increase or decrease the temperaturesetting. It starts
to heat when the environment temperature is 2° below the setting temperature. It will
stop heating when selected temperature has been reached. The setting temperature
range is 5–37°.
7. To set the temperature: press once for 1000W, twice for 1300W and a third time for 2300W.
Press a fourth time to choose the Prevent Frost setting.
Prevent frost:
• When the temperature is 5° - the 1000W mode will set in.
• When the temperature is 4° – the 1300W mode will set in.
• When the temperature is below 3° – the 2300W mode will set in.
• When the temperature is above 6° – the thermal switch will activate to prevent
overheating.
8. By pressing , you can set the timer from 1–24 hours.
9. Press the to start or stop the fan. The fan icon will be lit on the screen when in use.
The fan option can only be used with 1000W/1300W/2300W. The fan automatically shuts
o when switching to other work modes.
10.Press the -button to choose between Fahrenheit or Celsius scale.
6
ENG
REMOTE CONTROL
HOW TO INSTALL BATTERIES
1. Open the battery box on the back of remote control,
and install One button battery (CR2032V).
2. Put the battery inside the slot, with anode and cathode
in right directions.
3. Put on the back cover.
Slide the cover to open Be sure the direction is correct.
Notice:
1. The anode and cathode of the batteries must be corresponding to the signs of “+” and
“-” on the remote controller.
2. For long time no use, take out the battery.
3. To prevent environmental pollution, take out the used battery and dispose safety and
appropriately.
HOW TO USE
To operate the convector heater, aim the Remote controller at the signal receptor. The
remote controller at a distance of up to 6m when pointing at signal receptor of the fan
heater.
CLEANING AND MAINTENANCE
1. Before undergoing maintenance, please disconnect the power cord plug out the power
source, can be carried out after 10 minutes cooling down.
2. The surface area of dust, with a soft cloth to wipe; When the surface is too dirty,
available below 50 degrees Celsius of the mixture of water and neutral detergent
touch water to wipe with a soft cloth and dry.
3. Dry o the surface with a soft damp cloth. Do not use any corrosive or abrasive
cleaners. Scratches on the surface can cause rust.
4. Product when not in use for a long period of time, unplug the power plug, wrap the
machine to prevent dust into the machine.
5. When the heater should be cold, dry, packaged storage and dry ventilated place as this
may damage the appliance.
6. In case of breakdown and/or poor functioning of the appliance, disconnect the
appliance from the power supply and contact an authorized repairer.
7
RIGHT OF COMPLAINT
By law the product must be returned to the place of purchase along with the original
receipt in the event of a complaint. The user is liable for any damage to the product that
is caused by not using the product for its intended purpose or by not following this user
manual correctly. The right of complaint will not apply in these instances.
INFORMATION ABOUT HAZARDOUS WASTE
Used products should be handled separately from
household waste. They should be taken for recycling in
accordance with local rules for waste management.
VARNING!
Om föreskriften inte efterföljs kan en olycka leda till all-
varlig person- eller egendomsskada.
8
SE
Tack för att du valt att
köpa en produkt från Rusta!
Läs igenom hela bruksanvisningen
innan montering och användning!
Konvektorelement, 2300 W Digital
Läs bruksanvisningen noggrant och se till att produkten installeras, används och
underhålls på rätt sätt enligt instruktionerna. Spara bruksanvisningen för senare bruk.
SÄKERHETSINSTRUKTIONER
• Produkten är endast avsedd för välisolerade utrymmen eller för enstaka användning.
• Använd inte värmaren om inte fötterna är korrekt infästa.
• Se till att strömförsörjningen till uttaget, i vilken värmaren är inkopp-
lad, stämmer med typskylten på värmaren och att uttaget är jordat.
• Håll nätsladden borta från värmarens varma kropp.
• Om strömkabeln skadats måste den bytas ut av tillverkaren, den-
nes servicerepresentant eller annan behörig person, för att undvika
olyckshändelser.
• VARNING! Använd inte värmaren i omedelbar närhet av ett badkar, en
dusch eller en swimmingpool.
• VARNING! För att undvika överhettning, täck inte över värmaren.
• Endast för användning inomhus.
• Placera inte värmaren på tjocka mattor.
• Se alltid till att placera värmaren på ett plant underlag.
• För att undvika brandrisk, placera inte värmaren nära gardiner eller möbler.
• VARNING! Värmaren får inte placeras direkt under ett vägguttag.
• VARNING! Värmaren kan inte monteras på väggen.
• För inte in några föremål genom värmeuttaget eller i värmarens luftgaller.
TEKNISK DATA
Spänning 220–240V~50/60Hz
Eekt 2300W
Dimensioner 77,5 x 16 x 43,5 cm
9
• Använd inte värmaren på platser där brandfarliga vätskor förvaras
eller där brandfarliga gaser kan förekomma.
• Dra alltid ur värmarens kontakt när den flyttas från en plats till en annan.
VARNING! Om sladden är skadad måste den bytas ut av tillverkaren
eller dess servicepersonal eller annan kvalificerad person för att
undvika fara.
• Apparaten kan användas av barn från 8 år och uppåt och personer med
nedsatt fysisk, sensorisk eller mental förmåga eller brist på erfarenhet
och kunskap, om de övervakas och har fått instruktioner angående
användning av apparaten på ett säkert sätt och om de förstår riskerna.
• Barn ska inte leka med apparaten. Rengöring och underhåll får inte
göras av barn utan tillsyn.
• Barn under 3 år bör hållas borta om de inte övervakas kontinuerligt.
• Barn under 8 år får endast sätta på/stänga av apparaten, förutsatt att den
har placerats eller installeras i dess avsedda normalt driftsläge och de
övervakas eller har fått instruktioner angående användning av apparaten
på ett säkert sätt och förstår riskerna. Barn under 8 år får inte koppla in,
reglera och rengöra apparaten eller utföra användarunderhåll.
• VAR FÖRSIKTIG! Vissa av produktens delar kan bli mycket varma och
orsaka brännskador. Särskild uppmärksamhet måste ägnas när barn
och utsatta människor är närvarande.
PRODUKTBESKRIVNING
INSTALLATION
Varning! Se till att montera fötterna innan du börjar använda
elementet. Detta sker för att garantera höjd från underlaget.
1. Packa upp produkten och alla tillbehör och kontrollera att
produkten inte är skadad.
2. Ställ elementet upp och ner och sätt fast fötterna med de
fyra medföljande skruvarna ST4 * 16.
3. Ställ elementet på ett platt underlag. Enheten är nu klar
att använda.
KONTROLLPANEL
Lägesknapp
Fahrenheit/Celsius-knapp
PÅ/AV
Fläkt
+/UPP-knapp
-/NER-knapp
Timer
Fronthölje
Kontrollpanel & display
Turbo Framifrån
Uppifrån
Bakre hölje
Fjärrkontroll Kontrollpanel
Fot
10
SE
Indice
Lingue:
Altri manuali RUSTA Stufa
RUSTA
RUSTA 906512290101 Manuale utente
RUSTA
RUSTA TELESCOPE Manuale utente
RUSTA
RUSTA 90651092 Manuale utente
RUSTA
RUSTA 624701060101 Manuale utente
RUSTA
RUSTA CARBON Manuale utente
RUSTA
RUSTA 906512260101 Manuale utente
RUSTA
RUSTA 906512350101 Manuale utente
RUSTA
RUSTA 906512020201 Manuale utente
RUSTA
RUSTA HALOGEN Manuale utente
RUSTA
RUSTA 906512250101 Manuale utente
Manuali Stufa popolari di altre marche
Empire Heating Systems
Empire Heating Systems WCC65 Manuale utente
Wetekom
Wetekom 92 86 43 Manuale utente
Desa
Desa SPC170-F Manuale utente
Watlow
Watlow Watrod Electric Tubular Heaters Manuale utente
Haverland
Haverland ECO-DRY GPS Series Manuale elenco delle parti
Stelpro
Stelpro ASILVC2060 Series Manuale utente
