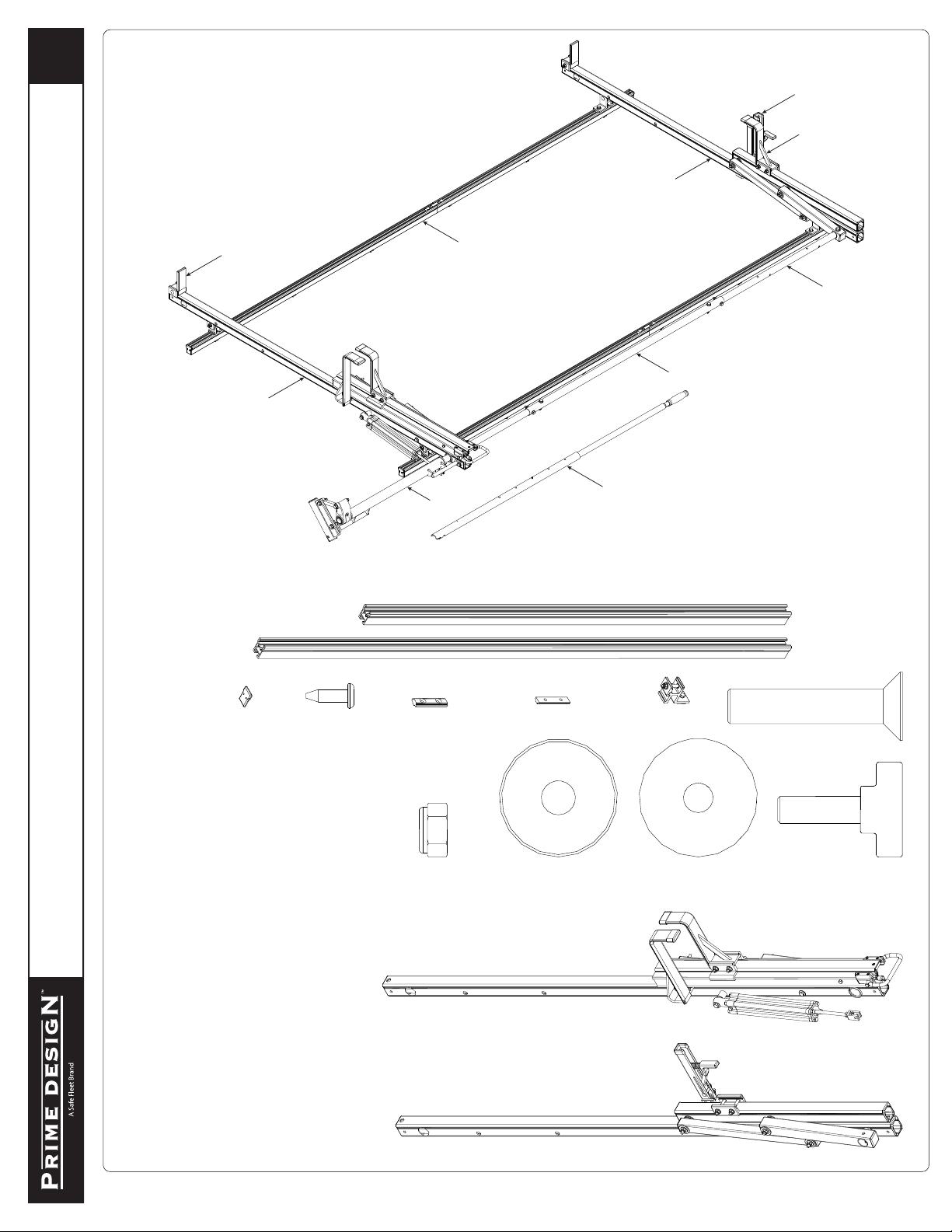

HBR-E-SP ASSEMBLY INSTRUCTIONS–PACKAGING CONTENTS

CONTENTS OVERVIEW

2—Rear Crossbar Assembly.................................. (Qty 1)

3—Front Crossbar Assembly................................. (Qty 1)

1—FBM-0057......................................................... (Qty 1)

Channels with hardware

PRIME DESIGN, A SAFE FLEET BRAND ▪Address: 1689 Oakdale Avenue #102, West St Paul, Minnesota 55118 ▪Phone: 651-552-8554 ▪Toll Free: 1.8.PRIME.RACK ▪Fax: 651-552-1799 ▪Email: in[email protected] ▪Website: www.primedesign.net

TM & © 2018 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6764268, 6971563, 2364879, 8857689, 8511525, 8991889, 2271515, 2364897, 9506292, 9481313, 9481314, 9796340, 6202807, 6427889, 9415726 AND OTHER PATENTS PENDING

3

HBR-E-SP ASSEMBLY INSTRUCTIONS–PACKAGING CONTENTS

M8 x 25MM (1X)

Anti-Seize (1X)

Lubricant (1X)

Clevis Pin (1X)Cotter Pin (1X)

M8 x 50MM (4X) ⅜" x 2.25" (2X)

1.00" Sealing

Stickers (16X)

M8 Lock Nut (5X) ⅜" Lock Nut (2X) ⅜" Flat Washer (4X)

" Flat Washer (10X)

11—HKT-8163 (Not called out in Overview)........ (Qty 1)

6—Front Drive Shaft ............................................. (Qty 1)

B Version, 35.75”

7—Z Post ............................................................... (Qty 1)

Adjustable, 7.25”

8—L Post ................................................................ (Qty 1)

Gen2, Roller Cap, 9.25”

9—Ladder Stop Assembly .................................... (Qty 2)

1.75”

5—Connecting Bar ................................................ (Qty 1)

48.00”

10—HRR Removeable Handle Assembly ............. (Qty 1)

4—Drive Shaft ....................................................... (Qty 1)

Rear, Right Hand, 50.00”

PRIME DESIGN, A SAFE FLEET BRAND ▪Address: 1689 Oakdale Avenue #102, West St Paul, Minnesota 55118 ▪Phone: 651-552-8554 ▪Toll Free: 1.8.PRIME.RACK ▪Fax: 651-552-1799 ▪Email: in[email protected] ▪Website: www.primedesign.net

TM & © 2018 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6764268, 6971563, 2364879, 8857689, 8511525, 8991889, 2271515, 2364897, 9506292, 9481313, 9481314, 9796340, 6202807, 6427889, 9415726 AND OTHER PATENTS PENDING

4

Rear

Front

Rear

Front

42”

60”

Neoprene Washer (outside)

M6 T-Insert

Neoprene Washer (inside)

Fender Washer

M6 Lock Nut

Right Rear

6.375”

Left Rear

6.375”

HBR-E-SP ASSEMBLY INSTRUCTIONS–FBM MOUNTINGS

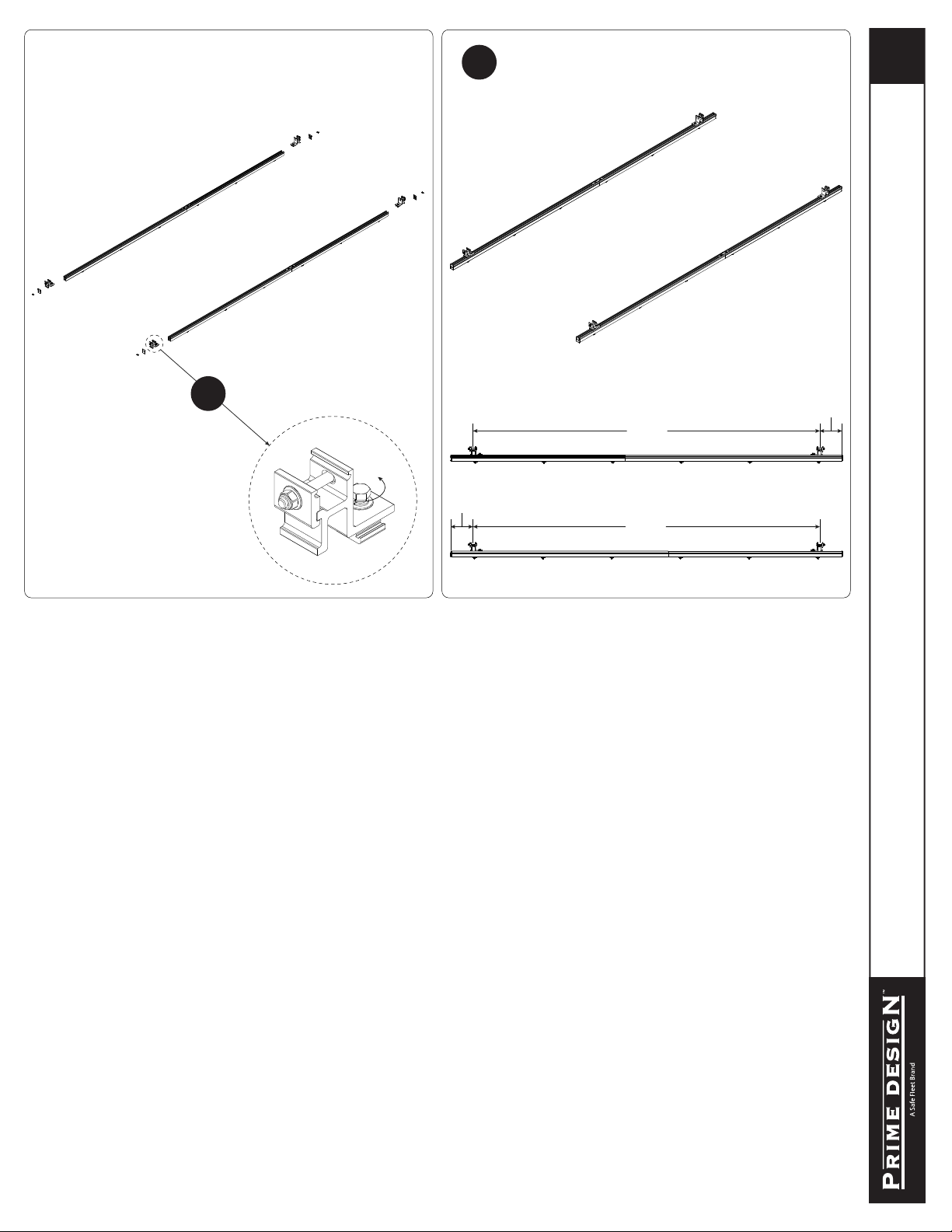

Assemble Channel hardware

through roof as shown, but

do not tighten.

0.1

Slide the upper and lower

Channel Connectors into

Channels and align holes

0.2

0.3

Slide Channels onto

Mounting Brackets

0.4

Torque screws to 90 in-lbs

M8 x 40MM Bolt

0.5 Set to specied distances shown below, then torque Mounting

hardware nuts to 80 in-lbs.

FBM-0057

MOUNTING BRACKETS

PRIME DESIGN, A SAFE FLEET BRAND ▪Address: 1689 Oakdale Avenue #102, West St Paul, Minnesota 55118 ▪Phone: 651-552-8554 ▪Toll Free: 1.8.PRIME.RACK ▪Fax: 651-552-1799 ▪Email: in[email protected] ▪Website: www.primedesign.net

TM & © 2018 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6764268, 6971563, 2364879, 8857689, 8511525, 8991889, 2271515, 2364897, 9506292, 9481313, 9481314, 9796340, 6202807, 6427889, 9415726 AND OTHER PATENTS PENDING

5

Right Rear

96.00”

5.375”

Left Rear

96.00”

5.375”

HBR-E-SP ASSEMBLY INSTRUCTIONS–FBM MOUNTINGS

0.6 Loosen bolts

0.7 Set to distances then torque Bracket nuts to 90 in-lbs

PRIME DESIGN, A SAFE FLEET BRAND ▪Address: 1689 Oakdale Avenue #102, West St Paul, Minnesota 55118 ▪Phone: 651-552-8554 ▪Toll Free: 1.8.PRIME.RACK ▪Fax: 651-552-1799 ▪Email: in[email protected] ▪Website: www.primedesign.net

TM & © 2018 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6764268, 6971563, 2364879, 8857689, 8511525, 8991889, 2271515, 2364897, 9506292, 9481313, 9481314, 9796340, 6202807, 6427889, 9415726 AND OTHER PATENTS PENDING

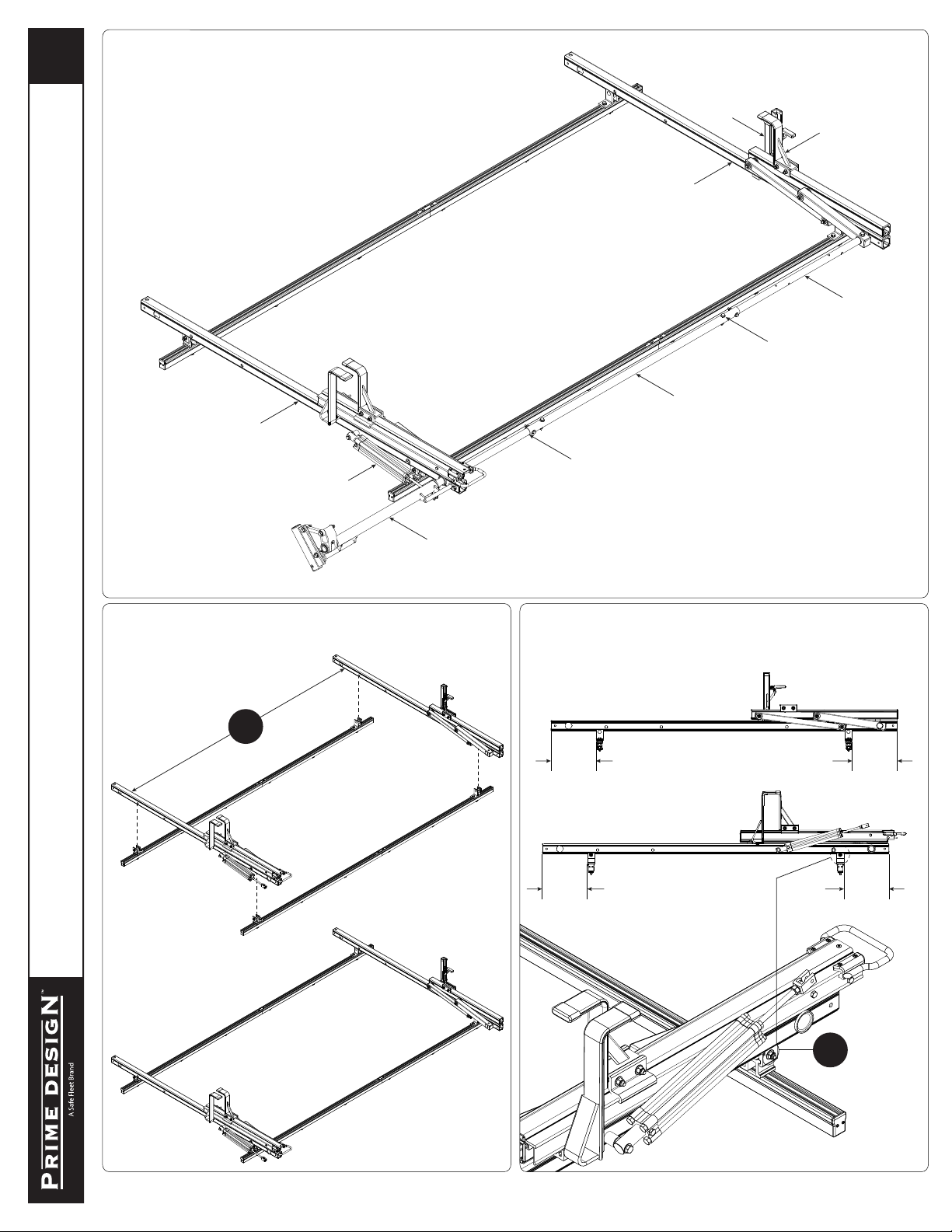

6

1

3/11

2

4

8

Rear

Front

5

7

6

Even

Front

Rear

10

RIGHT ROTATION ASSEMBLY

CROSSBARS CROSSBAR ADJUSTMENT

HBR-E-SP ASSEMBLY INSTRUCTIONS–RIGHT SIDE ROTATION

1.1

Torque to

90 in-lbs

1.2

PRIME DESIGN, A SAFE FLEET BRAND ▪Address: 1689 Oakdale Avenue #102, West St Paul, Minnesota 55118 ▪Phone: 651-552-8554 ▪Toll Free: 1.8.PRIME.RACK ▪Fax: 651-552-1799 ▪Email: in[email protected] ▪Website: www.primedesign.net

TM & © 2018 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6764268, 6971563, 2364879, 8857689, 8511525, 8991889, 2271515, 2364897, 9506292, 9481313, 9481314, 9796340, 6202807, 6427889, 9415726 AND OTHER PATENTS PENDING

7

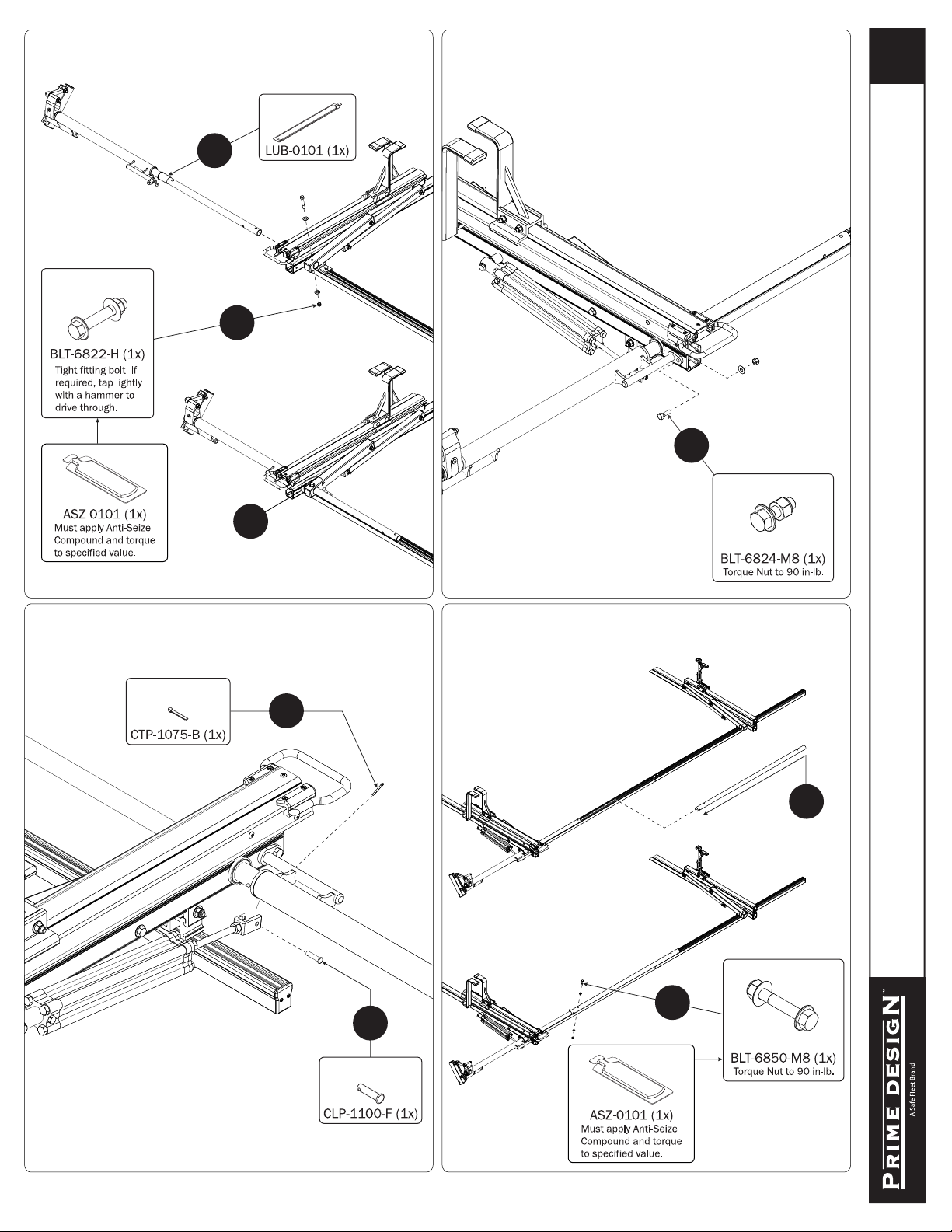

HBR-E-SP ASSEMBLY INSTRUCTIONS–RIGHT SIDE ROTATION

REAR DRIVE SHAFT

2.1

2.2

2.3

Torque to

90 in-lbs

2.4

CYLINDER HARDWARE CONNECTING BAR

3.2

4.1

3.1

4.2

PRIME DESIGN, A SAFE FLEET BRAND ▪Address: 1689 Oakdale Avenue #102, West St Paul, Minnesota 55118 ▪Phone: 651-552-8554 ▪Toll Free: 1.8.PRIME.RACK ▪Fax: 651-552-1799 ▪Email: in[email protected] ▪Website: www.primedesign.net

TM & © 2018 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6764268, 6971563, 2364879, 8857689, 8511525, 8991889, 2271515, 2364897, 9506292, 9481313, 9481314, 9796340, 6202807, 6427889, 9415726 AND OTHER PATENTS PENDING

8

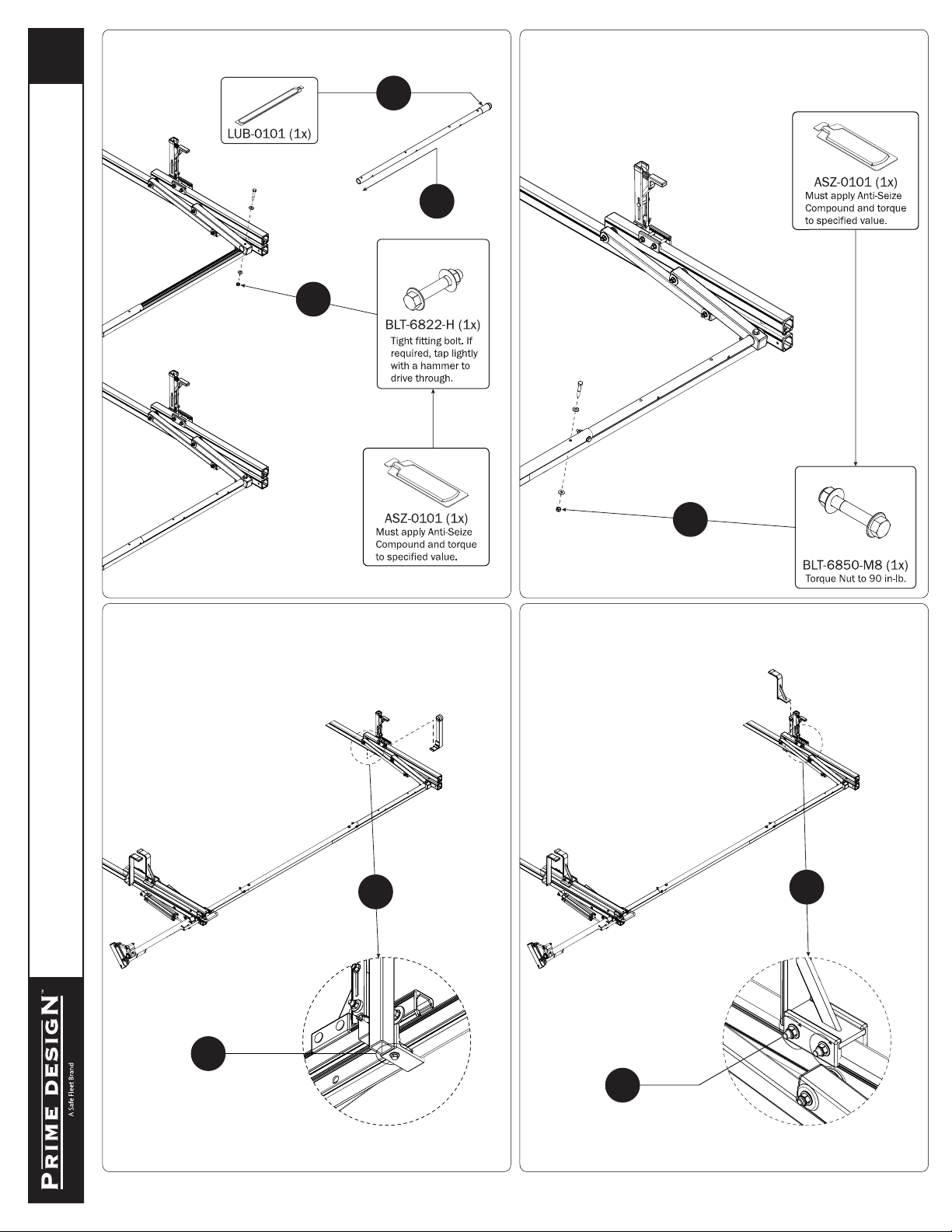

HBR-E-SP ASSEMBLY INSTRUCTIONS–RIGHT SIDE ROTATION

FRONT DRIVE SHAFT

L POST

SEE QUICK START GUIDE FOR ADJUSTMENTS

CONNECTING BAR FASTENERS

6

7.2

Torque to 90 in-lbs

7.1

Z POST

SEE QUICK START GUIDE FOR ADJUSTMENTS

5.2

5.3

8.2

Torque to 90 in-lbs

8.1

5.1

PRIME DESIGN, A SAFE FLEET BRAND ▪Address: 1689 Oakdale Avenue #102, West St Paul, Minnesota 55118 ▪Phone: 651-552-8554 ▪Toll Free: 1.8.PRIME.RACK ▪Fax: 651-552-1799 ▪Email: in[email protected] ▪Website: www.primedesign.net

TM & © 2018 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6764268, 6971563, 2364879, 8857689, 8511525, 8991889, 2271515, 2364897, 9506292, 9481313, 9481314, 9796340, 6202807, 6427889, 9415726 AND OTHER PATENTS PENDING

9

HBR-E-SP ASSEMBLY INSTRUCTIONS–LEFT SIDE BASE

LEFT SIDE BASE

LADDER STOPS

9.1

Torque to

90 in-lbs

9.2

PRIME DESIGN, A SAFE FLEET BRAND ▪Address: 1689 Oakdale Avenue #102, West St Paul, Minnesota 55118 ▪Phone: 651-552-8554 ▪Toll Free: 1.8.PRIME.RACK ▪Fax: 651-552-1799 ▪Email: in[email protected] ▪Website: www.primedesign.net

TM & © 2018 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6764268, 6971563, 2364879, 8857689, 8511525, 8991889, 2271515, 2364897, 9506292, 9481313, 9481314, 9796340, 6202807, 6427889, 9415726 AND OTHER PATENTS PENDING

10

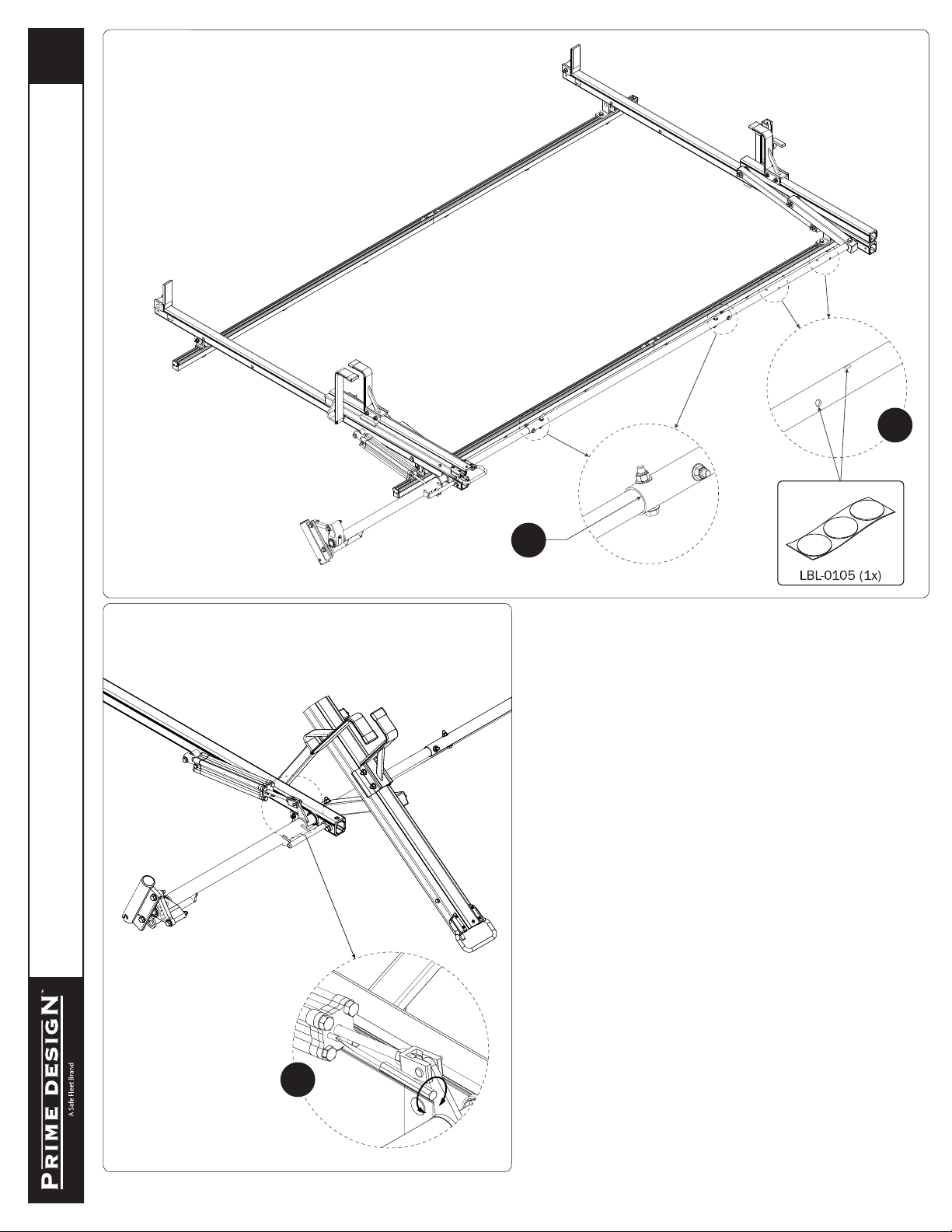

HBR-E-SP ASSEMBLY INSTRUCTIONS

DRIVE SHAFT SEALING

Apply Silicone Sealant

to Connecting Bar ends 10.2

10.1

CYLINDER ADJUSTMENT

Adjust the Cylinder Flow

Control Screw to allow

approximately 3 seconds

time for the ladder to glide

down when operating the

loaded Ladder Rack.

11
