Convenient In-car Bluetooth Receiver with Car Charger
User Manual
BT61Q
Introduction:
Thanks for choosing our Bluetooth receiver with car charger. It works with almost all
Bluetooth devices and all cars with a 3.5mm input. Stream audio through 3.5mm
input in car stereo and enjoy your favorite music from phone/tablet/MP3. Just plug
into your Aux port and sync it with your phone’s Bluetooth. To have a better
experience, please read this instruction carefully. Dual USB ports QC3.0 & 5V/2.4A to
charge the external device.
Packing Contents:
Bluetooth Receiver with Car Charger
User Guide
Features
1.Wirelessly transmits phone call or music via Bluetooth and streaming to the car stereo
system via an aux cable.
2. Switch to hands-free mode automatically from music streaming status when receiving
phone call.
3. Built-in noise cancellation algorithm guarantees clear talking in car.
4. Quick activation of Siri /Google Assistant and etc.
5. One-button to enhance the bass of music
6. Built-in 1M audio & USB power cord.
7. Stick on the car dashboard to operate easily.
8. Bluetooth V5.1 with crystal clear sound quality
9. Dual USB ports for QC3.0 & 5V/2.4A charging.
Specifications
Bluetooth version: JL 5.1
Bluetooth Protocol: AVRCP,HFP,A2DP
Receiver Input: 5V
Charger Input: 12-24V
Charger Output：QC3.0 & 5V/2.4A
Receiver Size: 51.2*30.6*15.4mm
Car Charger Size:L34 * W34 * H73 mm
Length of Cable: 1m
Product weight: 57.2g
Material: ABS

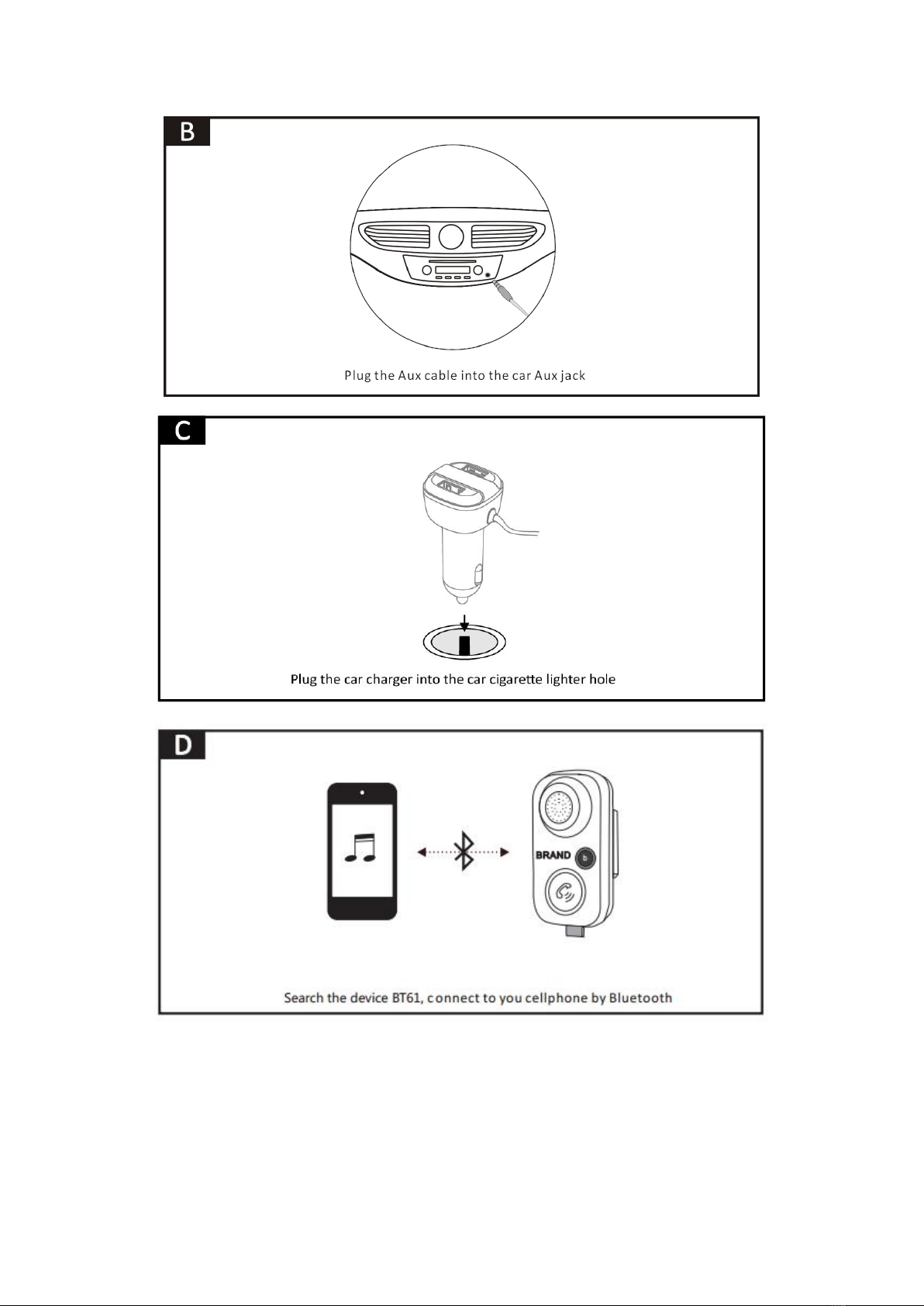

Installation Instruction
Appearance:
Quick Operation Guide:
1. Quick press: Previous song
2. Press and hold: Vol +
1. Quick press: Next song
2. Press and hold: Vol -
Quick press: Active bass sound
Microphone
(Isolated rubber microphone cavity
for noise suppression)
Charging port
3.5mm Aux cable
Music Mode:
Quick press: Pause/Play
Handsfree Mode:
1. Quick press: Answer/hang off the call
2. Double press: Dial the last number automatically
3. Press and hold: Reject the call
4. During a call, press and hold to switch the private calling
Voice Assistant (e.g. Siri/Google assistant)
Press and hold for 2 seconds
Federal Communications Commission (FCC) Statement. This device complies with part 15 of the
FCC Rules. Operation is subject to the following twoconditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation. Note: This equipment has been
tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide Reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one ormore of the following
measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
•Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modifications made to this device not expressly approved by SAGE HUMAN
ELECTRONICS INTERNATIONAL CO., LTD. may void the FCC authorization to operate this
device.Note: The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the user’s authority
to operate the equipment.
RF exposure statement:
The transmitter must not be colocated or operated in conjunction with any other antenna or
transmitter. This equipment complies with the FCC RF radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with a Minimum
distance of 5mm between the radiator and any part of your body.
