EN ROOF ASSEMBLY MANUAL

2 | EN ROOF ASSEMBLY MANUAL v2019.2

1. CONTENTS

2. GENERAL DESCRIPTION 3

3. SAFETY INFORMATION 3

4. ROOF PARTS LIST FOR STANDARD AHU CONFIGURATION 3

5. ROOF ASSEMBLY FOR STANDARD AHU CONFIGURATION 4

6. ROOF PARTS LIST FOR SIDE BY SIDE AHU CONFIGURATION 6

7. ROOF ASSEMBLY FOR SIDE BY SIDE AHU CONFIGURATION 8

8. ROOF PARTS LIST FOR CORNER SECTION 10

9. ROOF ASSEMBLY FOR CORNER SECTION 12

10. ROOF PARTS LIST FOR WIDENED SECTION 15

11. ROOF ASSEMBLY FOR WIDENED SECTION 16

EN | 3ROOF ASSEMBLY MANUAL v2019.2

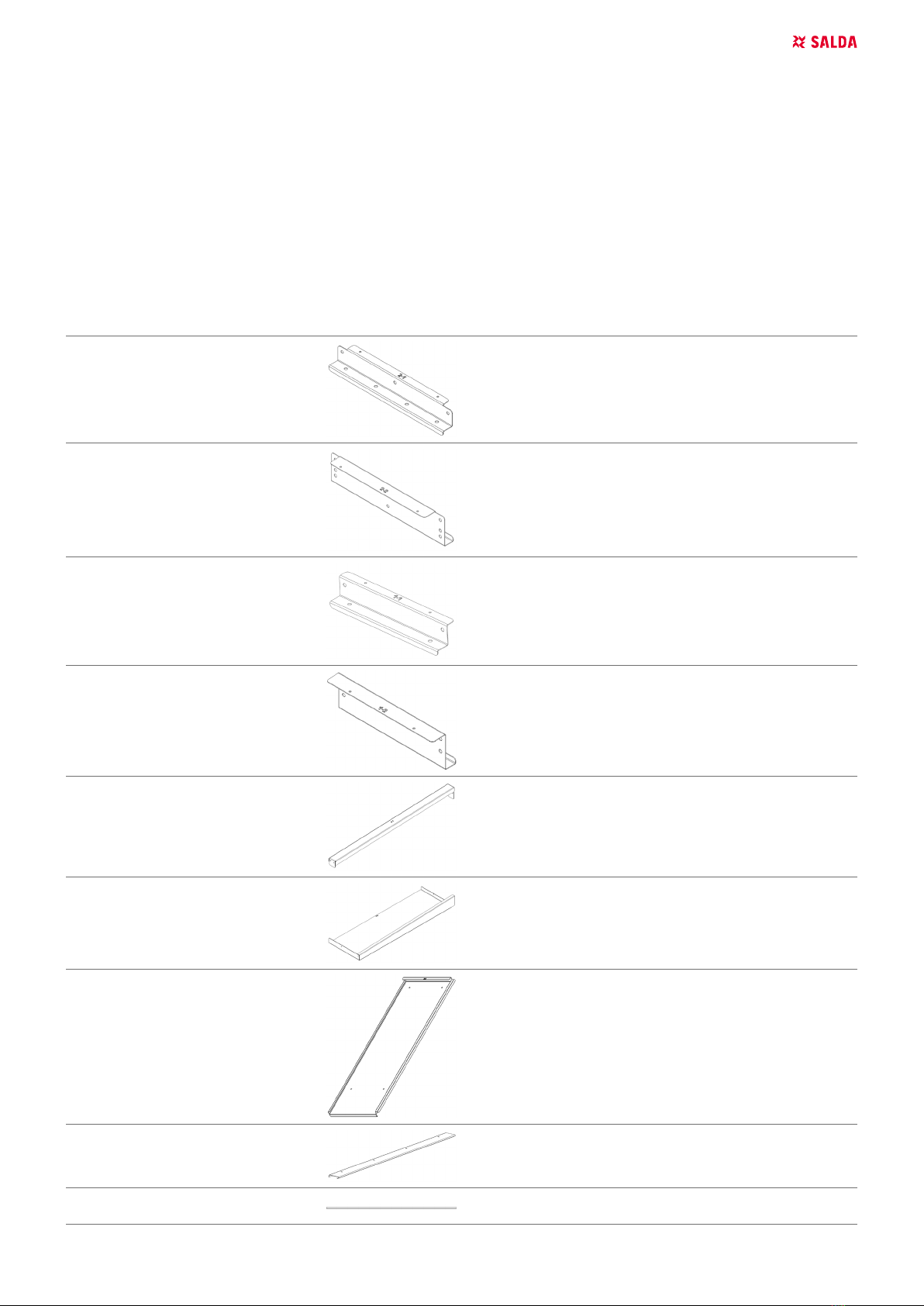

2. GENERAL DESCRIPTION

Roof used to protect unit from precipitation. All outdoor design unit sizes have double slope roof.

3. SAFETY INFORMATION

Refer to main AHU manual for safety information.

4. ROOF PARTS LIST FOR STANDARD AHU CONFIGURATION

Table 4.1 shows general drawings of the roof parts that can be supplied with the unit. Exact number of supplied parts depends on the conguration

of the AHU. Part numbers are carved on the parts.

Table 4.1 Roof parts list

PART QUANTITY, PCS PICTURE PART NUMBER LENGTH, MM COMMENTS

Longitudinal front

edge support

Depends on the unit’s

conguration 2-1 250 Used on unit’s edges

Longitudinal middle

edge support

Depends on the unit’s

conguration 2-2 250 Used on unit’s edges

Longitudinal front

support

Depends on the unit’s

conguration

1-1

3-1

4-1

5-1

200

400

600

800

Used in the center of

the unit

Longitudinal middle

support

Depends on the unit’s

conguration

1-2

3-2

4-2

5-2

200

400

600

800

Used in the center of

the unit

Transverse support Depends on the unit’s

conguration 6-1 Length depends on

the width of the unit.

Rear support Depends on the unit’s

conguration

7-1

7-2

Length depends on

the width of the unit.

Roof segment Depends on the unit’s

conguration

1-3

1-4

2-3

2-4

3-3

3-4

4-3

4-4

5-3

5-4

200

250

400

600

800

Segment width de-

pends on the width of

the unit

Prole cover L1200 Depends on the unit’s

conguration 1200

Sealing strip 18x8 Depends on the unit’s

conguration

4 | EN ROOF ASSEMBLY MANUAL v2019.2

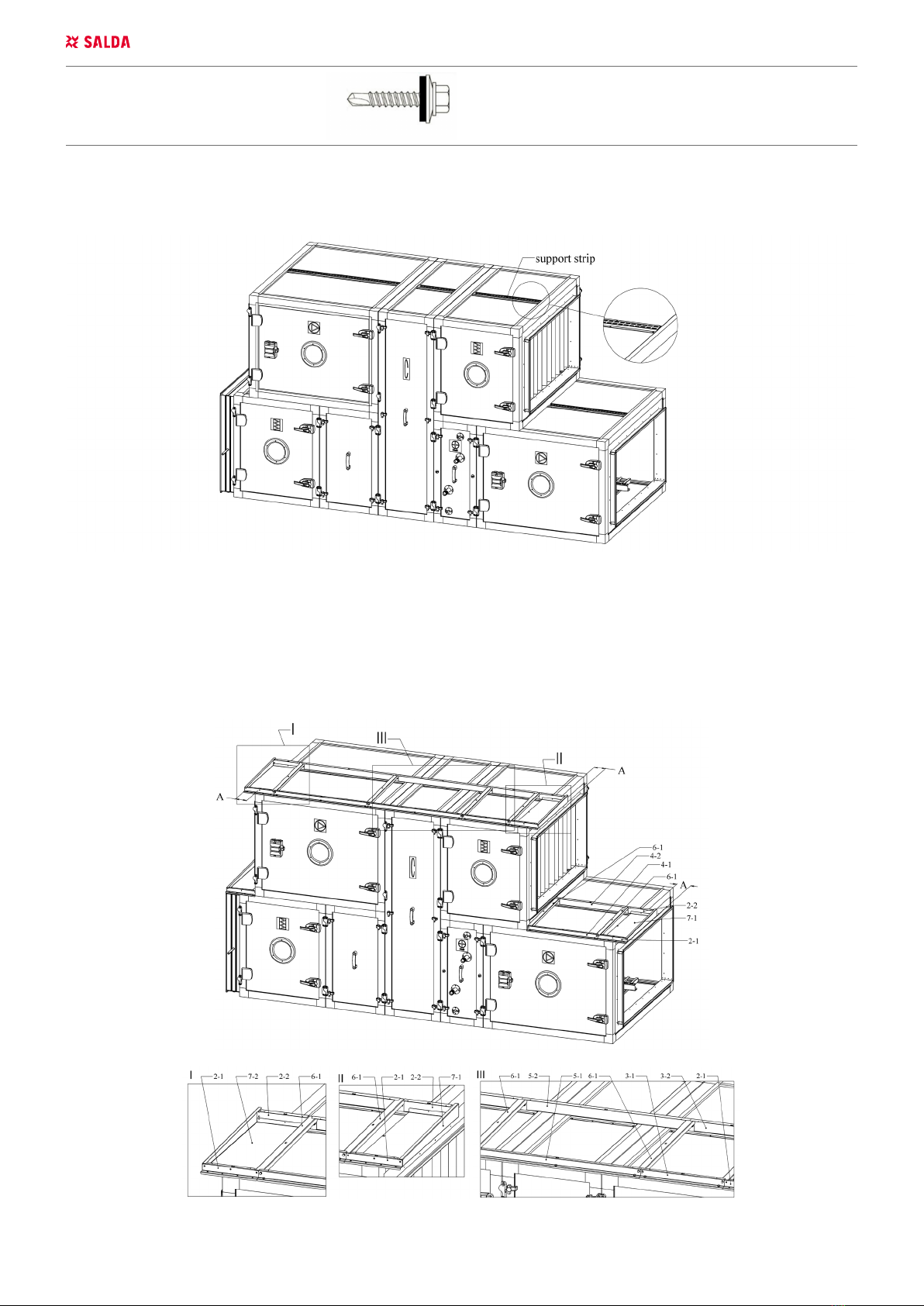

Self-tapping screw

GTX3 4,8x25

Depends on the unit’s

size

5. ROOF ASSEMBLY FOR STANDARD AHU CONFIGURATION

1. There are roof support strips (installed at factory) on the top of the outdoor unit, as shown in Figure 5.1.

Figure 5.1

2. Connect longitudinal edge supports 2-1, 2-2 to the rear supports 7-1, 7-2 and 6-1-transverse supports using self-taping screws supplied with

the unit as shown in Figure 5.2 (I and II).

3. Connect the longitudinal center supports 1-1, 1-2, 3-1, 3-2, 4-1, 4-2 or 5-1, 5-2 to each other (depending on the length of the unit) using self-tap-

ping screws supplied with the unit and connect end-to-end edge supports 2-1, 2-2 as shown in Figure 5.2. (III).

4. The combined entire frame of the details must be centered according to the length of the unit, the distance A must be the same on both sides

as shown in Figure 5.2. A distance can be between 50 – 150 mm.

Figure 5.2

EN | 5ROOF ASSEMBLY MANUAL v2019.2

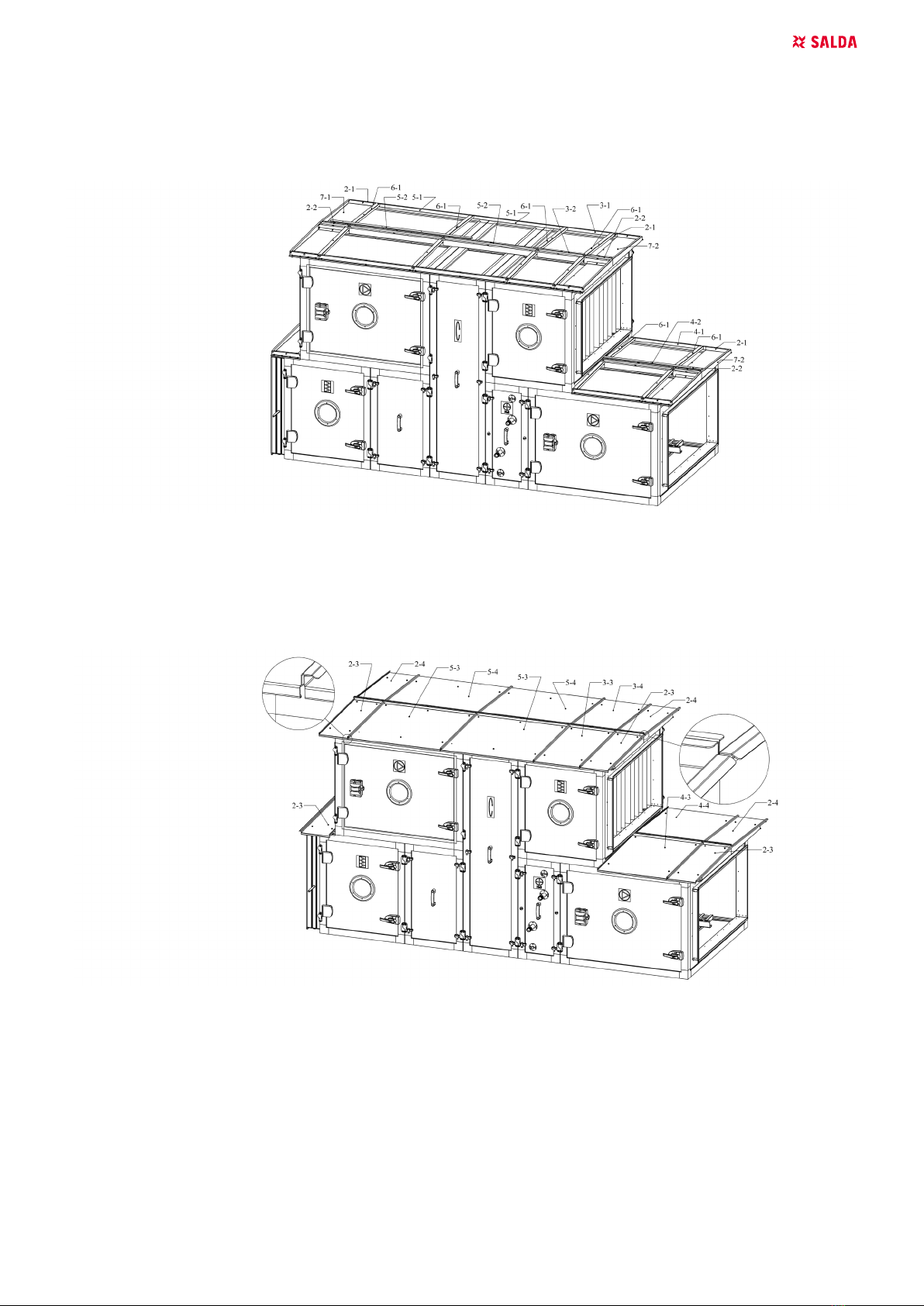

2-1 - longitudinal front edge support; 2-2 - longitudinal middle edge support; 3-1, 4-1, 5-1-longitudinal front supports; 3-2, 4-2, 5-2 -longitudinal

middle supports; 6-1-transverse support; 7-1, 7-2 – rear support.

5. Center and attach frame to the unit using self-taping screws supplied with the unit.

6. Assemble the opposite side of the frame in the same way as the rst one. Complete frame assembly is shown in Figure 5.3.

Figure 5.3

2-1 - longitudinal front edge support; 2-2 - longitudinal middle edge support; 3-1, 4-1, 5-1 -longitudinal front supports; 3-2, 4-2, 5-2 -longitudinal

middle supports; 6-1-transverse support; 7-1, 7-2 – rear support.

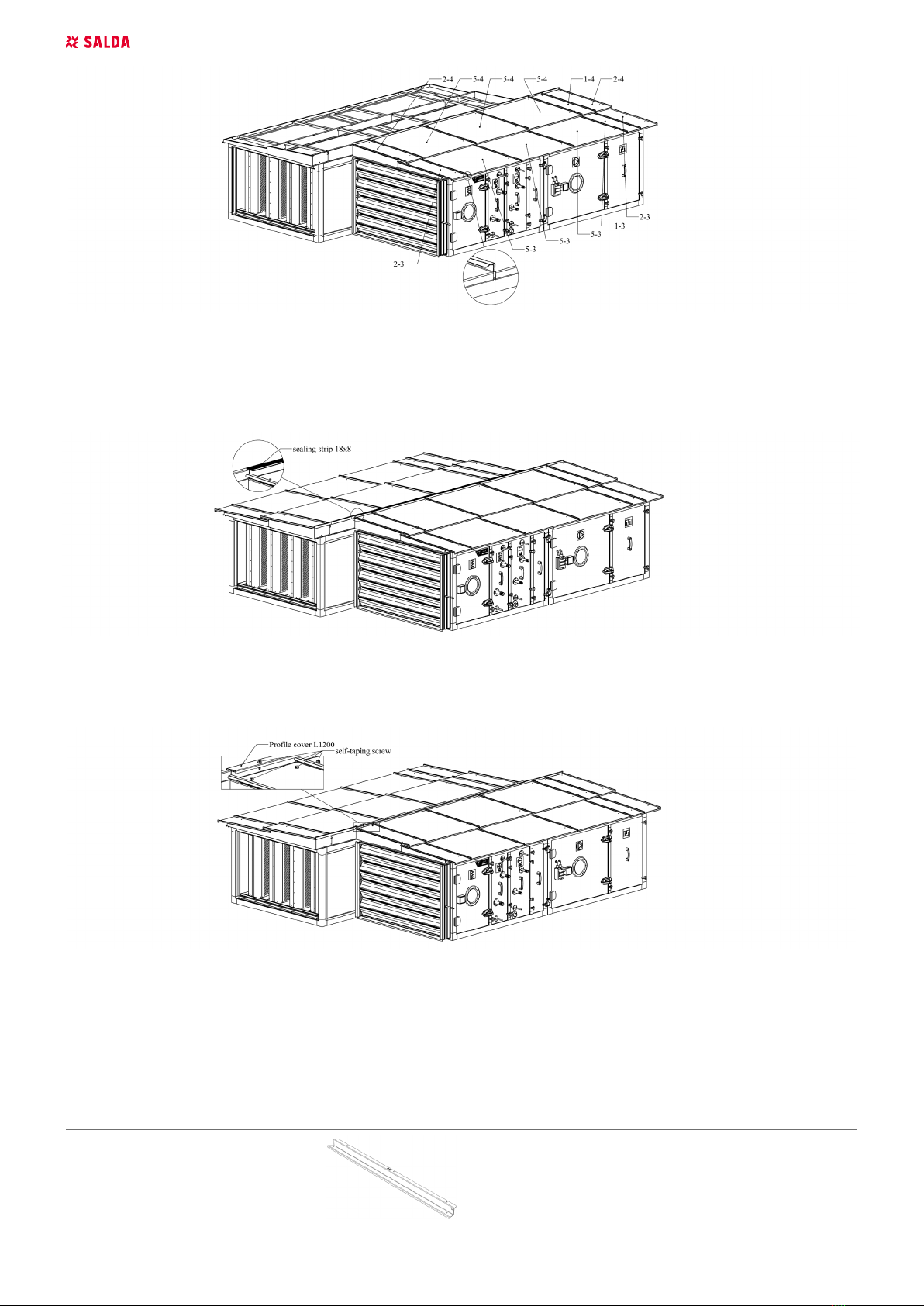

7. Fit the roof segments of a certain width with the same spacing of the frame and attach to the frame by self-taping screws supplied with the unit

as shown in Figure 5.4.

Figure 5.4

2-3, 2-4, 3-3, 3-4, 4-3, 4-4, 5-3, 5-4 - roof segments

8. Apply supplied sealing strip 18x8 on segments in the middle, as shown in Figure 5.5.

6 | EN ROOF ASSEMBLY MANUAL v2019.2

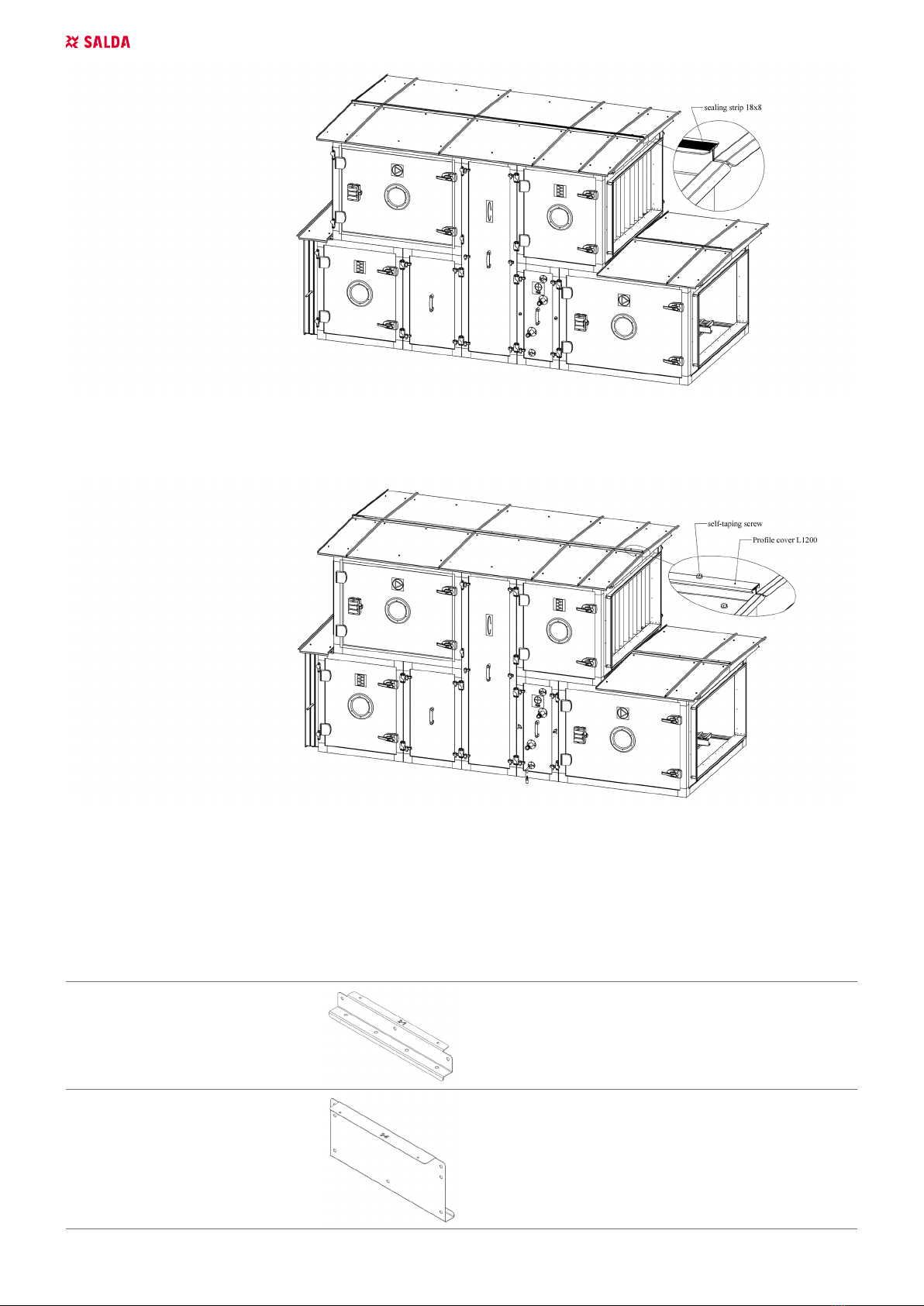

Figure 5.5

9. Fit the prole cover L1200 on segments in the middle and attach to the segments by self-taping screws supplied with the unit as shown in

Figure 5.6. If it is too long, cut it.

Figure 5.6

6. ROOF PARTS LIST FOR SIDE BY SIDE AHU CONFIGURATION

Table 6.1 shows general drawings of the roof parts that can be supplied with the unit. Exact number of supplied parts depends on the conguration

of the AHU. Part numbers are carved on the parts.

Table 6.1 Roof parts list

PART QUANTITY, PCS PICTURE PART NUMBER LENGTH, MM COMMENTS

Longitudinal front

edge support

Depends on the unit’s

conguration 2-1 250 Used on unit’s edges

Side by side longi-

tudinal front edge

support

Depends on the unit’s

conguration 2-6 250 Used on unit’s edges

EN | 7ROOF ASSEMBLY MANUAL v2019.2

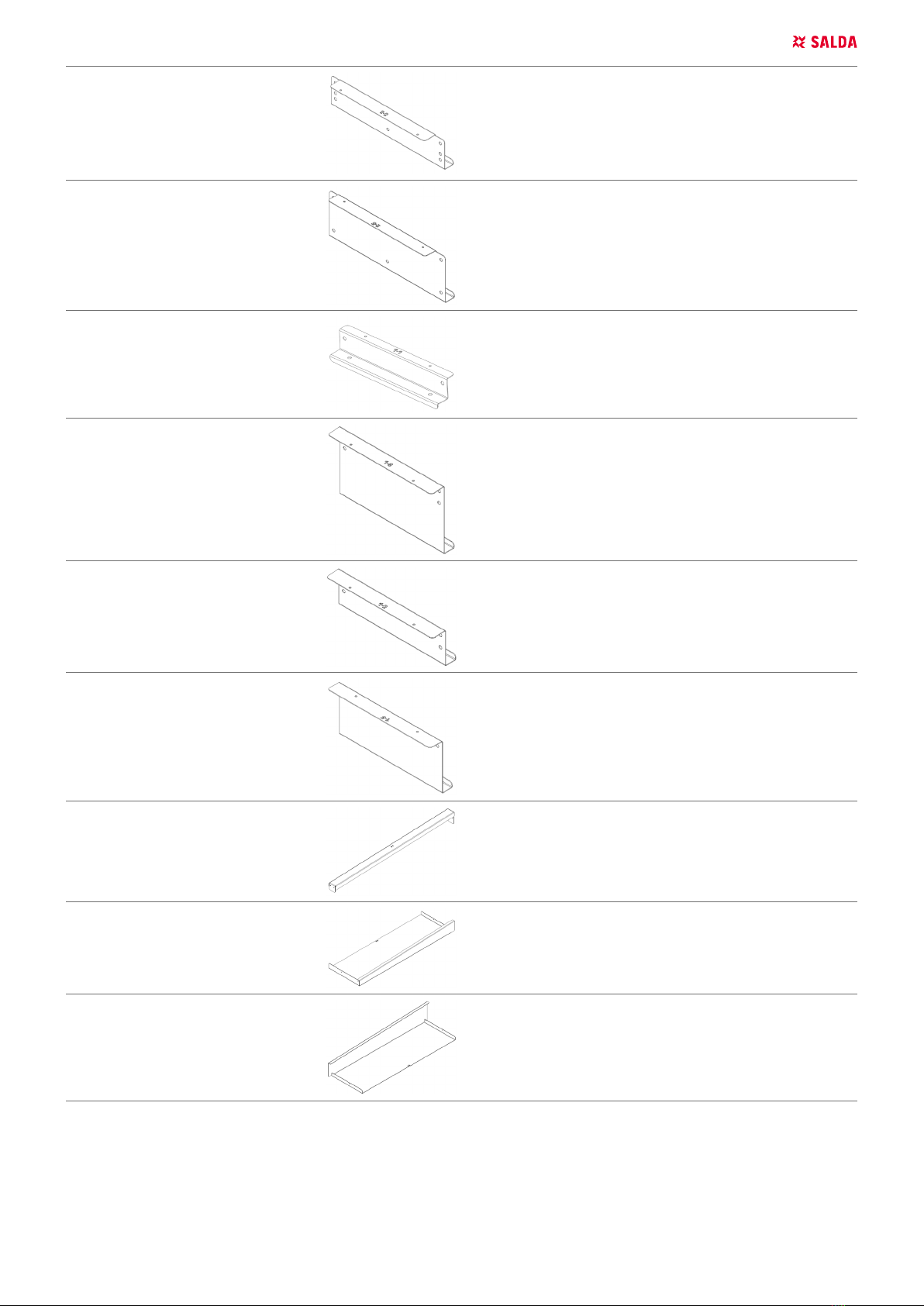

Longitudinal middle

edge support

Depends on the unit’s

conguration 2-2 250 Used on unit’s edges

Side by side longi-

tudinal middle edge

support

Depends on the unit’s

conguration 2-5 250 Used on unit’s edges

Longitudinal front

support

Depends on the unit’s

conguration

1-1

3-1

4-1

5-1

200

400

600

800

Used in the center of

the unit

Side by side longi-

tudinal front support

Depends on the unit’s

conguration

1-6

3-6

4-6

5-6

200

400

600

800

Used in the center of

the unit

Longitudinal middle

support

Depends on the unit’s

conguration

1-2

3-2

4-2

5-2

200

400

600

800

Used in the center of

the unit

Side by side longi-

tudinal middle sup-

port

Depends on the unit’s

conguration

1-5

3-5

4-5

5-5

200

400

600

800

Used in the center of

the unit

Transverse support Depends on the unit’s

conguration 6-1 Length depends on

the width of the unit.

Rear support Depends on the unit’s

conguration

7-1

7-2

Length depends on

the width of the unit.

Side by side rear

support

Depends on the unit’s

conguration

7-3

7-4

Length depends on

the width of the unit.

8 | EN ROOF ASSEMBLY MANUAL v2019.2

Roof segment Depends on the unit’s

conguration

1-3

1-4

2-3

2-4

3-3

3-4

4-3

4-4

5-3

5-4

200

250

400

600

800

Segment width de-

pends on the width of

the unit

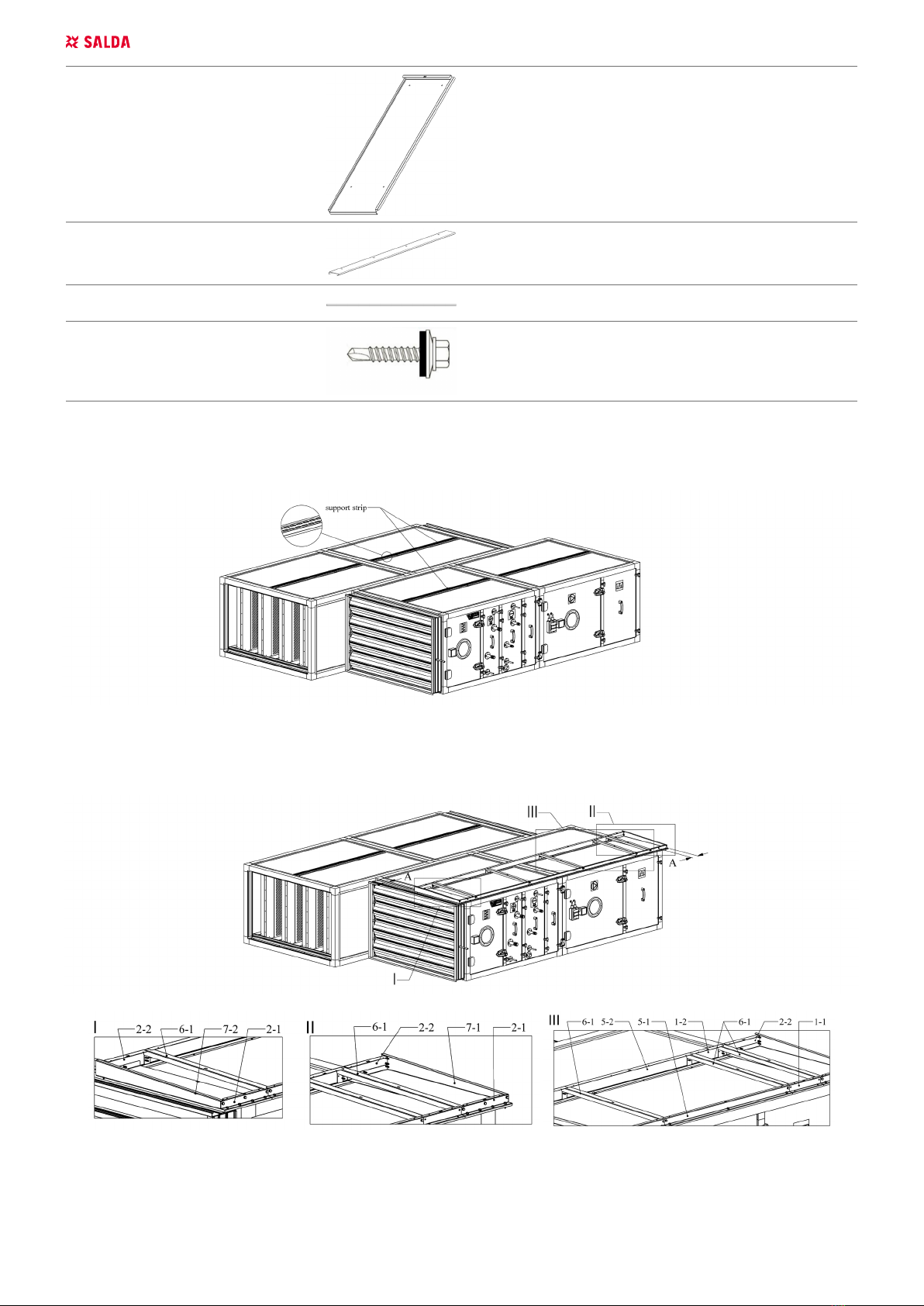

Prole cover L1200 Depends on the unit’s

conguration 1200

Sealing strip 18x8 Depends on the unit’s

conguration

Self-tapping screw

GTX3 4,8x25

Depends on the unit’s

size

7. ROOF ASSEMBLY FOR SIDE BY SIDE AHU CONFIGURATION

1. There are roof support strips (installed at factory) on the top of the outdoor unit, as shown in Figure 7.1.

Figure 7.1

2. Connect longitudinal edge supports 2-1, 2-2 to the rear supports 7-1, 7-2 and 6-1-transverse supports using self-taping screws supplied with

the unit as shown in Figure 7.2 (I and II).

Figure 7.2

2-1 - longitudinal front edge support; 2-2 - longitudinal middle edge support; 1-1, 5-1 -longitudinal front supports; 1-2, 5-2 -longitudinal middle

supports; 6-1-transverse support; 7-1, 7-2 – rear support.

3. Connect the longitudinal supports 1-1, 1-2, 3-1, 3-2, 4-1, 4-2 or 5-1, 5-2 to each other (depending on the length of the unit) with 6-1-transverse

EN | 9ROOF ASSEMBLY MANUAL v2019.2

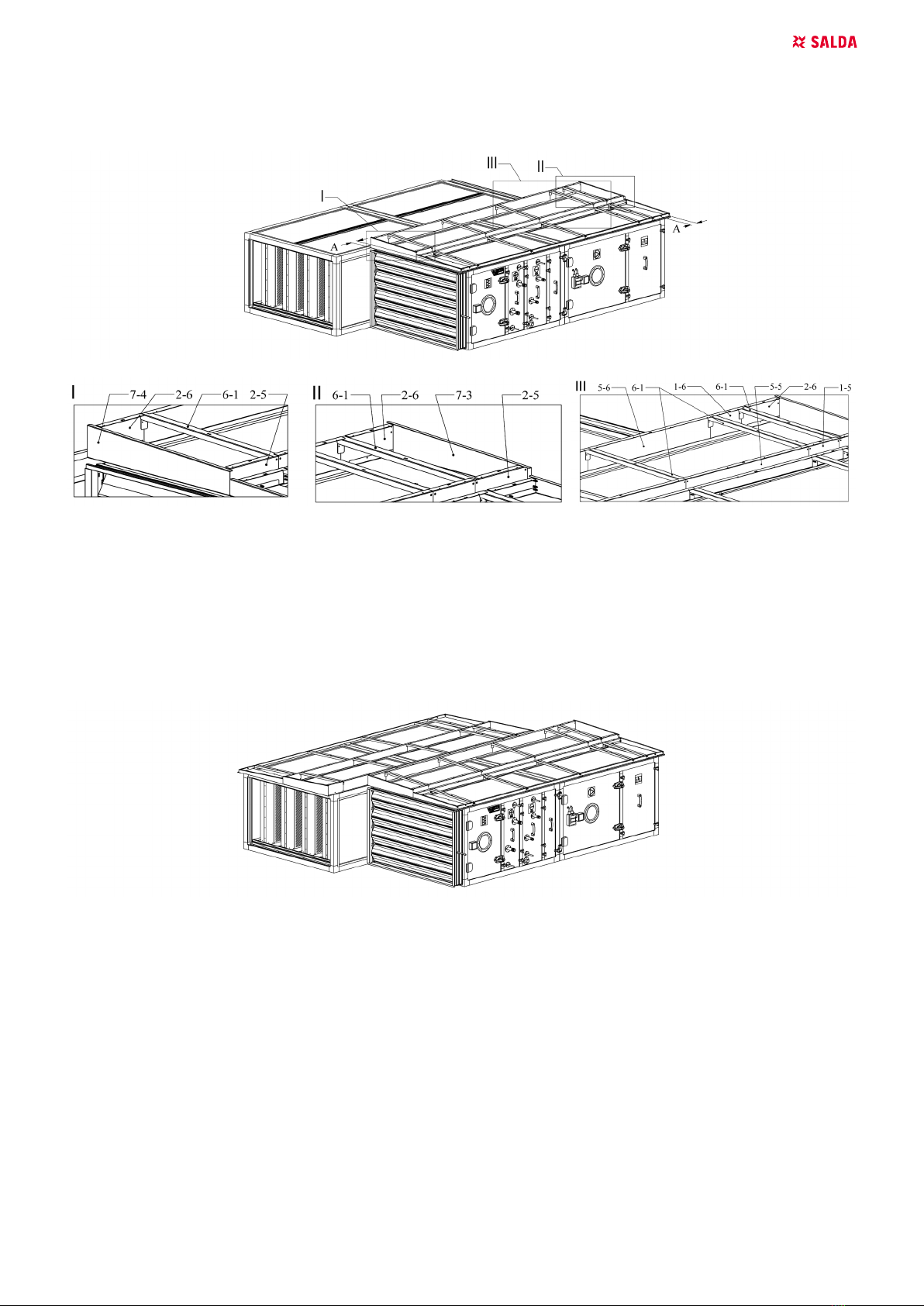

supports using self-tapping screws supplied with the unit and connect end-to-end edge supports 2-1, 2-2 as shown in Figure 7.2. (III).

4. The combined entire frame of the details must be centered according to the length of the unit, the distance A must be the same on both sides

as shown in Figure 7.2. A distance can be between 50 – 150 mm.

5. Connect longitudinal edge supports 2-3, 2-4 to the rear supports 7-3, 7-4 and 6-1-transverse supports using self-taping screws supplied with

the unit as shown in Figure 7.3 (I and II).

Figure 7.3

2-6 – side by side longitudinal front edge support; 2-5 – side by side longitudinal middle edge support; 1-6, 5-6 – side by side longitudinal front

supports; 1-5, 5-5 -side by side longitudinal middle supports; 6-1-transverse support; 7-3, 7-4 – rear support.

6. Connect the longitudinal supports 1-5, 1-6, 3-5, 3-6, 4-5, 4-6 or 5-5, 5-6 to each other (depending on the length of the unit) with 6-1-transverse

supports using self-tapping screws supplied with the unit and connect end-to-end edge supports 2-5, 2-6 as shown in Figure 7.3. (III).

7. The combined entire frame of the details must be centered according to the length of the unit, the distance A must be the same on both sides

as shown in Figure 7.3. A distance can be between 50 – 150 mm.

8. Center and attach frame to the unit using self-taping screws supplied with the unit.

9. Assemble the opposite side of the frame in the same way as the rst one. Complete frame assembly is shown in Figure 7.4.

Figure 7.4

10. Fit the roof segments of a certain width with the same spacing of the frame and attach to the frame by self-taping screws supplied with the

unit as shown in Figure 7.5.

10 | EN ROOF ASSEMBLY MANUAL v2019.2

Figure 7.5

1-3, 1-4, 2-3, 2-4, 5-3, 5-4 - roof segments

11. Assemble the opposite side of the roof segments in the same way as the rst one. Complete frame assembly is shown in Figure 7.6.

12. Apply supplied sealing strip 18x8 on segments in the middle, as shown in Figure 7.6.

Figure 7.6

13. Fit the prole cover L1200 on segments in the middle and attach to the segments by self-taping screws supplied with the unit as shown in

Figure 7.7. If it is too long, cut it.

Figure 7.7

8. ROOF PARTS LIST FOR CORNER SECTION

Table 8.1 shows general drawings of the roof parts that can be additionally supplied with the unit for corner section. Exact number of supplied

parts depends on the conguration of the AHU. Part numbers are carved on the parts.

Table 8.1 Roof parts list

PART QUANTITY, PCS PICTURE PART NUMBER LENGTH, MM COMMENTS

Longitudinal front

outer corner sup-

ports

Depends on the unit’s

conguration

8-1

8-2

Length depends on

the width of the unit.
