OWNER'S MANUAL

Frequency Agile Wireless System

Samson Technologies Corp.

278-B Duffy Ave

Hicksville, NY 11801

www.samsontech.com

Concert 88x Wireless System 3

Important Safety Information

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR

BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

This lightning ﬂash with arrowhead symbol within an equilateral triangle is

intended to alert the user to the presence of non-insulated “dangerous voltage”

within the product’s enclosure that may be of sufﬁcient magnitude to constitute

a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user

to the presence of important operating and maintenance instructions in the

literature accompanying the appliance.

ATTENTION

RISQUE D’ÉLECTROCUTION !

NE PAS OUVRIR !

WARNING

TO PREVENT FIRE OR SHOCK HAZARD. DO NOT USE THIS PLUG WITH AN EXTENSION

CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED

TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE OR SHOCK HAZARD. DO NOT EXPOSE

THIS APPLIANCE TO RAIN OR MOISTURE. TO PREVENT ELECTRICAL SHOCK, MATCH WIDE

BLADE PLUG TO WIDE SLOT AND FULLY INSERT.

If you want to dispose this product, do not mix it with general household waste. There is

a separate collection system for used electronic products in accordance with legislation

that requires proper treatment, recovery and recycling.

Private household in the 28 member states of the EU, in Switzerland and Norway may

return their used electronic products free of charge to designated collection facilities or to a

retailer (if you purchase a similar new one).

For Countries not mentioned above, please contact your local authorities for a correct method of

disposal.

By doing so you will ensure that your disposed product undergoes the necessary treatment,

recovery and recycling and thus prevent potential negative effects on the environment and

human health.

Important Safety Information

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings.

Install in accordance with the manufac-

turer’s instructions.

8. Do not install near any heat sources such

as radiators, heat registers, stoves, or

other apparatus (including ampliﬁers)

that produce heat.

9. Do not defeat the safety purpose of the

polarized or grounding type plug. A polar-

ized plug has two blades with one wider

than the other. A grounding type plug has

two blades and a third grounding prong.

The wide blade or the third prong are

provided for your safety. If the provided

plug does not ﬁt into your outlet, consult

an electrician for replacement of the

obsolete outlet.

10. Protect the power cord from being walked

on or pinched particularly at the plugs,

convenience receptacles, and at the point

where they exit from the apparatus.

11. Only use attachments/accessories speci-

ﬁed by the manufacturer.

12. Use only with the cart, stand, tripod,

bracket, or table speciﬁed by the

manufacturer, or sold with the ap-

paratus. When a cart is used, use

caution when moving the cart/ap-

paratus combination to avoid injury

from tip-over.

13. Unplug the apparatus during lightening

storms, or when unused for long periods

of time.

14. Refer all servicing to qualiﬁed personnel.

Service is required when the apparatus

has been damaged in any way, such

as power supply cord or plug is dam-

aged, liquid has been spilled or objects

have fallen into the apparatus has been

exposed to rain or moisture, does not

operate normally, or has been dropped.

15. This appliance shall not be exposed to

dripping or splashing water and that no

object ﬁlled with liquid such as vases

shall be placed on the apparatus.

16. Caution-to prevent electrical shock,

match wide blade plug wide slot fully

insert.

17. Please keep a good ventilation environ-

ment around the entire unit.

18. The direct plug-in adapter is used as

disconnect device, the disconnect device

shall remain readily operable.

19. Batteries (battery pack or batteries in-

stalled) shall not be exposed to excessive

heat such as sunshine, ﬁre or the like.

Concert 88x Wireless System 5

Important Safety Information

FCC Rules and Regulations

Samson wireless receivers are certiﬁed under FCC Rules part 15 and transmitters are certiﬁed

under FCC Rules part 74. Licensing of Samson equipment is the user’s responsibility and

licensability depends on the user’s classiﬁcation, application and frequency selected.

This device complies with Part 15 of the FCC rules Class B and RSS-210 of Industry & Science

Canada.

Operation is subject to the following two conditions:

(1) This device must not cause harmful interference, and

(2) This device must accept any interference received including interference that

may cause undesired operation. Suitable for home or ofﬁce use.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there is

no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced Radio/TV technician for help.

WARNING: Changes or modiﬁcations not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

This equipment is intended for use in wireless microphone applications.

Equipment is intended for sale in: AT, BE, CH, CY, CZ*, DK, EE, FI*, FR*, DE*, GR*, HU, IE, IS,

IT, LV, LT*, LU, MT*, NL, NO*, PL* PT, RO, SK, SI, ES, SE, UK

*Subject to license. Please contact your national frequency authority for information on

available legal use in your area. Any changes or modiﬁcations not expressly approved by

Samson Technologies Corp. could void your authority to operate the equipment.

Hereby, Samson Technologies Corp., declares that this CR88x, CH88 and CB88 are in

compliance with the essential requirements and other relevant provisions of Directive 2014/53/

EU. The declaration of conformity may be consulted at:

http://www.samsontech.com/site_media/support/manuals/Concert88x_DOC.pdf

Congratulations on purchasing the Samson Concert 88x wireless system. The Concert 88x

is the ideal solution for the active performer who needs a reliable, great sounding system for

wireless applications. Offering frequency-agile UHF operation, the CR88x receiver provides 100

available channels to secure reliable wireless performance. The receiver provides easy setup

with 1-touch scan that analyzes and selects the clearest operating channel and infrared set to

pair the transmitter with the receiver.

The Concert 88x system ensures clear, interruption-free performance by combining tone-key

with auto-mute. This conﬁguration allows only the transmitter’s audio to pass through the

receiver, and mutes the output if there is any interference.

The Concert 88x comes in four conﬁgurations. The vocal handheld system includes the CH88

handheld transmitter and dynamic microphone capsule. The CB88 beltpack system can be

conﬁgured with either a headset microphone, lavalier microphone, or a 1/4" instrument cable.

For travel or permanent installation, the Concert 88x includes a standard 19" rackmount kit.

In these pages, you’ll ﬁnd a detailed description of the features of the Concert 88x wireless

system, as well as a guided tour through its control panel, step-by-step instructions for its setup

and use, and full speciﬁcations. If your wireless system was purchased in the United States,

you’ll also ﬁnd a registration card enclosed—don’t forget to follow the instructions so that you

can receive online technical support and so that we can send you updated information about

this and other Samson products in the future. Also, be sure to check out our website (www.

samsontech.com) for complete information about our full product line.

We recommend you keep the following records for reference, as well as a copy of your sales

receipt.

Receiver Serial number: _________________________________________

Transmitter Serial number: ______________________________________

Date of purchase: ______________________________________________

Dealer name: __________________________________________________

If you have any questions or comments regarding the Concert 88x Microphone System or any

other products from Samson, do no hesitate to contact us at support@samsontech.com.

With proper care and maintenance, your Concert 88x System will operate trouble-free for many

years. Should your Concert 88x System ever require servicing, a Return Authorization (RA)

number must be obtained before shipping your unit to Samson. Without this number, the unit

will not be accepted. Please visit www.samsontech.com/ra for an RA number prior to shipping

your unit. Please retain the original packing materials and, if possible, return the unit in its

original carton. If your Concert 88x System was purchased outside of the United States, contact

your local distributor for warranty details and service information.

Introduction

Concert 88x Wireless System 7

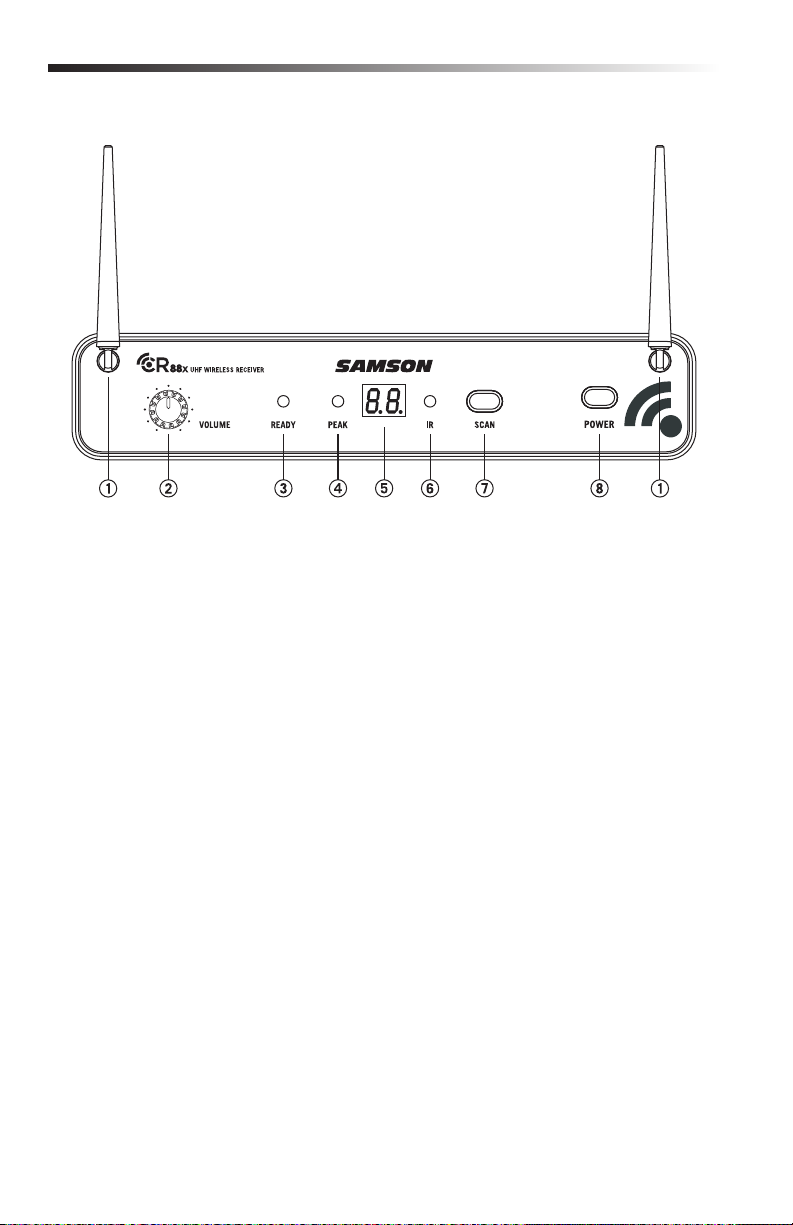

1. Antennas - The antenna mountings allow full rotation for optimum placement. In normal

operation, both antennas should be placed in a vertical position. Both antennas can be

folded inward for convenience when transporting the CR88x.

2. VOLUME Control - This knob sets the level of the audio signal being output through both the

balanced and unbalanced output jacks on the rear panel. Reference level is obtained when

the knob is turned fully clockwise (to its “10” setting).

3. READY Indicator - This indicator lights green when the CR88x is receiving RF signal and the

system is ready to use.

4. PEAK Indicator - This indicator lights red when the transmitted audio signal is overloaded.

5. LED Display - The two digit, 7-segment LED display shows the receiver’s current operating

channel.

6. IR Transmitter - During “IR SET” an infrared light is used to set the transmitter channel.

7. SCAN Button - Press this button for more than 2 seconds to enter scan mode, the display

will flash quickly. The receiver will scan through the 100 operating channels to find the

optimal channel for performance. Once the scan is complete, the CR88x will enter IR Set

mode and send the selected channel to the transmitter.

Press and hold the button for more than 10 seconds to enter IR set mode, the display will

flash slowly. This will send the receiver’s current selected channel to the transmitter.

8. POWER Switch - Use this to turn the CR88x power on and off.

CR88x Receiver Features - Front Panel

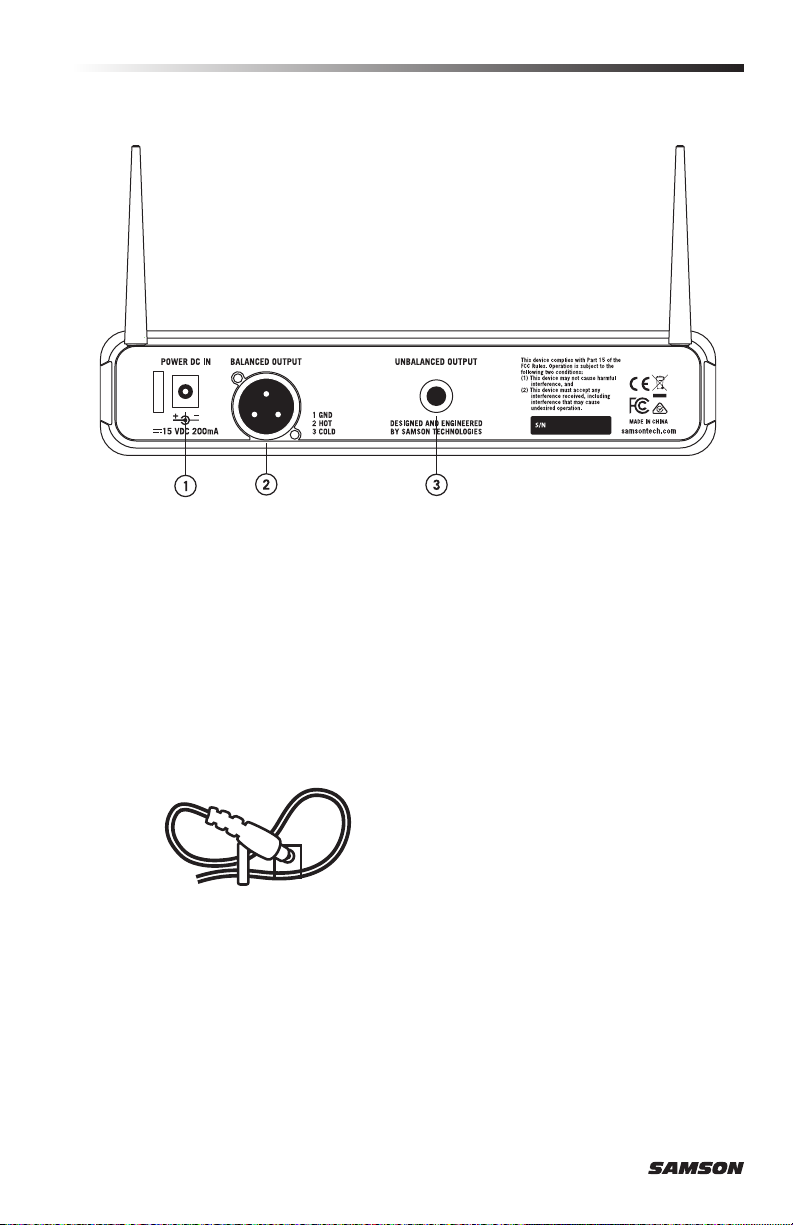

CR88x Receiver Features - Rear Panel

1. DC Input - Connect the supplied power adapter here, using the strain relief as shown in the

illustration below. WARNING: Do not substitute any other kind of power adapter. Doing so

can cause severe damage to the CR88x and will void your warranty.

2. BALANCED OUTPUT - Use this electronically balanced low impedance (600 Ohm) XLR jack

when connecting the CR88x to professional (+4dBu) audio equipment. Pin wiring is as

follows: Pin 1 ground, Pin 2 high (hot), and Pin 3 low (cold).

3. UNBALANCED OUTPUT - Use this unbalanced high impedance (5K Ohm) 1/4" jack when

connecting the CR88x to consumer (-10dBV) audio equipment. Wiring is as follows: tip hot,

sleeve ground.

Using the strain relief: Gather up a loop of

wire and pass it through the strain relief,

then pass the adapter plug through the

loop in order to create a knot.

Concert 88x Wireless System 9

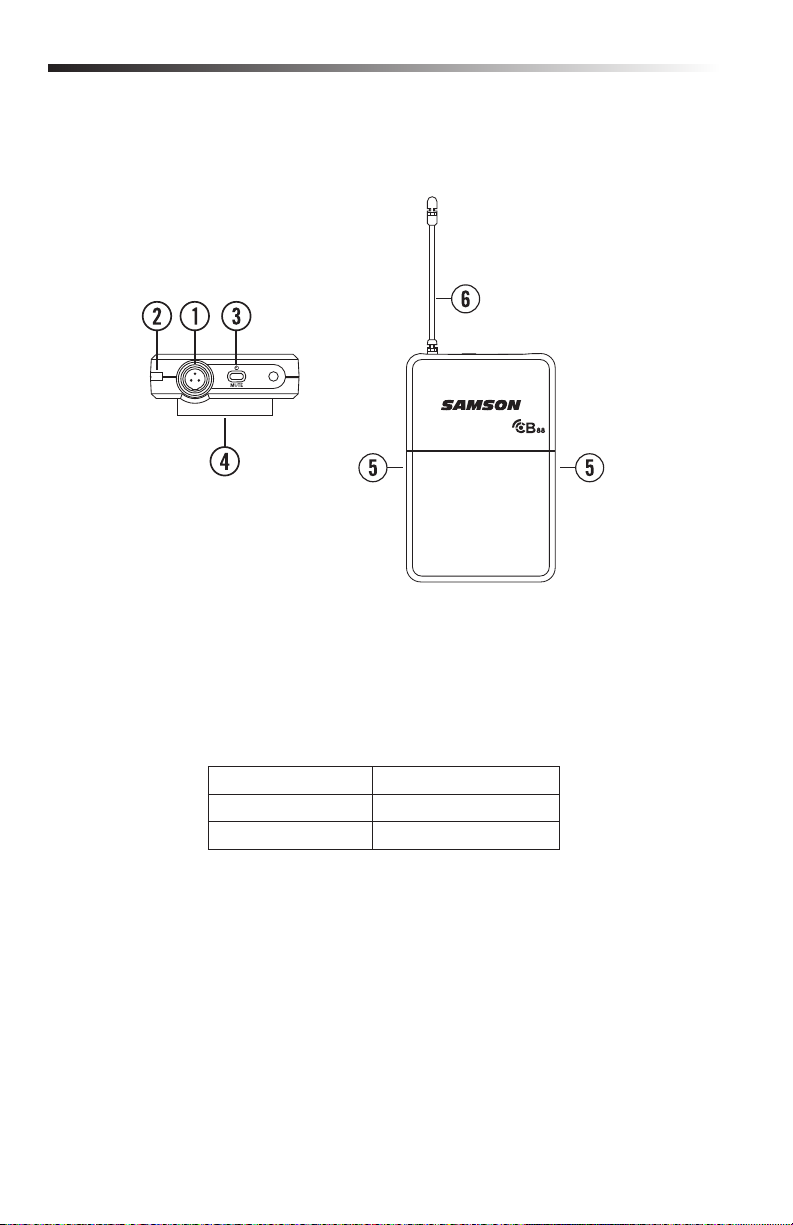

1. Input Connector - Connect the input device via the mini-XLR connector. The CB88 is

supplied with either a lavalier, headset microphone or 1/4" instrument cable.

2. Status Indicator - This LED displays the operation mode:

GREEN Normal Operation

RED Mute

Flashing GREEN Low Battery

3. Power/Mute Switch - Press and hold to turn the unit on or off. Press and release to mute or

unmute the transmitter.

4. Belt Clip - Use this clip to fasten the CB88 transmitter to a belt or guitar strap.

5. Battery Cover Release - Push in both sides and pull back to open the CB88 battery cover.

6. Antenna - This permanently attached transmitter antenna should be fully extended during

normal operation.

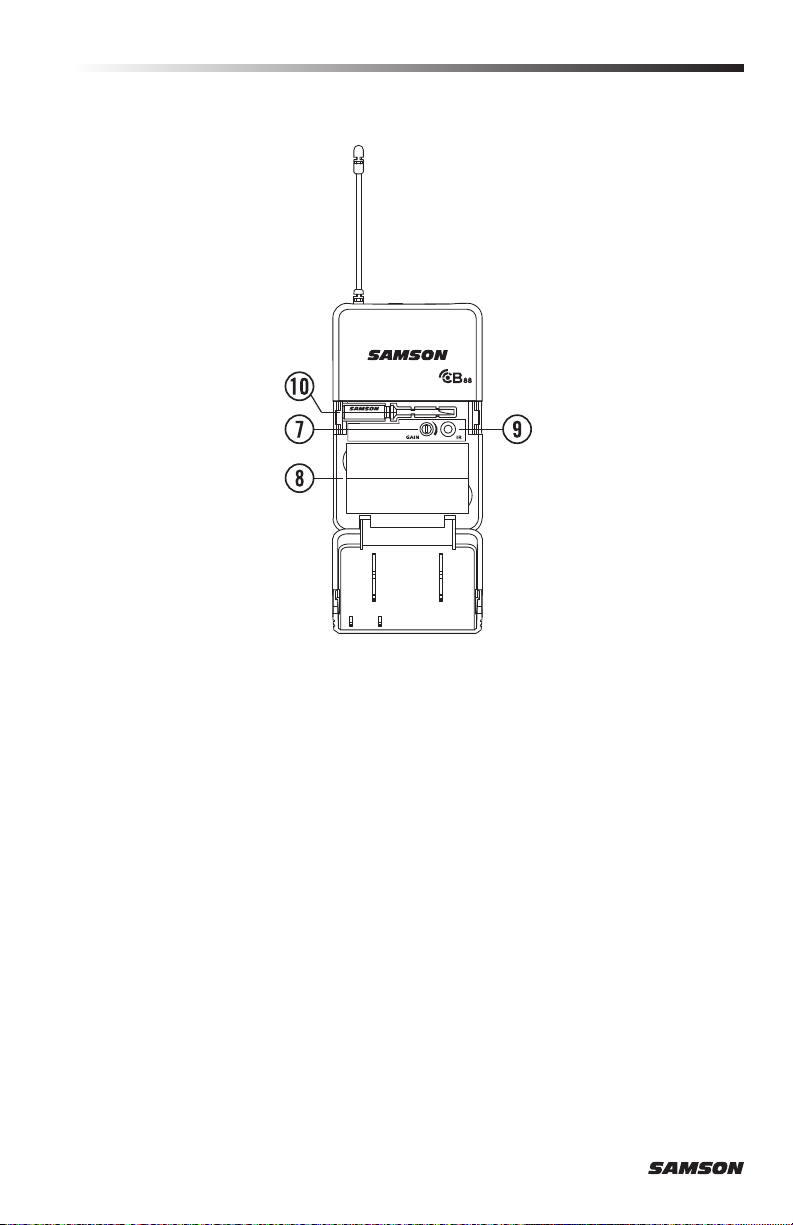

CB88 Beltpack Transmitter - Features

7. Input GAIN Control - This control adjusts the transmitter input sensitivity to work with

microphone and instruments inputs. For optimal performance, using the included

screwdriver, set the input GAIN control to where you see the CR88x PEAK indicator start to

light under high levels, then turn down slowly until the PEAK light stops lighting.

8. Battery Holder - Insert two standard AA (LR6) batteries here, being sure to observe the

plus and minus polarity markings shown. Although rechargeable Ni-Cad batteries can be

used, they do not supply adequate current for more than four hours. WARNING: Do not

insert the batteries backwards; doing so can cause severe damage to the CB88 and will

void your warranty.

9. IR Lens - This window is used to capture the infrared signal sent from the CR88x during the

IR SET to channelize the transmitter.

10. Screwdriver - Designed for use in adjusting the CB88 input GAIN control.

CB88 Beltpack Transmitter - Features

Altri manuali per CONCERT 88X

Indice

Altri manuali Samson Sistema microfonico

Samson

Samson AirLine Manuale utente

Samson

Samson Concert 88 Manuale utente

Samson

Samson AirLine 77 AH7 Manuale utente

Samson

Samson VHF Series Manuale utente

Samson

Samson CB88 Manuale utente

Samson

Samson Airline 88 Manuale utente

Samson

Samson Stage XPD1 Manuale utente

Samson

Samson CONCERT 88X Manuale utente

Samson

Samson UHF Series One Manuale utente

Samson

Samson Concert 77 Manuale utente

Samson

Samson CONCERT XD2 Manuale utente

Samson

Samson Stage v266 Manuale utente

Samson

Samson Stage XPD1 Manuale utente

Samson

Samson SYNTH32 Manuale utente

Samson

Samson Concert 288 Manuale utente

Samson

Samson Concert88 Manuale utente

Samson

Samson Stage 200 Manuale utente

Samson

Samson CONCERT SERIES IV Manuale utente

Samson

Samson VHF Micro VHF Micro TRUE DIVERSITY WIRELESS Manuale utente

Samson

Samson AirLine Manuale utente

Samson

Samson QV Manuale utente

Samson

Samson S-Combine Manuale utente

Samson

Samson AirLine 88 Series Manuale utente

Samson

Samson XPD2m Manuale utente

Manuali Sistema microfonico popolari di altre marche

Paso

Paso R824 Manuale utente

Naxa

Naxa NAM-982 Manuale utente

Motorola

Motorola PMNN4461 Manuale utente

Xvive

Xvive U3 Manuale utente

Tekon

Tekon DUOS Manuale utente

Heyuan Intelligence

Heyuan Intelligence IOT-G2S-01 Manuale utente

Devine

Devine WMD-IE Manuale utente

LG LF-D7150 Manuale utente

GE S768DAV Manuale utente

LD U305 HBH 2 Manuale utente

Chainway

Chainway URA8 Manuale utente

ORATOR

ORATOR D860TD Manuale utente

Sennheiser

Sennheiser Evolution Wireless Digital EW-DX EM 2 Manuale utente

Alpha Technologies

Alpha Technologies RBMS Manuale utente

SWIT Electronics Co.,LTD.

SWIT Electronics Co.,LTD. CW-S150 Manuale utente

Shure

Shure UA844 Manuale utente

Panasonic

Panasonic SHFX70 - DVD HOME THEATER WIRELESS SYSTEM Manuale utente

Pyle

Pyle PDWM5000 Manuale utente
