Samson Stage v266 Manuale utente

Owner’s Manual

Stage v266:

Dual Vocal Wireless System

v2.2

Samson Technologies Corp.

45 Gilpin Avenue

Hauppauge, New York 11788-8816

Phone: 1-800-3-SAMSON (1-800-372-6766)

Fax: 631-784-2201

www.samsontech.com

ENGLISH

FRANÇAISDEUTSCHEESPAÑOLITALIANO

Stage v266: Dual Handheld Wireless

Important Safety Information

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This lightning ash with arrowhead symbol within an equilateral triangle is

intended to alert the user to the presence of non-insulated“dangerous volt-

age”within the product’s enclosure that may be of sucient magnitude to

constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the

user to the presence of important operating and maintenance instructions

in the literature accompanying the appliance.

If you want to dispose this product, do not mix it with general household waste. There is a

separate collection system for used electronic products in accordance with legislation that

requires proper treatment, recovery and recycling.

Private household in the 25 member states of the EU, in Switzerland and Norway may return their used

electronic products free of charge to designated collection facilities or to a retailer (if you purchase a similar

new one).

For Countries not mentioned above, please contact your local authorities for a correct method of disposal.

By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery and

recycling and thus prevent potential negative effects on the environment and human health.

ATTENTION

RISQUE D’ÉLECTROCUTION !

NE PAS OUVRIR !

WARNING

TO PREVENT FIRE OR SHOCK HAZARD. DO NOT USE THIS PLUG WITH AN EXTENSION CORD, RE-

CEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE

EXPOSURE. TO PREVENT FIRE OR SHOCK HAZARD. DO NOT EXPOSE THIS APPLIANCE TO RAIN

OR MOISTURE. TO PREVENT ELECTRICAL SHOCK, MATCH WIDE BLADE PLUG TO WIDE SLOT AND

FULLY INSERT.

Important Safety Information

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation open-

ings. Install in accordance with the

manufacturer’s instructions.

8. Do not install near any heat sources

such as radiators, heat registers,

stoves, or other apparatus (including

ampliers) that produce heat.

9. Do not defeat the safety purpose

of the polarized or grounding type

plug. A polarized plug has two

blades with one wider than the

other. A grounding type plug has

two blades and a third grounding

prong. The wide blade or the third

prong are provided for your safety.

If the provided plug does not t into

your outlet, consult an electrician for

replacement of the obsolete outlet.

10. Protect the power cord from being

walked on or pinched particularly at

the plugs, convenience receptacles,

and at the point where they exit from

the apparatus.

11. Only use attachments/accessories

specied by the manufacturer.

12. Use only with the cart, stand, tripod,

bracket, or table specied by the

manufacturer, or sold with the ap-

paratus. When a cart

is used, use caution

when moving the cart/

apparatus combina-

tion to avoid injury

from tip-over.

13. Unplug the apparatus during light-

ening storms, or when unused for

long periods of time.

14. Refer all servicing to qualied

personnel. Service is required when

the apparatus has been damaged in

any way, such as power supply cord

or plug is damaged, liquid has been

spilled or objects have fallen into

the apparatus has been exposed to

rain or moisture, does not operate

normally, or has been dropped.

15. This appliance shall not be exposed

to dripping or splashing water and

that no object lled with liquid such

as vases shall be placed on the ap-

paratus.

16. Caution-to prevent electrical shock,

match wide blade plug wide slot

fully insert.

17. Please keep a good ventilation envi-

ronment around the entire unit.

18. The direct plug-in adapter is used as

disconnect device, the disconnect

device shall remain readily operable.

19. Batteries (battery pack or batteries

installed) shall not be exposed to

excessive heat such as sunshine, re

or the like.

ENGLISH

FRANÇAISDEUTSCHEESPAÑOLITALIANO

Stage v266: Dual Handheld Wireless

Table of Contents

Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Receiver Controls and Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Transmitter Controls and Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Quick Start Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Congratulations on purchasing the Samson Stage v266 Dual Vocal Wireless System! The Stage

v266 system is the perfect solution for any application requiring two high quality, wireless micro-

phones in an easy to use, compact package. The system features the SR266 dual channel receiver

with individual and mixed outputs. Also included are two HT6 handheld microphone transmit-

ters.

With the Stage v266 system, you’ll have great sound quality with clear reception, and the ability

to walk freely around your venue. For any live sound application (karaoke, schools, conferences,

houses of worship, etc.) the Stage v266 is the ideal tool for your dual-channel wireless micro-

phone needs. The Stage v266 always provides outstanding performance and reliability.

Although this product is designed for intuitive operation, we suggest you take some time to

go through these pages to learn how we’ve implemented a number of unique features, and to

get step-by-step instructions for setting up your system. If your Stage v266 was purchased in

the United States, you’ll also nd a warranty card enclosed—please don’t forget to ll it out and

mail it in so that you can receive online technical support, and so that we can send you updated

information about this and other Samson products. Also, be sure to check out our website

(www.samsontech.com) for complete information about our full product line.

We recommend that you record your serial number in the space provided below, for future refer-

ence.

Serial number:_______________________________

Date of purchase:____________________________

Should your unit ever require servicing, a Return Authorization (RA) number must be obtained

before shipping your unit to Samson. Without this number, the unit will not be accepted. Please

call Samson at 1-800-3SAMSON (1-800-372-6766) for an RA number prior to shipping your unit.

Please retain the original packing materials and, if possible, return the unit in the original carton.

If you purchased your Samson product outside the United States, please contact your local dis-

tributor for warranty information and service.

Features

• Professional, dual-handheld wireless system.

• Easy setup and operation.

• Crystal-controlled, Superheterodyne circuitry for clear and reliable reception.

• Individual or mixed ¼”outputs

• Up to 250’of line-of-sight operating range.

• Two professional HT6 handheld transmitters with mute switches

• Each HT6 transmitter provides nine hours of battery life, using standard 9-volt batteries.

Introduction

ENGLISH

FRANÇAISDEUTSCHEESPAÑOLITALIANO

Stage v266: Dual Handheld Wireless

1. Power Switch - Press to turn

the receiver on or o.

2. Power Indicator - Lights red

when the receiver is powered

on.

3. Volume Control (Channel 1) - Rotate to adjust the level of the audio signal output from the

Channel 1 receiver.

4. Channel 1 RF Indicator - Lights green when the corresponding Channel 1 HT6 transmitter is

powered on, and there is an RF signal present and detected by the receiver.

5. Volume Control (Channel 2) - Rotate to adjust the level of the audio signal output from the

Channel 2 receiver.

6. Channel 2 RF Indicator - Lights green when the corresponding Channel 2 HT6 transmitter is

powered on, and there is an RF signal present and detected by the receiver.

7. DC Input - Connect the sup-

plied 12-volt, 200 mA power

adapter here.

WARNING: The substitution

of any other kind of power

adapter can cause severe dam-

age to the SR266 and will void

your warranty.

8. Channel 1 Output - Use this

unbalanced, ¼”jack to connect

the SR266 Channel 1 receiver

to the line level input of a

mixer, amplifier, or other audio

equipment. For a mixed signal

of both receivers, only plug

into one output on the SR266.

Otherwise, Channel 1 and

Channel 2 will output separate

signals.

9. Channel 2 Output - Use this unbalanced, ¼”jack to connect the SR266 Channel 2 receiver to

the line level input of a mixer, amplifier, or other audio equipment. For a mixed signal of both

receivers, only plug into one output on the SR266. Otherwise, Channel 1 and Channel 2 will

output separate signals.

10. Adaptor Strain Relief - Loop the included adaptor’s cord through the

strain relief to prevent the plug from accidentally detaching from the

receiver.

11. Antenna - The antenna mountings allow full rotation for optimum

placement. In normal operation, both antennas should be placed in a vertical position. The

antennas can be folded inward for convenience when transporting the SR266.

9 8 10

7 1111

1253 4 6

SR266 Receiver Controls and Features

9 8 10

7 1111

1253 4 6

1. Audio ON/OFF Switch - When set to the ON position, audio signal

is transmitted. When set to the OFF position, the audio signal is

muted. Note that moving this switch to the OFF position does not

turn o the transmitter power—it is simply a way to temporarily

mute the transmission of audio signal. When not in use for extended

periods, the transmitter power should be turned o by using the

power ON/OFF switch.

2. Power ON/OFF Switch - Use this switch to turn the HT6 on or o (to

conserve battery power, be sure to leave it o when not in use).

Be sure to mute the audio signal at your external mixer or amplifier

before turning transmitter power on or off, or an audible pop may

result.

3. Power Indicator - LED lights green when the transmitter is powered

on.

4. Battery Compartment - Insert a standard 9-volt alkaline battery

here. Be sure to observe the plus and minus polarity markings when

installing the battery. We recommend the Duracell MN 1604 type

battery for use with this device. Although rechargeable Ni-Cad

batteries can be used, they do not supply adequate current for more

than four hours.

WARNING: Do not insert the battery backwards; doing so can cause

severe damage to the HT6 and will void your warranty.

5. Channel Marking - Printed number corresponding to the appro-

priate channel on the SR266 receiver.

HT6 Transmitter Controls and Features

ENGLISH

FRANÇAISDEUTSCHEESPAÑOLITALIANO

Stage v266: Dual Handheld Wireless

Follow these basic procedures for setting up and using your Stage v266 Series Wireless System.

1. Connect the SR266 receiver power

adaptor to the rear panel DC input, and

then to an electrical outlet.

2. Connect the receiver’s appropriate ¼”output to the input of a mixer, stereo, karaoke machine,

or any other line level input (see below).

Use the included ¼” to ¼” cable to connect

the SR266 receiver to a mixer.

Use the included ¼” to dual RCA cable to

connect the SR266 recevier to a stereo or

other HI-FI device.

Quick Start Guide

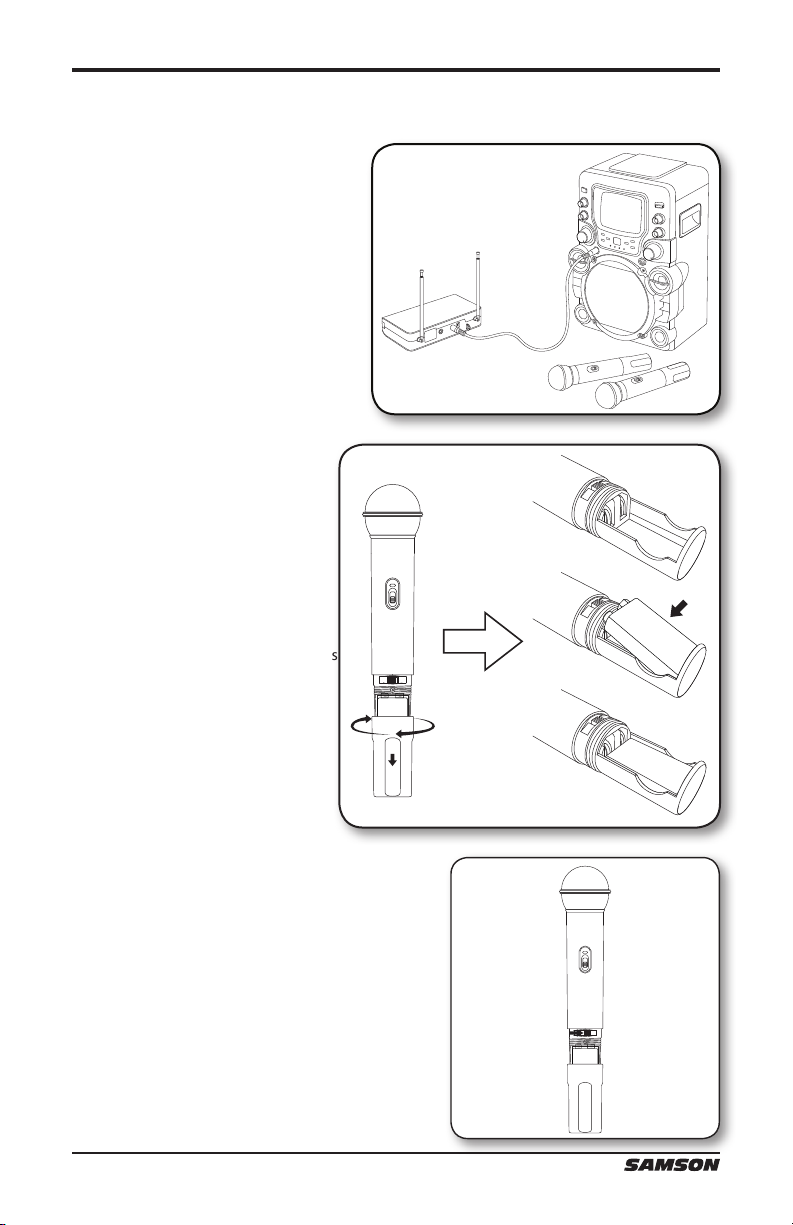

5. Installing a 9-volt battery into the receiver.

3. Plugging the receiver into a stereo using the 1/4" - RCA cable.

4. Plugging the receiver into a Karaoke machine using 1/4" - 1/4" cable.

5. Installing a 9-volt battery into the receiver.

3. Plugging the receiver into a stereo using the 1/4" - RCA cable.

4. Plugging the receiver into a Karaoke machine using 1/4" - 1/4" cable.

Use the included ¼” to ¼” cable to connect

the SR266 receiver to a karaoke machine.

3. While holding the upper section

of the HT6 transmitter, rotate the

bottom section and slide down to

expose the battery compartment.

Insert a standard 9-volt alkaline

battery, being sure to follow the plus

and minus polarity markings.

4. Turn on the HT6 transmitter by sliding the POWER

switch to the right, and replace the bottom section.

Quick Start Guide

5. Installing a 9-volt battery into the receiver.

3. Plugging the receiver into a stereo using the 1/4" - RCA cable.

4. Plugging the receiver into a Karaoke machine using 1/4" - 1/4" cable.

1. Plugging the receiver into the wall.

2. Plugging the receiver into a mixer using 1/4" - 1/4" cable.

4. Plugging the receiver into a Karaoke machine using 1/4" - 1/4" cable.

Indice

Lingue:

Altri manuali Samson Sistema microfonico

Samson

Samson UHF Series One Manuale utente

Samson

Samson Concert 288x Manuale utente

Samson

Samson Stage 266: Dual Handheld Wireless System Manuale utente

Samson

Samson Conert 277 Manuale utente

Samson

Samson Concert99 Manuale utente

Samson

Samson VLX Manuale utente

Samson

Samson AirLine 77 AH7 Manuale utente

Samson

Samson STAGE 5H Manuale utente

Samson

Samson DK705 Manuale utente

Samson

Samson Airline 77 Manuale utente

Samson

Samson XPD2 Manuale utente

Samson

Samson XPD2 Manuale utente

Samson

Samson CB88 Manuale utente

Samson

Samson AIRLINE CR77 Manuale utente

Samson

Samson S-Combine Manuale utente

Samson

Samson Stage 200 Manuale utente

Samson

Samson Stage 212 Manuale utente

Samson

Samson Go Mic Manuale utente

Samson

Samson UHF Synth 32 Manuale utente

Samson

Samson VHF Micro VHF Micro TRUE DIVERSITY WIRELESS Manuale utente

Samson

Samson EXPEDITION XP40iw Manuale utente

Samson

Samson AirLine AX1 Manuale utente

Samson

Samson AIRLINE CR77 Manuale utente

Samson

Samson Airline 77 Manuale utente

Manuali Sistema microfonico popolari di altre marche

Paso

Paso R824 Manuale utente

Naxa

Naxa NAM-982 Manuale utente

Motorola

Motorola PMNN4461 Manuale utente

Xvive

Xvive U3 Manuale utente

Tekon

Tekon DUOS Manuale utente

Heyuan Intelligence

Heyuan Intelligence IOT-G2S-01 Manuale utente

Devine

Devine WMD-IE Manuale utente

LG LF-D7150 Manuale utente

GE S768DAV Manuale utente

LD U305 HBH 2 Manuale utente

Chainway

Chainway URA8 Manuale utente

ORATOR

ORATOR D860TD Manuale utente

Sennheiser

Sennheiser Evolution Wireless Digital EW-DX EM 2 Manuale utente

Alpha Technologies

Alpha Technologies RBMS Manuale utente

SWIT Electronics Co.,LTD.

SWIT Electronics Co.,LTD. CW-S150 Manuale utente

Shure

Shure UA844 Manuale utente

Panasonic

Panasonic SHFX70 - DVD HOME THEATER WIRELESS SYSTEM Manuale utente

Pyle

Pyle PDWM5000 Manuale utente
