Samsung ES10 Manuale di istruzioni
This Quick Start Manual has been specially designed to guide you through
the basic functions and features of your device. Please read the Quick
Start Manual and User Manual carefully to ensure safe and correct use.
Ce guide de prise en main rapide a été spécialement conçu pour vous
permettre de découvrir les fonctions et caractéristiques de base de votre
appareil. Afin de garantir une utilisation sûre et correcte, lisez attentivement
le guide de prise enmain rapide et le mode d’emploi.
Quick Start Manual
Guide de prise en main rapide
ES10
For more information, refer to
the User Manual included on the
supplied CD-ROM.
Pour des instructions plus
détaillées, veuillez consulter le
mode d’emploi complet sur le
CD-ROM fourni avec l’appareil.
ENG / SPA / FRE
32
32
Health and safety informationContents
Warnings
Do not use your camera near flammable or explosive
gases and liquids
Do not use your camera near fuels, combustibles, or
flammable chemicals. Do not store or carry flammable
liquids, gases, or explosive materials in the same
compartment as the camera or its accessories.
Keep your camera away from small children and pets
Keep your camera and all accessories out of the reach of
small children and animals. Small parts may cause choking
or serious injury if swallowed. Moving parts and accessories
may present physical dangers as well.
Prevent damage to subjects’ eyesight
Do not use the flash in close proximity (closer than 1m/3 ft) to
people or animals. Using the flash too close to your subject’s
eyes can cause temporary or permanent damage.
Health and safety
information…………………… 2
Camera layout ……………… 4
Setting up your camera …… 5
Unpacking ……………………… 5
Inserting the battery and
memory card …………………… 6
Turning on your camera………… 7
Selecting options ……………… 7
Capturing photos or videos
… 8
Playing files ………………… 9
Transferring files to a PC
(Windows) …………………… 10
Specifications ……………… 11
1
8
7
33
19
53
85
78
13
16
32
32
English
Exercise caution when connecting cables or adapters•
and installing batteries and memory cards. Forcing
the connectors, improperly connecting cables, or
improperly installing batteries and memory cards can
damage ports, connectors, and accessories.
Do not insert foreign objects into any of your camera’s•
compartments, slots, or access points. This type of
damage may not be covered by your warranty.
Protect batteries, chargers, and memory cards from
damage
Avoid exposing batteries or memory cards to very•
cold or very hot temperatures (below 0° C/32° F or
above 40° C/104° F). Extreme temperatures can
reduce the charging capacity of your batteries and
can cause memory cards to malfunction.
Prevent memory cards from making contact with•
liquids, dirt, or foreign substances. If dirty, wipe the
memory card clean with a soft cloth before inserting
in your camera.
Handle and dispose of batteries and chargers with
care
Use only Samsung-approved batteries and chargers.•
Incompatible batteries and chargers can cause serious
injuries or damage to your camera.
Never place batteries or cameras on or in heating•
devices, such as microwave ovens, stoves, or
radiators. Batteries may explode when overheated.
Cautions
Handle and store your camera carefully and sensibly
Do not allow your camera to get wet—liquids can•
cause serious damage. Do not handle your camera
with wet hands. Water damage to your camera can
void your manufacturer’s warranty.
Avoid using or storing your camera in dusty, dirty,•
humid, or poorly-ventilated areas to prevent damage
to moving parts and internal components.
54
54
1
Shutter button
2
POWER button
3
Microphone
4
AF-assist light/timer lamp
5
Speaker
6
Lens / Lens cover
7
Tripod mount
8
Battery chamber cover
9
Flash
Camera layout
10
Status lamp
11
Zoom Wide(W) button (Thumbnail)
12
Zoom Tele(T) button (Digital zoom)
13
Strap eyelet
14
USB and A/V port
15
Fn / Delete button
16
Navigation button/OK button
17
Playback button
18
MENU button
19
LCD monitor
4
2
6
5
31
78
9
10
12
13
11
19
14
15
16
17
18
54
54
English
Setting up your camera
Camera AA Alkaline Batteries
USB cable Camera strap
Quick Start Manual Software CD-ROM
(User manual included)
Memory cards Rechargeable Battery
(SNB-2512)
Charger (SBC-N2) A/V Cable
AC Cord Camera case
Optional accessories
Please check that you have the correct contents before using this product. The contents can vary depending on the sales region.
To buy the optional equipment, contact your nearest Samsung dealer or Samsung service centre.
Unpacking
76
76
Setting up your camera
Push gently until the card
disengages from the camera
and then pull it out of the slot.
▼
Removing the memroy card
▼
Removing the battery
2
1
4
With the gold-coloured
3
contacts facing up
Inserting the battery and memory card
76
76
English
Press [
1
POWER].
The intial setup screen appears.▪
Press [
2
] to select Language and press [ ].
Press [
3
] or [ ] to select a language and
press [ ].
Press [
4
] or [ ] to select Date & Time and
press [ ].
Press [
5
] or [ ] to select an item.
Press [
6
] or [ ] to change the number or
select another date format and press [ ].
Press [
7
] or [ ] to select Battery Type and
press [ ].
Press [
8
] or [ ] to select a battery type and
press [ ].
In Shooting mode, press [
1
].
Use the navigation buttons to scroll to an
2
option or menu.
Back
EV
Move
To move left or right, press [▪] or [ ].
To move up or down, press [▪] or [ ].
Press [
3
] to confirm the highlighted option or
menu.
Press [▪] again to go back to the previous
menu.
Turning on your camera Selecting options
98
98
Taking a photo
Press [
1
] to select ( ).
Align your subject in the frame.
2
Press [
3
Shutter] halfway down to focus
automatically.
A green frame means the subject in focus.▪
Press [
4
Shutter] all the way down to take the
photo.
Recording a video
Press [
1
] to select ( ).
Align your subject in the frame.
2
Press [
3
Shutter].
Press [▪] to pause or resume.
Press [
4
Shutter] again to stop the recording.
Note
Number of photos by resolution (for 1 GB SD)
Resolution Super fine Fine Normal
3264 x 2448 337 466 688
3264 x 2176 349 516 743
3264 x 1836 416 590 848
2592 x 1944 539 685 966
2048 x 1536 825 998 1,331
1920 x 1080 1,175 1,392 1,832
1024 x 768 2,365 2,409 2,826
These figures are measured under Samsung’s standard
conditions and may vary depending on shooting conditions
and camera settings.
Capturing photos or videos
98
98
English
Playing files
Viewing photos
Press [
1
].
Press [
2
] or [ ] to scroll through files.
Press and hold to view files quickly.▪
Viewing videos
Press
1
[ ].
Press [
2
].
Play Capture
Use the following buttons to control playback.
3
[ ] Scan backward
[]Pause or resume playback
[]Scan forward
1110
1110

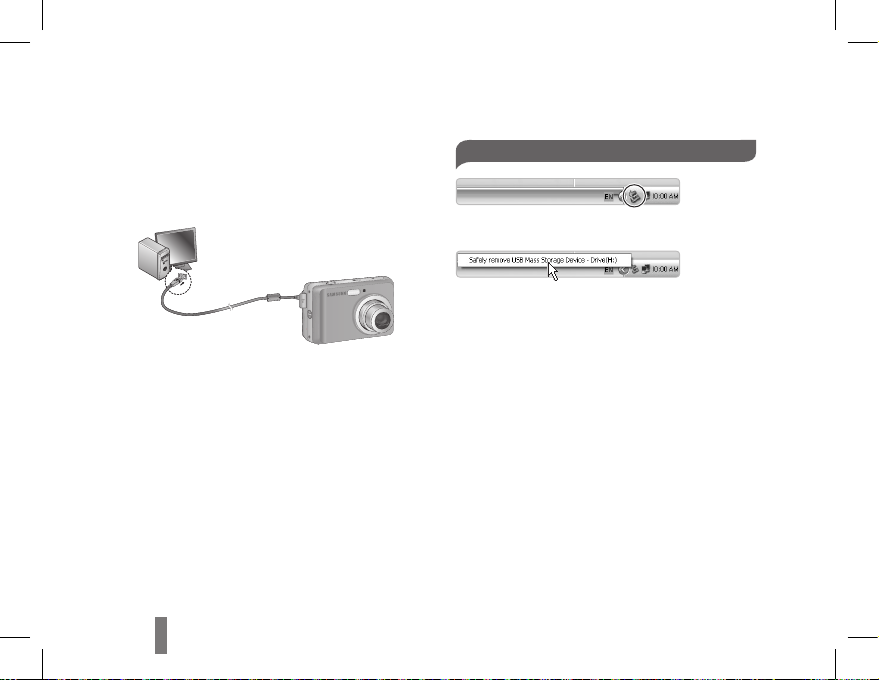

Transferring files to a PC (Windows)
Insert the installation CD in a CD-ROM drive
1
and follow the onscreen instructions.
Connect the camera to the PC with the USB
2
cable.
Turn on the camera.
3
On your PC, select
4
My Computer →
Removable Disk →DCIM →100SSCAM.
Select the files you want and drag or save them
5
to the PC.
Disconnecting safely (for Windows XP)
Click
▼
Click
