Samsung WB500 Manuale di istruzioni

This Quick Start Manual has been specially designed to guide you

through the basic functions and features of your device.

Please read the Quick Start Manual and User Manual carefully to

ensure safe and correct use.

Quick Start Manual

WB500/WB510

For more information, refer to

the User Manual included on the

supplied CD-ROM.

ENG / FIN / SWE / DAN / RUS / LAV / LIT / EST

Health and safety informationContents

Warnings

Do not use your camera near ﬂammable or explosive

gases and liquids

Do not use your camera near fuels, combustibles, or

ﬂammable chemicals. Do not store or carry ﬂammable

liquids, gases, or explosive materials in the same

compartment as the camera or its accessories.

Keep your camera away from small children and pets

Keep your camera and all accessories out of the reach of

small children and animals. Small parts may cause choking

or serious injury if swallowed. Moving parts and accessories

may present physical dangers as well.

Prevent damage to subjects’ eyesight

Do not use the ﬂash in close proximity (closer than 1m/3

ft) to people or animals. Using the ﬂash too close to your

subject’s eyes can cause temporary or permanent damage.

Health and safety

information…………………… 2

Camera layout ……………… 4

Setting up your camera …… 5

Unpacking ……………………… 5

Inserting the battery and

memory card …………………… 6

Charging the battery ……………6

Turning on your camera………… 7

Selecting options ……………… 7

Capturing photos or videos 8

Playing ﬁles ………………… 9

Transferring ﬁles to a PC

(Windows) ……………………10

Speciﬁcations ………………11

102

English

Exercise caution when connecting cables or adapters

and installing batteries and memory cards. Forcing

the connectors, improperly connecting cables, or

improperly installing batteries and memory cards can

damage ports, connectors, and accessories.

Do not insert foreign objects into any of your camera’s

compartments, slots, or access points. This type of

damage may not be covered by your warranty.

Protect batteries, chargers, and memory cards from

damage

Avoid exposing batteries or memory cards to very

cold or very hot temperatures (below 0° C/32° F or

above 40° C/104° F). Extreme temperatures can

reduce the charging capacity of your batteries and

can cause memory cards to malfunction.

Prevent memory cards from making contact with

liquids, dirt, or foreign substances. If dirty, wipe the

memory card clean with a soft cloth before inserting

in your camera.

•

Handle and dispose of batteries and chargers with

care

Use only Samsung-approved batteries and chargers.

Incompatible batteries and chargers can cause serious

injuries or damage to your camera.

Never place batteries or cameras on or in heating

devices, such as microwave ovens, stoves, or

radiators. Batteries may explode when overheated.

Cautions

Handle and store your camera carefully and sensibly

Do not allow your camera to get wet—liquids can

cause serious damage. Do not handle your camera

with wet hands. Water damage to your camera can

void your manufacturer’s warranty.

Avoid using or storing your camera in dusty, dirty,

humid, or poorly-ventilated areas to prevent damage

to moving parts and internal components.

•

Mode dial

Flash

AF sensor/Self-timer lamp

Remote control sensor

Lens

Microphone

Speaker

POWER button

Zoom W Lever (Thumbnail)

Zoom T Lever (Digital zoom)

Camera layout

Camera status lamp

LCD monitor

Command Lever

Fn / Delete button

5-function button

Play mode /Print button

E (Effect) button

Camera strap

USB / AV / DC terminal

Shutter button

English

Setting up your camera

Unpacking

Camera AC adapter/

USB cable

Rechargeable

battery

Strap Software CD-ROM

(User manual included)

Quick Start Manual

Optional accessories

Camera case Memory cards

Remote control A/V cable

Setting up your camera

Push gently until the card

disengages from the camera

and then pull it out of the slot.

▼

Removing the battery

▼

Removing the memroy card

Indicator light

Red: Charging

Green: Fully charged

▪

With the gold-coloured

contacts facing up

With the

Samsung logo

facing up

Inserting the battery and memory card Charging the battery

Before using the camera for the ﬁrst time, you must

charge the battery.

English

Press [POWER].

The intial setup screen appears.

Press [t].

Press [i] or [M] to select a language and

press [o].

Press [i] or [M] to select Date & Time and

press [t].

Press [F] or [t] to select an item.

Press [i] or [M] to change the number or

select another date format and press [o].

▪

In Shooting mode, press [f].

Use the navigation buttons to scroll to an

option or menu.

To move left or right, press [F] or [t].

To move up or down, press [i] or [M].

Press [o] to conﬁrm the highlighted option or

menu.

Press [f] again to go back to the previous menu.

▪

SIZE

DISPLAY

Language

Date&Time

ENGLISH

2009/01/01

Move Change

Turning on your camera Selecting options

Capturing photos or videos

Taking a photo

Rotate the mode dial to a.

Align your subject in the frame.

Press [Shutter] halfway down to focus

automatically.

A green frame means the subject in focus.

Press [Shutter] all the way down to take the

photo.

▪

Recording a video

Rotate the mode dial to v.

Align your subject in the frame.

Press [Shutter].

Press [M] to pause or resume.

Press [Shutter] again to stop the recording.

Note

Number of photos by resolution (for 1 GB SD)

Resolution Super ﬁne Fine Normal

3648 x 2736 183 334 472

3648 x 2432 200 362 511

3072 x 2304 252 442 613

3648 x 2056 252 445 619

2592 x 1944 334 578 793

2048 x 1536 495 814 1,067

1024 x 768 1,238 1,673 1,876

These ﬁgures are measured under Samsung’s standard

conditions and may vary depending on shooting conditions

and camera settings.

▪

English

Playing files

Viewing photos

Press [P].

Press [F] or [t] to scroll through ﬁles.

Press and hold to view ﬁles quickly.

▪

Viewing videos

Press [P].

Press [M].

Use the following buttons to control playback.

[F] Scan backward

[M]Pause or resume playback

[t] Scan forward

[Command Lever]

left or right Adjust the volume level

Play Capture

1110

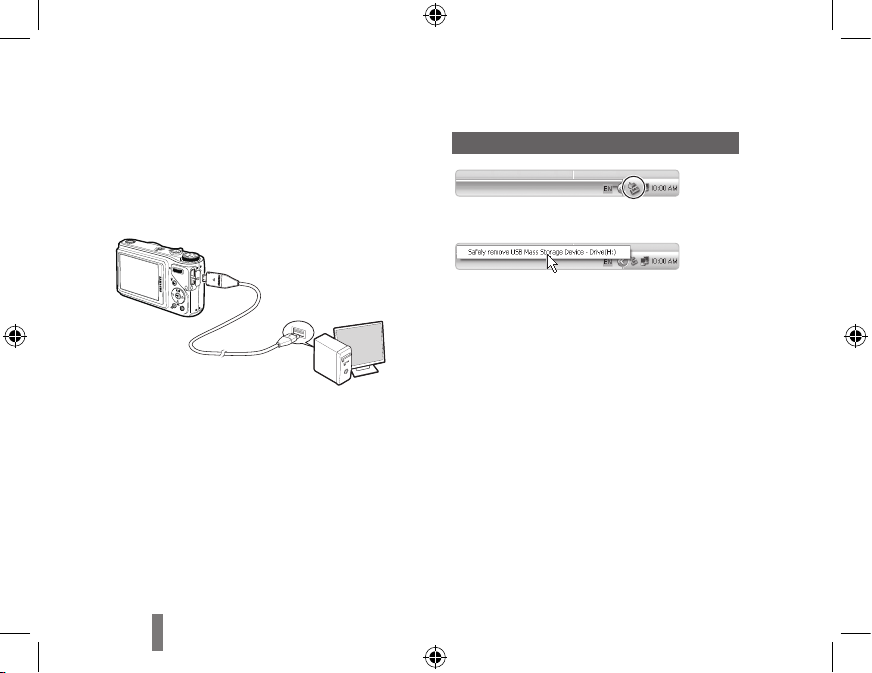

Transferring files to a PC (Windows)

Insert the installation CD in a CD-ROM drive

and follow the onscreen instructions.

Connect the camera to the PC with the USB

cable.

Turn on the camera.

On your PC, select My Computer →

Removable Disk →DCIM →100SSCAM.

Select the ﬁles you want and drag or save them

to the PC.

Disconnecting safely (for Windows XP)

Click

▼

Click
