Samsung GX-20 - Digital Camera SLR Manuale utente

2- This Document can not be used without Samsung's authorization -



SPECIFICATION

1. Main Specifications ……………………………………………………………………………… 4

2. System Requirements …………………………………………………………………………… 8

3. Names of Working Parts ………………………………………………………………………… 9

4. Using the Vertical Battery Grip (SBG-D1V) …………………………………………………… 11

5. Inserting the Battery …………………………………………………………………………… 12

6. Inserting the Memory Card……………………………………………………………………… 13

7. Attaching and removing the lens ……………………………………………………………… 14

8. LCD Monitor Indications ………………………………………………………………………… 16

9. Viewfi nder Indications ………………………………………………………………………… 24

10. LCD Panel Indications ………………………………………………………………………… 26

11. CONNECTION DIAGRAM …………………………………………………………………… 28

✁

INSTALLATION

1. Software Notes ………………………………………………………………………………… 29

2. Setting up the application software …………………………………………………………… 30

3. Troubleshooting ………………………………………………………………………………… 34

✂

.EXPLODED VIEW AND PART LIST

1. GX-20 : Fig. 1 …………………………………………………………………………………… 36

2. GX-20 : Fig. 2 …………………………………………………………………………………… 37

3. GX-20 : Fig. 3 …………………………………………………………………………………… 38

4. GX-20 : Fig. 4 …………………………………………………………………………………… 39

PARTS LIST FOR GX-20_CODE ……………………………………………………………… 40

5. PACKING ITEM_GX-20 ………………………………………………………………………… 38

✄

WIRING DIAGRAM

………………………………………………………………………………………………… 54

- This Document can not be used without Samsung's authorization -



FIRMWARE

1. Firmware Basic Version Check ………………………………………………………………… 56

2. Firmware Full Version Check …………………………………………………………………… 57

3. Firmware Upgrade Procedure ………………………………………………………………… 59

4. Firmware Upgrade Procedure After Main Board Replacement ……………………………… 63

5. Run EEPROM PATCH ………………………………………………………………………… 67

✁

.ADJUSTMENT

1. Preparation for Adjustments …………………………………………………………………… 70

2. Calibration of light source for digital adjustments ……………………………………………… 73

3. Adjustments flow chart when replacing the T100 …………………………………………… 77

4. OPS unit (Operation) adjustments……………………………………………………………… 78

5. OPS gain adjustment …………………………………………………………………………… 82

6. SLR (Single Lens Reflex) functional section adjustment……………………………………… 89

7. Exposure adjustment - BV adjust (brightness value) ………………………………………… 94

8. AF sensor position adjustment ……………………………………………………………… 101

9. AF sensor position check ……………………………………………………………………… 112

10. AGC level adjust : AGC (Automatic Gain Control) ………………………………………… 116

11. Uniformity CS : Adjustment to make the outputs of each AF sensor uniform. …………… 119

12. FI CS adjustment (focus) …………………………………………………………………… 122

13. Battery level adjustment ……………………………………………………………………… 125

14. Image sensor (Digital adjustment M-Test) ………………………………………………… 128

15. WDC adjustment……………………………………………………………………………… 132

16. Shutter speed adjustment …………………………………………………………………… 133

17. AF-LED (Super-imposer) position adjustment ……………………………………………… 144

18. Photometric element position adjustment procedure ……………………………………… 147

✂

.SERVICE INFORMATION

1. Caution ………………………………………………………………………………………… 149

2. Disassembling Process For Camera Body ………………………………………………… 150

3. Assembling Process For Camera Body ……………………………………………………… 178

4- This Document can not be used without Samsung's authorization -



SPECIFICATION

Image Sensor - Type : 23.4×15.5mm, CMOS

- Effective Pixel : Approx. 14.6 Mega-pixel

- Total Pixel : Approx. 15.1 Mega-pixel

Lens - Mount : PENTAX bayonet KAF2 mount

- Usable Lens : Schneider D-XENON, D-XENOGON, SAMSUNG lens

✁

PENTAX DSLR lenses are available

✁

KAF2, KAF, KA mount lenses

Viewfi nder - Type : Pentaprism, Natural-Bright-Matte II Focusing Screen

- Field of View : About 95%

- Magnifi cation : About 0.95X (50mm F1.4 lens•

✂

)

- Diopter Adjustment : About -2.5 ~ +1.5m-1

LCD Monitor - Low-temperature polysilicon TFT color LCD Monitor, 2.7" (approximately 230K pixels),

Brightness & Color control, Wide angle view

Preview - Type : Live View(up to 3 minutes.), Optical Preview, Digital Preview

Focusing - Type : TTL phase-matching 11-point AF

- Modes : AF Single, Continuous AF, Manual focus

Shutter - Type : Electronically controlled vertical-run focal plane shutter

- Speed : Auto : 1/4000sec. ~ 30sec. (No step)

Manual : 1/4000sec. ~ 30sec. (1/3EV or 1/2EV step) Bulb

Exposure Control - Metering System : TTL open-aperture 16-segment

Metering : Multi, Center-weighted, Spot

Metering range : EV0 ~ 21 (ISO100•50mm F1.4)

- Modes : Auto, Program, Shutter Priority AE, Aperture Priority AE, Sensitivity Priority

AE, Shutter & Aperture Priority, Manual, Bulb, Flash X-sync, User Mode

- Compensation : ±3 EV (1/2 EV step), ±2EV (1/3 EV step)

- AE Lock : AEL

1. Main Specifications

5- This Document can not be used without Samsung's authorization -



. SPECIFICATION

- ISO : Auto, 100, 200, 400, 800, 1600, 3200 (1/3EV or 1/2EV step), 6400 (User setting)

When expanded Bulb mode: 1600 (Maximum)

Flash - Type : Built-in retractable P-TTL manual pop-up fl ash

- Modes : Auto, Fill-in, Auto & Red eye, Fill-in & Red eye, Front curtain synchro, Front

curtain synchro & Red eye, Rear curtain synchro, Wireless

- Guide Number : 13 (at ISO 100)

- Angle of View Coverage : 28 mm wide-angle (Equivalent to 35mm)

- Sync. Speed : 1/180sec., Red-eye reduction (Control Range : -2 ~ +1 EV)

- Recharging Time : 3.6 Sec (when fl ash fi red at maximum)

- External Flash : SEF-36PZF, SEF-54PZF (optional)

Synchro - Hot Shoe, X Synchro socket (Sync. Speed : 1/180sec.)

- High Speed Synchro, Wireless Synchro (External Flash)

White Balance - Modes : Auto, Daylight, Shade, Cloudy, Tungsten, Fluorescent(W, D, N), Flash,

Manual, Color Temperature (1, 2, 3)

Shooting - Modes : Auto, Program, Sensitivity Priority, Shutter Priority, Aperture Priority, Shutter &

Aperture Priority, Manual, Bulb, Flash X-sync., User mode

- Live View : Field of View : Approx. 97%

Magnifi cation(4X, 8X), Grid display, AF Frame

- Drive Modes : Single, Continuous (Hi, Standard), Self-timer (12sec., 2sec.),

Remote Control, Auto Bracket, Expand Bracket, Multi Exposure

- Picture Wizard : Standard, Vivid, Portrait, Landscape, Custom 1, Custom 2

* Parameter : ±4 (9-step)

- Continuous :

•JPEG : 3fps (Hi Continuous : up to 38 shots)

2.3fps (Standard Continuous : depends on memory capacity)

•RAW : 3fps (Hi Continuous : up to 16 shots)

2.3fps (Standard Continuous : up to 16 shots)

Shake Reduction - Type : Image Sensor Shift

- Effective Range : Max. 4EV (depends on lens and shooting conditions)

Dust Reduction - Yes

6- This Document can not be used without Samsung's authorization -



SPECIFICATION

Self-timer - 2sec., 12sec., Remote control, Remote control 3sec.

Remote control Continuous (Compatible with Pentax Remote Control, Optional)

Storage - Media : SD (up to 4GB guaranteed), MMC (up to 2GB guaranteed),

SDHC (up to 8GB guaranteed)

- File Format : RAW (DNG), JPEG (DCF), EXIF 2.21, DPOF 1.1, PictBridge 1.0

- Image Size :

•JPEG : 14.6M (4672X3104), 10M (3872X2592), 6M (3008X2000), 2M (1824X1216)

•RAW : 14.6M (4672X3104 pixel)

- Capacity (512MB)

•14.6M : RAW 21

•14.6M : Super Fine (1)35, Super Fine(2)61, Fine 109, Normal 213

•10M : Super Fine (1)52, Super Fine (2)87, Fine 153, Normal 319

•6M : Super Fine (1)91, Super Fine (2)147, Fine 254, Normal 474

•2M : Super Fine (1)239, Super Fine (2)381, Fine 639, Normal 1060

✁

These fi gures are measured under Samsung's standard conditions and may vary

depending on shooting conditions and camera settings.

Image Play - Type : Single image, Thumbnail, Rotate, Slide Show (4-type Transition Effect),

Histogram, Magnifi cation (up to 32X)

- Edit : Rotate, Digital Filter : B&W (4 types), Sepia (3 types), Color Selection (18 types),

Color (6 types), Soft (3 steps), Illustration, HDR (3 steps), Slim (±8 steps),

Brightness (±8 steps)

Interface - Digital Output : USB 2.0 (HI-SPEED)

- Video Output : NTSC, PAL (user selectable)

- DC Power Input Connector : DC 8.3V, 2A (100 ~ 240V)

- External Release Socket

- X Synchro Socket for External Flash

Power Source - Dedicated battery : Lithium ion battery : SLB-1674, Charger : SBC-L6

- Battery life : Approx. 500 min./1,000 shots (without fl ash on),

Approx. 430 min./860 shots (with fl ash 50% on),

Approx. 400 min./800 shots (with fl ash 100% on)

7- This Document can not be used without Samsung's authorization -



. SPECIFICATION

Dimensions(WxHxD)

- 142mmX101mmX71.5mm (excluding the projecting parts of the camera)

Weight - 727g (Body only) , 806g (Memory card & Battery included)

Operating Temperature

- 0 ~ 40°C

Operating Humidity

- 5 ~ 85%

Software - Application : Samsung Master, Samsung RAW Converter 2.0, Adobe Reader

8- This Document can not be used without Samsung's authorization -



SPECIFICATION

2. System Requirements

PC with processor better than Pentium III 450MHz

(Pentium 800MHz recommended)

Windows 2000/ME/XP/Vista

Minimum 256MB RAM (512MB recommended)

250MB of available hard disk space (1GB recommended)

USB port

CD-ROM drive

1024x768 pixels, 16-bit color display compatible monitor

(24-bit color display recommended)

For Windows

For Macintosh

Power Mac G4 or later

Mac OS 10.2 or later

Minimum 256MB RAM

250MB of available hard-disk space

USB port

CD-ROM drive

9- This Document can not be used without Samsung's authorization -



. SPECIFICATION

3. Names of Working Parts

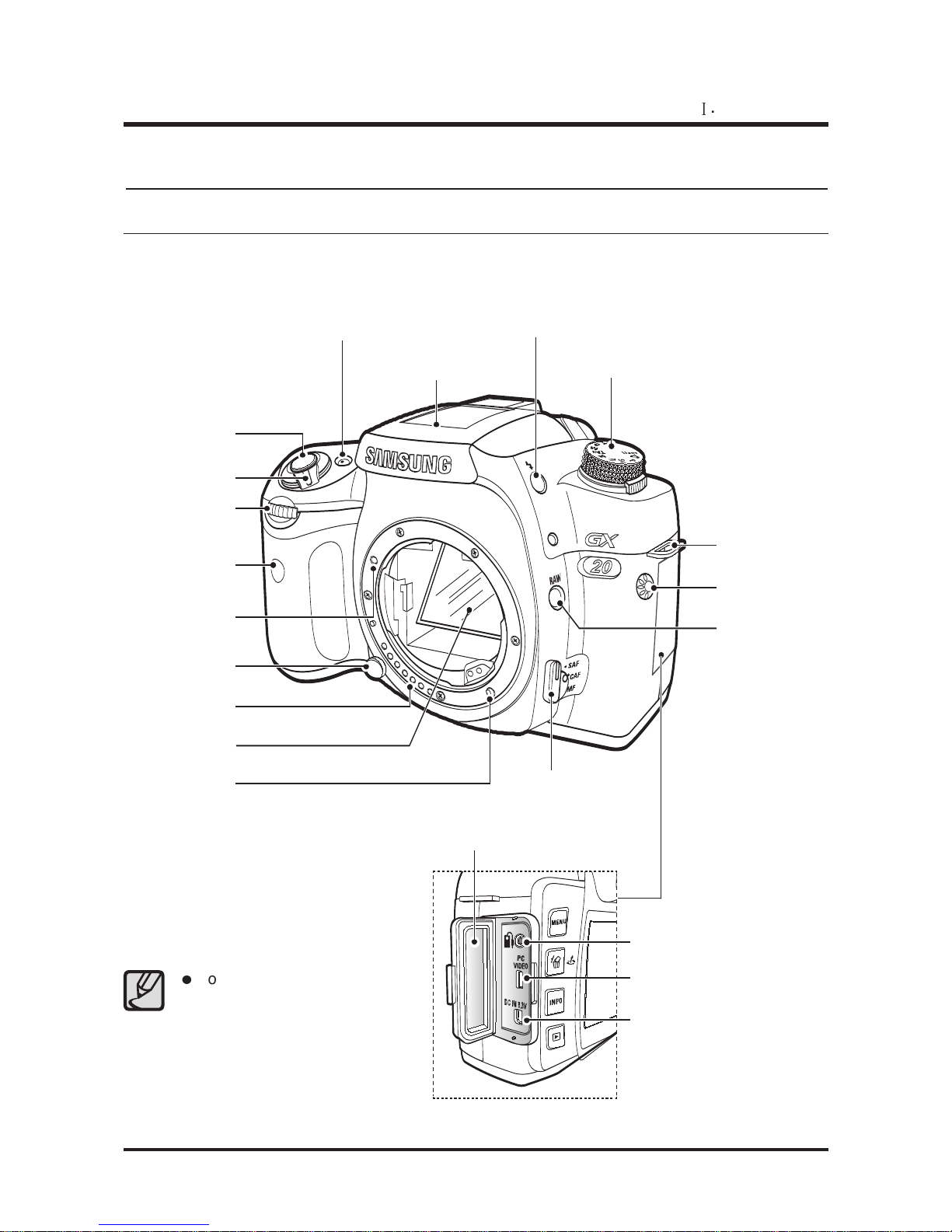

Front & Top

Shutter Button

Main Switch

Front dial

Self-Timer lamp /

Remote control

receiver

Lens mount index

Lens unlock button

Lens information

contacts

Mirror

AF coupler Focus mode lever

Terminal Cover

Remote control port

USB / Video terminal

DC input terminal

RAW Button

External flash

sync terminal

Strap holder

Mode dial

Flash Button

Built-in Flash

Green Button

✁

Do not attempt to adjust the

aperture lever or the mirror

in the camera body.

Failure to follow this

instruction may cause the

product to malfunction.

Front & Top

10 - This Document can not be used without Samsung's authorization -



SPECIFICATION

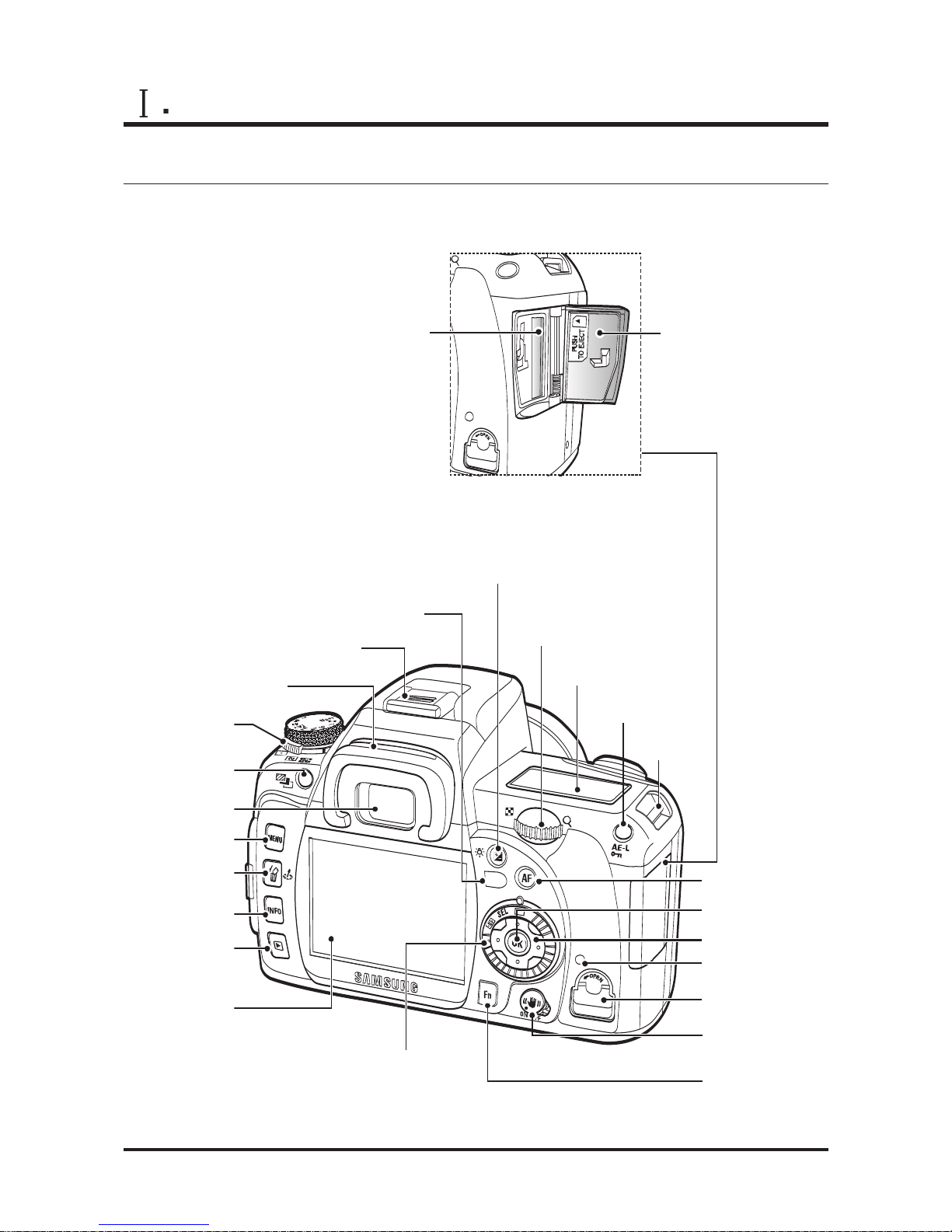

Rear

Diopter adjustment lever

Hot shoe

Memory Card Slot

Self-Timer lamp / Remote control receiver

Metering

mode lever

Exposure

bracket button

Viewfi nder

MENU button

Delete /

Picture Wizard

INFO button

Playback button

LCD Monitor

Focus point selection dial

Fn Button

OIS (Optical Image

Stabilization) lever

Card cover lock

Card access lamp

Direction button

OK Button

AF Button

Strap Holder

AE-L/ Lock Button

LCD Panel

Rear e-dial

Memory Card Cover

Exposure Compensation /

LCD panel lamp button

Altri manuali per GX-20 - Digital Camera SLR

Indice

Altri manuali Samsung Macchina fotografica digitale

Samsung

Samsung Galaxy Camera EK-GC100 Manuale utente

Samsung

Samsung CL80 Guida utente

Samsung

Samsung DIGIMAX 201 Manuale utente

Samsung

Samsung S1075 Manuale utente

Samsung

Samsung SCB-3000 Manuale utente

Samsung

Samsung PL10 Manuale di istruzioni

Samsung

Samsung ES55 Manuale di istruzioni

Samsung

Samsung SDC-33 Manuale utente

Samsung

Samsung Vluu PL91 Manuale di istruzioni

Samsung

Samsung S830 Manuale utente

Samsung

Samsung Vluu PL90 Manuale di istruzioni

Samsung

Samsung WB1101F Manuale utente

Samsung

Samsung SL310W - Genuine Digital Camera SL420 Manuale utente

Samsung

Samsung SL502 - Digital Camera - Compact Manuale utente

Samsung

Samsung NX100 Manuale utente

Samsung

Samsung SL35 - Digital Camera - Compact Manuale utente

Samsung

Samsung ES20 Manuale utente

Samsung

Samsung SMARTCAMERA DV300 Manuale utente

Samsung

Samsung VLUU ST100 Manuale utente

Samsung

Samsung PL70 Manuale di istruzioni

Samsung

Samsung SAMSUNG_SL420 Manuale utente

Samsung

Samsung Digimax U-CA 4 Manuale utente

Samsung

Samsung I80 Manuale utente

Samsung

Samsung i85 Manuale di istruzioni

Manuali Macchina fotografica digitale popolari di altre marche

Mercury

Mercury 350K Manuale utente

Pentax

Pentax Optio LS 465 Manuale utente

Sanyo

Sanyo VPC-S1085 Manuale utente

GE SMART A1255 Manuale utente

Point Grey

Point Grey Gazelle Manuale utente

Nikon

Nikon COOLPIX A Manuale utente

Pentax

Pentax P-5 Manuale utente

BlazeVideo

BlazeVideo A280 Manuale utente

Sony

Sony MCA-20 Manuale utente

Sony

Sony Alpha DSLR-A290 Manuale utente

ATIK Cameras

ATIK Cameras One Manuale utente

CohuHD Costar

CohuHD Costar 3930 Series Manuale utente

Leica

Leica M10-R Manuale utente

FujiFilm

FujiFilm FinePix A700 Manuale utente

Lorex

Lorex LNZ81P25 Series Manuale utente

GE J1470S Manuale utente

Sony

Sony A6700 Guida utente

Canon

Canon EOS ELAN7 Manuale utente
