Samsung SDC-33 Manuale utente

SDC- 33

Digital Still Camera

User's Guide I-_

For Windows=3.1 and Windows=95

Features

Take pictures instantly ... without loading film.

Congratulationson your purchaseof Samsung'sstate-of-the-arteasy-to-usedigital

camera.You can instantlytake a picture,loadthe pictureonto your PC,andoutputit

immediately throughyour monitororprinter.

Cleanhigh-quality picture

Transfer the pi_ure

A progressivescanningCCDimage

sensorwith350thousandpixelsis

usedto rendervividandclearpictures.

Large imagestoragecapacity

The built-in4MBinternalflash memory

will holdupto 45 highquality(Standard)

or 180reducedsize(Economy)pictures.

Printer

-Inkjet

-Laser

-Dye Sublimation

Makeaninstantprintofasnapshot.

Sendanemailcardtoyourfriend.

_,Createaphotocalendar.

Livenupyourreportswithvividslideshows.

Createanelectroniccatalogofproducts.

CD-ROM

Disk Drive

Floppy Disk

t CreateanelectronicCD-ROMalbum.

Savesouvenirpicturestofloppydiskto

givetofriends.

Contents

Getti ng started

Features 1

Precautions 3

SafetyInstructions 5

Locationof Controls 7

GettingStarted 9

,_Batteryinsertion 9

Operation

BasicPictureTaking 11

Setting Picture Mode 13

Timer Photography 14

Deleting Pictures 15

Connectingto your PC 17

,_AC Adaptor Usage 18

Software Installation 19

Compactand portabledesign

Thecombinationofsmallsizeand

lightweightdesignmakeitperfectto

carryinyourpocket.

Others

Warning Messages 27

Care and Maintenence 28

Troubleshooting 29

Technical specifications 30

Warranty 32

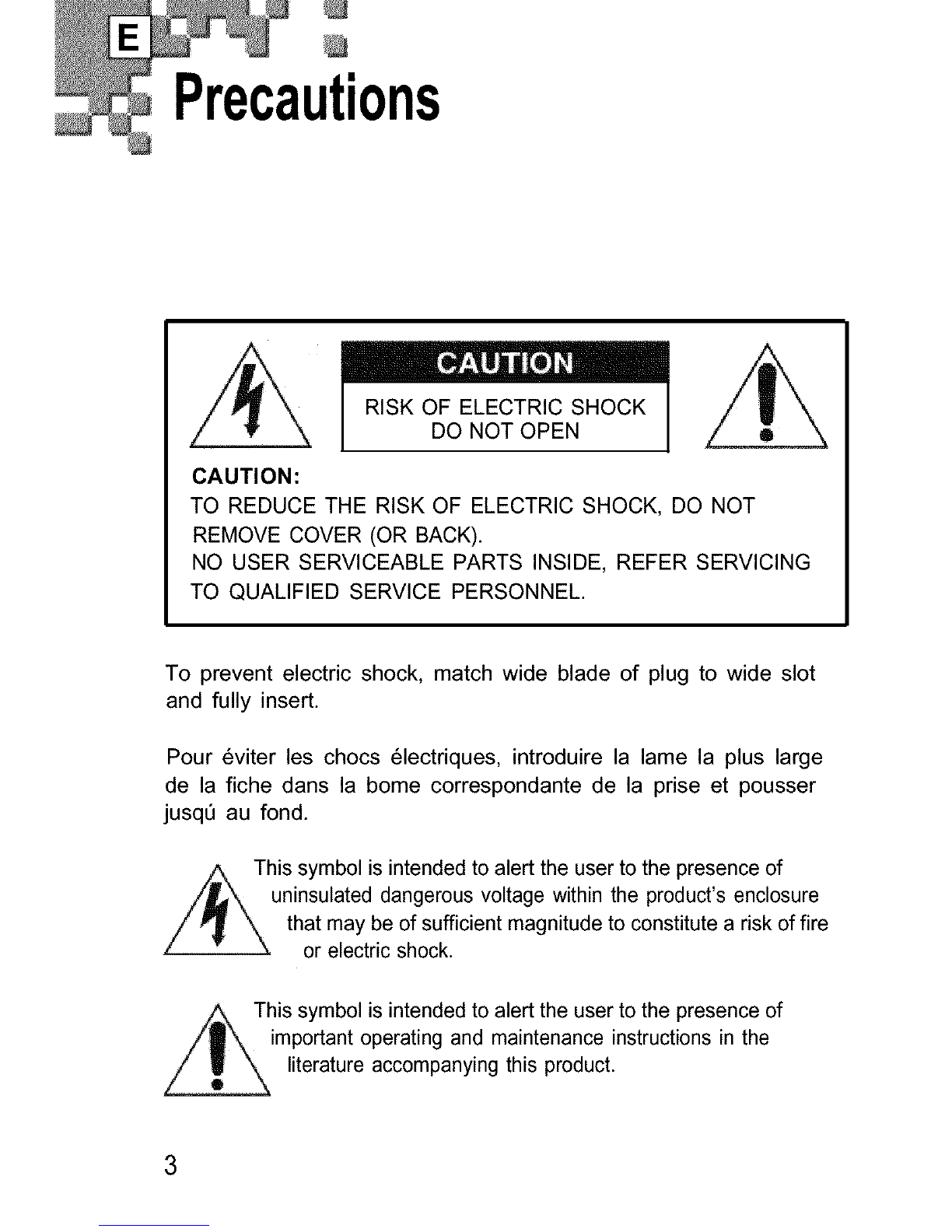

Precautions

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE, REFER SERVICING

TO QUALIFIED SERVICE PERSONNEL.

To prevent electric shock, match wide blade of plug to wide slot

and fully insert.

Pour eviter les chocs electriques, introduire la lame la plus large

de la fiche dans la bome correspondante de la prise et pousser

jusq6 au fond.

/i_This symbol is intended to alert the user to the presence of

uninsulated dangerous voltage within the product's enclosure

that may be of sufficient magnitude to constitute a risk of fire

or electric shock.

/_\\ This symbol is intended to alert the user to the presence of

important operating and maintenance instructions in the

literature accompanying this product.

NOTE: This equipment has been tested and found to comply with the

limits for a class B digital device, pursuant to pan 15 of the FCC Rules.

These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause

harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a

particular installation.

If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one or

more of the following measures :

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

WARNING

The connection of a non-shielded equipment interface cable to this

equipment will invalidate the FCC Certification of this device and may

cause interference levels that exceed the limits established by the FCC

for this equipment. If is the responsibility of the user to obtain and use a

shielded equipment interface cable with this device. If this equipment

has more than one interface connector, do not leave cables connected

to unused interfaces.

Changes or modifications not expressly approved by the manufacturer

could void the user's authority to operate the equipment.

FOR CANADIAN USERS

This Class B digital apparatus meets all requirements of the Canadian

Interference-Causing Equipment Regulations.

Cet appareil num6rique de la Classe B respecte toutes tes exigences du

Reglement sur la materiel brouilleur du Canada. 4

SafetyInstructions

READ INSTRUCTIONS : All the safety and operating instructionsshould be

read beforethe CAMERAis operated.

RETAIN INSTRUCTIONS: The safety and operatinginstructionsshould be

retainedfor future reference.

HEED WARNINGS : All warnings on the CAMERAand in the operating

instructionsshouldbe adheredto.

FOLLOW INSTRUCTIONS :All operating and maintenanceinstructions

shouldbefollowed.

CLEANING : Do not use liquidor aerosolcleaners.Use a soft lint-freecloth.

ATTACHMENTS : Do not useattachmentsnot recommendedbythe

CAMERAproductmanufactureras they may be hazardous.

POWER SOURCES : The CAMERAshould be operated only from the type

of powersource indicatedon the label.

Ifyou arenotsum of thetype of powersupplyat your home,consultyour

appliancedealer or local powercompany.

TheCAMERAisintendedto beoperatedfrombatterypower,or othersources;

refertotheoperatinginstructions.

ACCESSORIES : Do not placethis CAMERAon an unstablecart, stand,

tripod,bracketor table.The CAMERAmayfall,causingseriousinjuryto

a childor adult,andseriousdamageto the unit.Useonlywitha cart,stand

tripod, bracket,or table recommendedby the manufactureror sold withthe

CAMERA. Any mountingof theunit shouldfollowthe manufacturer's

instructionsand should use a mountingaccessoryrecommendedby the

manufacturer.

A. An applianceand cart combinationshouldbe moved

with care.Quickstops,excessiveforceand uneven

surfacesmaycausethe applianceand cart combination

to overturn.PORTABLECARTWARNING

(Symbolprovidedby RETAC)

10.

11.

12.

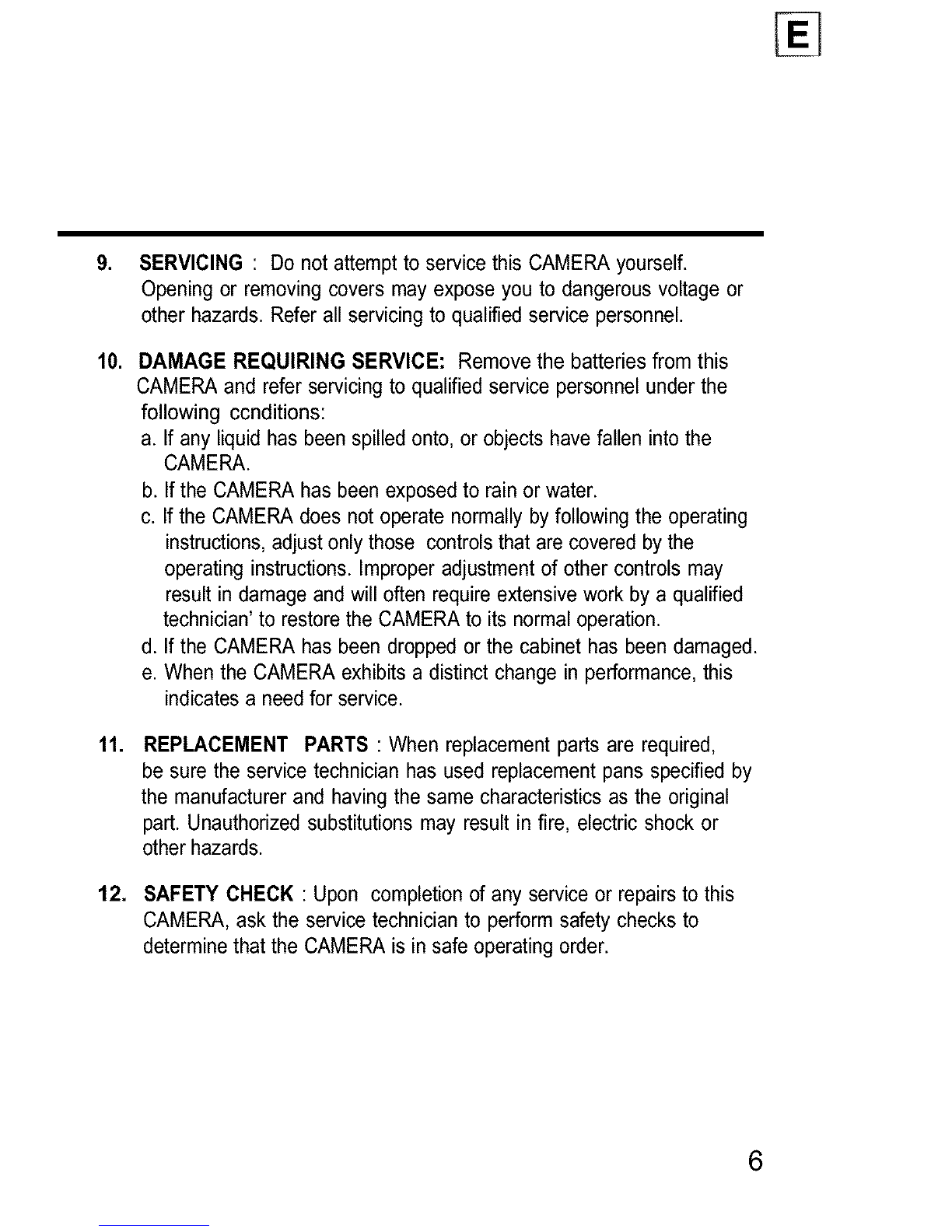

SERVICING : Do not attempt to service this CAMERA yourself.

Opening or removing covers may expose you to dangerous voltage or

other hazards. Refer all servicing to qualified service personnel.

DAMAGE REQUIRING SERVICE: Remove the batteries from this

CAMERA and refer servicing to qualified service personnel under the

following ccnditions:

a. If any liquid has been spilled onto, or objects have fallen into the

CAMERA.

b. If the CAMERA has been exposed to rain or water.

c. If the CAMERA does not operate normally by following the operating

instructions, adjust only those controls that are covered by the

operating instructions. Improper adjustment of other controls may

result in damage and will often require extensive work by a qualified

technician' to restore the CAMERA to its normal operation.

d. If the CAMERA has been dropped or the cabinet has been damaged.

e. When the CAMERA exhibits a distinct change in performance, this

indicates a need for service.

REPLACEMENT PARTS : When replacement parts are required,

be sure the service technician has used replacement pans specified by

the manufacturer and having the same characteristics as the original

part. Unauthorized substitutions may result in fire, electric shock or

other hazards.

SAFETY CHECK : Upon completion of any service or repairs to this

CAMERA, ask the service technician to perform safety checks to

determine that the CAMERA is in safe operating order.

LocationofControls

Timer (page14)

Picture Mode (page13)

STD:Total45pictures

ECO:Total180pictures

PicturesRemaining

Pictures Taken

Batterylevel indicator(pages

Deleteindicator (pages15-16'

Timerlamp(page14)

Operationready indicator

Viewfinder

RS-232C

(page17)

DC inputj

(page18)

Picture Mode button (page 13)

Timer button (page 14)

Delete button (pages 15-16)

Power switch

•-Battery cover(pages 9-10)

=- Tripod mountinghole

GettingStarted

insertion ]

Locate the battery cover on

the bottom of the camera

and push it open In the

direction of the arrow.

Thread the thin end of the strap into

the hole on the side of the camera and

loop the large end of the strap around

it as shown in the figure.
