Samsung SL202 - Digital Camera - Compact Manuale di istruzioni

This Quick Start Manual has been specially designed to guide you

through the basic functions and features of your device.

Please read the Quick Start Manual and User Manual carefully to

ensure safe and correct use.

Quick Start Manual

SL202

For more information, refer to

the User Manual included on the

supplied CD-ROM.

ENG / SPA

Please refer to the warranty that came with your product

or visit our website http://www.samsung.com for after-

sales service or inquiries.

FOR TECHNICAL SUPPORT, PLEASE CALL 1-800-SAMSUNG (726-7864)

POR FAVOR LLAMAR 1-800-SAMSUNG (726-7864) PARA ASISTENCIA TECNICA

AD68-03959A (1.0)

Health and safety informationContents

Warnings

Do not use your camera near ﬂammable or explosive

gases and liquids

Do not use your camera near fuels, combustibles, or

ﬂammable chemicals. Do not store or carry ﬂammable

liquids, gases, or explosive materials in the same

compartment as the camera or its accessories.

Keep your camera away from small children and pets

Keep your camera and all accessories out of the reach of

small children and animals. Small parts may cause choking

or serious injury if swallowed. Moving parts and accessories

may present physical dangers as well.

Prevent damage to subjects’ eyesight

Do not use the ﬂash in close proximity (closer than 1m/3

ft) to people or animals. Using the ﬂash too close to your

subject’s eyes can cause temporary or permanent damage.

Health and safety

information…………………… 2

Camera layout ……………… 4

Setting up your camera …… 5

Unpacking ……………………… 5

Inserting the battery and

memory card …………………… 6

Charging the battery …………… 6

Turning on your camera ……… 7

Selecting options ……………… 7

Capturing photos or videos 8

Playing ﬁles ………………… 9

Transferring ﬁles to a PC

(Windows) …………………… 10

Speciﬁcations ……………… 11

Exercise caution when connecting cables or adapters

and installing batteries and memory cards. Forcing

the connectors, improperly connecting cables, or

improperly installing batteries and memory cards can

damage ports, connectors, and accessories.

Do not insert foreign objects into any of your

camera’s compartments, slots, or access points.

This type of damage may not be covered by your

warranty.

Protect batteries, chargers, and memory cards from

damage

Avoid exposing batteries or memory cards to very

cold or very hot temperatures (below 0° C/32° F or

above 40° C/104° F). Extreme temperatures can

reduce the charging capacity of your batteries and

can cause memory cards to malfunction.

Prevent memory cards from making contact with

liquids, dirt, or foreign substances. If dirty, wipe the

memory card clean with a soft cloth before inserting

in your camera.

•

Handle and dispose of batteries and chargers with

care

Use only Samsung-approved batteries and chargers.

Incompatible batteries and chargers can cause serious

injuries or damage to your camera.

Never place batteries or cameras on or in heating

devices, such as microwave ovens, stoves, or

radiators. Batteries may explode when overheated.

Cautions

Handle and store your camera carefully and sensibly

Do not allow your camera to get wet—liquids can

cause serious damage. Do not handle your camera

with wet hands. Water damage to your camera can

void your manufacturer’s warranty.

Avoid using or storing your camera in dusty, dirty,

humid, or poorly-ventilated areas to prevent damage

to moving parts and internal components.

•

English

Shutter button

Speaker

POWER button

Microphone

Flash

Lens/Lens cover

AF sensor/Self-timer lamp

Camera layout

Zoom button

Strap eyelet

USB / AV / DC terminal

Mode dial

5 function button

Fn/Delete button

Play mode button

MENU button

Camera status lamp

LCD monitor

Setting up your camera

Unpacking

Optional accessories

Camera case Memory cards

Camera AC adapter (AD44-00131A)/

USB cable (AD39-00161A)

Rechargeable

battery

(4302-001221)

Strap

(AD63-02596A)

Software CD-ROM

(User manual included)

(AD46-00227A)

A/V cable (AD39-00146A) Quick Start Manual

(AD68-03959A)

English

Setting up your camera

Inserting the battery and memory card Charging the battery

Push gently until the card

disengages from the camera

and then pull it out of the slot.

▼

Removing the battery

With the gold-coloured

contacts facing up

With the

Samsung logo

facing down

▼

Removing the memroy card

Indicator light

Red: Charging

Green: Fully charged

▪

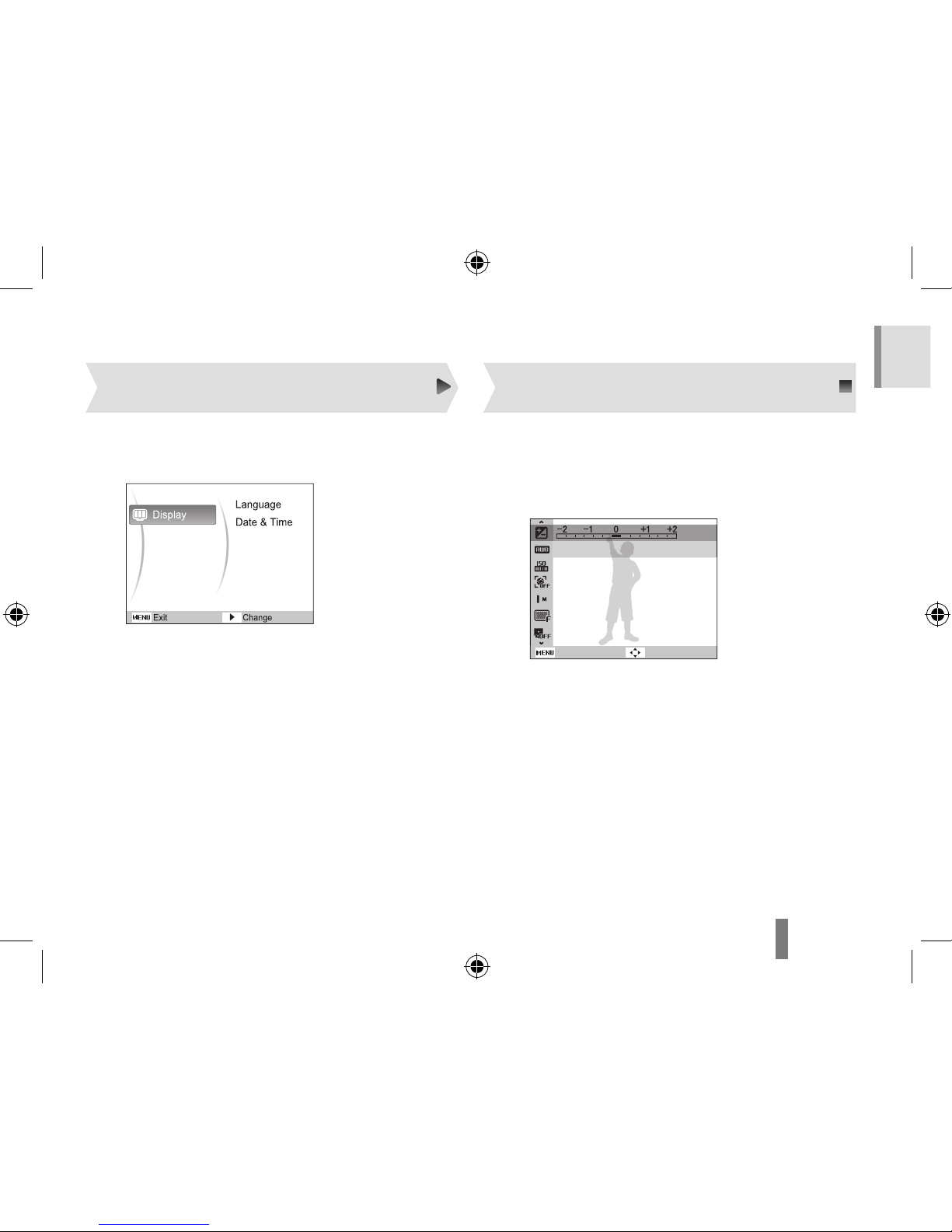

Press [POWER].

The intial setup screen appears.

Press [t] to select Language and press

[t].

Press [D] or [M] to select a language and

press [o].

Press [D] or [M] to select Date & Time and

press [t].

Press [F] or [t] to select an item.

Press [D] or [M] to change the number or

select another date format and press [o].

▪

In Shooting mode, press [m].

Use the navigation buttons to scroll to an

option or menu.

Back

Move

To move left or right, press [F] or [t].

To move up or down, press [D] or [M].

Press [o] to conﬁrm the highlighted option or

menu.

Press [m] again to go back to the previous

menu.

▪

Turning on your camera Selecting options

English

Taking a photo

Rotate the mode dial to a.

Align your subject in the frame.

Press [Shutter] halfway down to focus

automatically.

A green frame means the subject in focus.

Press [Shutter] all the way down to take the

photo.

▪

Recording a video

Rotate the mode dial to v.

Align your subject in the frame.

Press [Shutter].

Press [o] to pause or resume.

Press [Shutter] again to stop the recording.

Note

Number of photos by resolution (for 1 GB SD)

Resolution Super ﬁne Fine Normal

3648 x 2736 182 333 471

3648 x 2432 199 361 510

3648 x 2052 251 440 611

3072 x 2304 251 444 617

2592 x 1944 333 576 791

2048 x 1536 493 812 1064

1024 x 768 1234 1668 1870

These ﬁgures are measured under Samsung’s standard

conditions and may vary depending on shooting conditions

and camera settings.

▪

Capturing photos or videos

Playing ﬁles

Viewing photos

Press [P].

Press [F] or [t] to scroll through ﬁles.

Press and hold to view ﬁles quickly.

▪

Viewing videos

Press [P].

Press [o].

Pause

Use the following buttons to control playback.

[F] Scan backward

[o] Pause or resume playback

[t] Scan forward

English

1110

Transferring ﬁles to a PC (Windows)

Insert the installation CD in a CD-ROM drive

and follow the onscreen instructions.

Connect the camera to the PC with the USB

cable.

Turn on the camera.

On your PC, select My Computer →

Removable Disk →DCIM →100SSCAM.

Select the ﬁles you want and drag or save them

to the PC.

Disconnecting safely (for Windows XP)

Click



Click
