Samsung LE32M73BD Manuale utente

TFT-LCD TV

Chassis GED32SE

GND32SE

GED40SE

GND40SE

GND46SE

Model LE32M73BD

LE32N73BD

LE40M73BD

LE40N73BD

LE46N73BD

Manual

SERVICE

TFT-LCD TV Fashion Feature

- Luxurious Slim Design

- Supreme Picture Quality

- Supreme Sound Quality

- Supreme Convenience Quality

- Convenience for Users

- DVB-T, iDTV

- MHP(Only for Italy)

LE32M73BD / LE40M73BD

LE32N73BD / LE40N73BD / LE46N73BD

This manual may not, in whole or in part, be copied,

photocopied, reproduced, translated, or converted to

any electronic or machine readable form without prior

written permission of Samsung Electronics Co., Ltd.

LE32M73BD / LE32N73BD / LE40M73BD /

LE40N73BD / LE46N73BD Service Manual

First edition June 2006.

Printed in Korea.

Trademarks

Samsung is the registered trademark of Samsung

Electronics Co., Ltd.

LE32M73BD / LE32N73BD / LE40M73BD /

LE40N73BD / LE46N73BD and MacMaster Cable

Adapter are trademarks of Samsung Electronics Co.,

Ltd.

Macintosh, Power Macintosh are trademarks of Apple

Computer, Inc.

All other trademarks are the property of their respective

owners.

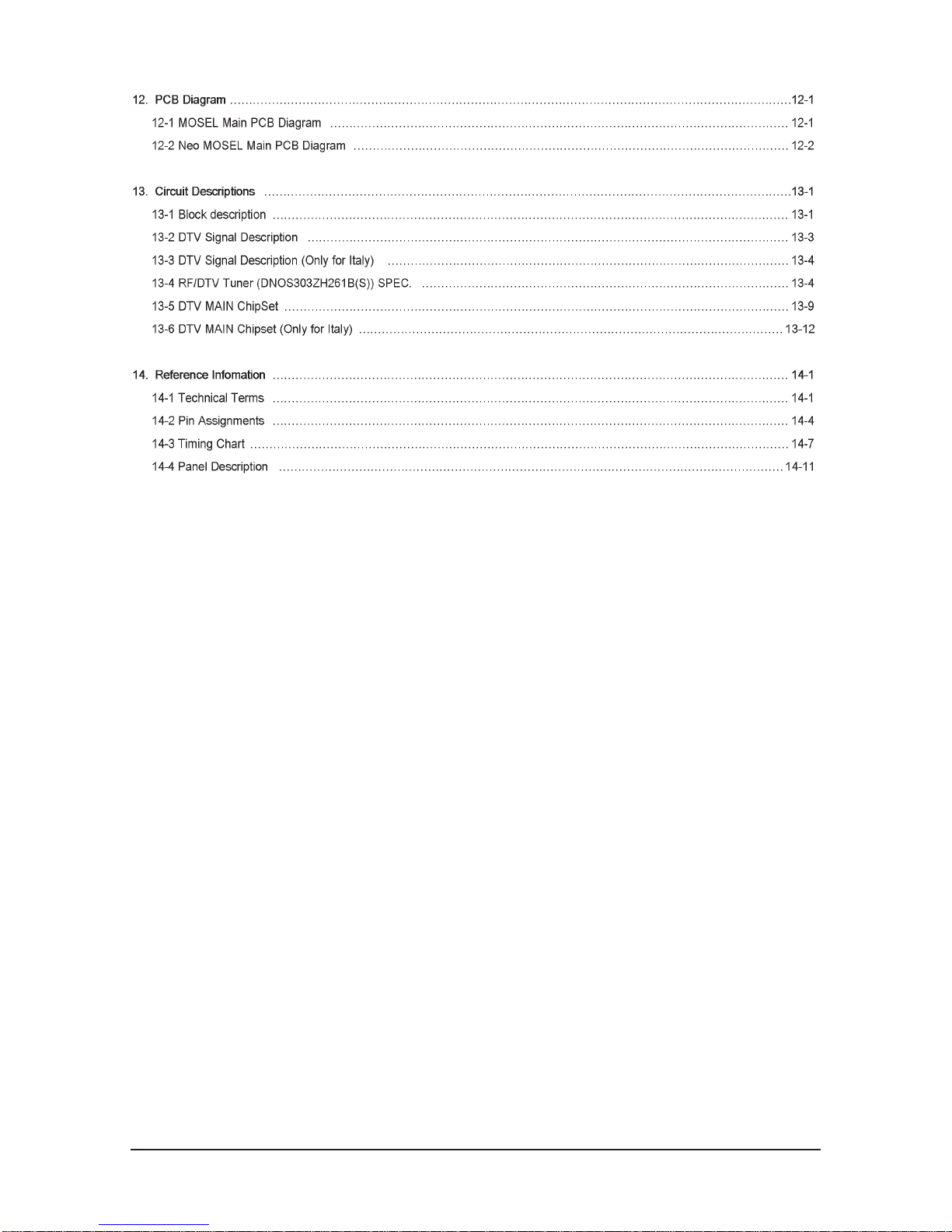

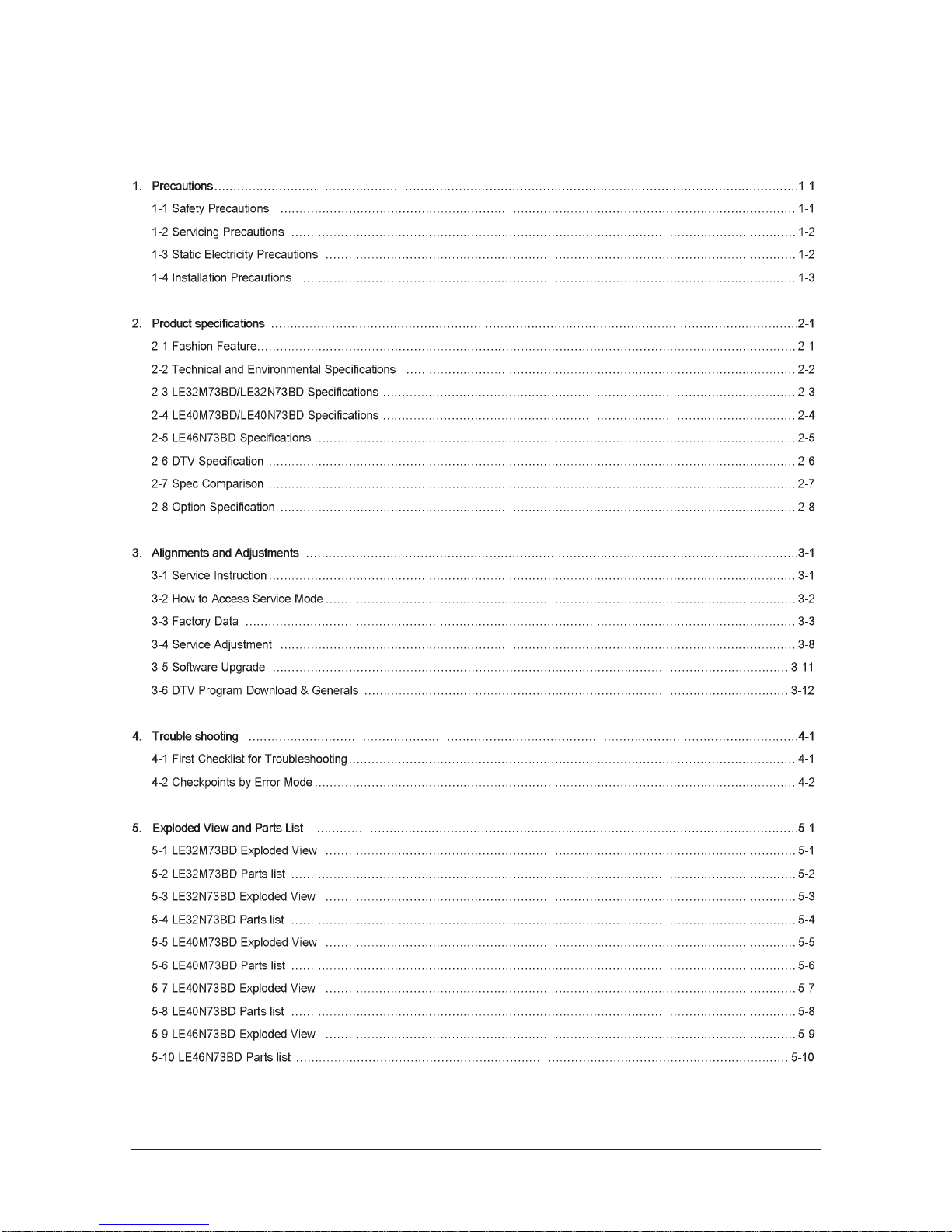

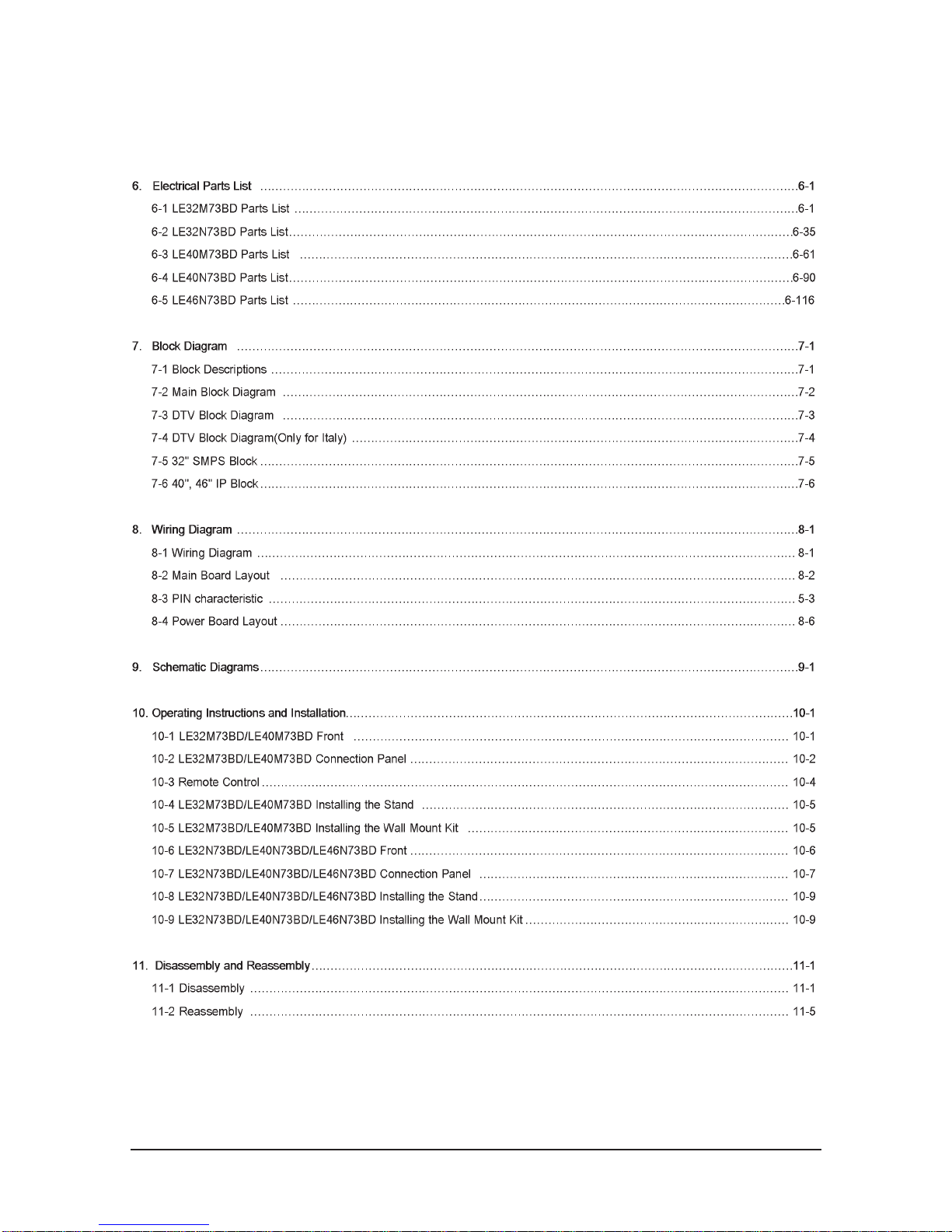

Contents

Samsung Electronics Co.,Ltd.

416, Maetan-3Dong, Yeongtong-Gu, Suwon City,

Gyeonggi-Do, Korea, 443-742

Printed in Korea

P/N : BN82-00144D-00

URL : http://itself.sec.samsung.co.kr/

- This Service Manual is a property of

Samsung Electronics Co., Ltd.

Any unauthorized use of Manual can be

punished under applicable International

and/or domestic law.

3 Alignments and Adjustments

3-1

3 Alignments and Adjustments

3-1 Service Instruction

1. Usually, a color TV-VCR needs only slight touch-up adjustment upon installation.

Check the basic characteristics such as height, horizontal and vertical sync.

2. Use the specified test equipment or its equivalent.

3. Correct impedance matching is essential.

4. Avoid overload. Excessive signal from a sweep generator might overload the front-end

of the TV. When inserting signal markers, do not allow the marker generator to distort

test result.

5. Connect the TV only to an AC power source with voltage and frequency as specified on

the backcover nameplate.

6. Do not attempt to connect or disconnect any wire while the TV is turned on. Make sure

that the power cord is disconnected before replacing any parts.

7. To protect aganist shock hazard, use an isolation transform.

3 Alignments and Adjustments

3-2

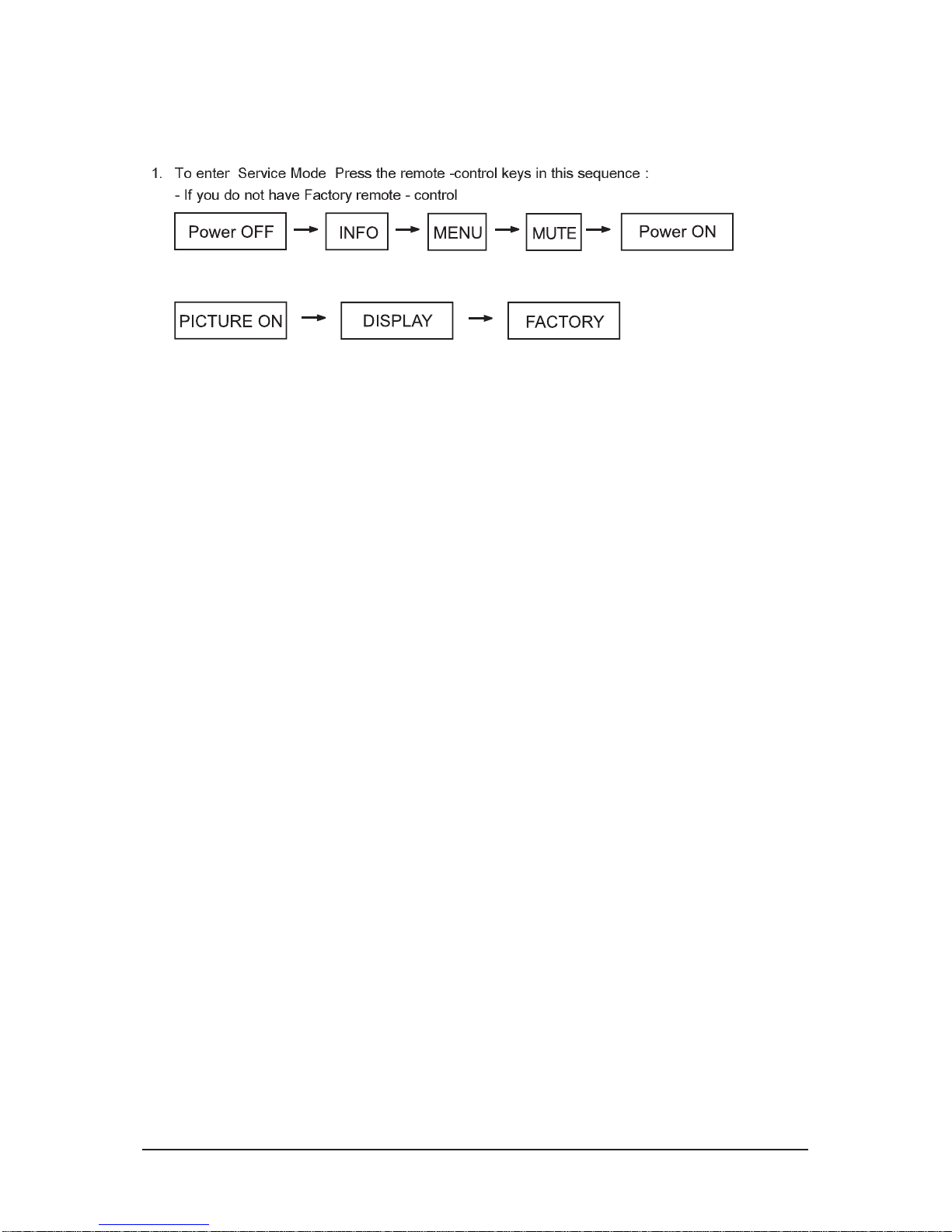

3-2 How to Access Service Mode

3-2-1 Entering Factory Mode

" "

- If you have Factory remote - control

- The buttons are active in the service mode.

1. Remote - Control Key : Power, Arrow Up, Arrow Down, Arrow Left

Arrow Right, Menu, Enter, Number Key(0~9)

2. Function - Control Key : Power, CH +, CH -, VOL +, VOL -,

Menu, TV/VIDEO(Enter)

3 Alignments and Adjustments

3-3

3-3 Factory Data

1. Calibration

2. Option Table XXXX XXXX

3. White Balance

4. SVP-PX

5. Option Block

6. STV8257/STA323W

7. YC Delay

8. Adjust

9. I2C Check

10. W/B MOVIE

11. Checksum

12. Reset

13. Spread Spectrum

T-MSLMPEUD-0000(MOSEL Main Micom Ver)

T-NMSLMPEUD-0000(Neo MOSEL Main Micom Ver)

T-CBGMPEUS-0000(Sub Micom Ver)

T-MSLMPEUW-0000(MMS Micom Ver)

Month / Day / Year

Hour / Min. / Sec.

1. Calibration

1) AV Calibration

2) Comp Calibration

3) PC Calibration

4) HDMI Calibration

3 Alignments and Adjustments

3-4

Byte

ITEM

Inch Option.

Gamma

Panel Option

2 HDMI

----

Hot Plug

Clk Ct±â

Hot Plug Delay

----

LNA

Carrier Mute

Language

Auto FM

High Deviation

TTX

TTX List

ACR

Dynamic CE

Dynamic Dimming

Tuner TOP

TTX Group

Auto Power

Magazine LNA

VOL_MODE

Shop Mode

Debug

CH TABLE

iDTV_Cntry

Dynamic Contrast

Default

AMLCD

CCFL_120

OFF

English

OFF

On/Off

Flof

OFF

Auto

OFF

Large

OFF

SUWON

OFF

32"

AUO

OFF

English

OFF

On/Off

Flof

OFF

Auto

OFF

Large

OFF

SUWON

UK/France/Germany

OFF

40"

AMLCD

CCFL_120

OFF

English

OFF

On/Off

Flof

OFF

Auto

OFF

Large

OFF

SUWON

UK/France/Germany

OFF

2. Option Table

(1) MOSEL

UK/France/Germany
