Introduction

Package Contents

Note

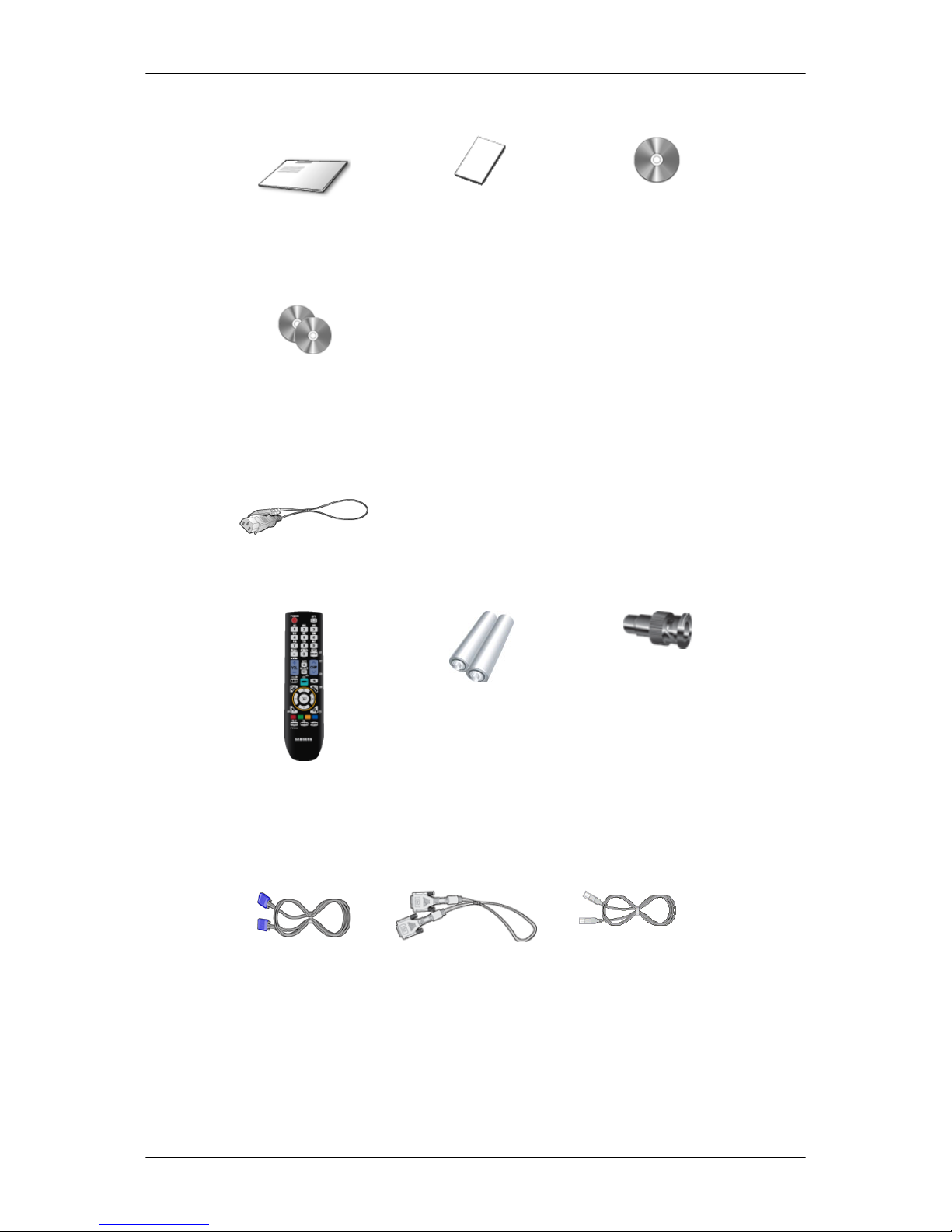

Please make sure the following items are included with your LCD Display.

If any items are missing, contact your dealer.

Contact a local dealer to buy optional items.

Checking the Contents of the Package

Remove the lock from the package box, as shown in the figure above.

Lift up the package box by

holding the grooves on

both sides of the package

box.

Check the contents of the

package. Remove the Styrofoam

and vinyl cover.

Note

• After unpacking the package, make sure to check the contents of the package.

• Make sure to keep the package box for transporting the product in the future.

Unpacking

LCD Display

Manuals

Quick Setup Guide Warranty Card

(Not available in all loca-

tions)

User's Guide

MagicInfo Software CD,

MagicInfo Manual CD

(Applicable to the UXN-2

model only)

Cables

Power Cord

Others

Remote Control

(BP59-00138A)

Batteries (AAA X 2)

(Not available in all loca-

tions)

BNC to RCA Adaptor Jack

(Applicable to the UX-2

model only)

Sold separately

D-Sub Cable DVI Cable LAN Cable

(Used with UXN-2 model

only)

Introduction

Sold separately

Wall Mount KIT RGB to BNC Cable BNC to BNC Cable

(Applicable to the UX-2

model only)

RGB to Component Cable Semi Stand KIT

Your LCD Display

Front

MENU button [MENU]

Opens the on-screen menu and exits from the menu. Also use to exit the

OSD menu or return to the previous menu.

Navigate buttons (Up-Down buttons)

Moves from one menu item to another vertically or adjusts selected menu

values.

Adjust buttons (Left-Right buttons) / Volume buttons

Moves from one menu item to another horizontally or adjusts selected

menu values. When OSD is not on the screen, press the button to adjust

volume.

ENTER button [ENTER]

Activates a highlighted menu item.

Introduction

SOURCE button [SOURCE]

Switches from PC mode to Video mode. Selects the input source that an

external device is connected to.

[PC] →[DVI] →[AV] →[Component] →[HDMI] →[MagicInfo]

Note

• The BNC mode will not be activated on the UXN-2 model.

•MagicInfo supports the UXN-2 model only.

PIP button

Push the PIP button to turn the PIP screen On / Off.

More than one PIP cannot overlap on screen as BNC and the component

use the same terminal.

•PC : DVI / AV / Component / HDMI

•BNC : DVI / AV / HDMI

•DVI / AV : PC / BNC

•Component : PC

•HDMI : PC / BNC

Power button [ ]

Use this button for turning the LCD Display on and off.

Brightness Sensor (Optional)

Automatically detects the surrounding brightness it accordingly.

Note

This function is activated only on the models equipped with an auto bright-

ness sensor.

Power indicator

Shows PowerSaver mode by blinking green

Note

See PowerSaver described in the manual for further information regarding

power saving functions. For energy conservation, turn your LCD Display

OFF when it is not needed or when leaving it unattended for long periods.

Remote Control Sensor

Aim the remote control towards this spot on the LCD Display.

Rear

Note

For detailed information concerning cable connections, refer to Connecting Cables under

Setup. The LCD Display 's configuration at the back may vary slightly depending on the LCD

Display model.

Introduction

Note

Applicable to the UX-2 model only.

Applicable to the UXN-2 model only.

POWER S/W ON [ │] / OFF [O]

Switches the LCD Display On/Off.

POWER

The power cord plugs into the LCD Display

and the wall outlet.

RS232COUT/IN(RS232C Serial PORT)

MDC(Multiple Display Control) Program Port

RGB/COMPONENT IN (PC/COMPO-

NENT Connection Terminal (Input))

•Use a D-Sub Cable (15 pin D-Sub) - PC

mode (Analog PC)

•Connect the RGB/COMPONENT IN port

on the monitor to the COMPONENT port

on the external device using the D-SUB

to COMPONENT cable.

•Connect the RGB/COMPONENT IN port

on the monitor to the BNC port on the PC

using the D-SUB to BNC cable.

Introduction

DVI IN (PC Video Connection Terminal)

Use a DVI Cable (DVI-D to DVI-D) - DVI

mode (Digital PC)

DVI/RGB/HDMI AUDIO IN (PC/DVI/

HDMI(PC) Audio Connection Terminal (In-

put))

AV/COMPONENTAUDIOIN [L- AUDIO-

Connect the port of the DVD, VCR (DVD /

DTVSet-TopBox) to the[L- AUDIO -R] port

of the LCD Display.

DVI OUT

•Connect a monitor to another monitor

through a DVI cable.

•Connect the DVI OUT port on the monitor

to the HDMI IN port on the other monitor

using the DVI to HDMI cable.

•DVI, HDMI and network signals sent via

the DVI OUT port are displayed on the

seconddisplaywhichhastheDVIIN port.

Note

Up to 6 Full HD or 10 HD monitors can be

connected (May differ depending on the

product).

AV IN [VIDEO]

Connect the [ VIDEO ] terminal of your mon-

itor to the video output terminal of the exter-

nal device using a VIDEO cable.

AUDIO OUT

Headphone/External speaker output termi-

nal.

HDMI IN

Connect the HDMI terminal at the back of

your LCD Display to the HDMI terminal of

Introduction

your digital output device using a HDMI ca-

ble.

Up to HDMI cable 1.0 can be supported.

BNC OUT [R, G, B, H, V] (BNC Terminal

(Output))

BNC (Analog PC) Connection: connecting

the R, G, B, H, V ports.

The number of LCD Displays that can be

connected to the loopout depends on the ca-

bles,signal source, etc.With cables or signal

source where there is no degradation, up to

10 LCD Displays can be connected (May not

be supported depending on the connected

cable).

Note

(Applicable to the UX-2 model only)

(BNC/Component Connection Terminal

(input))

During component input, please check spec-

ifications for the input ports below.

[R/Y, G/PB, B/PR, H, V]

• [R/Y] --> Red port input

• [G/PB] --> Green port input

• [B/PR] --> Blue port input

Note

Applicable to the UX-2 model only.

RGB OUT

Note

Applicable to the UXN-2 model only.

LAN (LAN Connection Terminal)

Note

Applicable to the UXN-2 model only.

USB1,USB2(USBConnectionTerminal)

Introduction

Keyboard / Mouse, Mass Storage Device

Compatible.

Note

Applicable to the UXN-2 model only.

Kensington Lock

The Kensington Lock is a device used to

physically fix the system when using it in a

public place. The locking device has to be

purchased separately. The appearance and

locking method may differ from the illustra-

tiondependingon the manufacturer.Referto

the manual provided with the Kensington

Lock for proper use. The locking device has

to be purchased separately.

Note

The location of the Kensington Lock may be

different depending on the model.

Using the Anti-Theft Kensington

Lock

1. Insert the locking device into the Ken-

sington slot on the LCD Display and

turn it in the locking direction .

2. Connect the Kensington Lock cable.

3. Fix the Kensington Lock to a desk or a

heavy stationary object.

Note

See Connecting Cables for further information regarding cable connections.

Remote Control

Note

The performance of the remote control may be affected by a TV or other electronic device

operating near the LCD Display , causing a malfunction due to interference with the frequen-

cy.

Introduction

POWER

OFF

Number Buttons

DEL / GUIDE button

+ VOL -

SOURCE

D.MENU

TOOLS

Up-Down Left-Right buttons

INFO

COLOR BUTTONS

TTX/MIX

MTS/DUAL

ENTER/PRE-CH

MUTE

CH/P

RETURN

EXIT

MagicInfo

1. POWER Turns the product On.

2. OFF Turns the product Off.

3. Number Buttons Press to change the channel.

4. DEL / GUIDE but-

ton

The "-" button is used to select Digital channels.

Electronic Program Guide (EPG) display.

- This function does not work for this LCD Display.

5. + VOL - Adjusts the audio volume.

6. SOURCE Press the button to change the input signal SOURCE.

Changing the SOURCE is only allowed for external devices

that are connected to the LCD Display at the time.

7. D.MENU DTV menu display

- This function does not work for this LCD Display.

8. TOOLS Use to quickly select frequently used functions.

Introduction
