Samsung SyncMaster 400UX-3 Manuale utente

LCD MONITOR

quick start guide

400UXN-3 400UX-3 460UXN-3 460UX-3

Introduction

Package Contents

Checking the Contents of the Package

Remove the lock from the package box, as shown in the figure above.

Lift up the package box by

holding the grooves on

both sides of the package

box.

Check the contents of the

package. Remove the Styrofoam

and vinyl cover.

Note

• After unpacking the package, make sure to check the contents of the package.

• Store the packaging box in case you need to move the Product later.

• If any items are missing, contact your dealer.

• Contact a local dealer to purchase optional items.

Unpacking

LCD Display

Manuals

Quick Setup Guide Warranty Card

(Not available in all loca-

tions)

User's Guide

MagicInfo Software CD,

MagicInfo Manual CD

(Applicable to the

400UXN-3, 460UXN-3

model only)

Cables

Power Cord D-Sub Cable

Others

Remote Control

(BP59-00138B)

Batteries (AAA X 2)

(Not available in all loca-

tions)

Sold separately

Semi Stand KIT LAN Cable USB Cable

(Applicable to the

400UXN-3, 460UXN-3

model only)

Introduction

Sold separately

RGB to BNC Cable RGB to Component Cable Network Box

(Applicable to the

400UX-3, 460UX-3 model

only)

Wall Mount KIT TV Tuner Box

Note

Accessories that can be purchased with the product vary by country.

Your LCD Display

Front

SOURCE button

Switches from PC mode to Video mode. Selects the input source that an

external device is connected to.

[PC] →[DVI] →[AV] →[Component] →[HDMI1] →[HDMI2] →[Dis-

playPort] →[MagicInfo] →[TV]

Note

• A TV tuner box (sold separately) must be connected to use the TV.

•A network box (sold separately) must be connected to use MagicInfo

with a 400UX-3, 460UX-3 model.

POWER button

Use this button for turning the LCD Display on and off.

Introduction

Power indicator

Shows PowerSaver mode by blinking green

Note

See PowerSaver described in the manual for further information regarding

power saving functions. For energy conservation, turn your LCD Display

OFF when it is not needed or when leaving it unattended for long periods.

Remote Control Sensor

Aim the remote control towards this spot on the LCD Display.

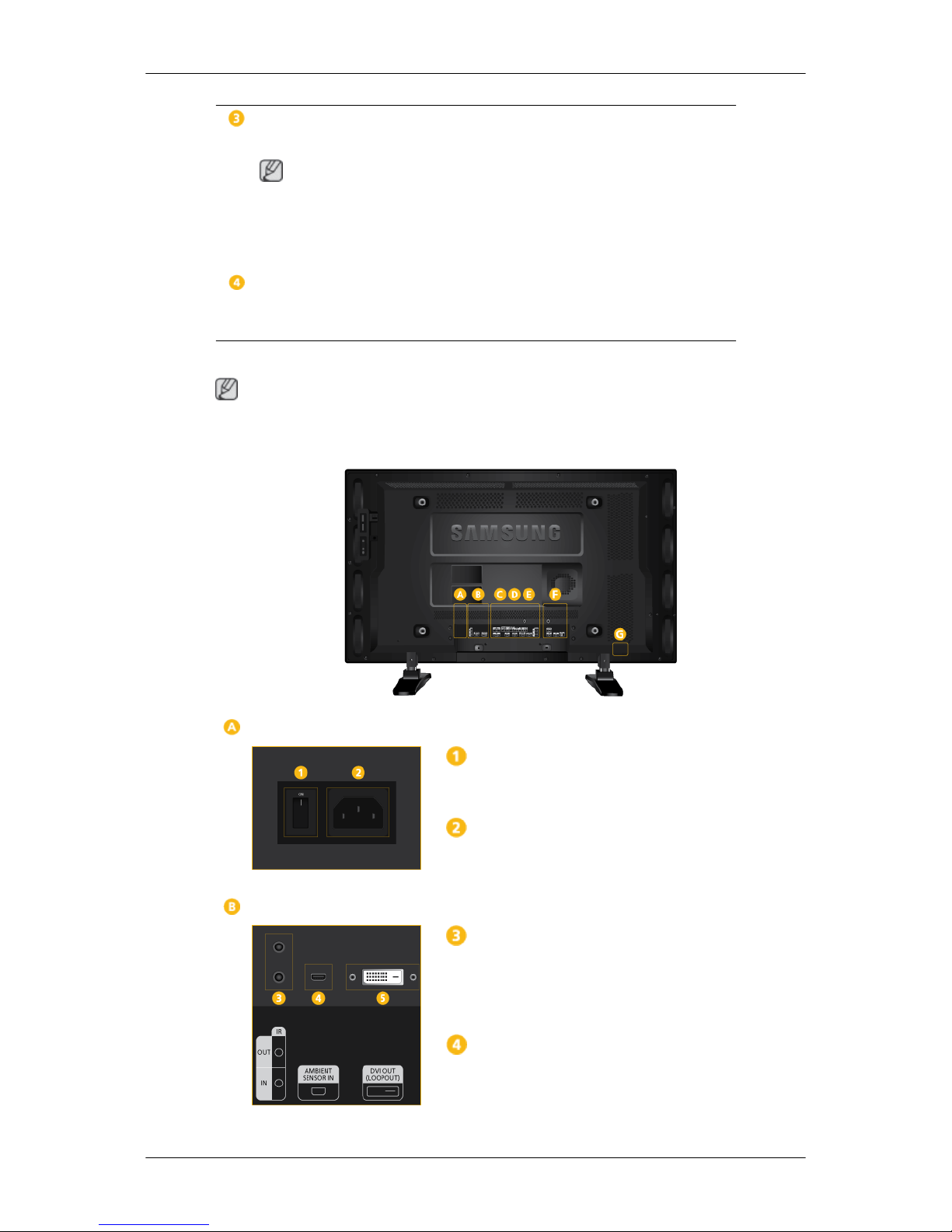

Rear

Note

See the "Connections" section for details about cable connections. The LCD Display's con-

figuration at the back may vary slightly depending on the model.

POWER S/W ON [ │] / OFF

Switches the LCD Display On/Off.

POWER

The power cord plugs into the LCD Display

and the wall outlet.

IR OUT/IN

Receives a signal from the remote control

andoutputsthesignalthroughLoopoutwhen

a removable sensor board is connected.

AMBIENT SENSOR IN

Supplies power to the removable sensor

board and receives a signal from the light

sensor.

Introduction

DVI OUT (LOOPOUT)

•Connect a monitor to another monitor

through a DVI, DVI to HDMI cable.

•ConnectaDVIorDVI-HDMIcable to [DVI

OUT (LOOPOUT)] on the product and

[DVI IN] or [HDMI IN] on another monitor.

•HDMI and network signals sent via the

[DVI OUT(LOOPOUT)] port are dis-

played on the second display which has

the [DVI IN] port.

Note

• The Loopout function can be used to du-

plicate the screen of the primary display.

Connect [DVI OUT] on the primary dis-

play to [DVI IN] or [HDMI] on another

display.

• A maximum of 100 monitors can be con-

nected to DVI-Loopout (using a 2m-long

DVI cable). Up to HD resolution can be

supported. Compatible input sources in-

clude DVI IN, HDMI IN 1, and HDMI IN 2

(MagicInfo).

•The status of the cable may have a great

effect on the Loopout performance.

RGB/COMPONENT IN (PC/COMPO-

NENT Connection Terminal (Input))

•Connect the [RGB/COMPONENT IN]

portonthemonitortotheRGBportonthe

PC using the D-SUB cable.

•Connect the [RGB/COMPONENT IN]

port on the monitor to the COMPONENT

portonthe externaldeviceusingtheRGB

to COMPONENT cable.

•Connect the [RGB/COMPONENT IN]

portonthe monitor totheBNC port onthe

PC using the RGB to BNC cable.

DVI IN (PC Video Connection Terminal)

Connect the [DVI IN] port on the monitor to

the DVI port on the PC using the DVI cable.

RGB/DVI/DP/HDMI AUDIO IN (PC/DVI/

DP/HDMI Audio Connection Terminal (In-

put))

Introduction

Connect the [RGB/DVI/DP/HDMI AUDIO

IN] terminal of the monitor and the speaker

output terminal of your computer's sound

card using a stereo cable (sold separately).

DP IN

Receives a signal from the Display port.

ConnectaDPcableto[DPIN]ontheproduct

and DP IN on another display.

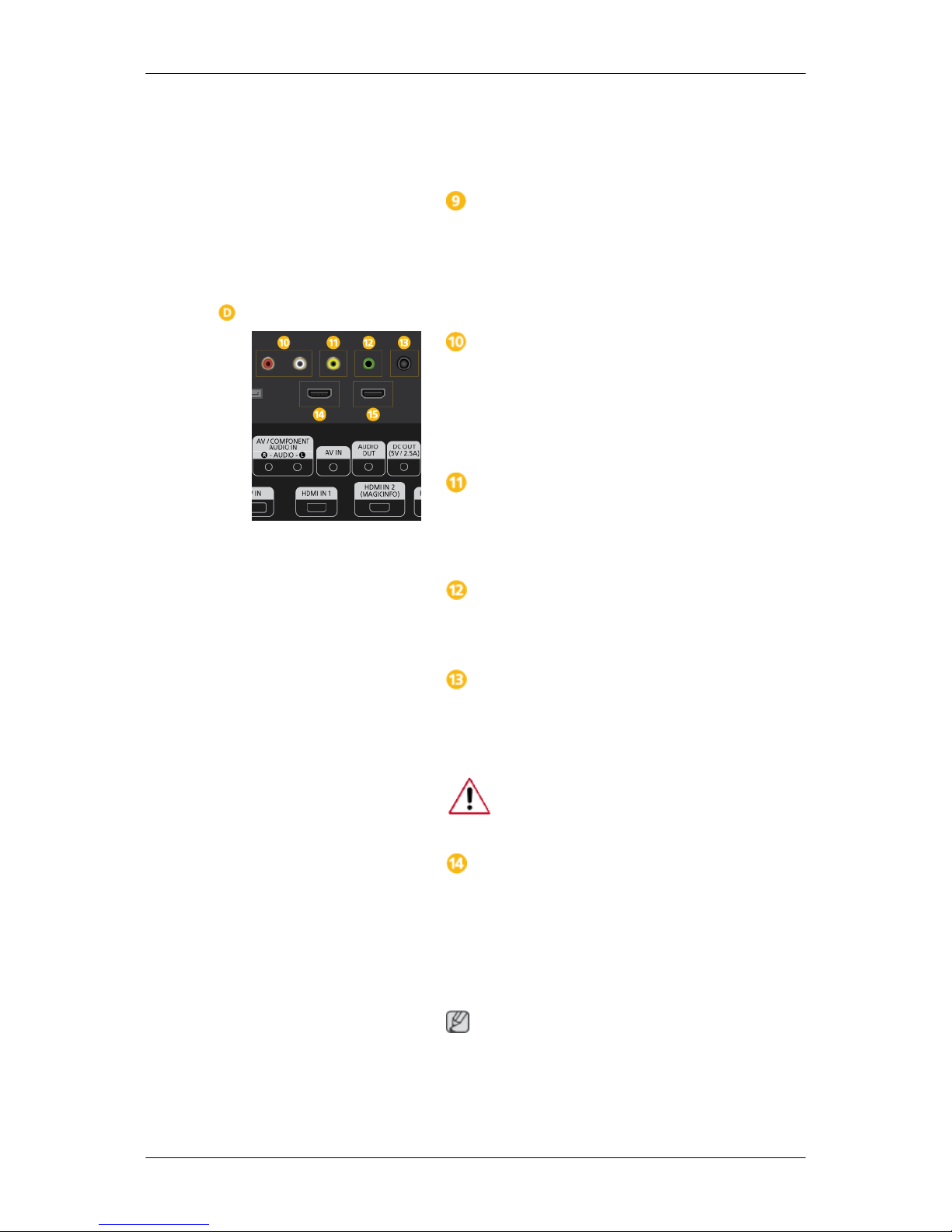

AV/COMPONENT AUDIO IN [R-AUDIO-

Connect the [AV/COMPONENT [R-AUDIO-

L]] port on the monitor to the audio output

port on the PC or on the external device us-

ing an audio cable.

AV IN

Connect the [AV IN] terminal of your monitor

to the video output terminal of the external

device using a VIDEO cable.

AUDIO OUT

Connect a headphone or an External speak-

er.

DC OUT

Make sure to use connecting [DC OUT] ter-

minal to the authorized TV-Tuner Box

[SBB_DTC/ZA].

Otherwise, this may result in damage

to the product.

HDMI IN 1

•Connect the [HDMI IN 1] terminal at the

back of your LCD Display to the HDMI

terminal of your digital output device us-

ing a HDMI cable.

• Up to HDMI 1.3 can be supported.

Note

•The [HDMI IN 1] port can be connected

to general external devices (DVD play-

ers, camcorders, etc.) or the TV set-top

box.

Introduction

•To use a TV tuner box, make sure to con-

nect it to the [HDMI IN 1] terminal.

HDMI IN 2 (MAGICINFO)

•Connect the [HDMI IN 2 (MAGICINFO)]

terminal at the back of your LCD Display

tothe HDMI terminalof your digitaloutput

device using a HDMI cable.

• Up to HDMI 1.3 can be supported.

Note

The MAGICINFO OUT port must be connec-

ted to the [HDMI IN 2 (MAGICINFO)] port.

RJ 45 MDC (MDC PORT)

MDC(Multiple Display Control) Program Port

ConnecttheLANcableto[RJ45MDC]onthe

productand LANon the PC. To use an MDC,

the MDC program must be installed on the

PC.

Note

Go to Multi Control and select RJ45 MDC

as the MDC Connection.

RS232C OUT/IN (RS232C Serial PORT)

MDC(Multiple Display Control) Program Port

Connect a serial cable (cross type) to

[RS232C]onthe productandRS232Conthe

PC. To use an MDC, the MDC program must

be installed on the PC.

Note

Go to Multi Control and select RS232C

MDC as the MDC Connection.

RGB OUT

MagicInfo video output port

Note

Applicable to the 400UXN-3, 460UXN-3

model only.

MAGICINFO OUT

Introduction

Outputs MagicInfo HDMI signals. It should

be connected to [HDMI IN 2 (MAGICINFO)]

via an HDMI cable.

LAN (LAN Connection Terminal)

Connects to a LAN cable to allow Internet or

network access in MagicInfo mode.

Note

Applicable to the 400UXN-3, 460UXN-3

model only.

USB (USB Connection Terminal)

Keyboard / Mouse, Mass Storage Device

Compatible.

Note

Applicable to the 400UXN-3, 460UXN-3

model only.

Kensington Lock slot

AKensingtonLockisananti-theftdevicethat

enablesuserstolocktheproductso that they

cansafelyuseit in publiclocations.Sincethe

shape and usage of the locking device may

differ depending on the model and the man-

ufacturer, for more information, refer to the

UserManualsuppliedwiththelocking device

for more information.

Note

You must purchase the Kensington Lock

separately.

To lock the product, follow these

steps:

1. Wrap the Kensington lock cable around

a large, stationary object such as a desk

or chair.

2. Slide the end of the cable with the lock

attached through the looped end of the

Kensington lock cable.

3. Insert the Kensington Lock into the se-

curity slot ( ) on the back of the dis-

play.

4. Lock the lock ( ).

Introduction

Note

•These are general instructions. For exact

instructions, see the User Manual sup-

plied with the locking device.

•You can purchase the locking device

from an electronics store, an online shop,

or our service center.

Note

See the "Connections" section for details about cable connections.

Remote Control

Note

The performance of the remote control may be affected by a TV or other electronic device

operating near the LCD Display , causing a malfunction due to interference with the frequen-

cy.

POWER

OFF

Number Buttons

DEL / GUIDE button

+ VOL -

SOURCE

D.MENU

TOOLS

Up-Down Left-Right buttons

INFO

TheColor button andthe PC/DVI/HDMI/DP

selection button

TTX/MIX

MTS/DUAL

ENTER/PRE-CH

MUTE

CH/P

RETURN

EXIT

MagicInfo

Introduction
