Samsung SyncMaster P42H-2 Manuale utente

PDP DISPLAY

quick start guide

P42H-2

Introduction

Package Contents

Note

Please make sure the following items are included with your PDP Display.

If any items are missing, contact your dealer.

Contact a local dealer to buy optional items.

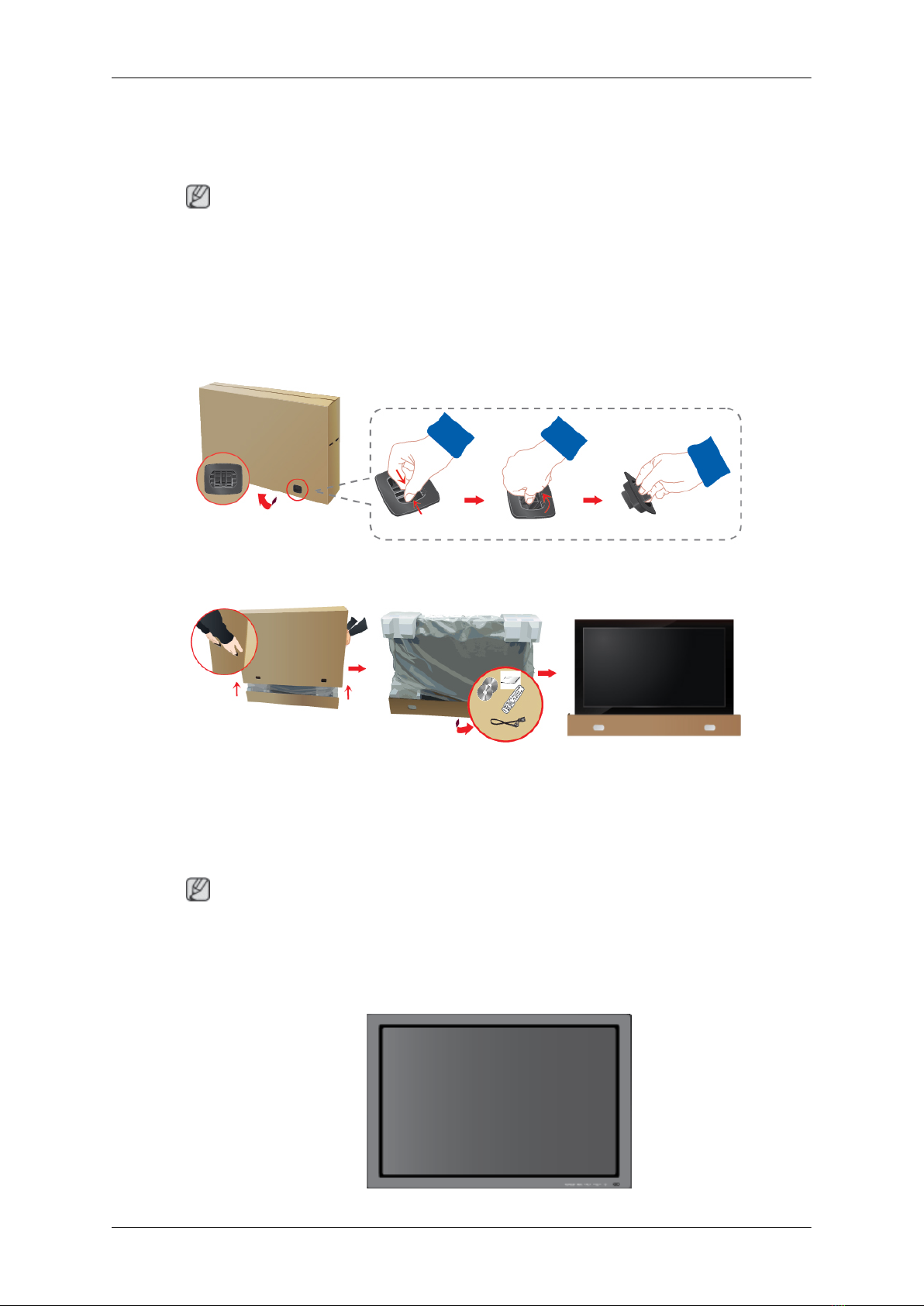

Checking the Contents of the Package

Remove the lock from the package box, as shown in the figure above.

Lift up the package box by

holding the grooves on

both sides of the package

box.

Check the contents of the

package. Remove the Styrofoam

and vinyl cover.

Note

• After unpacking the package, make sure to check the contents of the package.

• Make sure to keep the package box for transporting the product in the future.

Unpacking

PDP Display

Manuals

Quick Setup Guide Warranty Card

(Not available in all loca-

tions)

User's Guide

Cables

Power Cord

Others

Remote Control Batteries (AAA X 2)

(Not available in all loca-

tions)

Ferrite Core for Power

Cord

Sold separately

D-Sub Cable DVI Cable Wall Mount KIT

Semi Stand KIT

Note

• You can only connect one external box.

Ferrite Core (Power Cord)

Introduction

•The ferrite cores are used to shield the cables from interfer-

ence.

•When connecting a cable, open the ferrite core and clip it

around the cable near the plug.

Your PDP Display

Front

SOURCE button [SOURCE]

Switches from PC mode to Video mode. Changing the source is only al-

lowed for external devices that are connected to the PDP Display at the

time.

[PC] → [DVI] → [AV] → [HDMI] → [Component]

Enter button [ ]

Activates a highlighted menu item.

MENU button [MENU]

Opens the on-screen menu and exits from the menu. Also use to exit the

OSD menu or return to the previous menu.

- VOL+

Moves from one menu item to another horizontally or adjusts selected

menu values. When OSD is not on the screen, push the button to adjust

volume.

SEL

Moves from one menu item to another vertically or adjusts selected menu

values.

Power button [ ]

Use this button for turning the PDP Display on and off.

Power indicator

Introduction

Shows PowerSaver mode by blinking green

Note

See PowerSaver described in the manual for further information regarding

power saving functions. For energy conservation, turn your PDP Display

OFF when it is not needed or when leaving it unattended for long periods.

Remote Control Sensor

Aim the remote control towards this spot on the PDP Display.

Rear

Note

For detailed information concerning cable connections, refer to Connecting Cables under

Setup. The PDP Display 's configuration at the back may vary slightly depending on the PDP

Display model.

POWER IN

The power cord plugs into the PDP Display

and the wall plug.

Introduction

RS232COUT/IN(RS232C Serial PORT)

MDC(Multiple Display Control) Program Port

RGB/COMPONENT IN (PC Video Con-

nection Terminal)

Using a D-Sub Cable (15 pin D-Sub) - PC

mode (Analog PC)

DVI IN (PC Video Connection Terminal)

Using a DVI Cable (DVI-D to DVI-D) - DVI

mode (Digital PC)

DVI / RGB IN (PC/DVI Audio Connection

Terminal (Input))

AV/COMPONENTAUDIOIN[L-AUDIO

- R]

Connect the port of the DVD, VCR (DVD /

DTVSet-TopBox) to the[L- AUDIO -R] port

of the PDP Display.

AV IN [VIDEO]

Connect the [ VIDEO ] terminal of your mon-

itor to the video output terminal of the exter-

nal device using a VIDEO cable.

AUDIO OUT [L- AUDIO - R]

Headphone output terminal.

DVI OUT [HDMI]

Connect a monitor to another monitor

through a DVI cable.

Can connect up to 10 PDP display units.

HDMI IN

Connect the HDMI terminal at the back of

your PDP Display to the HDMI terminal of

your digital output device using a HDMI ca-

ble.

Introduction

Kensington Lock

The Kensington Lock is a device used to

physically fix the system when using it in a

public place. The locking device has to be

purchased separately. The appearance and

locking method may differ from the illustra-

tiondependingon the manufacturer.Referto

the manual provided with the Kensington

Lock for proper use. The locking device has

to be purchased separately.

Note

The location of the Kensington Lock may be

different depending on its model.

Using the Anti-Theft Kensington

Lock

1. Insert the locking device into the Ken-

sington slot on the Monitor and turn

it in the locking direction .

2. Connect the Kensington Lock cable.

3. Fix the Kensington Lock to a desk or a

heavy stationary object.

Note

See Connecting Cables for further information regarding cable connections.

Remote Control

Note

The performance of the remote control may be affected by a TV or other electronic device

operating near the PDP Display , causing a malfunction due to interference with the frequen-

cy.

Introduction

POWER

OFF

Number Buttons

DEL button

+ VOL -

MUTE

TV/DTV

INFO

Color Buttons

TTX/MIX

STILL

AUTO

S.MODE

MDC

LOCK

SOURCE

ENTER/PRE-CH

CH/P

D.MENU

GUIDE

RETURN

Up-Down Left-Right buttons

EXIT

SRS

MagicInfo

P.MODE

DUAL/MTS

PIP

SWAP

1. POWER Turns the product On.

2. Off Turns the product Off.

3. Number Buttons Press to change the channel.

Introduction

4. DEL button The "-" button operates only for DTV. It is used to select

MMS (multi-channel) for a DTV.

5. + VOL - Adjusts the audio volume.

6. MUTE Pauses (mutes) the audio output temporarily. This is dis-

played on the lower left corner of the screen. The audio

resumes if MUTE or - VOL + is pressed in the Mute mode.

7. TV/DTV Selects the TV and DTV mode directly.

8. MENU Opens the on-screen menu and exits from the menu or

closes the adjustment menu.

9. Activates a highlighted menu item.

10. INFO Current picture information is displayed on the upper left

corner of the screen.

11. Color Buttons Pressto addor deletechannels and to store channels to the

favorite channel list in the “Channel List” menu.

12. TTX/MIX TV channels provide written information services via tele-

text.

- Teletext Buttons

For more information > TTX / MIX

13. STILL Press the button once to freeze the screen. Press it again

to unfreeze.

14. AUTO Adjusts the screen display automatically in PC mode. By

changing the resolution in the control panel, auto function is

performed.

15. S.MODE When pressing this button, the current mode is displayed at

the bottom centre of the screen. The PDP Display has a

built-in high fidelity stereo amplifier. Then press the button

again to circle through available preconfigured modes.

( Standard → Music → Movie → Speech → Custom )

16. MDC MDC Quick Launch Button.

17. LOCK Activatesordeactivates all function keysonboth the remote

controlandthePDPDisplayexceptforthePowerandLOCK

buttons.

18. SOURCE Press the button to change the input signal SOURCE.

Changing the SOURCE is only allowed for external devices

that are connected to the monitor at the time.

19. ENTER/PRE-CH This button is used to return to the immediately previous

channel.

20. CH/P In TV mode, selects TV channels.

21. D.MENU DTV menu display

Introduction

22. GUIDE Electronic Program Guide (EPG) display.

23. RETURN Returns to the previous menu.

24. Up-Down Left-Right but-

tons Movesfromonemenuitemtoanotherhorizontally,vertically

or adjusts selected menu values.

25. EXIT Exits from the menu screen.

26. SRS Selects SRS TruSurround XT mode.

27. MagicInfo MagicInfo Quick Launch Button.

28. P.MODE When you press this button, current picture mode is dis-

played on the lower center of the screen.

AV / HDMI / TV : P.MODE

The PDP Display has four automatic picture settings that

are preset at the factory. Then push button again to circle

through available preconfigured modes. ( Dynamic →

Standard → Movie → Custom )

PC / DVI / MagicInfo: M/B (MagicBright)

MagicBright is a feature providing the optimum viewing en-

vironment depending on the contents of the image you are

watching.Then pushbuttonagaintocirclethrough available

preconfigured modes. (Entertain → Internet → Text →

Custom )

29. DUAL/MTS DUAL-

STEREO/MONO, DUAL l / DUAL ll and MONO/NICAM

MONO/NICAMSTEREOcanbeoperateddepending on the

broadcasting type by using the DUAL button on the remote

control while watching TV.

MTS-

YoucanselectMTS(MultichannelTelevisionStereo)mode.

Audio Type MTS/S_Mode Default

FM Stereo Mono Mono Manual

Change

Stereo Mono ↔Stereo

SAP Mono ↔SAP Mono

30. PIP Every time you press the button, a PIP screen appears.

- This fuction does not work for this PDP Display.

31. SWAP Swaps the contents of the PIP and main image. The image

in the PIP window will appear on the main screen, and the

main screen image will appear in the PIP window.

- This fuction does not work for this PDP Display.

Introduction
