Samsung RF BB86 Series Manuale utente

English

User servicing manual

MODEL CODE: RF**BB86*, RF**BB82*, RF**BB66*, RF**BB82*

1. You can check where to buy replacement parts at http://samsung.com/support

2. Visit the part purchase site and enter the model code of your product to check the parts

available for purchase. The model code is labelled on the outer side of your product.

- You can check the model code and version on the barcode label at the bottom left of

the product.

3. For replacement parts, make sure the part name matches that of the illustration in this

manual.

- User-serviceable parts are limited to handles (some models only), gaskets, drawers, and

hinges.

NOTE

Following the repair by a non-authorised service provider, self-repair or non-professional

repair of the product, Samsung is not liable for any damage to the product, any injury or

any other product safety issue caused by any attempt to repair the product which does

not carefully follow these repair and maintenance instructions. Any damage to the product

caused by an attempt to repair the product by any person other than a Samsung certied

service provider will not be covered by the warranty.

CAUTION

• The part name listed on the site may differ from that in this manual. Please make sure you

choose the right part name.

• Replacing hinges requires extreme caution because it involves detaching the door.

• Be sure to wear safety gloves while making repairs.

RF8000B_User-servicing-manual_26lang.indb 1 2021-12-09  10:29:13

English

The actual image and provided parts of the refrigerator may differ, depending on the model

and the country.

01 Top hinge 02 Gasket

03 Hinge Mid 04 Drawer

05 Barcode label

RF8000B_User-servicing-manual_26lang.indb 2 2021-12-09  10:29:13

English

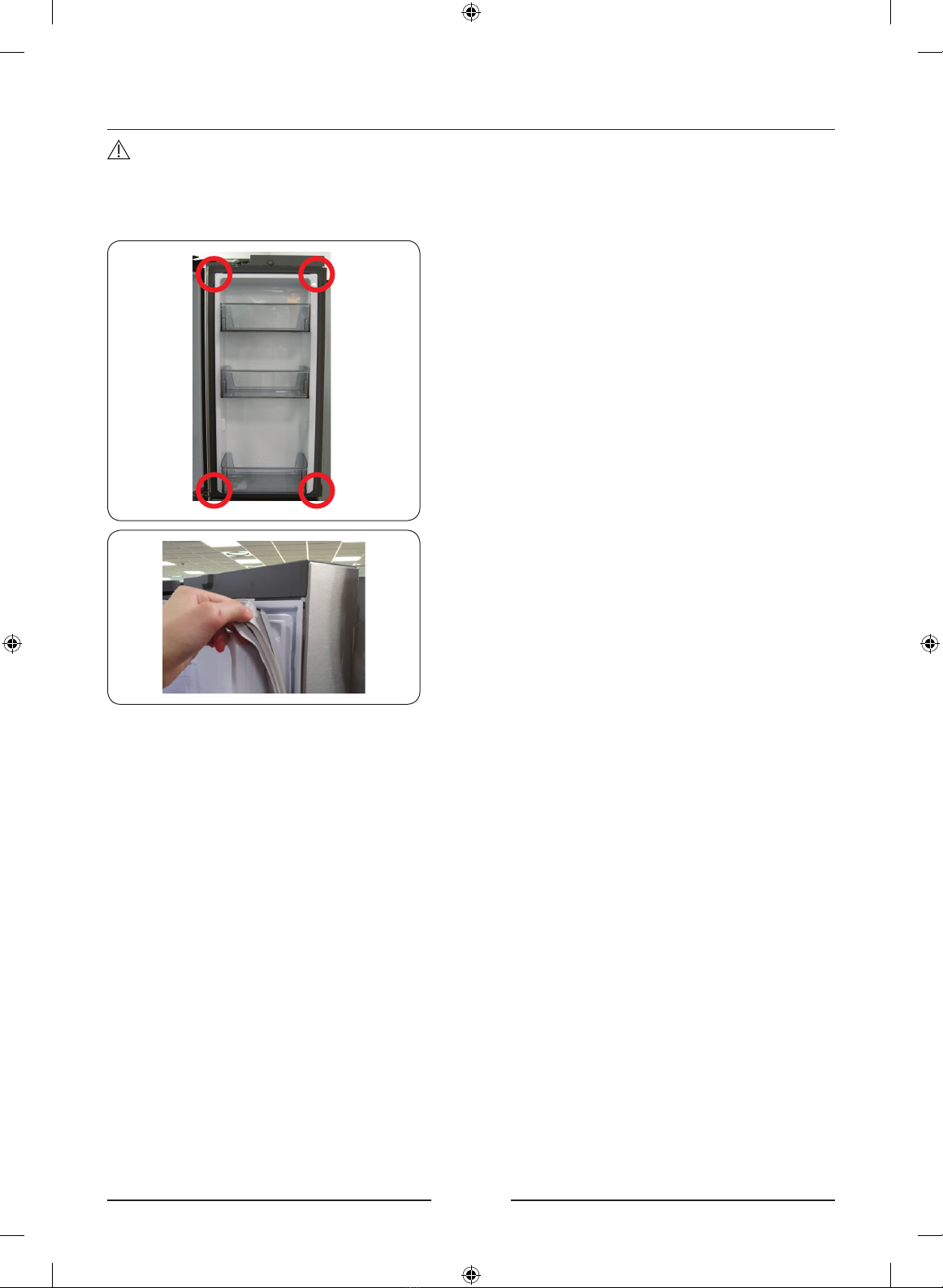

Gasket replacement

CAUTION

Make sure you rmly attach the gasket. Otherwise, cold air from the refrigerator may leak.

To remove the gasket

Open the door and remove the gasket from

the door.

To replace the gasket

Attach a new gasket to the refrigerator door. Make sure there is no gap between the new

gasket and the door.

RF8000B_User-servicing-manual_26lang.indb 3 2021-12-09  10:29:13

English

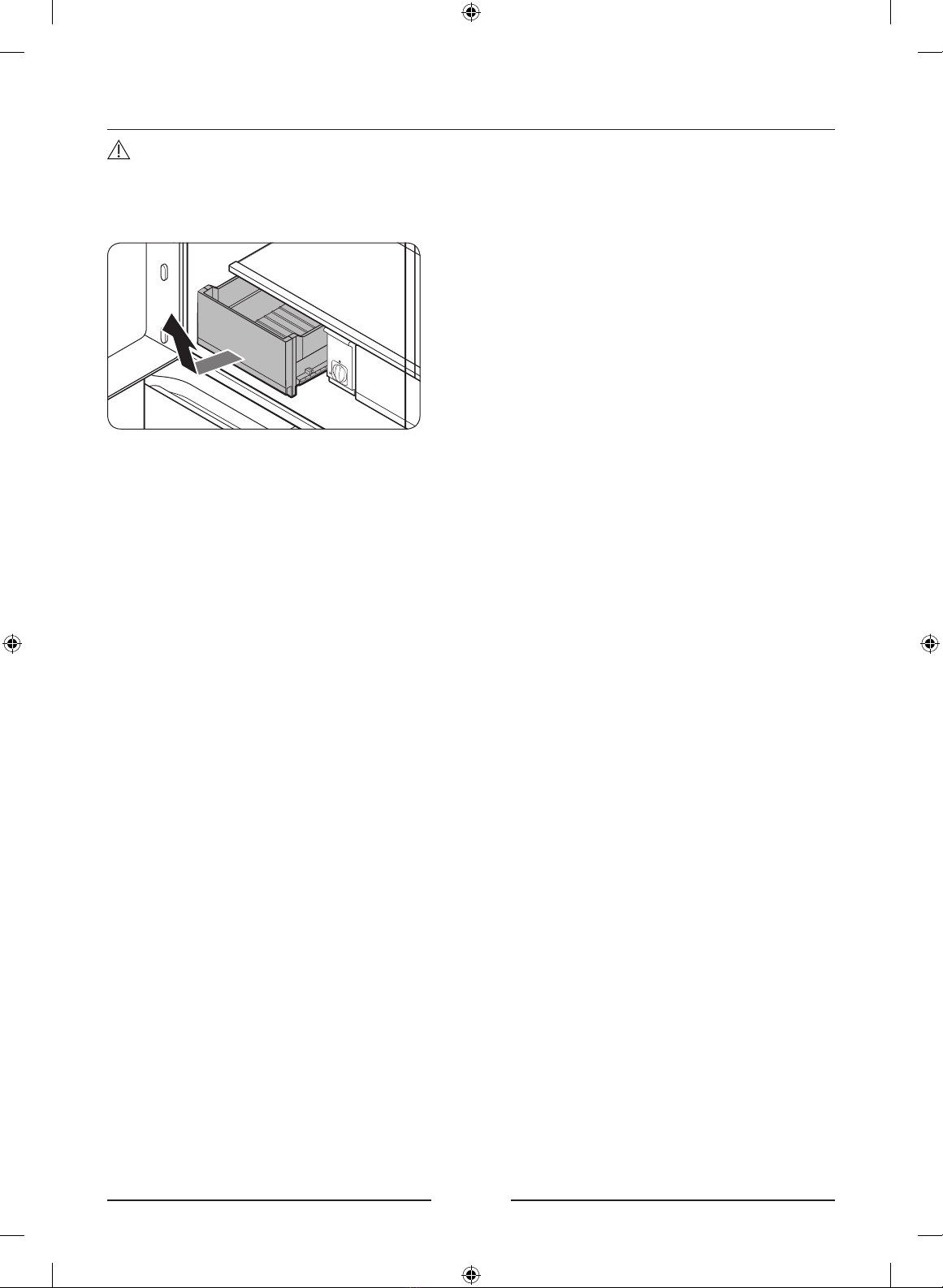

Drawer replacement

CAUTION

Check that the drawer is inserted properly into the rail during assembly.

To remove the drawers

Gently lift up the front of the drawer and

slide out.

• We recommend that you remove the door

bins before removing the drawer. This is to

prevent damage to the door bins.

• To reinsert, insert the drawer into the

frame rails and then slide inward.

To reattach the drawers

Reattaching the drawers follows the reverse order of their respective removal steps

RF8000B_User-servicing-manual_26lang.indb 4 2021-12-09  10:29:14

English

Hinge replacement

To replace the hinges, you must remove the doors rst.

CAUTION

• When removing the doors, take extreme caution because the doors are heavy.

• Before replacing the hinges, put a soft pad such as cardboard on the oor to prevent

scratches on the door when you place the doors down.

• As the hinges must be handled carefully and replaced by two or more persons, we

recommend you to call for professional technical service.

• If you remove the hinge without holding the door, the door may fall and cause injury.

• Ensure that the shaft is rmly tightened on the hinge.

• Check that the hinge is rmly attached to the cabinet.

• Make sure the wire connectors are connected properly.

• Be careful not to damage the wires when fastening the top cover.

WARNING

• Tilting/laying the refrigerator requires a minimum of 2 people.

• Disconnect the power cord before reversing the doors.

Tools required (not provided)

Phillips screwdriver Flat-head screwdriver Socket wrench 3/8" (10 mm)

Pliers Allen wrench 1/4" (5 mm)

RF8000B_User-servicing-manual_26lang.indb 5 2021-12-09  10:29:14

English

To replace the hinges

Disconnect the water line

CAUTION

• Make sure the water hoses are connected with matching colours. (only for Dispenser

model)

• To prevent water leaks, each water hose must be inserted fully to the centre of the

transparent coupler. (only for Dispenser model)

• Ensure that the water hose surface is not damaged. (only for Dispenser model)

Detach the fridge doors

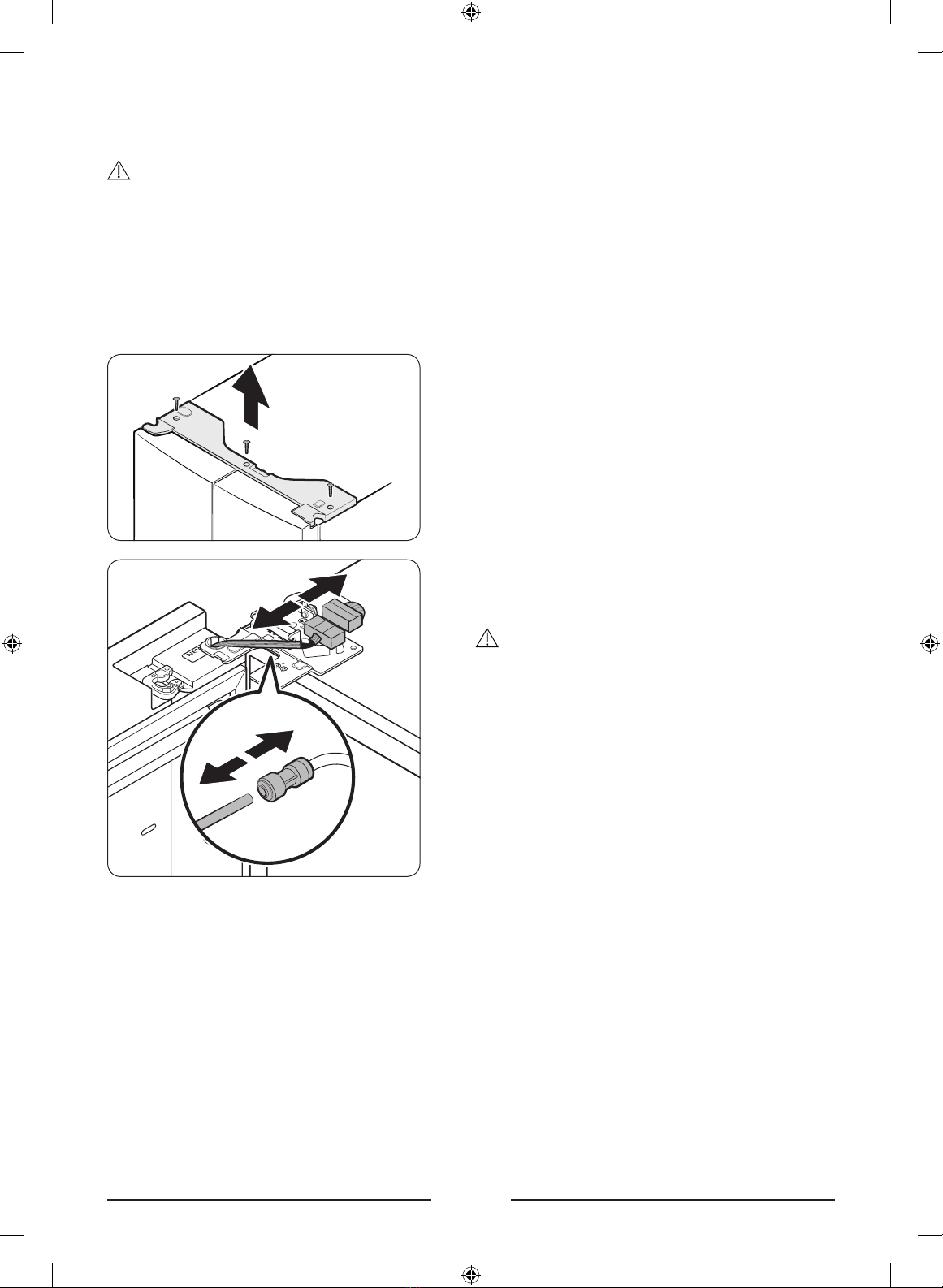

1. With the doors closed, use a Phillips

screwdriver to remove the screws (x3)

from the top cover. Pull up and remove the

top cover with the connectors.

2. Disconnect the two wire connectors on the

left door. The position of the connectors

differs with the model.

CAUTION

• Do not remove both doors simultaneously.

Make sure to remove one door at a time.

Otherwise, any of the doors may fall and

cause physical injury.

• Make sure the refrigerator is off before

disconnecting the connectors.

3. Disconnect the water tube from the

coupler on the left door as shown.

- This step does not apply to the models

without the AutoFill pitcher and the

water dispenser.

RF8000B_User-servicing-manual_26lang.indb 6 2021-12-09  10:29:14

English

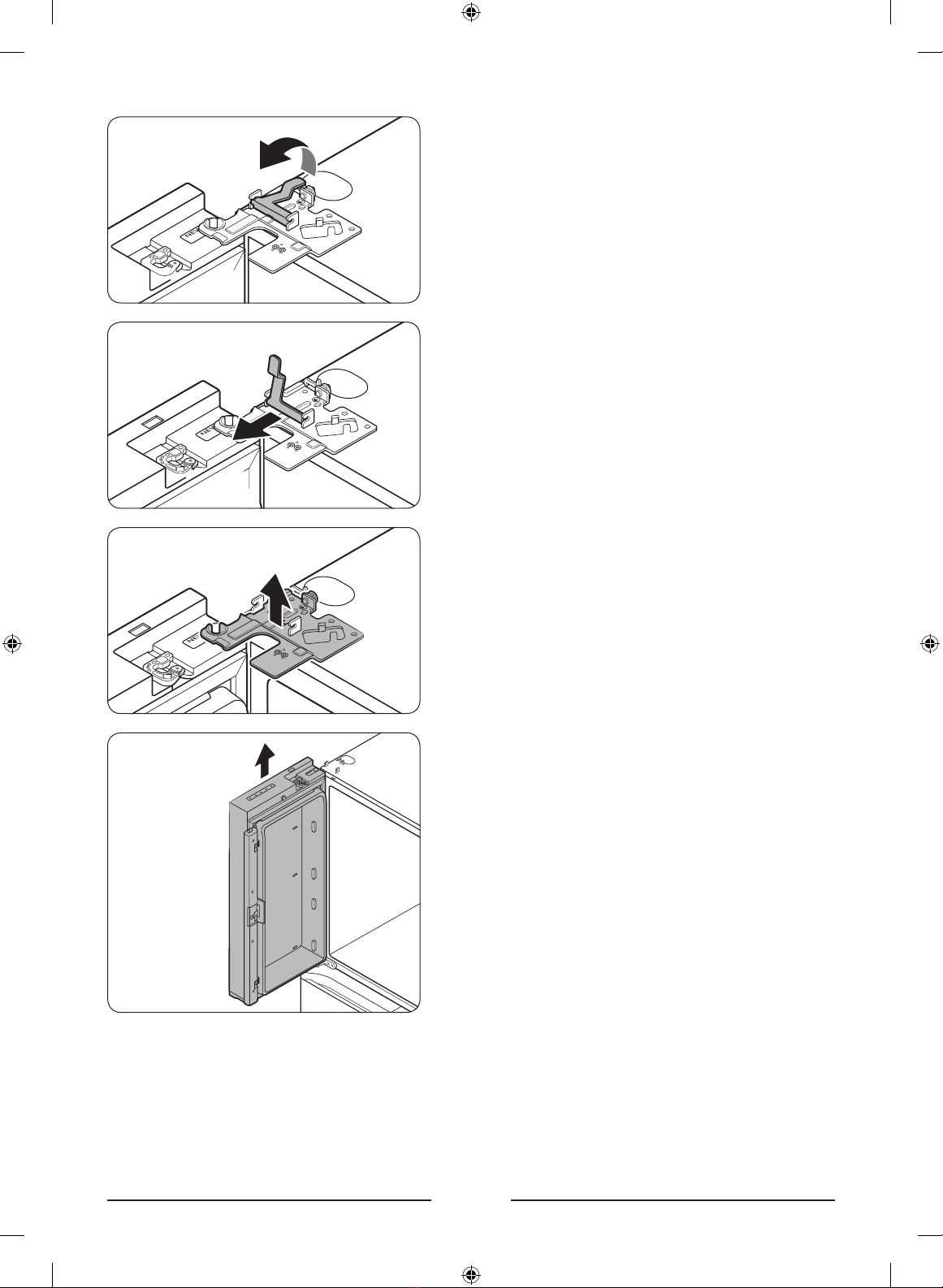

4. Gently draw up the clamp in several steps.

To prevent nger injuries, do not apply a

sudden force to the clamp.

5. Pull up the clamp to remove.

6. Open the door 90 degrees. While holding

the door, pull up and remove the top

hinge. Be careful not to damage the

connector wires when you remove the

hinge.

7. Gently pull up the door vertically to

remove. Do not apply excessive force

to the door. The door may fall, causing

physical injury.

8. Lay the door down on a at surface.

9. Repeat steps 1-8 for the other door,

except for step 3. There is no water tube

on the right side door.

- Step 2 does not apply to the models

without the Showcase door.

RF8000B_User-servicing-manual_26lang.indb 7 2021-12-09  10:29:15

English

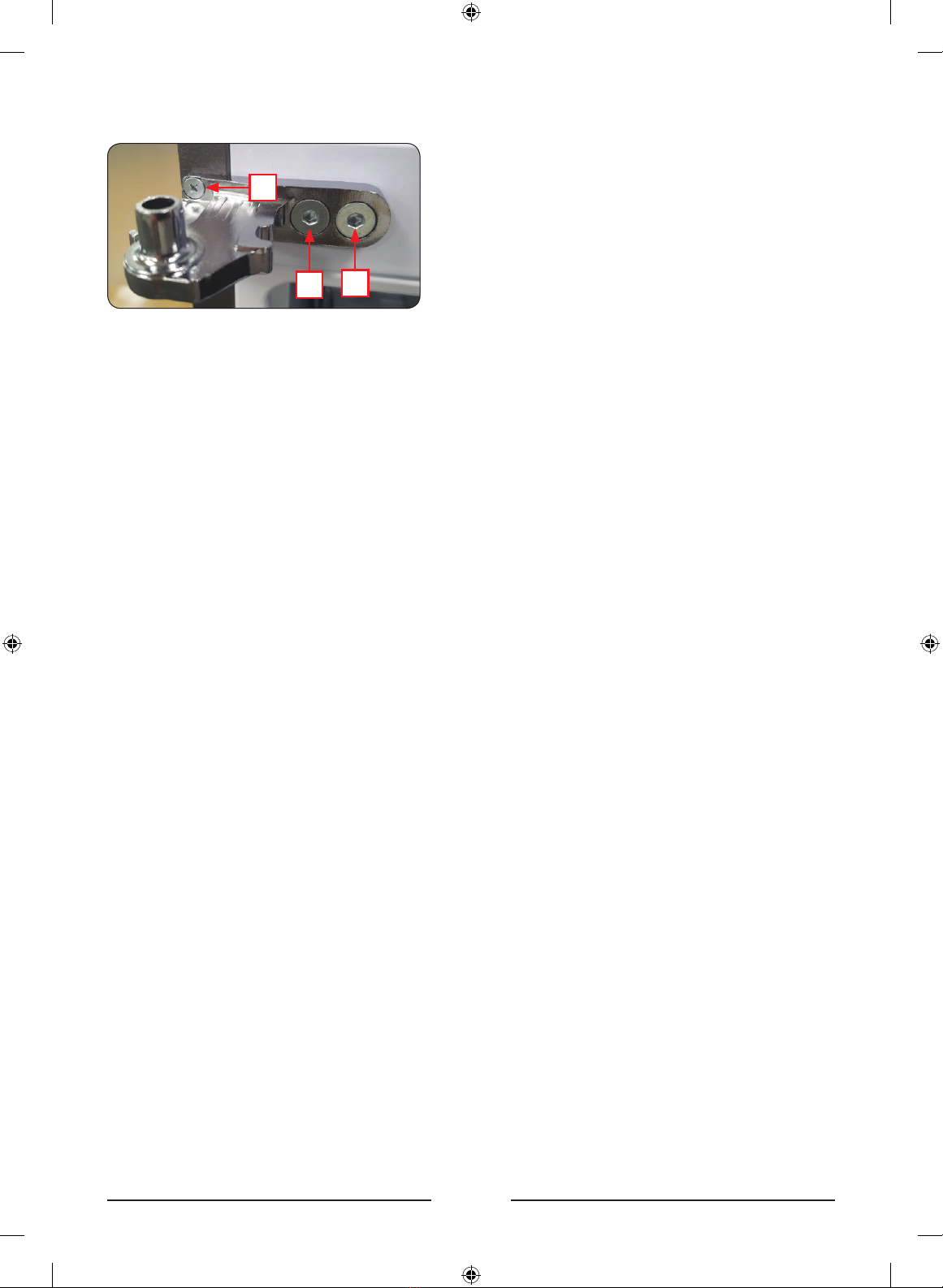

Hinge Mid

1. Remove the 1 screw (3) with a (+) screw

driver and remove the 2 bolts (1, 2) with

a 4.95 mm hexagonal wrench to separate

the middle hinge.

* When reassembling the hinge, be sure to

x it in the following order to prevent the

hinge from moving.

: Bolt (1) gBolt (2) gScrew (3)

RF8000B_User-servicing-manual_26lang.indb 8 2021-12-09  10:29:15

Français

Guide de réparation

CODE DU MODÈLE : RF**BB86*, RF**BB82*, RF**BB66*, RF**BB82*

1. Vous pouvez trouver où acheter des pièces de rechange sur http://samsung.com/

support.

2. Visitez le site d'achat de pièces et saisissez le code du modèle de votre produit pour

vérier les pièces disponibles à l'achat. Le code du modèle est afché sur le côté

extérieur de votre produit.

- Vous pouvez vérier le code et la version du modèle sur l'étiquette du code à barres

situé en bas à gauche du produit.

3. Pour les pièces de rechange, assurez-vous que le nom de la pièce correspond à celui de

l'illustration gurant dans ce manuel.

- Les pièces remplaçables par l'utilisateur sont limitées aux poignées (certains modèles

uniquement), aux joints, aux tiroirs et aux charnières.

REMARQUE

Suite à une réparation par un fournisseur de service non autorisé, une réparation par

l'utilisateur ou une réparation par une personne non professionnelle du produit, Samsung

ne peut être tenu pour responsable de tout dommage subi par le produit, de toute

blessure ou de tout autre problème de sécurité lié au produit et découlant d'une tentative

de réparation du produit ne respectant pas scrupuleusement les présentes consignes de

réparation et de maintenance. Tout dommage subi par le produit et provoqué par une

tentative de réparation par une personne autre qu'un fournisseur de service certié par

Samsung ne sera pas couvert par la garantie.

ATTENTION

• Le nom de la pièce gurant sur le site peut être différent de celui gurant dans ce

manuel. Assurez-vous de sélectionner le nom de pièce approprié.

• Le remplacement des charnières requiert une extrême prudence car cela implique la

dépose de la porte.

• Veillez à porter des gants de sécurité lorsque vous effectuez des réparations.

RF8000B_User-servicing-manual_26lang.indb 9 2021-12-09  10:29:15

Français

L'apparence réelle et les pièces fournies avec le réfrigérateur peuvent varier en fonction

du modèle et du pays.

01 Charnière supérieure 02 Joint

03 Charnière centrale 04 Tiroir

05 Étiquette du code à barres
