Thank you for purchasing your Samsung product.

To receive more complete service,

please register your product at

www. samsu ng.com/g Iobal/r egister

KEY FEATURES OF YOUR NEW REFRIGERATOR

Your Samsung French Door Refrigerator comes equipped with various innovative storage and energy-efficient

features.

o Twin Cooling System

The Refrigerator and Freezer have separate evaporators. Due to this independent cooling system,

the Freezer and Refrigerator cool more efficiently.

Additionally, this separate air flow system prevents food odor of one compartment from seeping into

other compartments.

o Cool Select Pantry TM

The Cool Select Pantry TM is a full-width drawer with adjustable temperature control.

o Bigger & Wider Space

The wide shelf area and pantry provide enough space for larger items such as a pizza box, etc.

The wide freezer drawer also provides enough space for 2-3 turkeys.

o Secure Auto Close

The Secure Auto Close feature will automatically close a door that is slightly open.

o Digital Display and Temperature Control

o Water Filtration System

o Door Alarm

A helpful beeper alerts you if the door is ajar.

o Tilting Pocket

The Tilting pocket can be used to store up to a 16" pizza.

o Auto Pull Out Drawer

The upper drawer in the freezer comes out automatically as you just open the freezer door.

o Easy Handle

Freezer door can be opened with less effort.

o Energy Star

Energy star labeled this product could save your energy costs.

For easy future reference, write the model and

serial number down. You will find your model

number and serial number on the left side of the

refrigerator.

Model #

Serial #

2 Features

S f ty forns

SAFETY INFORMATION

Before using your new Samsung French Door Refrigerator, please read this manual thoroughly

to ensure that you know how to safely and efficiently operate the features and functions that your

new appliance offers.

Becausethe following instruction covers various models, the characteristics of your Refrigerator

may differ slightly from the Refrigerator described in this manual. Ifyou haveany question, contact

us at 1-800-SAMSUNG or find help and information online at www.samsung.com.

What the icons and signs in this user manual mean '

//_k Hazards or unsafe practices that may result in severe personal injury or death.

WARNING

/_ Hazards or unsafe practices that may result in minor personal injury or property

CAUTION damage.

X_ To reduce the risk of fire, explosion, electric shock, or personal injury when using your

CAUTION refrigerator, follow these basic safety precautions:

Do NOT attempt.

Do NOT disassemble.

Do NOT touch.

[_} Follow directions explicitly.

Unplug the power plug from the wall socket.

Make sure the machine is grounded to prevent electric shock.

Call the service center for help.

These warning signs are here to prevent injury to you and others.

Please follow them explicitly

Keep this manual in a safe place for future reference.

SEVEREWARNING SIGNS

Do not plug several appliances into the same power receptacle.

• Large appliances draw a lot of power. Powering more than one appliance or machine from a single power source

could cause overheating and cause afire.

Make sure that the power plug is not kinked or damaged by the back of the Refrigerator.

A damaged power plug may overheat and cause a fire.

Do not spray water directly into or on the outside of the Refrigerator/Freezer drawer.

Water could get into the interior machine parts and cause electric shock.

Do not use aerosols near the Refrigerator.

Aerosols used near the Refrigerator may cause an explosion or fire.

Safety Inforrration 3

nforrn t on

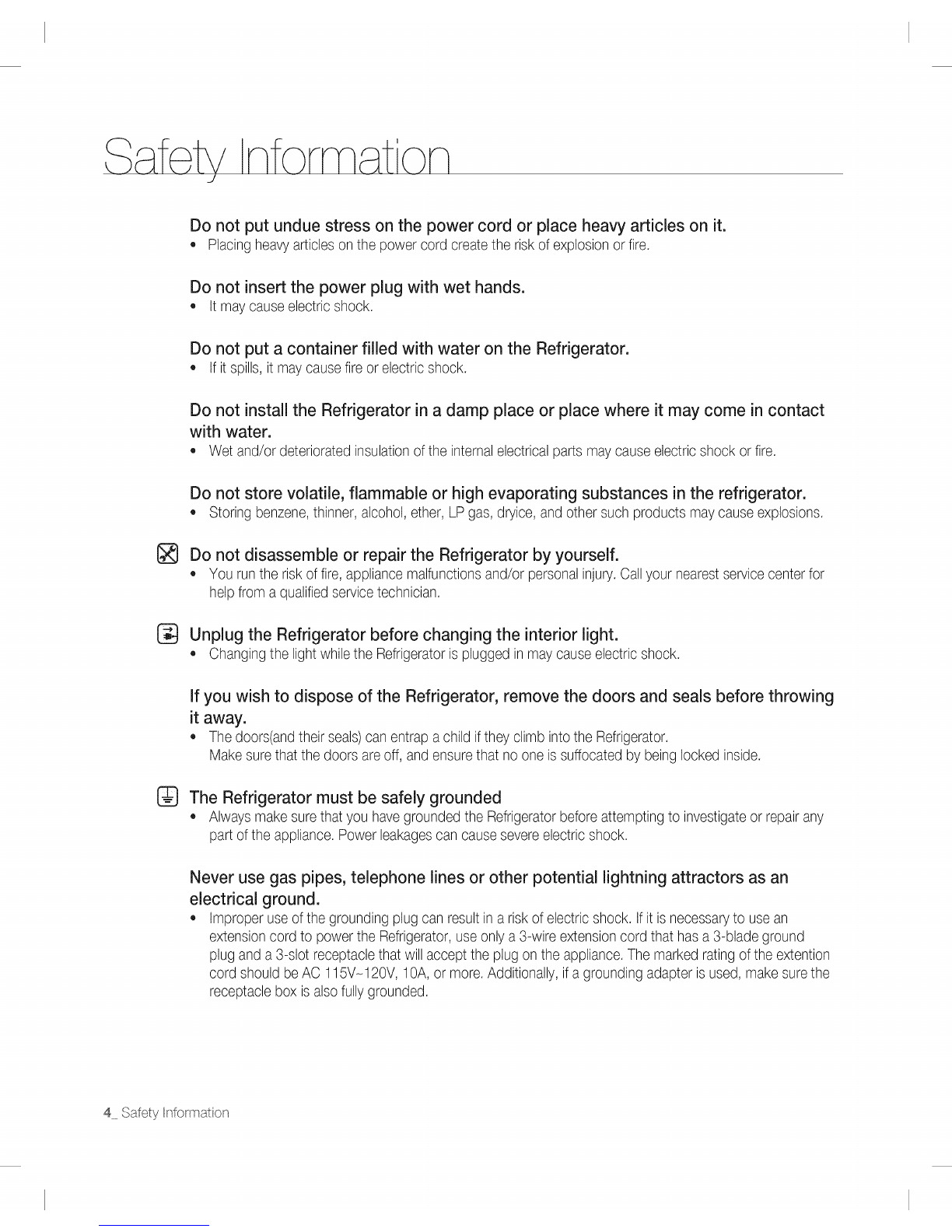

Do not put undue stress on the power cord or place heavy articles on it.

• Placing heavy articles on the power cord create the risk of explosion or fire.

Do not insert the power plug with wet hands.

It may cause electric shock.

Do not put a container filled with water on the Refrigerator.

If it spills, it may cause fire or electric shock.

Do not install the Refrigerator in a damp place or place where it may come in contact

with water.

Wet and/or deteriorated insulation of the internal electrical parts may cause electric shock or fire.

Do not store volatile, flammable or high evaporating substances in the refrigerator.

Storing benzene, thinner, alcohol, ether, LP gas, dryice, and other such products may cause explosions.

Do not disassemble or repair the Refrigerator by yourself.

You run the risk of fire, appliance malfunctions and/or personal injury. Call your nearest service center for

help from a qualified service technician.

Unplug the Refrigerator before changing the interior light.

Changing the light while the Refrigerator is plugged in may cause electric shock.

If you wish to dispose of the Refrigerator, remove the doors and seals before throwing

it away.

The doors(and their seals) can entrap a child if they climb into the Refrigerator.

Make sure that the doors are off, and ensure that no one is suffocated by being locked inside.

The Refrigerator must be safely grounded

Always make sure that you have grounded the Refrigerator before attempting to investigate or repair any

part of the appliance. Power leakages can cause severe electric shock.

Never use gas pipes, telephone lines or other potential lightning attractors as an

electrical ground.

Improper use of the grounding plug can result in arisk of electric shock. If it is necessary to use an

extension cord to power the Refrigerator, use only a 3-wire extension cord that has a 3-blade ground

plug and a 3-slot receptacle that will accept the plug on the appliance. The marked rating of the extention

cord should be AC 115V-120V, 10A, or more. Additionally, if a grounding adapter is used, make sure the

receptacle box is also fully grounded.

4 Safety Inforrr_tion

CAUTION SIGNS

Use good judgment when filling the Refrigerator with food and drinks.

• In an overfull Refrigerator, heavy, fragile, bulky or breakable items may fall out and cause personal injury

and/or damage to surrounding objects.

Do not put bottles or glass containers in the Freezer drawer.

When the contents freeze and then expand, the glass may break and cause personal injury or leave

dangerous glass shards in the Freezer.

If the electrical wall socket is loose, do not insert the power plug.

There is a risk of electric shock or fire. Have the plug looked at by a licensed electrician.

Never unplug your Refrigerator by pulling on the power cord.

Always grip the power cord firmly and pull straight out from the outlet. Yanking or pulling on the power

cord may cause a short-circuit, fire and/or electric shock.

A damaged power cord must be replaced by the manufacturer, a certified service agent or qualified

service personnel.

Do not store articles on the top of the appliance.

When you open or close the door, the articles may fall and cause personal injury and/or damage to

surrounding objects.

Do not store pharmaceutical products, scientific materials and temperature-sensitive

products in the refrigerator.

Products that require exact temperature controls should not be stored in the Refrigerator.

Do not allow children to climb, stand or hang on shelves and handles of the

.......Refrigerator. They could damage the Refrigerator and seriously injure themselves.

If you notice chemical or burning plastic smells or see smoke, unplug the Refrigerator

immediately and contact your Samsung Electronics Service Center.

®After your Refrigerator is in operation, do not touch the cold surfaces in the Freezer

compartment. Particularly when hands are damp or wet, skin may adhere to these

extremely cold surfaces.

Skin may stick to the surface and you may get frostbite.

Do not put your hands under the appliance.

• Any sharp edges may cause personal injury.

Never put fingers or other objects into the water dispenser hole or ice chute.

It may cause personal injury and/or material damage.

Safety Info_Tration 5

If the Refrigerator will not be used for a long period of time (for example, over several

months), unplug the power from the wall.

• Over time, deterioration in the power cord insulation may cause fire.

Do not use a wet or damp cloth when cleaning the plug.

Remove any dust or foreign matter from the power plug pins.

® A Dirty power plug can increase the risk of fire.

If the Refrigerator is disconnected from the power supply, you should wait for at least

five minutes before plugging it back in.

Do not place the equipment directly in sunlight.

The appliance must be positioned so that the power cord is accessible after

installation.

CAUTION

If the power cord is damaged, it must be replaced by the manufacturer, a certified

service agent or qualified service personnel.

If you have a long vacation planned, empty the Refrigerator and turn it off.

Wipe excess moisture from the inside and leave the doors open to keep odor and mold from developing.

Service Warranty and Modification

Any changes or modifications performed by a 3rd party on this finished appliance is not covered under

Samsung warranty service, nor can Samsung be responsible for safety issues that result from 3rd party

modifications.

Children can get trapped inside Refrigerators.

Before you throw away your old Refrigerator or Freezer,make sure that you;

Take off the doors.

Leave all shelves in places so that children may not easily climb inside and shut the door while they are

inside.

This appliance is not intended for use by small children or infirm persons without capable, adult

supervision. Small children should be supervised when using the appliance.

®Do not block air holes

If the air holes are blocked, especially with plastic bag, refrigerator can be over cooled.

If this cooling period lasts long, water filter will be broken and cause water leakage.

6 Safety Inforrration

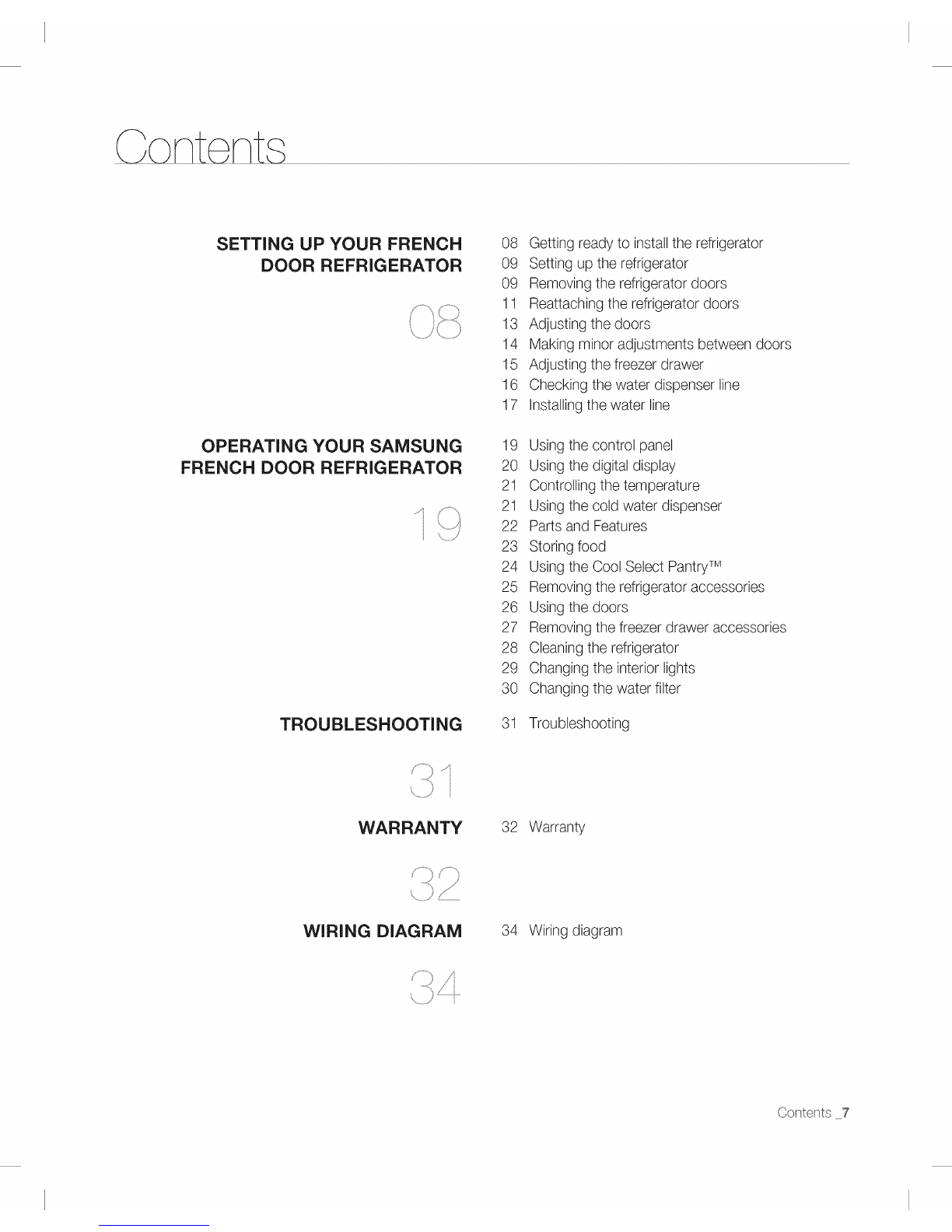

Content

SETTING UP YOUR FRENCH

DOOR REFRIGERATOR

OPERATING YOUR SAMSUNG

FRENCH DOOR REFRIGERATOR

TROUBLESHOOTING

08 Getting ready to install the refrigerator

09 Setting up the refrigerator

09 Removing the refrigerator doors

11 Reattaching the refrigerator doors

13 Adjusting the doors

14 Making minor adjustments between doors

15 Adjusting the freezer drawer

16 Checking the water dispenser line

17 Installing the water line

19 Using the control panel

20 Using the digital display

21 Controlling the temperature

21 Using the cold water dispenser

22 Parts and Features

23 Storing food

24 Using the Cool Select Pantry TM

25 Removing the refrigerator accessories

26 Using the doors

27 Removing the freezer drawer accessories

28 Cleaning the refrigerator

29 Changing the interior lights

30 Changing the water filter

31 Troubleshooting

WARRANTY 32 Warranty

;:!!i'.......jY

WIRING DIAGRAM 34 Wiring diagram

GETTING READY TO INSTALL THE REFRIGERATOR

Congratulations on your purchase of the Samsung French Door Refrigerator. We hope you enjoy the state-of-art

features and efficiencies that this new appliance offers.

Selecting the best location for the Refrigerator

• A location with easy access to the water supply.

• A location without direct exposure to sunlight.

A location with level (or nearly level) flooring.

A location with enough space for the Refrigerator doors to open

easily.

Allow sufficient space for air circulation of the internal cooling

system.

If the Refrigerator does not have enough space, the internal

cooling system may not work properly.

First thing! Make sure that you can easily move your Refrigerator to its final location by measuring doorways

(both width and height), thresholds, ceilings, stairways, etc.

The following chart details the exact height and depth of Samsung French Door Refrigerator.

Capacity(Cu.Ft)

Width

with Hinge

Case Height without Hinge

with Door

Depth without Door

Dimension(inch)

35 s4

68 %

35 %

29 ½

• Allow clearance to the right, left, back and top when installing. This will help reduce power consumption

and keep your energy bills lower.

Do not install the Refrigerator where the temperature will go below 50 °F (10 °C).

Condensation may occur on the french door areas when you use Refrigerator for the first time.

The E.Saver function is automatically set to on when power is supplied to the Refrigerator.

If you experience excess condensation, press the E.Saver button again to turn the feature off.

When moving your refrigerator

To prevent floor damage be sure the front levelling legs are

in the up position (above the floor). Refer to 'Levelling the

refrigerator' in the manual.

To protect the finish of the flooring, place the protection

sheet such as packing carton under the refrigerator. Control

Screwdriver

When installing, servicing or cleaning behind the refrigerator,

CAUTIONbe sure to pull the unit straight out and push back in straight

after finishing.

8 Sett_g Up

SETTING UP THE REFRIGERATOR

Now that you have your new Refrigerator installed and in place, you are ready to set up and enjoy the features and

functions of the appliance.

By completing the following steps, your Refrigerator should be fully operational.

1. Place the Refrigerator in an appropriate location

with reasonable clearance between the wall and

the Refrigerator. Refer to installation instructions in

this manual.

2. Once the Refrigerator is plugged in, make sure the

interior light comes on when you open the doors.

3. Set the Temperature control to the coldest

temperature and wait for an hour. The Freezer will

get slightly chilled and the motor will run smoothly.

4. After powering the Refrigerator, it will take a few

hours to reach the appropriate temperature. You

can store food and drinks in the Refrigerator once

the temperature is sufficiently cool.

Check the accessory list below.

Water filter

(DA29--00003B)

Hex wrench Compression Compression

(DA80-00002C) fitting nut

(DA62 -00305A) (DA74 -00070B)

Fastener Washer

(DA60--00143B) (DA80-00002C)

REMOVING THE REFRIGERATOR DOORS

If your entrance won't allow the Refrigerator to pass easily Tools you will need

through it, you can remove the doors.

Philips screwdriver 10mm Socket Wrench Allen wrench(3/16")

Flat-blade screwdriver Pliers

Disassemble the Refrigerator doors

1. With the door closed, remove the top table(l_})

using a Philips screwdriver, and then disconnect the

wires(_}). Remove hinge screws(_}) and ground

screw(G)

2. Lift the door straight up to remove.

.With a Philips head screwdriver, remove the two

screws( _} ) attached to the lower left and right

door hinges.

With an Allen Wrench(3/16"), remove the two hex

head bolts(_}) attached to the lower left and right

door hinges.

Remove the lower left and right door hinges( @ ).

Settng Up 9

Disassemble the Freezer drawer

1. Push the upper drawer until it reaches to the cabinet rear wall.

\\ \\

2. Remove the tilting pocket([_) by pulling on both brackets(G )

upward at the same time.

3. Take out the lower basket((_) by lifting the basket up from

rail system.

4. Remove four 10mm hex-head bolts from both sides.

5. Lift the freezer door up from the rails.

10 Setting Up

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Samsung Frigorifero

Samsung

Samsung RT18 Series Manuale utente

Samsung

Samsung RF267AA SERIES Manuale utente

Samsung

Samsung RS50N3513SA Manuale utente

Samsung

Samsung RF27T5501 Series Manuale utente

Samsung

Samsung RT44A Series Manuale utente

Samsung

Samsung RS275 Guida di sicurezza

Samsung

Samsung RB12J SERIES Manuale utente

Samsung

Samsung RS2530B SERIES Guida di sicurezza

Samsung

Samsung RF65A967ESR Manuale utente

Samsung

Samsung RB215LASH Manuale utente

Samsung

Samsung RF22 Series Manuale utente

Samsung

Samsung RL36R8739B1 Manuale utente

Samsung

Samsung RFG297AA Manuale utente

Samsung

Samsung RS267BBBB/XAA Manuale utente

Samsung

Samsung RB38A7B63S9/EF Manuale utente

Samsung

Samsung SR-S29FTA Manuale utente

Samsung

Samsung RA19 Manuale utente

Samsung

Samsung RF267ABRS - 26 cu. ft. Refrigerator Manuale utente

Samsung

Samsung RB215LABP Manuale utente

Samsung

Samsung RT21M6213SR Manuale utente

Samsung

Samsung RFG297AA Manuale utente

Samsung

Samsung RF260BEAESP Manuale utente

Samsung

Samsung RT-54 EMSW Manuale utente

Samsung

Samsung SRG-118 Manuale utente

Manuali Frigorifero popolari di altre marche

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuale utente

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuale utente

Sharp

Sharp SJ-BA31IEXW2-EU Manuale utente

CORBERO

CORBERO CC2300MCW Manuale utente

KitchenAid

KitchenAid 2205264 Manuale utente

Stengel

Stengel KU 1101 A++ Manuale utente

NEFF

NEFF KI181 Series Manuale utente

Hoshizaki

Hoshizaki Reach-In Manuale utente

Amana

Amana ASD2524VES00 Manuale utente

BOMANN

BOMANN KGC 213 Manuale utente

Danby

Danby DAR044A1SLDD Istruzioni per il montaggio

Beko

Beko CSA31022 Manuale utente

IKEA

IKEA FROSTIG C 185 E Manuale utente

Electrolux

Electrolux ER 6821 D Manuale utente

True

True TS-28 Manuale utente

Frigidaire

Frigidaire FSC23R5DW9 Manuale utente

Beko

Beko LSP4579W Manuale utente

Teledyne

Teledyne 6712FR and Istruzioni operative
