Thank you for purchasing your Samsung product.

To receive more complete service.

please register your product at

www.samsung.com/global/register

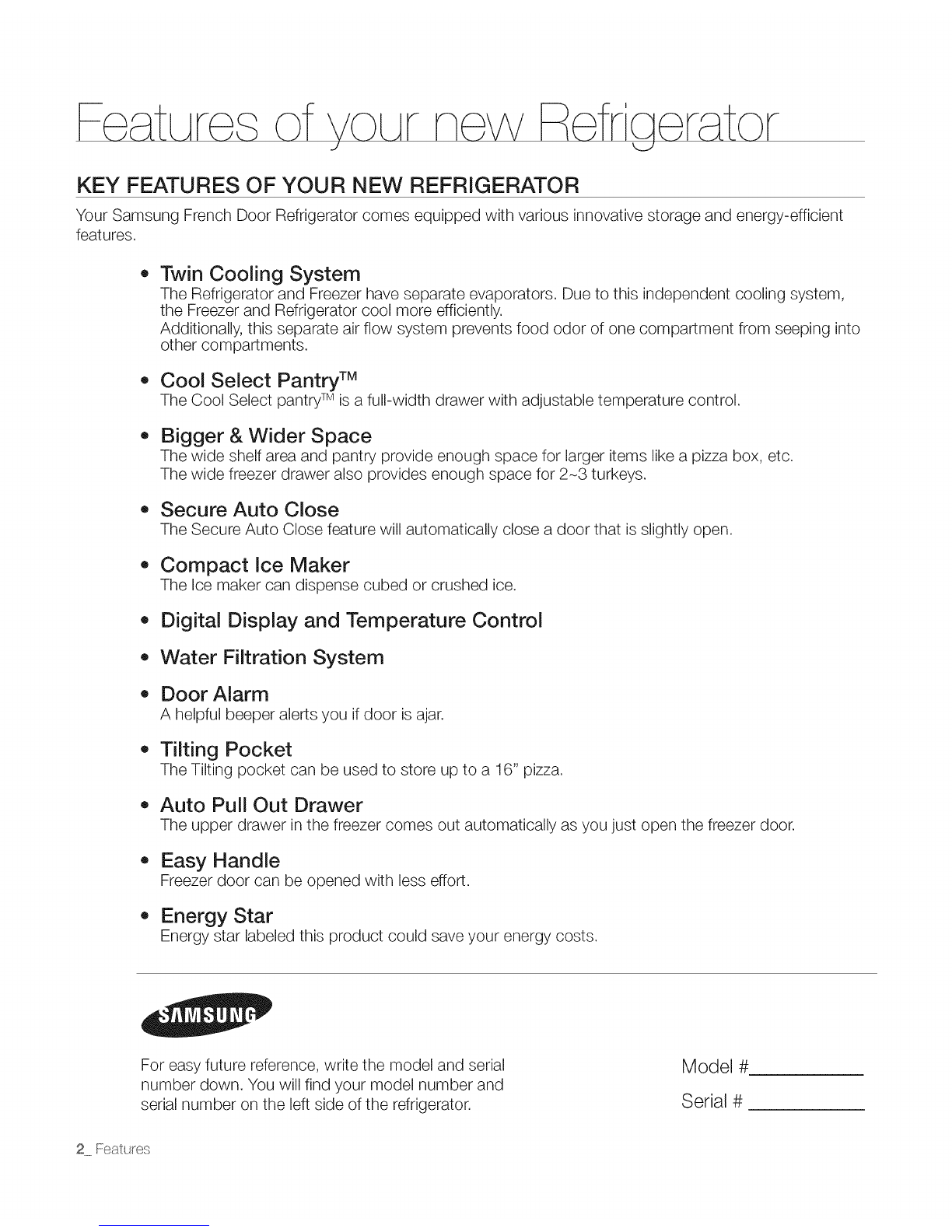

KEY FEATURES OF YOUR NEW REFRIGERATOR

Your Samsung French Door Refrigerator comes equipped with various innovative storage and energy-efficient

features.

o Twin Cooling System

The Refrigerator and Freezer have separate evaporators. Due to this independent cooling system,

the Freezer and Refrigerator cool more efficiently.

Additionally, this separate air flow system prevents food odor of one compartment from seeping into

other compartments.

o Cool Select Pantry TM

The Cool Select pantry TM is a full-width drawer with adjustable temperature control.

,, Bigger & Wider Space

The wide shelf area and pantry provide enough space for larger items like a pizza box, etc.

The wide freezer drawer also provides enough space for 2-3 turkeys.

o Secure Auto Close

The Secure Auto Close feature will automatically close a door that is slightly open.

o Compact Ice Maker

The Ice maker can dispense cubed or crushed ice.

o Digital Display and Temperature Control

o Water Filtration System

o Door Alarm

A helpful beeper alerts you if door is ajar.

o Tilting Pocket

The Tilting pocket can be used to store up to a 16" pizza.

o Auto Pull Out Drawer

The upper drawer in the freezer comes out automatically as you just open the freezer door.

o Easy Handle

Freezer door can be opened with less effort.

o Energy Star

Energy star labeled this product could save your energy costs.

For easy future reference, write the model and serial

number down. You will find your model number and

serial number on the left side of the refrigerator.

Model #

Serial #

2 Features

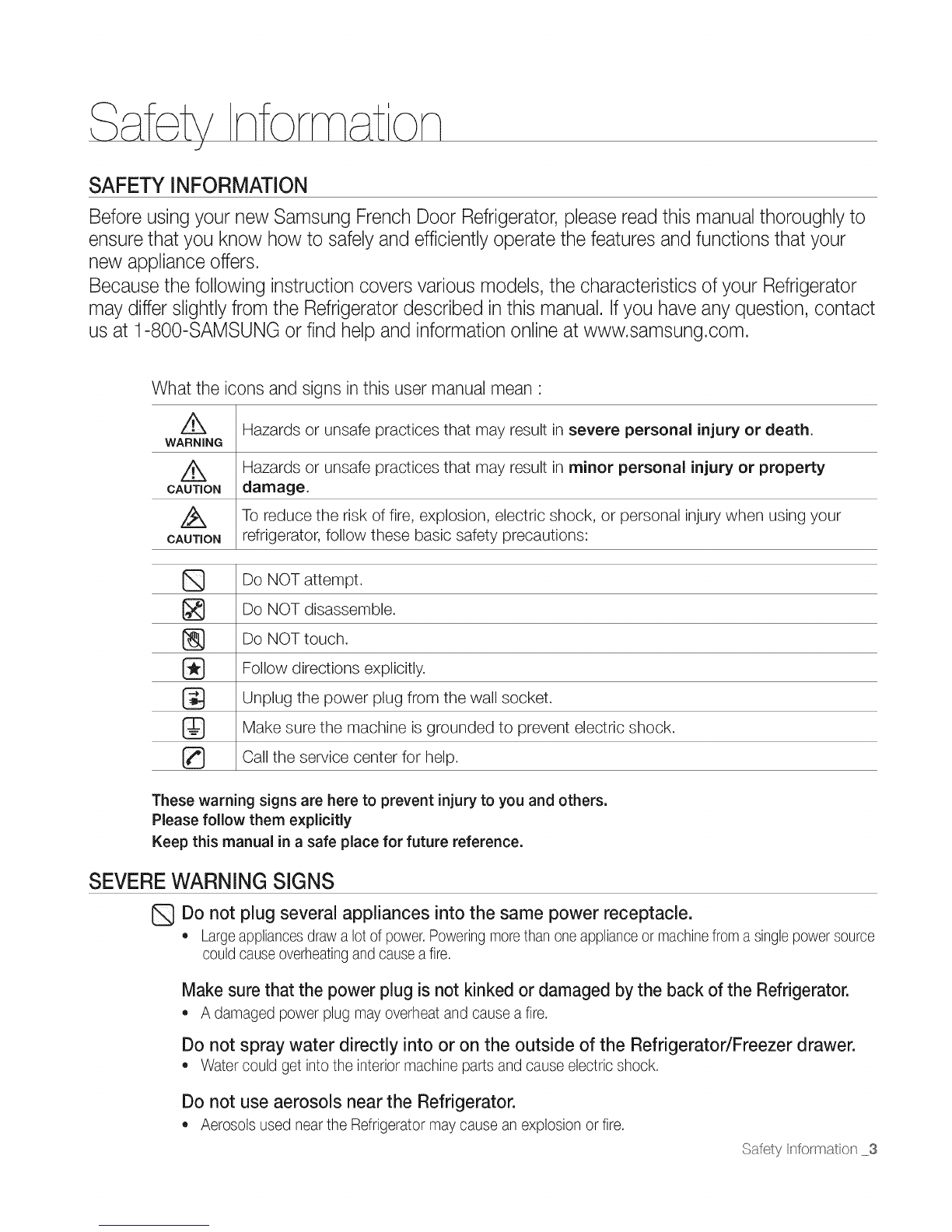

SAFETY INFORMATION

Before using your new Samsung French Door Refrigerator,please read this manual thoroughly to

ensurethat you know how to safely and efficiently operate the features and functions that your

new appliance offers,

Because the following instruction covers various models, the characteristics of your Refrigerator

may differ slightly from the Refrigerator described in this manual, Ifyou haveany question, contact

us at 1-800-SAMSUNG or find help and information online at www,samsung,com,

What the icons and signs in this user manual mean '

Hazards or unsafe practices that may result in severe personal injury or death.

WARNING

Hazards or unsafe practices that may result in minor personal injury or property

CAUTION damage.

\ To reduce the risk of fire, explosion, electric shock, or personal injury when using your

CAUTION refrigerator, follow these basic safety precautions:

Do NOT attempt.

Do NOT disassemble.

Do NOT touch.

Follow directions explicitly.

Unplug the power plug from the wall socket.

Make sure the machine is grounded to prevent electric shock.

Call the service center for help.

These warning signs are here to prevent injury to you and others.

Please follow them explicitly

Keep this manual in a safe place for future reference.

SEVEREWARNING SIGNS

QDo not plug several appliances into the same power receptacle.

•Large appliances draw a lot of power. Powering more than one appliance or machine from a single power source

could cause overheating and cause a fire.

Make sure that the power plug is not kinked or damaged by the back of the Refrigerator.

•A damaged power plug may overheat and cause a fire.

Do not spray water directly into or on the outside of the Refrigerator/Freezer drawer.

•Water could get into the interior machine parts and cause electric shock.

Do not use aerosols near the Refrigerator.

•Aerosols used near the Refrigerator may cause an explosion or fire.

Safety Inforrration 3

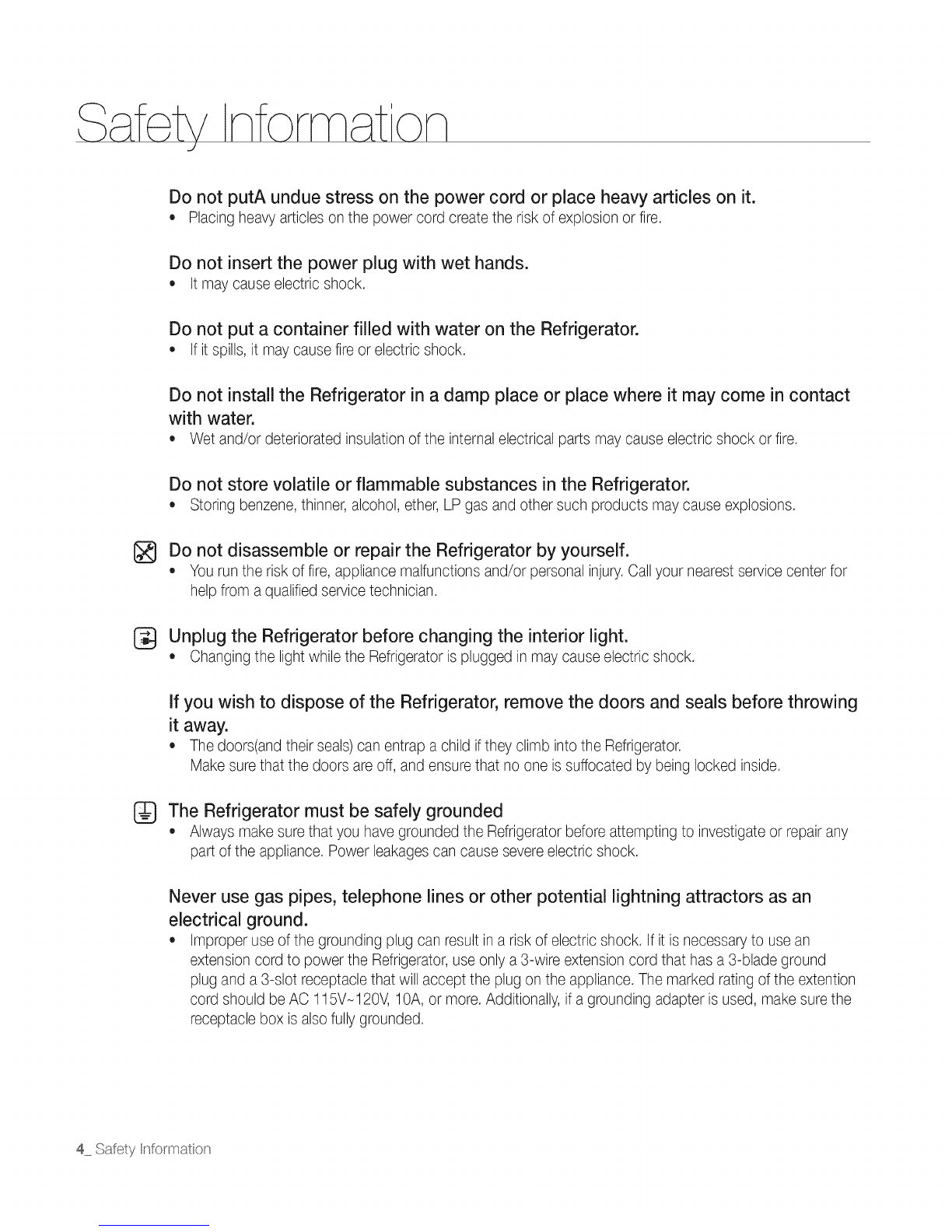

Do not putA undue stress on the power cord or place heavy articles on it.

• Placing heavy articles on the power cord create the risk of explosion or fire.

Do not insert the power plug with wet hands.

It may cause electric shock.

Do not put a container filled with water on the Refrigerator.

If it spills, it may cause fire or electric shock.

Do not install the Refrigerator in a damp place or place where it may come in contact

with water.

Wet and/or deteriorated insulation of the internal electrical parts may cause electric shock or fire.

Do not store volatile or flammable substances in the Refrigerator.

Storing benzene, thinner, alcohol, ether, LP gas and other such products may cause explosions.

Do not disassemble or repair the Refrigerator by yourself.

You run the risk of fire, appliance malfunctions and/or personal injury. Call your nearest service center for

help from a qualified service technician.

Unplug the Refrigerator before changing the interior light.

Changing the light while the Refrigerator is plugged in may cause electric shock.

If you wish to dispose of the Refrigerator, remove the doors and seals before throwing

it away.

The doors(and their seals) can entrap a child ifthey climb into the Refrigerator.

Make sure that the doors are off, and ensure that no one is suffocated by being locked inside.

@The Refrigerator must be safely grounded

Always make sure that you have grounded the Refrigerator before attempting to investigate or repair any

part of the appliance. Power leakages can cause severe electric shock.

Never use gas pipes, telephone lines or other potential lightning attractors as an

electrical ground.

Improper use of the grounding plug can result in a risk of electric shock. If it is necessary to use an

extension cord to power the Refrigerator, use only a 3-wire extension cord that has a 3-blade ground

plug and a 3-slot receptacle that will accept the plug on the appliance. The marked rating of the extention

cord should be AC 115V-120V, 10A, or more. Additionally, if a grounding adapter is used, make sure the

receptacle box is also fully grounded.

4 Safety Info_rration

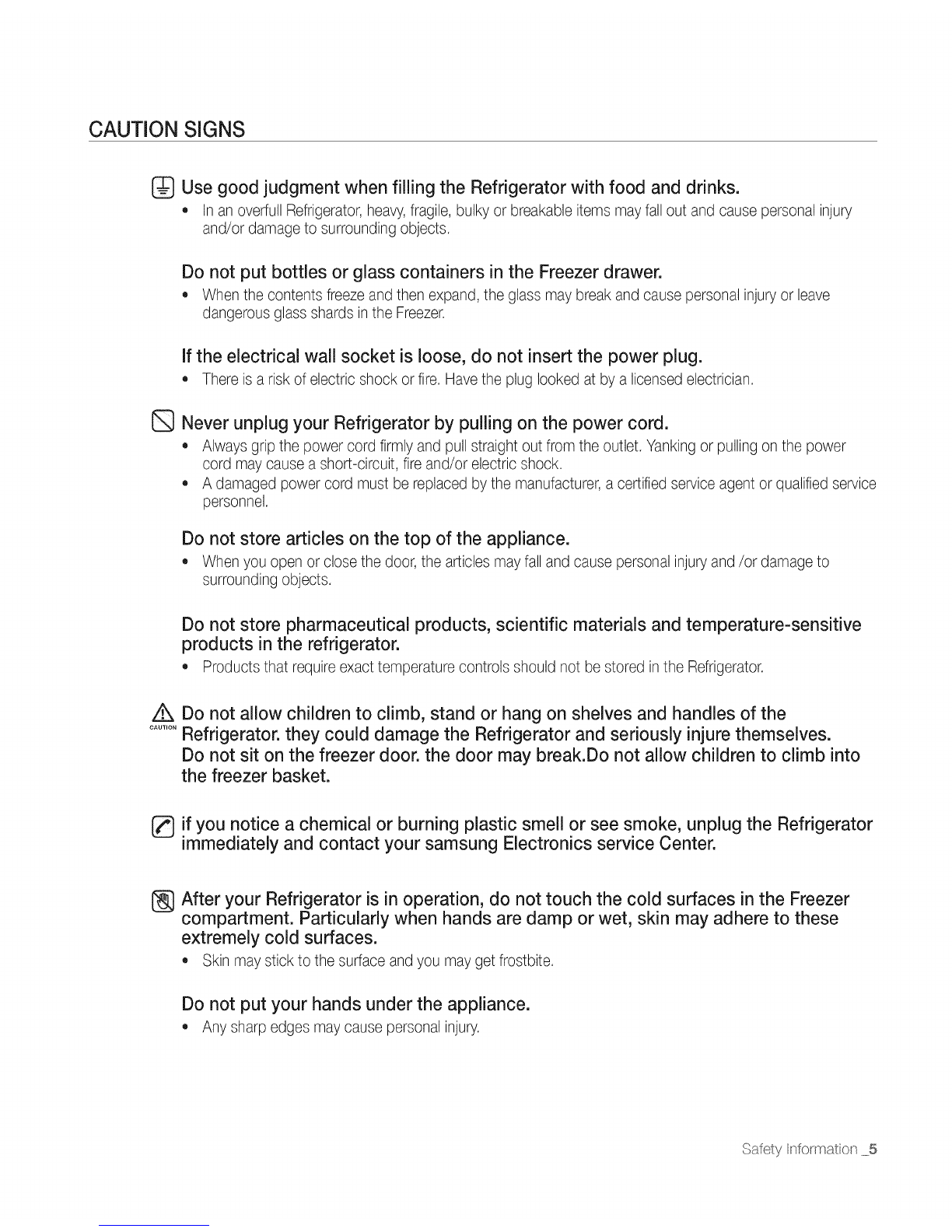

CAUTION SIGNS

Use good judgment when filling the Refrigerator with food and drinks.

• In an overfull Refrigerator, heavy, fragile, bulky or breakable items may fall out and cause personal injury

and/or damage to surrounding objects.

Do not put bottles or glass containers in the Freezer drawer.

When the contents freeze and then expand, the glass may break and cause personal injury or leave

dangerous glass shards in the Freezer.

If the electrical wall socket is loose, do not insert the power plug.

There is a risk of electric shock or fire. Have the plug looked at by a licensed electrician.

Never unplug your Refrigerator by pulling on the power cord.

Always grip the power cord firmly and pull straight out from the outlet. Yanking or pulling on the power

cord may cause a short-circuit, fire and/or electric shock.

A damaged power cord must be replaced by the manufacturer, a certified service agent or qualified service

personnel.

Do not store articles on the top of the appliance.

When you open or close the door, the articles may fall and cause personal injury and/or damage to

surrounding objects.

Do not store pharmaceutical products, scientific materials and temperature-sensitive

products in the refrigerator.

Products that require exact temperature controls should not be stored in the Refrigerator.

,6,

CAUTION Do not allow children to climb, stand or hang on shelves and handles of the

Refrigerator. they could damage the Refrigerator and seriously injure themselves.

Do not sit on the freezer door. the door may break.Do not allow children to climb into

the freezer basket.

!f you notice a chemical or burning plastic smell or see smoke, unplug the Refrigerator

_mmediately and contact your samsung Electronics service Center.

®After your Refrigerator is in operation, do not touch the cold surfaces in the Freezer

compartment. Particularly when hands are damp or wet, skin may adhere to these

extremely cold surfaces.

Skin may stick to the surface and you may get frostbite.

Do not put your hands under the appliance.

Any sharp edges may cause personal injury.

Safety Info_rration 5

nform on

Never put fingers or other objects into the water dispenser hole or ice chute.

=It maycausepersonalinjuryand/or materialdamage.

If the Refrigerator will not be used for a long period of time (for example, over

several months}, unplug the power from the wall,

• Overtime, deteriorationinthe powercord insulationmaycausefire.

Do not use awet or damp cloth when cleaning the plug.

Remove any dust or foreign matter from the power plug pins,

A Dirtypowerplugcan increasethe riskoffire.

If the Refrigerator is disconnected from the power supply, you should wait for

at least five minutes before plugging it back in,

Do not place the equipment directly in sunlight,

The appliance must be positioned for easy access to power source,

If the power cord is damaged, it must be replaced by the manufacturer, a

certified service agent or qualified service personnel,

if you have a long vacation planned, empty the Refrigerator and turn it off,

Wipeexcessmoisturefromthe insideand leavethe doorsopen to keepodorand moldfrom

developing.

Service warranty and Modification

Anychangesor modificationsperformedby a 3rd partyon thisfinishedapplianceisnot covered

underSamsungwarrantyservice,norcan Samsungbe responsibleforsafetyissuesthat result

from3rd party modifications.

/K Children can get trapped inside Refrigerators,

....... Before you throw away your old Refrigerator or Freezer, make sure that you;

Takeoffthe doors.

Leaveallshelvesinplacesso that childrenmaynot easilyclimb insideand shutthe doorwhilethey

areinside.

This appliance is not intended for use by small children or infirm persons without

capable, adult supervision. Small children should be supervised when using the

appliance,

Do not block air holes

Iftheair holesareblocked,especiallywith plasticbag,refrigeratorcan beovercooled.

Ifthis cooling periodlastslong, waterfilterwill be brokenandcausewaterleakage.

6 Safety Info_rration

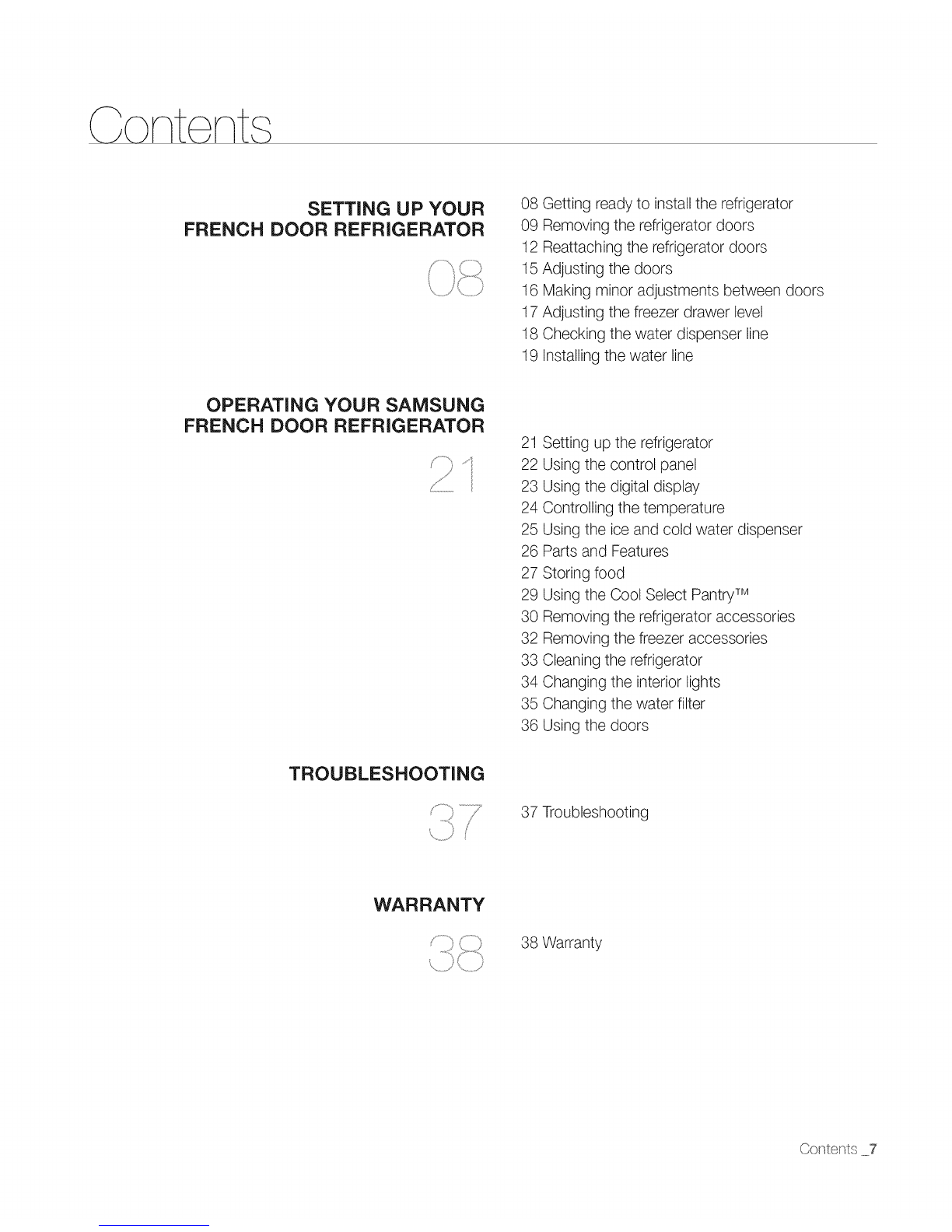

FRENCH SETTING UP YOUR

DOOR REFRIGERATOR 08 Getting ready to install the refrigerator

09 Removing the refrigerator doors

12 Reattaching the refrigerator doors

15 Adjusting the doors

16 Making minor adjustments between doors

17 Adjusting the freezer drawer level

18 Checking the water dispenser line

19 Installing the water line

OPERATING YOUR SAMSUNG

FRENCH DOOR REFRIGERATOR

21 Setting up the refrigerator

22 Using the control panel

23 Using the digital display

24 Controlling the temperature

25 Using the ice and cold water dispenser

26 Parts and Features

27 Storing food

29 Using the Cool Select Pantry TM

30 Removing the refrigerator accessories

32 Removing the freezer accessories

33 Cleaning the refrigerator

34 Changing the interior lights

35 Changing the water filter

36 Using the doors

TROUBLESHOOTING

37 Troubleshooting

WARRANTY

ii !!i 38 Warranty

GETTING READY TO INSTALL THE REFRIGERATOR

Congratulations on your purchase of the Samsung French Door Refrigerator. We hope you enjoy the state-of-art

features and efficiencies that this new appliance offers.

Selecting the best location for the Refrigerator

• A location with easy access to the water supply.

A location without direct exposure to sunlight.

A location with level (or nearly level)flooring.

A location with enough space for the Refrigerator doors to

open easily.

Allow sufficient space for air circulation of the internal

cooling system.

If the Refrigerator does not have enough space, the internal

cooling system may not work properly.

First thing! Make sure that you can easily move your Refrigerator to its final location by measuring doorways

(both width and height), thresholds, ceilings, stairways, etc.

The following chart details the exact height and depth of Samsung French Door Refrigerator.

MODEL RFG297AA

Capacity(Cu. Ft) 29

Width 35 ¾

with Hinge 69 7_

Case Height

Dimension(inch) without Hinge 68

with Door 35 ¾

Depth without Door 29

Allow clearance to the right, left, back and top when installing. This will help reduce power consumption and keep

your energy bills lower.

Do not install the Refrigerator where the temperature will go below 50 °F (10 °C).

CAUTION

When installing, servicing, or cleaning behind the

refrigerator, be sure to pull the unit straight out and

push back in straight after finishing.

Also, make sure your floor supports the full-load

regrigerator.

Otherwise, it may cause floor damage.

8 Setting Up

SETTING UP THE REFRIGERATOR

Now that you have your new Refrigerator installed in place, you are ready to set up and enjoy the features and

functions of the appliance. By completing the following steps, your Refrigerator should be fully operational.

1. Place the Refrigerator in an appropriate location with reasonable clearance between the wall and the

Refrigerator. Refer to installation instructions in this manual.

2. Once the Refrigerator is plugged in, make sure the interior light comes on when you open the doors.

3. Set the Temperature control to the coldest temperature and wait for an hour. The Freezer will get slightly

chilled and the motor will run smoothly.

4. After powering the Refrigerator, it will take a few hours to reach the appropriate temperature. You can

store food and drinks in the Refrigerator after the temperature is sufficiently cool.

®Check the accessory list below.

Water filter Hexwrench Fastener Compression fitting Compression nut

(DA29-00003B) (DA80-00002C) (DA60-00143B) (DA62-00305A) (DA74-00070B)

REMOVING THE REFRIGERATOR DOORS

If the Refrigerator is too large to pass through your doorway easily, you can remove the refrigerator doors.

Tools you will need

Philips screwdriver Flat-blade screwdriver Wrench Pliers Allen wrench(3/16")

Disassemble the Refrigerator doors

1. With the door opened, remove the Top Table cap

({_})with a Flat head screwdriver, and close the

door.

Remove the 3 screws holding down the Top Table

and remove the Top Table(G ).i

.Disconnect the electrical connector (_}) above

the upper right door hinge and the 3 electrical

connectors (@) above the upper left door hinge.

Disconnect the water tube (_) by pulling the tube

fitting ((_) apart as shown in the picture.

Setti_g Up 9

.Remove the 3 hex head bolts (1_) attached

to the upper left and right door hinges with a

Wrench(10ram).

With a Philips head screwdriver, remove the

ground screw (_) attached to the upper left and

right door hinges.

Remove the upper left and right door hinges ([_}).

, i ,

4. Lift the door straight up to remove.

.With a Philips head screwdriver, remove the two

screws (_}) attached to the lower left and right

door hinges_

With an Wrench(10mm), remove the two hex

head bolts (1_) attached to the lower left and

right door hinges_

Remove the lower left and right door hinges (1_).

10 Setting Up

Altri manuali per RFG297AA

Indice

Altri manuali Samsung Frigorifero

Samsung

Samsung RB38A7B63B1/EF Manuale utente

Samsung

Samsung RR35H61657F Manuale utente

Samsung

Samsung RZ11T747441 Manuale utente

Samsung

Samsung RSG5DUMH Manuale utente

Samsung

Samsung RSG257 Series Manuale utente

Samsung

Samsung RS27FDBTNSR Manuale utente

Samsung

Samsung RFG297AA Manuale utente

Samsung

Samsung RFG299AARS/XAA Manuale utente

Samsung

Samsung Refrigerator Manuale utente

Samsung

Samsung RF4289HA Manuale utente

Samsung

Samsung RF4267HA Manuale utente

Samsung

Samsung SRF671BFH2 Manuale utente

Samsung

Samsung RA12* Manuale utente

Samsung

Samsung RL60GG Series Manuale utente

Samsung

Samsung RT35 Manuale utente

Samsung

Samsung RS25H5121 Manuale utente

Samsung

Samsung RB30N Series Manuale utente

Samsung

Samsung RFG299AARS - 29 cu. ft. Refrigerator Manuale utente

Samsung

Samsung RF28R6202WW Manuale utente

Samsung

Samsung RF260BEAESP Manuale utente

Samsung

Samsung RF59C701ES9/EU Manuale utente

Samsung

Samsung RS27FDBTNSR Manuale utente

Samsung

Samsung SR-21NME Manuale utente

Samsung

Samsung RF265AARS RF266AARS RF26NBRS1RF265AABP RF266AABP RF26NBBP1RF265AAWP RF266AAWP RF26NBSH1RF265AASH... Manuale utente

Manuali Frigorifero popolari di altre marche

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuale utente

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuale utente

Sharp

Sharp SJ-BA31IEXW2-EU Manuale utente

CORBERO

CORBERO CC2300MCW Manuale utente

KitchenAid

KitchenAid 2205264 Manuale utente

Stengel

Stengel KU 1101 A++ Manuale utente

NEFF

NEFF KI181 Series Manuale utente

Hoshizaki

Hoshizaki Reach-In Manuale utente

Amana

Amana ASD2524VES00 Manuale utente

BOMANN

BOMANN KGC 213 Manuale utente

Danby

Danby DAR044A1SLDD Istruzioni per il montaggio

Beko

Beko CSA31022 Manuale utente

IKEA

IKEA FROSTIG C 185 E Manuale utente

Electrolux

Electrolux ER 6821 D Manuale utente

True

True TS-28 Manuale utente

Frigidaire

Frigidaire FSC23R5DW9 Manuale utente

Beko

Beko LSP4579W Manuale utente

Teledyne

Teledyne 6712FR and Istruzioni operative
