Samsung RL39WB Manuale utente

FREEZER/REFRIGERATOR

Model : RL39WB

RL36EB/RL39EB

RL36SB/RL39SB

FREEZER / REFRIGERATOR CONTENTS

1. Circuit Diagram .............................................1

2. Exploded View.............................................. 4

3. Disassembly & Assembly

............................. 12

3-1.

Replacement of refrigerator fluorescent lamp

.... 12

3-2.

Replacement of refrigerator fluorescent lamp

........ 12

3-3.

Disassembly of the cooling cycle unit in the freezer

.... 13

3-4.

Assembly of mechanic compartment in the refrigerator

.......15

3-5.

Electric box assembly ............................16

3-6.

Disassembly of Top Table ..................... 17

GREEN

For the latest parts information, Please

access to our service web site

(http://www.e4buyer.com/refrigerator)

1. Circuit Diagram

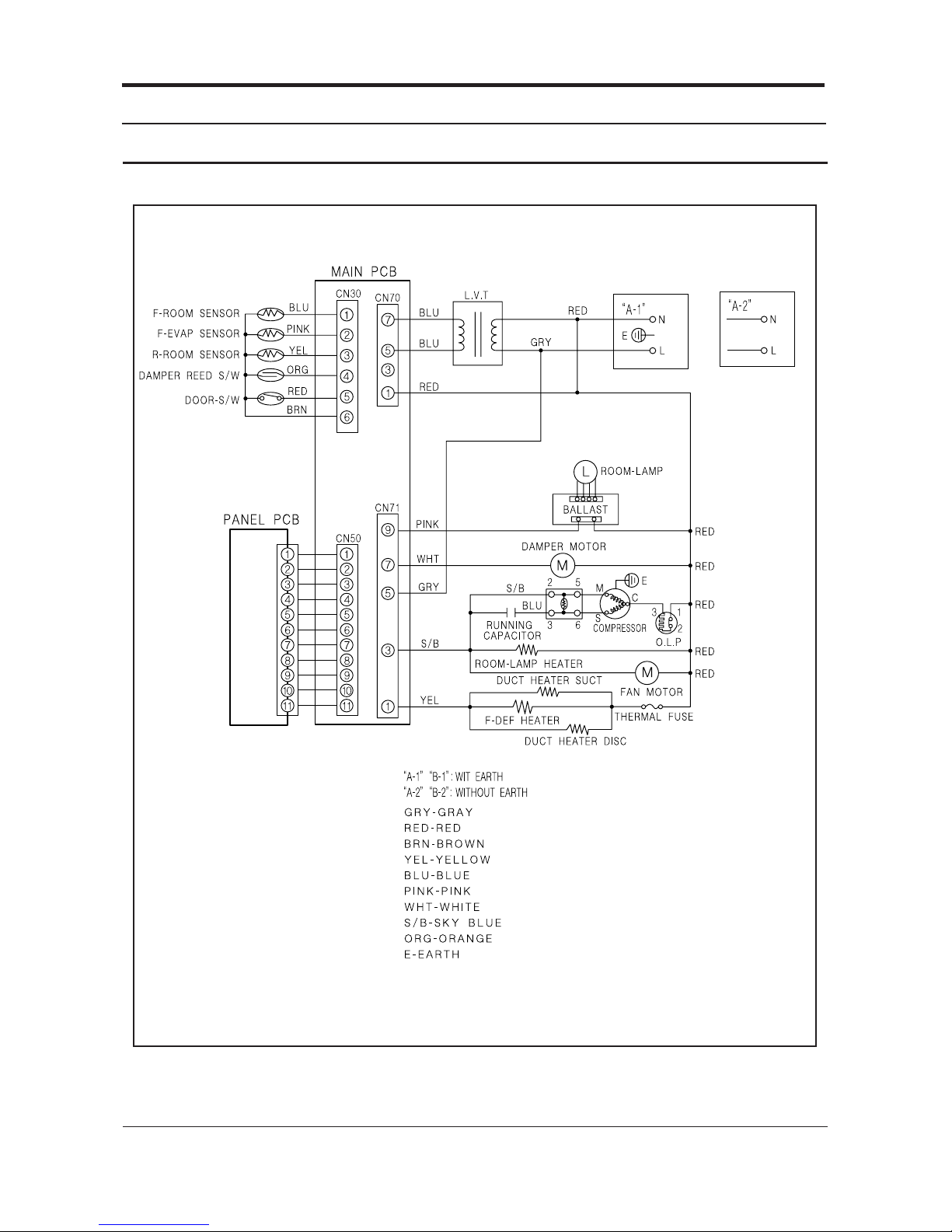

1-1. ELECTRONIC MODEL for Fluorescent Lamp Option

DA68-00476A

2Samsung Electronics

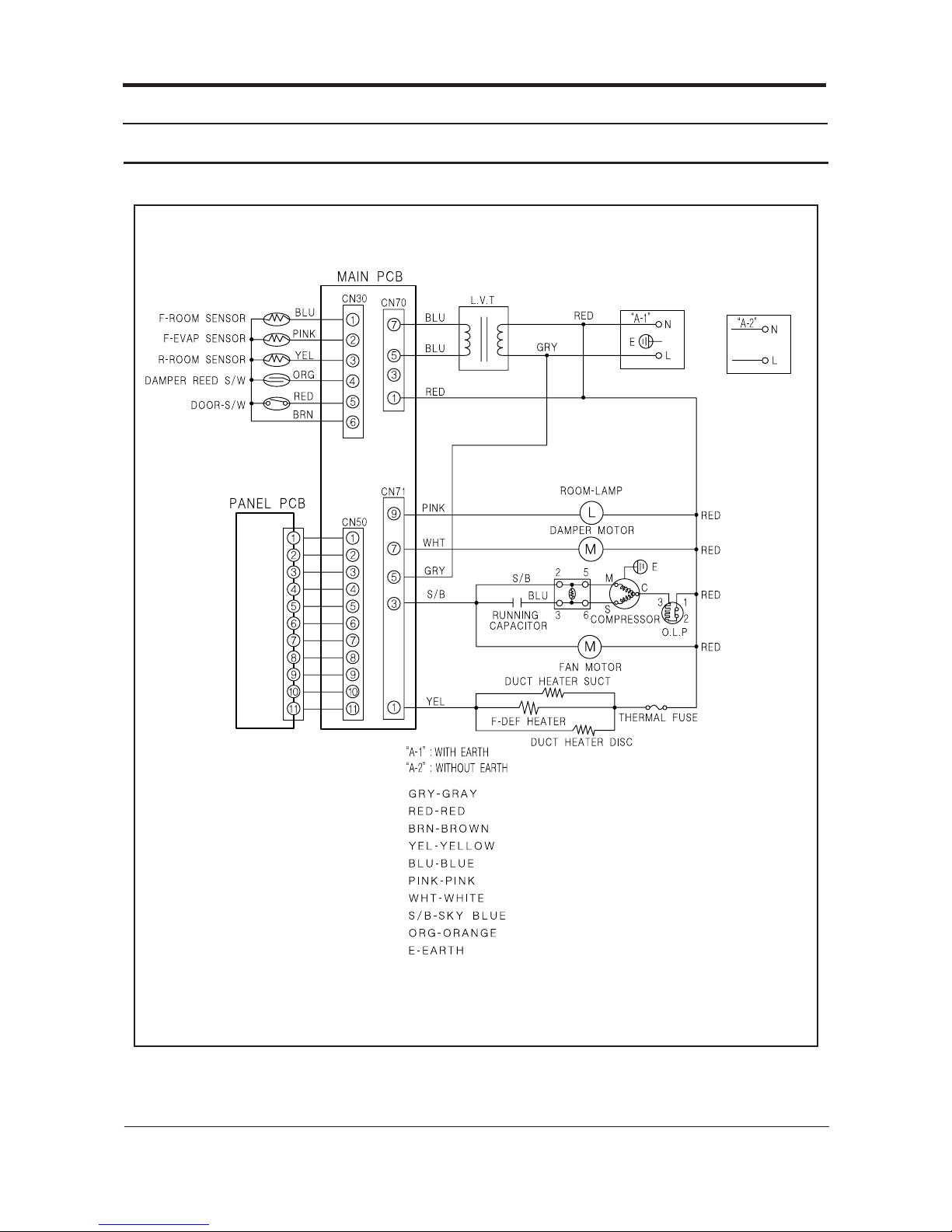

1-2. ELECTRONIC MODEL for Incandescent Lamp Option

DA68-00476C

Samsung Electronics 3

1-3. SEMI-ELECTRONIC MODEL

DA68-00476E

4Samsung Electronics

TRAY ICE-ASSY

TRAY ICE

SUPPORT-RAIL ASSY

SUPT-RAIL

FIXER TRAY ICE

KNOB-TRAY ICE

TRAY-ICE,CUBE

TRAY FRE UPP

ASSY TRAY FRE UPP

CAP-TRAY FRE UPP

SEMI ELECTRONIC MODEL

TRAY FRE MID

TRAY FRE LOW

COVER EVAP FRONT ASSY

COVER EVAP REAR

SENSOR ASSY

ASS TRAY FRE LOW

ASSY TRAY FRE MID

EVAP ASSY

SENSOR ASSY

THERMO FUSE

SPRING-ICE MAKER

SPRING FAN

SWITCH SENSI

TIVE

GROMMET MOTOR

MOTOR-FAN

CASE-MOTOR

COVER EVAP REAR-ASSY

HEATER-COVER EVAP.RE

ROLLER-FRE,ASSY

MOTOR-GEARD

CASE-G-MOTOR

GASKET

BLADE

SHAFT-BLADE ASSY

FAN-PROPELLER

CAP-TRAY FRE,L

CAP-TRAY FRE,R

2-1. Freezer Compartment

2. Exploded View

Samsung Electronics 5

■Freezer List

1 COVER EVAP-FRONT,ASSY

11 ASSY-VAP

14 COVER EVAP-REAR,ASSY

15 MOTOR FAN

18 MOTOR GEAR

20 HEATER-COVER EVAP.RE

DA63-00395C

DA63-00395D

DA63-00395E

DA63-00395F

DA66-00093A

DA97-01392A

DA97-01457A

DA97-01393A

DA97-01456A

DA97-01394A

DA97-01401A

DA97-01434A

DA63-01708A

DA96-00024A

DA96-00024B

DA96-00024C

DA32-10105Q

DA47-10162F

DA63-00396R

DA63-00396S

DA97-00150A

DA31-00002P

DA31-00002U

DA31-00002X

DA31-00019A

DA31-00026A

DA31-10107C

DA31-10107B

DA34-10125B

DA47-00056A

DA47-00056B

DA47-00056C

DA61-00081A

DA61-00117A

DA61-20128A

DA63-00237A

DA63-00359A

DA66-00095A

DA63-00771A

DA70-00222B

CODE-NO

ROLLER-FRE-ASSY

ASSY TRAY-FRE,LOW

ASSY TRAY-FRE,MID

ASSY TRAY-FRE,UPP

ASSY TRAY-ICE

ASSY-SUPT RAIL

TRAY ICE CUBE

SENSOR ASSY

THERMO FUSE

FAN-PROPELLER

BLADE

SWITCH SENSITIVE

CASE-MOTOR

CASE-G-MOTOR

SPRING ETC-FAN

COVER-EVAP REAR

GASKET-BLADE

SHAFT-BLADE ASSY

GROMMET-FAN MOTOR

PLATE-COVER RE

ITEM

PP,T2.0,TWIST

PP,T2.0,SEMI

PP(NTR),T2.0,TWIST

PP(NTR),T2.0,SEMI

POM,SR-35

PREMIUM

SEMI

PREMIUM

SEMI

HIPS

PREMIUM

HIPS

127V,310W

240V,310W

220V,310W

502AT,-10~35,5V

250V,10A

230~234V/50Hz

220V/50Hz

127V/60Hz

230~240V/50Hz

220V/50Hz

127V/60Hz

NTR

PC,NTR,SR-32,35

M2LA49Z,220~240V

M2BC59ZR12,110V

5V,Black

240V,7W

220V,7W

127V,7W

PP,NTR

STS27,PI7.8,ID1.0

SILICON,NTR

POM

NBR,BLACK

SAZCC,T0.4

SPECIFICATION

●

OPTION

RL36/39E RL39W RL36/39S

6Samsung Electronics

PLATE-EARTH

GASKET-BUTTON PCB

BUTTON PCB

COVER TOP

TABLE COVER DISPLAY

COVER-TOP TABLE ASSY

BUTTON PCB

GASKET-BUTTON

PCB

MAIN-PCB

COVER TOP

TABLE,ASSY

SHELF GALSS

TRIM-SHELF REF SHELF REF-ASSY

LAMP-INCANDESENT

COVER-LAMP REF

COVER-SUCTION,REF

COVER-SENSOR

SENSOR-ASSY

COVER DAMPER-REF ASSY

SPACER-DAMPER,REF

COVER-DAMPER REF

CASE-VEG

TRIM COVER

DAMPER

CASE-VEG ASS,Y

SHELF-REF

SHELF-REF,LOW

LAMP-FLUORESCENT

GASKET

WINDOW

COVER-TOP TABLE

BUTTON-PCB

GASKET-BUTTON

PCB

PBA-PANEL

PBA-MAIN

PBA-SUB

COVER GASKET BUTTON

GASKET-BUTTON

PCB

SWITCH-DOOR

BUTTON-PCB

WIRE HARNESS

INVERTER

2-2. Refrigerator Compartment

Samsung Electronics 7

■Refrigerator List

DA97-01389A

DA64-00951A

DA97-01387A

DA61-01314A

DA97-01409A

DA67-00207B

DA67-00206B

DA34-00015C

DA39-00119C

DA41-00018C

DA41-00172A

DA63-01734A

DA63-01755A

DA63-01776A

DA64-00963A

DA34-00015C

DA39-00119C

DA41-00042C

DA41-00081A

DA41-00043A

DA70-00208A

DA63-00444A

DA63-01750A

DA64-00959A

DA63-00235A

DA63-00235B

DA63-00235C

DA32-10105B

4713-001140

4713-001141

DA63-00234A

DA63-10467A

CODE-NO

ASSY COVER DAMPER-REF

TRIM-COVER DAMPER

ASSY CASE VEG

CASE VEG

ASSY SHELF REF

SHELF REF

SHELF REF,LOW

SWITCH DOOR

WIRE HARNESS-D00R

PBA MAIN

PBA-DISPLAY

COVER DISPLAY

GASKET-BUTTON,PCB

COVER-GASKET BUTTON

BUTTON-PCB

SWITCH DOOR

WIRE HARNESS-D00R

PBA MAIN

PBA PANEL ASSY

PBA PANEL

PLATE EARTH

GASKET-WINDOW

GASKET-BUTTON,PCB

BUTTON-PCB

SENSOR ASSY

COVER-SUCTION REF

COVER-SENSOR

ITEM

SC-97527R

HIPS

PREMIUM

GPPS(HF-2660),NTR

GLASS,3-PC,VEG

GPPS(HF-2660),NTR

250VAC,0.24A

240V

FR-1,250*55

258*30

ABS

SILICONE,BLACK

HIPS(HG-1760SF)

ABS(HG-0760),WHITE

250VAC,0.24A

240V

CABINET,FR-1,248*55

SEMI

SBHG1,T0.8

NBR

SILICONE

ABS,WHITE,SEMI

PP(BJ-730T4),NTR

PP(BJ-730T4),LIGHT BLUE

PP(RJ-700)

502AT,-10~35,5V

240V,25W,BLU,25x

130V,25W,BLU,25x

PP,WHITE

HIPS

SPECIFICATION

●

OPTION

RL36/39E RL39W RL36/39S

29 COVER-LAMP REF

8ASSY COVER-TOP,TABLE

PREMIUM,SNOW WHITE

PREMIUM,MIST SILVER

DA97-01385A

DA97-01385B

13 COVER TOP-TABLE

ABS(VT-0823),SNOW WHITE

ABS(VT-0823),MIST SILVER

18 ASSY COVER-TOP,TABLE

SEMI,SNOW WHITE

SEMI,MIST SILVER

DA63-01732A

DA63-01732B

DA97-01384A

DA97-01384B

25 COVER TOP-TABLE ABS,SNOW WHITE

ABS,MIST SILVER

DA63-01754A

DA63-01754B

31 LAMP-INCANDESCENT

8Samsung Electronics

ASSY-DOOR FOAM REF,DISP

ASSY-DOOR FOAM REF

COVER-DISPENSER ASSY

ASSY-DOOR FOAM,FRE

TRAY-DISPENSER

CASE-DISPENSER

ASSY

FIXER-CASE,ASSY

GROMMET-HINGE

SHAFT-WASHER,D

CAP-HINGE HOLE

CAP-COVER WATER

TANK WATER-ASSY

TRAY-EGG

GUARD-VARIETY ASSY(P)

COVER-DAIRY

GUARD-VARIETY(E)

GUARD-DAIRY ASSY(P)

ASSY GUARD-DAIRY(E)

COVER-WATER TANK

CLAMP-TANK

TANK WATER

CASE-COCK ASSY

HINGE-WASHER,LOW

GUARD-DAIRY

ASSY-GUARD BOTTLE DISP(P)

GUIDE-BOOTTLE-B

ASSY-GUARD BOTTLE(P)

GUIDE-BOOTTLE

GUARD BOTTLE DISP(E)

GUARD BOTTLE(E)

2-3. Door

Samsung Electronics 9

■Door List

DA97-01397A

DA63-01724A

DA66-00058A

DA97-01398A

DA97-01408A

DA97-01400A

DA97-01399A

DA63-01728A

DA71-00119A

DA71-00118A

DA91-01722A

DA91-01722B

DA91-01722C

DA91-01722D

DA91-01722E

DA91-01722F

DA91-01724A

DA91-01724B

DA91-01723A

DA91-01723B

DA91-01723C

DA91-01723D

DA97-01402A

DA97-01402B

DA61-20146A

DA63-01735A

DA63-01735B

DA64-00121A

DA64-00965A

DA66-00062A

DA97-01433A

DA97-01433B

DA63-01715A

DA63-01715B

DA71-20155B

DA74-00054A

DA61-00139A

DA63-00240A

DA65-20004A

DA67-30216B

DA74-00051A

DA67-00194A

DA67-00194F

CODE-NO

ASSY GUARD VARITY

GUARD-VARITY

TRAY-EGG

ASSY GUARD-DAIRY

ASSY GUARD BOTTLE-DISPENSER

ASSY GUARD-BOTTLE

GUARD-BOTTLE

GUIDE BOTTLE-B

GUIDE BOTTLE

SPRING-ETC LEVER

KEY-LEVER

KNOB-LEVER DISPENSER

LEVER-DISPENSER

ASSY FIXER-CASE

ASSY TANK-WATER

ASSY CASE-COCK

COVER-WATER TANK

CLAMP-TANK

CAP-COVER TANK

TANK-WATER

ITEM

PREMIUM

GPPS(HF-2660)

PREMIUM

GPPS(HF-2660)

PREMIUM

GPPS(HF-2660)

RL39(D),MSWR10,SNC2

RL36/39,MSWR10,SNC2

RL39,SNOW WHITE

RL39(DIS),SNOW WHITE

RL36,SNOW WHITE

RL39,MIST SILVER

RL39(DIS),MIST SILVER

RL36,MIST SILVER

RL39DISP,SNOW WHITE

RL39DISP,MIST SILVER

RL39,SNOW WHITE

RL36,SNOW WHITE

RL39,MIST SILVER

RL36,MIST SILVER

RL39(DIS),SNOW WHITE

RL39(DIS),MIST SILVER

STS304

ABS,SNOW WHITE

ABS,MIST SILVER

POM

ABS(MP-0160),SILVER

POM,NTR

RL39(DIS),SNOW WHITE

RL39(DIS),MIST SILVER

ABS(HG-0760H),SNOW WHITE

ABS(HG-0760H),MIST SILVER

RL39,DISPENSER

PC-ABS

PP,SNOW WHITE

PP,MIST SILVER

SPECIFICATION

●

OPTION

RL36/39E RL39W RL36/39S

14 ASSY COVER-DISPENSER

21 TRAY DISPENSER

ASSY-DOOR FOAM FRE

ASSY-DOOR FOAM REF(DIS)

ASSY DOOR FOAM REF

COVER-DISPENSER

ASSY CASE-DISPENSER

CAP-HINGE HOLE
