Samsung MWR-SC00T Manuale utente

MWR-SC00T

ired Remote Controller

OWNER’S INSTRUCTIONS

System Air Conditioner

E A DB98-27620A(1)

MWR-TH00 IB_E_15731 3/9/06 2:05 PM Page 21

Safety Precautions

◆Do not attempt to install or repair this wired remote

controller by yourself.

◆This remote controller contains no user-serviceable

parts. Always consult authorized service personnel

for repairs.

◆When moving, consult authorized service personnel

for disconnection and installation of the remote

controller.

◆Ensure that the wall is strong enough to support the

weight of the remote controller.

◆Must install the remote controller with rated power

supply.

◆In the event of a malfunction (burning smell, etc.),

immediately stop operation, turn off the electrical

breaker, and consult authorized service personnel.

WARNING

CAUTION ◆

Do not use inflammable gases near the remote

controller.

◆

Do not spill water into the wired remote controller.

◆

Do not operate the remote controller with wet hands.

◆

Do not install the remote controller in a location

where it will come into contact with the combustible

gases, machine oil, sulphide gas, etc.

◆

Do not press buttons with a pointed thing.

◆

Do not pull or bend the wired remote controller cable

excessively.

◆

Do not use this wired remote controller for other

purpose.

◆

Do not spray an insecticide or other combustible

things on the wired remote controller.

◆

Do not clean the wired remote controller with

benzene, solvents or other chemicals.

◆

Do not give a shock to the wired remote controller or

disassemble it by yourself.

E-2

●

Before using the wired remote controller, read carefully this instructions.

●

After reading the instructions, keep this owner's instructions and the

installation manual in a handy and safe place. If a user is changed, you must

hand over the manuals.

●

Never attempt to install the air conditioning system or to move the wired

remote controller by yourself.

E-3

HSILGNE

Contents

◆

IEW OF THE

IRED

EMOTE

ONTROLLER

◆

NSTALLATION

◆

OOLING

OUR

OOM

◆

ETTING THE

IMER

◆

ETTING THE

IMER

◆

ROUBLESHOOTING

E-4

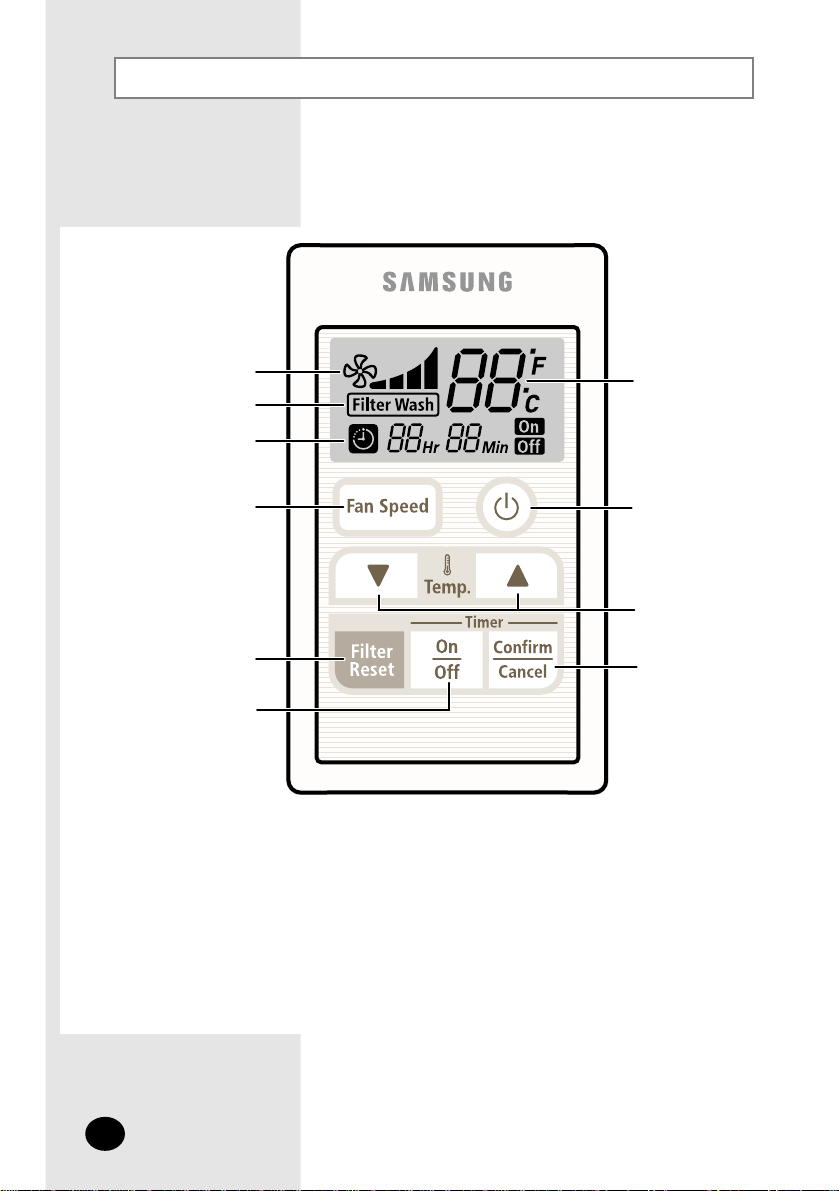

The wired remote controller is installed on the wall.

View of the Wired Remote Controller

Temperature

setting

On/Off button

Temperature

adjustment buttons

Timer set/cancel

button

Fan speed

Filter sign indicator

On/Off Timer setting

Fan speed button

Filter reset button

Timer adjustment

button

NNoo

oott

ttee

◆

After cleaning the filter, press the "Filter Reset" button.

The "Filter Wash" sign will display when it's time to clean the filter,

and will disappear if the "Filter Reset" button is pressed.

◆

The error code will appear in the on/off timer display

when there's an error in indoor unit or the outdoor unit.

Please call the installer if an error code appears.

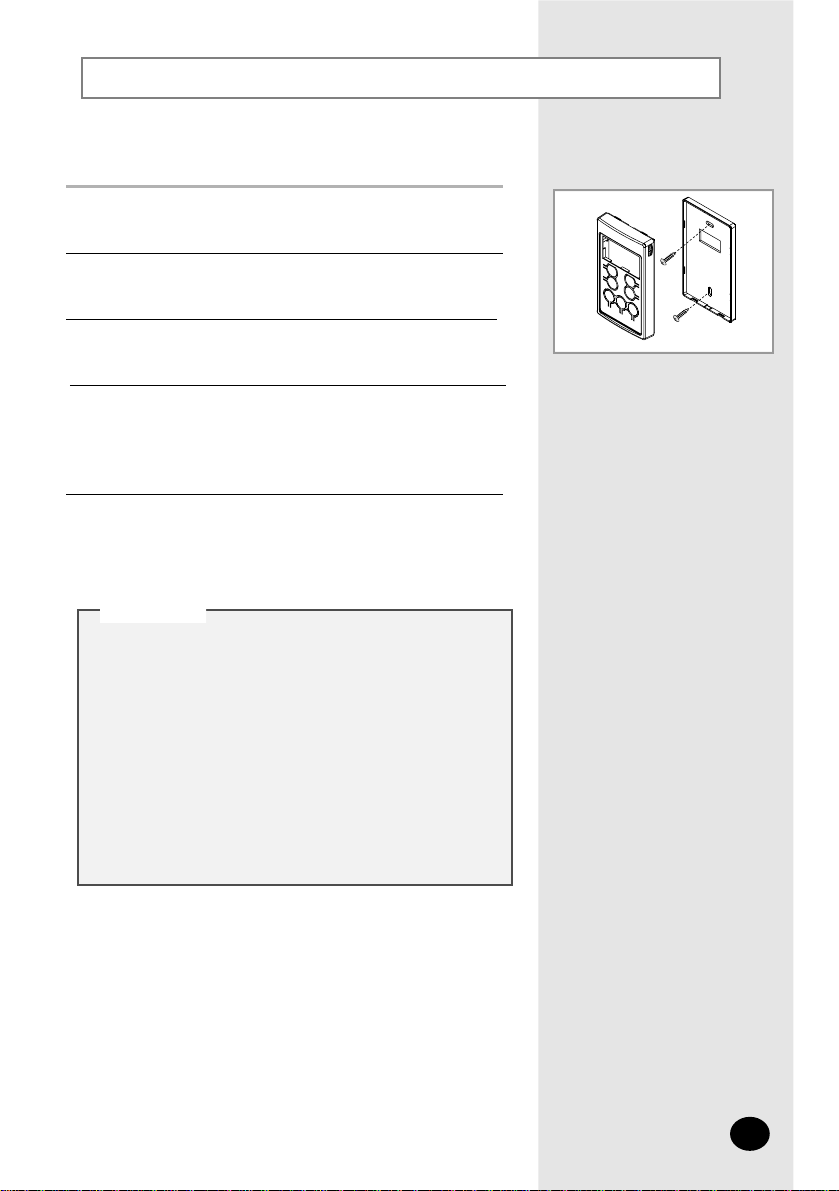

Open the wired remote controller using the 2 grooves

on the top.

Secure the rear cover of the wired remote controller on

the wall with 2 screws.

Connect the indoor unit housing with the wired remote

controller housing or connect the F3, F4 terminal of the

wired remote controller to the F3, F4 terminal of the

terminal block depending on the indoor unit type.

5Reassemble the wired remote controller.

Connect V1, V2 with the wired remote controller

terminal V1, V2.

CCAA

AAUU

UUTT

TTII

IIOO

OONN

◆ Install the wired remote controller of GHP in the same

way.

◆ The wired remote controller must be installed by an

installation specialist.

◆ Before installing the wired remote controller, check

that you have turned off the main power.

◆ All cables should be installed according to the national

wiring rules and you must install it to the wall not to

be touched by users.

◆ Communication cable and power cable should be

installed separately. (The wired remote controller can

be operated abnormally due to electric trouble.)

E-5

Installation

ENGLISH

E-6

etting Started

You have just purchased a wired remote controller and it has

been installed by your installation specialist.

Your Owner’s Instructions contain much valuable information on

using your wired remote controller. Please take the time to read them

as they will help you take full advantage of the unit’s features.

In the manual, you will find a series of step-by-step procedures for each

function available.

The illustrations in the step-by-step procedures use three different

symbols:

PRESS PUSH HOLD DOWN

E-7

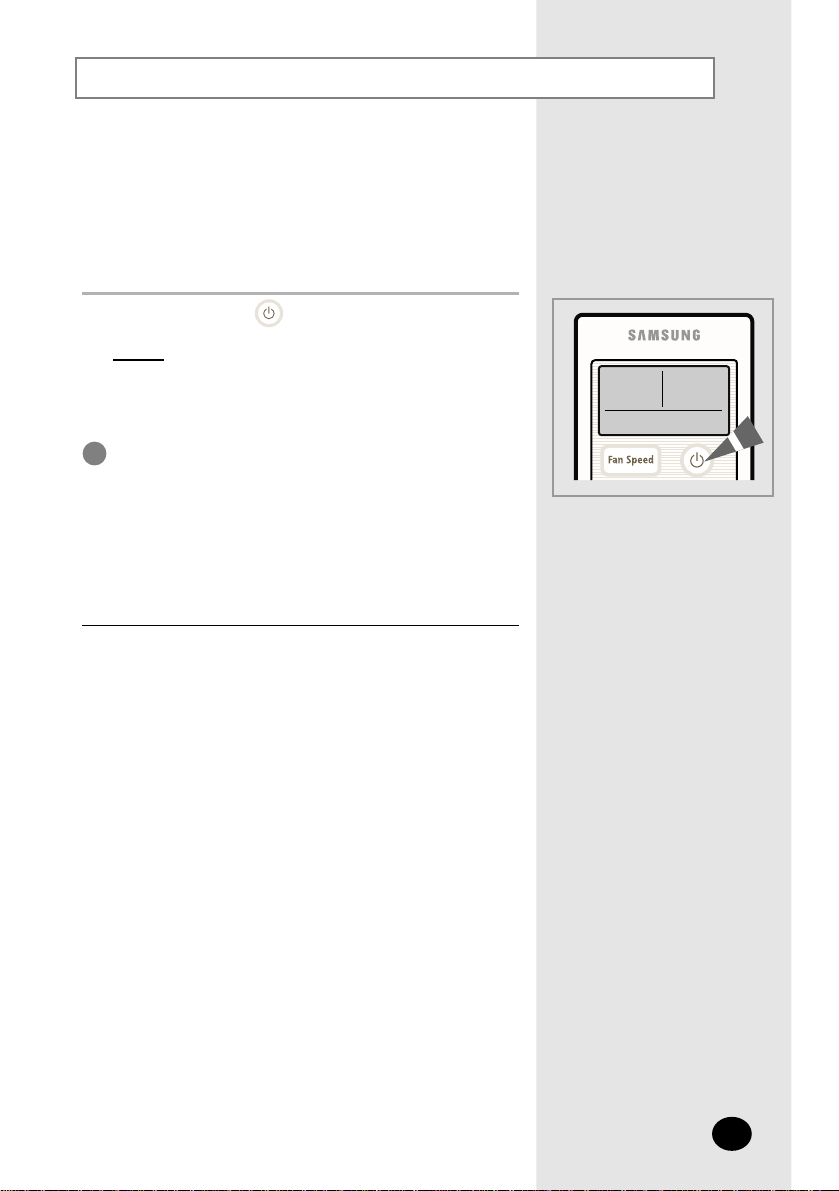

If necessary, press (ON/OFF) button.

Result: :◆The On/Off indicator on the wired remote

controller comes on.

◆The air conditioner runs in the mode

selected when the unit was last used.

The air conditioner is fitted with a protection

mechanism to prevent the unit from being

damaged when it is started immediately

after being:

◆Plugged in

◆Stopped

lt will start up normally after three minutes.

IMPORTANT

Cooling Your Room

E-8

To adjust the temperature, press the buttons one

or more times until the required temperature is displayed.

Possible temperatures are between 18°C and 30°C

inclusive.

Result: ◆Each time you press buttons:

- The temperature is adjusted by 1°C.

◆The air conditioner starts cooling, provided

that the room temperature is higher than the

selected temperature ; the fan will, however,

operate.

Select the fan speed by pressing the button one or

more times until the intended value is displayed :

Automatic(rotated : ➔ ➔ )

Low

Medium

High

Cooling Your Room(Continued)

E-9

To set the operating time, press the button one or

more times until the required time is displayed. Possible

time is between 0.5 hour and 24 hours inclusive.

The On Timer enables you to switch on the air conditioner

automatically after a given period of time. You can set the

period of time from 30 minutes to 24 hours.

You can select

the On Timer only when the air conditioner is off.

Press the button to complete the setting.

Result: ◆The remaining time is displayed.

◆Blinking of the timer indicator stops.

◆The selected mode and the temperature

disappear on the display after 5 seconds.

◆

The air conditioner will switch on

automatically when the counter displayed on

the remote controller reaches the setting

time as disappearing the On timer setting.

Press the button to cancel the setting.

◆If you want to turn on the air conditioner

before the timer reaches the setting time,

press the button.

Setting the On Timer

E-10

To set the operating time, press the button one or

more times until the required time is displayed. Possible

time is between 0.5 hour and 24 hours inclusive.

The Off Timer enables you to switch off the air conditioner

automatically after a given period of time. You can set the

period of time from 30 minutes to 24 hours.

You can select

the Off Timer only when the air conditioner is on.

Press the button to complete the setting.

Result: ◆The remaining time is displayed.

◆Blinking of the timer indicator stops.

◆

The air conditioner will switch off

automatically when the counter displayed on

the remote controller reaches the setting time

as disappearing the Off timer setting.

Press the button,

to cancel the setting.

◆If you want to turn off the air conditioner

before the timer reaches the setting time,

press the button.

NNoo

oott

ttee

Setting the Off Timer
