Samsung ICU 100 Manuale utente

21 3 4

5 6 7 8 9 10 11 12

Power button

Signal LEDs:

Sieć (network) – lights up when the decoder

is connected

Eco – Lights up when Economy mode is on

PVR – Lights up when PVR drive is connected

Digital display

USB port (for removable memory content)

Analogue TV connector

For audio system connection

For TV connection

For PVR drive connection

For FunBox connection

On/Off switch

Power supply socket

Wi-Fi conﬁguration button

7List of favorites channels

Video on demand (VOD)

Recorder menu (PVR)

Previous screen

Inbox

Previous channel

Channel list selection

TV guide

Information about the current program

Exit

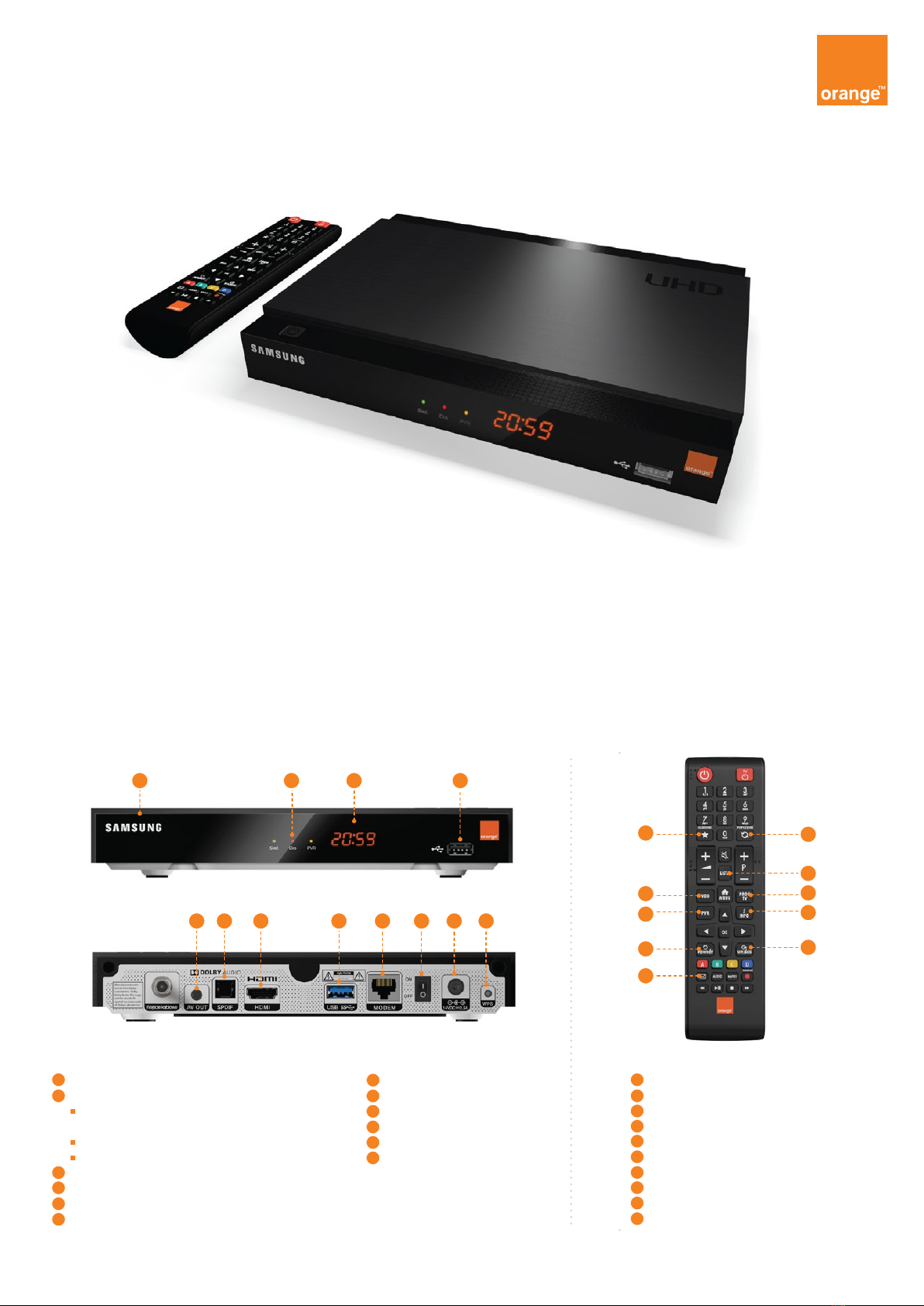

Set-top box description Remote control

description

4K Premium Set-top box

ICU 100

lub

2. 3.

7.6.

5b.5a.

For more information, please visit

www.orange.pl/pomoc

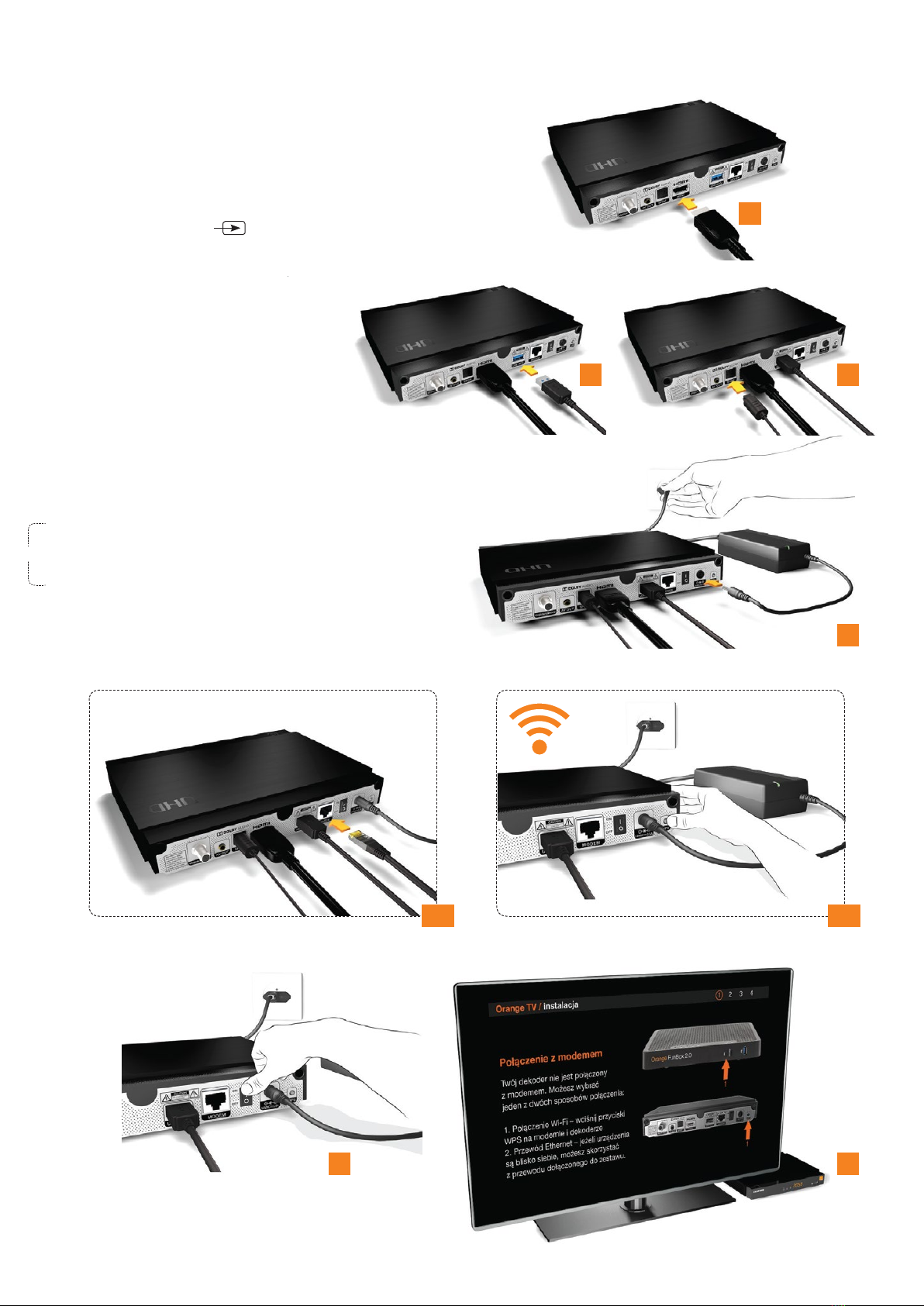

Connection to gateway

5a. Connect the Ethernet cable to the Modem socket of set-top box.

Plug the other end of the using cable into the black socket in

FunBox. Then turn on the set-top box with the ON/OFF switch 6.

5b. If you want to connect the set-top box wirelessly via Wi-Fi, locate

the WPS button on the rear panel of the set-top box 5b., turn on the

set-top box 6. and follow the on-screen instructions (in Polish) 7.

Set-top box connection

1. Connect the set-top box to the TV using an HDMI®

cable. Set the signal source on the TV to the same

HDMI port you have connected set-top box.

Use the button with icon or the one with the

SOURCE icon on TV remote control.

Optional: If your TV does not have a HDMI port,

connect the audio/video cable to the AV OUT jack

(both not included). If the TV doesn't have Cinch

sockets, you will need a SCART-Cinch adapter.

2. If you are using a PVR drive, plug it into the USB

port on the rear panel of the set-top box.

3. You can connect your audio system with a TOSLINK

optical cable - SPDIF socket (cable not included).

4. Plug the power supply unit into the appropriate

socket.
