Samsung HW-C400 Istruzioni per l'installazione

HW-C400

Imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service, please register

your product at www.samsung.com/register

FULL MANUAL

ENG - 2

SAFETY INFORMATION

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO

NOT REMOVE THE COVER (OR BACK).

NO USER-SERVICEABLE PARTS ARE INSIDE.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

Refer to the table below for an explanation of

symbols which may be on your Samsung product.

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN.

This symbol indicates that high voltage

is present inside. It is dangerous to

make any kind of contact with any

internal part of this product.

This symbol indicates that this product

has included important literature

concerning operation and maintenance.

Class II product : This symbol indicates

that it does not require a safety

connection to electrical earth (ground).

If this symbol is not present on a

product with a power cord, the product

MUST have a reliable connection to

protective earth (ground).

AC voltage : This symbol indicates that

the rated voltage marked with the

symbol is AC voltage.

DC voltage : This symbol indicates that

the rated voltage marked with the

symbol is DC voltage.

Caution, Consult instructions for use :

This symbol instructs the user to

consult the user manual for further

safety related information.

WARNING

•To reduce the risk of re or electric shock, do

not expose this appliance to rain or moisture.

CAUTION

•TO PREVENT ELECTRIC SHOCK, MATCH WIDE

BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

•This apparatus shall always be connected to a

AC outlet with a protective grounding

connection.

•To disconnect the apparatus from the mains,

the plug must be pulled out from the mains

socket, therefore the mains plug shall be

readily operable.

•Do not expose this apparatus to dripping or

splashing. Do not put objects lled with

liquids, such as vases on the apparatus.

•To turn this apparatus off completely, you

must pull the power plug out of the wall

socket. Consequently, the power plug must

be easily and readily accessible at all times.

ENG - 3

PRECAUTIONS

1. Ensure that the AC power supply in your

house complies with the power

requirements listed on the identication

sticker located on the bottom of your

product. Install your product horizontally, on

a suitable base (furniture), with enough

space around it for ventilation (7~10 cm).

Make sure the ventilation slots are not

covered. Do not place the unit on ampliers

or other equipment which may become hot.

This unit is designed for continuous use. To

fully turn off the unit, disconnect the AC plug

from the wall outlet. Unplug the unit if you

intend to leave it unused for a long period of

time.

2. During thunderstorms, disconnect the AC

plug from the wall outlet. Voltage peaks due

to lightning could damage the unit.

3. Do not expose the unit to direct sunlight or

other heat sources. This could lead to

overheating and cause the unit to

malfunction.

4. Protect the product from moisture (i.e.

vases), and excess heat (e.g. a replace) or

equipment creating strong magnetic or

electric elds. Unplug the power cable from

the AC wall socket if the unit malfunctions.

Your product is not intended for industrial

use. It is for personal use only. Condensation

may occur if your product has been stored in

cold temperatures. If transporting the unit

during the winter, wait approximately

2 hours until the unit has reached room

temperature before using.

5. The battery used with this product contains

chemicals that are harmful to the

environment. Do not dispose of the battery

in the general household trash. Do not

expose the battery to excess heat, direct

sunlight, or re. Do not short circuit,

disassemble, or overheat the battery.

CAUTION : Danger of explosion if the battery

is replaced incorrectly. Replace only with the

same or equivalent type.

ENG - 4

CONTENTS

01 Checking the Components 6

02 Product Overview 7

Top Panel of the Soundbar ------------------------- 7

Bottom Panel of the Soundbar ------------------------- 8

03 Using the Remote Control 9

Inserting Batteries before using the Remote Control (AAA batteries X 2) ------------------------- 9

How to Use the Remote Control ------------------------- 9

Using the Hidden Buttons (Buttons with more than one function) ------------------------- 14

Output specications for the different sound effect modes ------------------------- 14

Adjusting the Soundbar volume with a TV remote control ------------------------- 15

04 Connecting the Soundbar 16

Connecting Electrical Power ------------------------- 16

05 Using a wired connection to the TV 17

Connecting using an Optical Cable ------------------------- 17

06 Using a wireless connection to the TV 18

Connecting via Bluetooth ------------------------- 18

07 Connecting an External Device 20

Connecting using an Optical Cable ------------------------- 20

ENG - 5

08 Connecting a USB Storage Device 21

09 Connecting a Mobile Device 23

Connecting via Bluetooth ------------------------- 23

Connecting a Soundbar to a mobile device via NFC function ------------------------- 26

10 Installing the Wall Mount (Optional) 27

Installation Precautions ------------------------- 27

Wall mount Components ------------------------- 27

11 Software Update 30

Reset ------------------------- 31

12 Troubleshooting 32

13 Licence 33

14 Open Source Licence Notice 34

15 Important Notes About Service 34

16 SpecicationsandGuide 35

Specications ------------------------- 35

ENG - 6

01 CHECKING THE COMPONENTS

SOUND

MODE

WOOFER

TONE

CONTROL

CHLEVEL

Soundbar Main Unit Power Cord (Soundbar) Soundbar Remote Control

Batteries

•For more information about the power supply and power consumption, refer to the label attached

to the product. (Label: Bottom of the Soundbar Main Unit)

•To purchase additional components or optional cables, contact a Samsung Service Centre or

Samsung Customer Care.

•Design, specications are subject to change without prior notice.

•The appearance of the accessories may differ slightly from the illustrations above.

ENG - 7

02 PRODUCT OVERVIEW

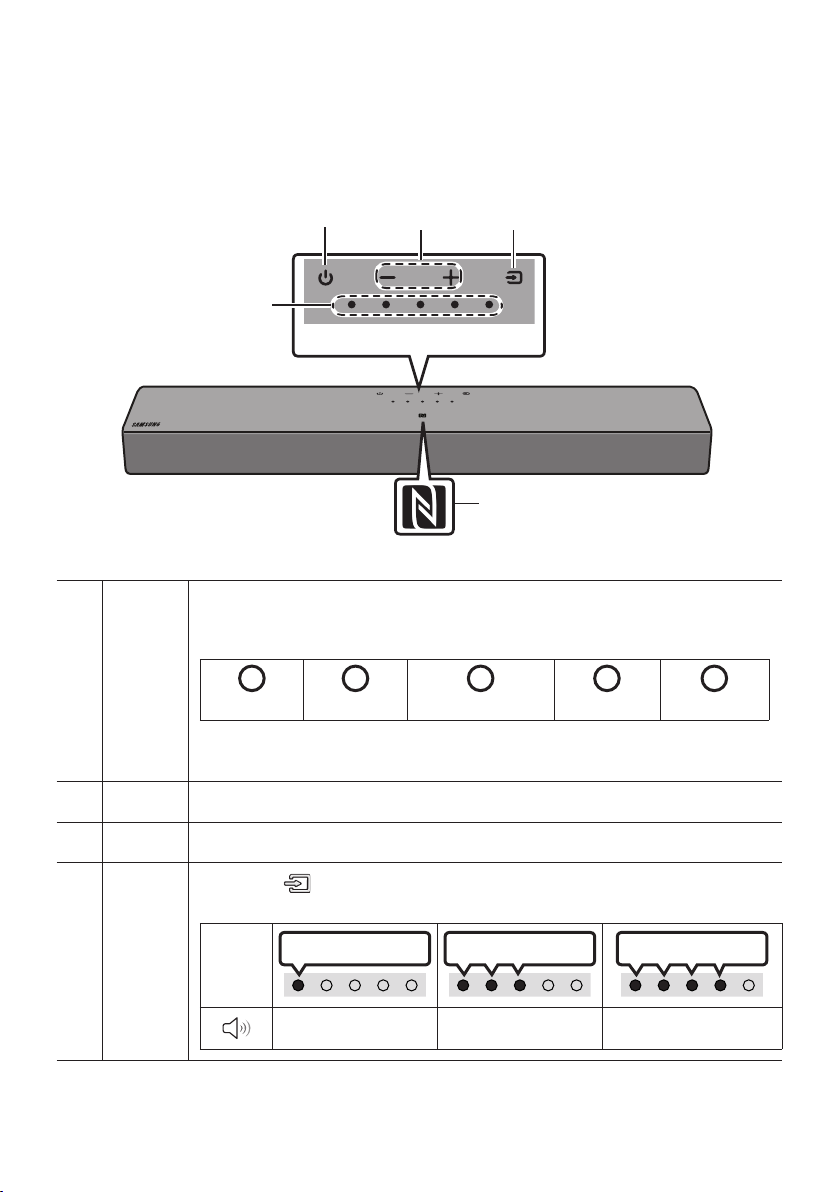

Top Panel of the Soundbar

󱂗

Top Panel

󱂔󱂖

󱂕

NFC

󱂓

󱂓LED

indicator

The LED Indicator ashes, glows, or changes colour depending on the Soundbar's current

mode or status. The colour of the LED indicator and the number of lights indicate the active

mode as described below.

White LED

Multicolour LED

White LED

•The Multicolour LED changes to White, Cyan, Green, Red, Yellow, Orange, Purple and

Blue depending on the mode or status.

󱂔Power Turns the power on and off.

󱂕Volume Adjusts the volume.

󱂖Source

•Press the (Source) button to change the mode. Each time you change the mode,

the LED lights in white and then turns off.

LED

Indicator

White On -> Off White On -> Off White On -> Off

“Digital Audio In” “Bluetooth” “USB”

ENG - 8

󱂗 NFC Logo You can activate your Bluetooth connection by placing your phone in the NFC detection

area of the Soundbar.

•When you plug in the AC cord, the power button will begin working in 4 to 6 seconds.

•When you turn on this unit, there will be a 4 to 5 second delay before it produces sound.

•If you hear sounds from both the TV and Soundbar, go to the Settings menu for the TV audio and

change the TV speaker to External Speaker.

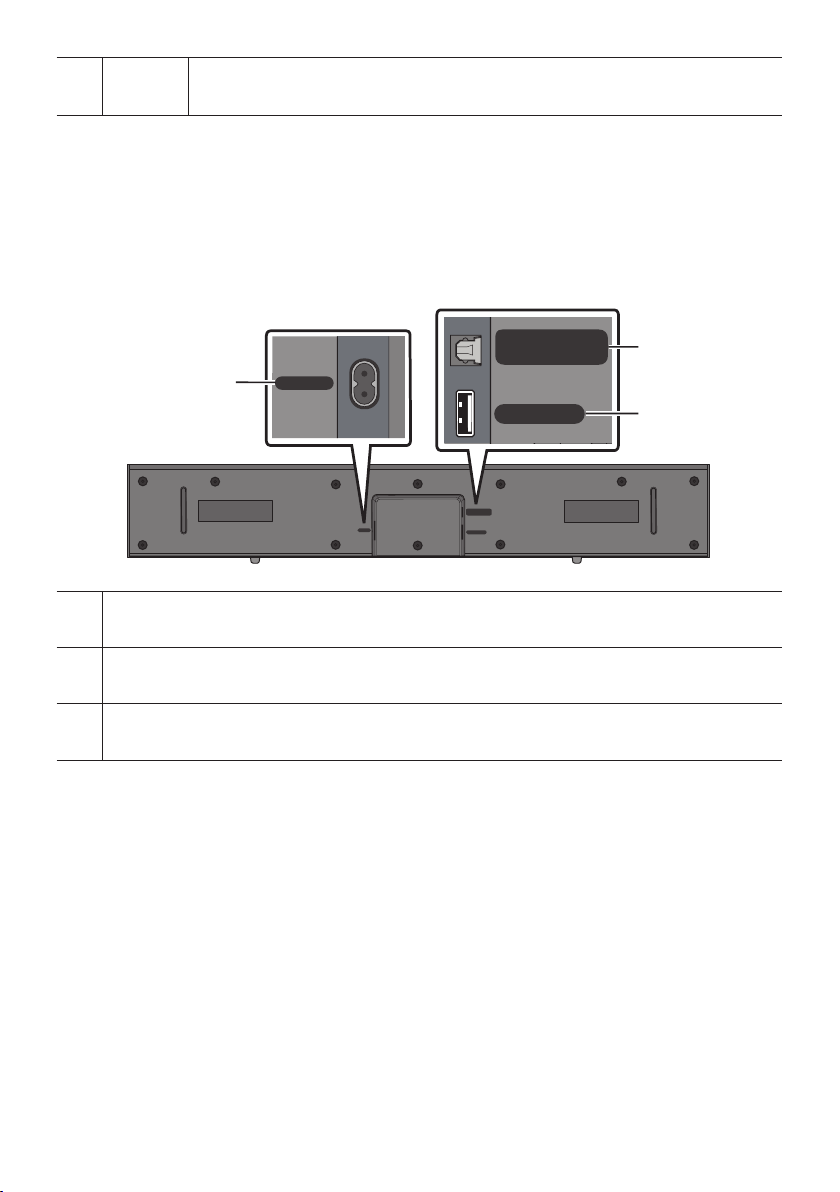

Bottom Panel of the Soundbar

POWER

DIGITAL AUDIO IN

(OPTICAL)

USB (5V 0.5A)

DIGITAL

AUDIO IN

(OPTICAL)

HDMI

(ARC)

DIGITAL AUDIO IN

(OPTICAL)

USB (5V 0.5A)

POWER

DIGITAL

AUDIO IN

(OPTICAL)

HDMI

(ARC)

DIGITAL AUDIO IN

(OPTICAL)

USB (5V 0.5A)

POWER

󱂓

󱂔

󱂕

󱂓POWER

Connect the Soundbar's AC power cable.

󱂔DIGITAL AUDIO IN (OPTICAL)

Connect to the digital (optical) output of an external device.

󱂕USB (5V 0.5A)

Connect a USB device here to play music les stored on the USB device through the Soundbar.

•Do not connect this unit or other components to an AC outlet until all connections between

components are complete.

ENG - 9

03 USING THE REMOTE CONTROL

Inserting Batteries before using the Remote Control (AAA batteries X 2)

Slide the back cover in the direction of the arrow

until it is completely removed.

Insert 2 AAA batteries (1.5V) so that their

orientation is correct. Slide the back cover back into

position.

How to Use the Remote Control

SOUND

MODE

WOOFER

TONE

CONTROL

CH LEVEL

󱂓

󱂔

󱂕

󱂖

󱂗

󱂘

󱂙

󱂚

󱂛

󱂜

󱂝

󱂞

󱂟

󱂓Power

Turns the Soundbar on and off.

LED

Indicator

Cyan Blinks X1

On Off

Red Blinks X3

•Auto Power Down Function

The unit turns off automatically in the following

situations:

– In “Digital Audio In”/ “Bluetooth”/ “USB”mode if

there is no audio signal for 18 minutes.

󱂔(Source)

Press to select a source connected to the Soundbar.

󱂕(Mute)

Press the (Mute) button to mute the sound.

Press it again to unmute the sound.

LED

Indicator

Blinks X Repeatly

ENG - 10

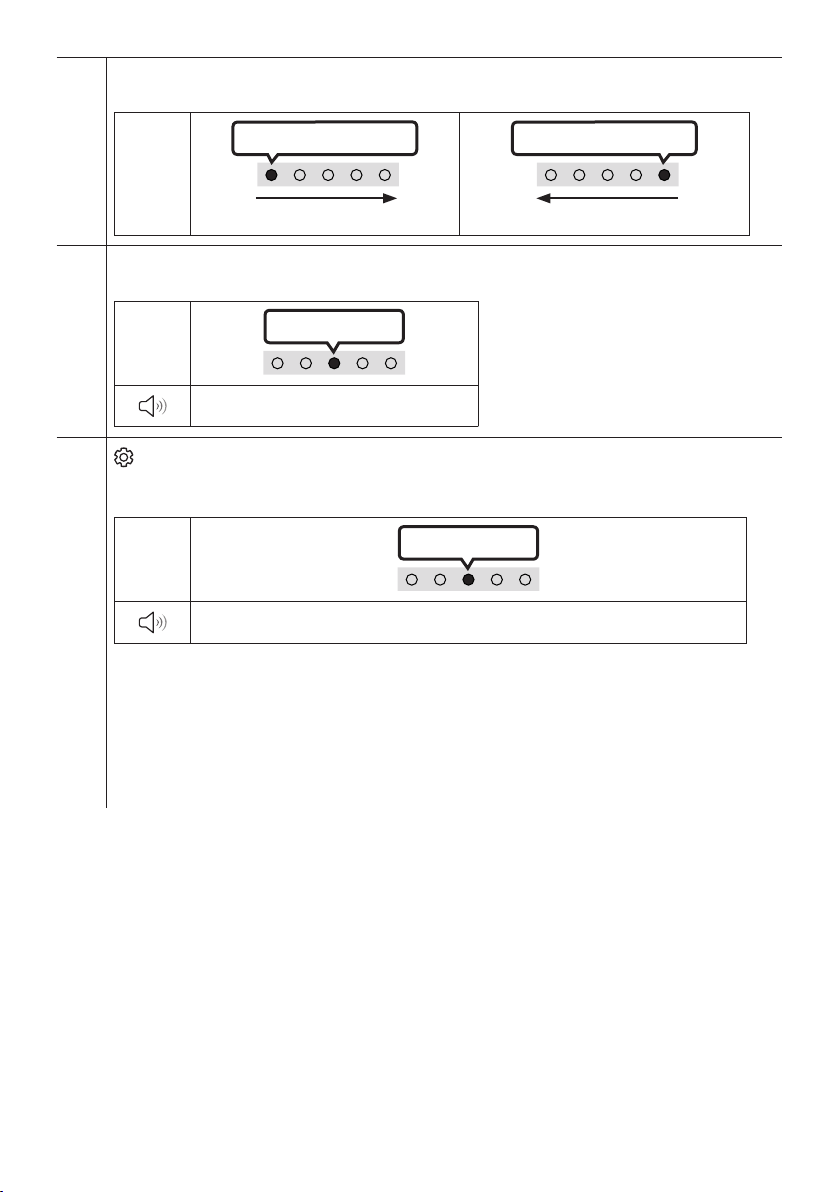

󱂖Volume

Push the button up or down to adjust the volume.

LED

Indicator

White moves to right X1

Volume Up

White moves to left X1

Volume Down

󱂗CH LEVEL

By pressing the button, you can adjust the volume of the each speaker.

LED

Indicator

White Blinks X1

“Centre Level”

󱂘(Sound Control)

By pressing the button, you can set the audio function. The desired item can be adjusted using the Up/

Down buttons. Each time the mode changes, the Multicolour LED blinks in white.

LED

Indicator

White Blinks X1

“Sync”“Night mode”“Voice enhancement”

– If the video on the TV and audio from the Soundbar are not synchronised, select “Sync” in Sound

Control, and then set the audio delay between 0~300 milliseconds by using the Up/Down buttons.

(Not available in “USB” or “Bluetooth”mode.)

– “Sync” is only supported for some functions.

– “Night mode” is optimised for night time viewing with the settings adjusted to bring the volume

down but keep the dialog clear.

– “Voice enhancement” makes it easier to hear spoken dialog in movies and TV.

Altri manuali per HW-C400

Indice

Lingue:

Altri manuali Samsung Sistema di altoparlanti

Samsung

Samsung HW-Q67CB Istruzioni per l'installazione

Samsung

Samsung HW-B63C Istruzioni per l'installazione

Samsung

Samsung HW-S800B Manuale utente

Samsung

Samsung HW-S50B Istruzioni per l'installazione

Samsung

Samsung HW-E350 Manuale utente

Samsung

Samsung HW-S800B Istruzioni per l'installazione

Samsung

Samsung HW-D450 Manuale utente

Samsung

Samsung HW-T450 Istruzioni per l'installazione

Samsung

Samsung WAM7500 Manuale utente

Samsung

Samsung HW-J6060 Manuale utente

Samsung

Samsung HW-S50B/EN Istruzioni per l'installazione

Samsung

Samsung HW-S50B Istruzioni per l'installazione

Samsung

Samsung Q Series Istruzioni per l'installazione

Samsung

Samsung HW-E550 Manuale utente

Samsung

Samsung HW-Q800A Manuale utente

Samsung

Samsung HW-A550 Istruzioni per l'installazione

Samsung

Samsung HW-Q930B Istruzioni per l'installazione

Samsung

Samsung HARMAN/KARDON HW-Q60R Istruzioni per l'installazione

Samsung

Samsung HW-M450 Istruzioni per l'installazione

Samsung

Samsung HW-M360 Istruzioni per l'installazione

Samsung

Samsung HW-M430 Istruzioni per l'installazione

Samsung

Samsung HW-T430 Istruzioni per l'installazione

Samsung

Samsung HW-FM55C Manuale utente

Samsung

Samsung HW-M370 Istruzioni per l'installazione

Manuali Sistema di altoparlanti popolari di altre marche

JVC

JVC CA-MXK5R Manuale utente

LG NB4532B Manuale utente

JVC

JVC CA-FSH100 Manuale utente

5Core

5Core Pro Series Manuale utente

EAW

EAW MQV1394e Manuale utente

Lynx

Lynx GXR-LA10A Manuale utente

iLive

iLive ITB066B Manuale utente

RDX

RDX QuickStation 4 Manuale utente

Electro-Voice

Electro-Voice S-122 Manuale utente

Sven

Sven SPS-619 GOLD Manuale utente

Pioneer

Pioneer CS-7070 Manuale utente

EAW

EAW UB82e Manuale utente

Sondpex

Sondpex Active Speaker System and Digital Music... Manuale utente

JVC

JVC NX-PN7 Manuale utente

Marshall Amplification

Marshall Amplification AR-DM61-BT Manuale utente

Yamaha

Yamaha NX-A01 - Speaker Sys Manuale utente

SE Audiotechnik

SE Audiotechnik I-LINE Manuale utente

Gemini

Gemini WRX-843 Series Manuale utente
