Samsung HW-K660 Manuale utente

User manual

Imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service, please register your product at

www.samsung.com/register

HW-K660

HW-K661

GETTING STARTED

SAFETY INFORMATION

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK).

NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN.

This symbol indicates that high voltage is

present inside. It is dangerous to make any kind

of contact with any internal part of this product.

This symbol indicates that important literature

concerning operation and maintenance has

been included with this product.

Class II product : This symbol indicates that it does not require a safety connection to electrical

earth (ground).

AC voltage : This symbol indicates that the rated voltage marked with the symbol is AC voltage.

DC voltage : This symbol indicates that the rated voltage marked with the symbol is DC voltage.

Caution, Consult instructions for use : This symbol instructs the user to consult the user manual for

further safety related information.

WARNING : To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

• This apparatus shall always be connected to a AC outlet with a protective grounding connection.

• To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the

mains plug shall be readily operable.

CAUTION

• Do not expose this apparatus to dripping or splashing. Do not put objects filled with liquids, such as vases on the

apparatus.

• To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the power

plug must be easily and readily accessible at all times.

GETTING STARTED

ENG

GETTING STARTED

PRECAUTIONS

99.1mm 99.1mm

68.6

99.1mm

Ensure that the AC power supply in your house complies with the power requirements listed on the identification sticker

located on the back of your product. Install your product horizontally, on a suitable base (furniture), with enough space

around it for ventilation (7~10 cm). Make sure the ventilation slots are not covered. Do not place the unit on amplifiers or

other equipment which may become hot. This unit is designed for continuous use. To fully turn off the unit, disconnect

the AC plug from the wall outlet. Unplug the unit if you intend to leave it unused for a long period of time.

WARNING: DO NOT INGEST BATTERY. CHEMICAL BURN HAZARD. The remote control supplied

withthis product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can

cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away

from children. If the battery compartment does not close securely, stop using the product and keep it

away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek

immediate medical attention.

During thunderstorms, disconnect the AC plug from the

wall outlet. Voltage peaks due to lightning could damage

the unit.

Protect the product from moisture (i.e. vases), and

excess heat (e.g. a fireplace) or equipment creating

strong magnetic or electric fields. Disconnect the power

cable from the AC supply if the unit malfunctions. Your

product is not intended for industrial use. It is for

personal use only. Condensation may occur if your

product has been stored in cold temperatures. If

transporting the unit during the winter, wait approximately

2 hours until the unit has reached room temperature

before using.

Do not expose the unit to direct sunlight or other heat

sources. This could lead to overheating and cause the

unit to malfunction.

The batteries used with this product contain chemicals

that are harmful to the environment. Do not dispose of

batteries in the general household trash. Do not dispose

of batteries in a fire. Do not short circuit, disassemble, or

overheat the batteries. There is a danger of explosion if

the battery is incorrectly replaced. Replace only with the

same or equivalent type.

GETTING STARTED

●Figures and illustrations in this User Manual are

provided for reference only and may differ from

actual product appearance.

●An administration fee may be charged if either

(a) an engineer is called out at your request and

there is no defect with the product (i.e. where

the user manual has not been read).

(b) you bring the unit to a repair centre and there is

no defect with the product (i.e. where the user

manual has not been read).

●You will be informed of the administration fee

amount before a technician visits.

CONTENTS

2 GETTING STARTED

2 Safety Information

5 What’s Included

6 DESCRIPTIONS

6 Front / Right Side Panel

7 Rear / Bottom Panel

8 Remote Control

11 INSTALLATION

11 Installing the Soundbar

11 Installing the Wall Mount

15 Detaching the Soundbar from the Wall

16 CONNECTIONS

16 Connecting the Subwoofer

18 Connecting to a TV

18 Connecting to a TV Using a Digital Optical

Cable

19 Connecting to a TV Using an HDMI (Digital)

Cable

19 TV SoundConnect

21 Connecting to External Devices

21 Optical or Analogue Audio Cable

22 HDMI Cable

23 FUNCTIONS

23 Input Mode

24 Bluetooth

27 Using the Multiroom App

28 Using the Network Standby On

Function

29 Software Update

31 TROUBLESHOOTING

31 Troubleshooting

32 APPENDIX

32 Specifications

ENG

GETTING STARTED

WHAT’S INCLUDED

BEFORE READING THE USER’S MANUAL

Note the following terms before reading the user manual.

+Icons used in this manual

Icon Term Definition

Caution

Indicates a situation where a function does not operate or settings may be cancelled.

Note

Indicates tips or instructions on the page that help you operate a function.

Check for the supplied accessories shown below.

Remote Control /

Lithium Battery

(3V : CR2032)

Power Cord : 2 EA AC/DC Adapter Optical Cable

A-TYPE : 616mm

B-TYPE : 360mm

CENTER LINE

A B B A

Wall Mount Guide Holder-Screw : 2 EA Screw : 2 EA

Bracket-Wall Mount L Bracket-Wall Mount R

●The appearance of the accessories may differ slightly from the illustrations above.

●Micro USB and HDMI cables are sold separately. To purchase, contact a Samsung Service Centre or

Samsung Customer Care.

DESCRIPTIONS

FRONT / RIGHT SIDE PANEL

1 /

(Volume) Button

Controls the volume level.

The numeric value of the volume level appears in the front

panel display.

2 (Source) Button

Selects the D.IN, AUX, HDMI, BT, or TV input.

●While the unit is powered on, pressing the button

for more than 3 seconds sets the button to act as the

(Mute) button. To cancel the (Mute) button

setup, press the button for more than 3 seconds

again.

3 (Power) Button

Turns the power on and off.

Right Side

Display

Displays the current mode.

●When you plug in the AC cord, the power button will begin working in 4 to 6 seconds.

●When you turn on this unit, there will be a 4 to 5 second delay before it produces sound.

●If you want to enjoy sound only from the Soundbar, you must turn off the TV's speakers in the Audio Setup

menu of your TV. Refer to the owner's manual supplied with your TV.

DESCRIPTIONS

ENG

DESCRIPTIONS

REAR / BOTTOM PANEL

DIGITAL AUDIO IN

(OPTICAL)

AUX IN

HDMI IN

HDMI OUT

(TV-ARC)

DC 24V

SERVICE

Wi-Fi SETUP SPK ADD

DC 24V

DIGITAL AUDIO IN

(OPTICAL)

SERVICE

AUX IN

HDMI IN

HDMI OUT

(TV-ARC)

Wi-Fi SETUP SPK ADD

DC 24V

(Power Supply In)

Connect the DC power

adaptor to the power supply

jack, and then connect the

AC power adaptor plug to a

wall outlet.

SERVICE

To upgrade the product's software

through the USB Port.

DIGITAL AUDIO IN (OPTICAL)

Connect to the digital (optical) output of

an external device.

HDMI OUT (TV-ARC)

Outputs digital video and audio signals

simultaneously using an HDMI cable.

HDMI IN

Inputs digital video and

audio signals

simultaneously using an

HDMI cable. Use when

connecting a supported

external device.

Wi-Fi SETUP

Press this button to

connect your Soundbar to

your network using Wi-Fi

setup. (Requires a smart

device and the Samsung

Multiroom app.

See page 27.)

SPK ADD

Press the button to connect

the Soundbar to a Samsung

HUB (purchased separately)

or a network. (Requires a

smart device and the

Samsung Multiroom app.

See page 27.)

AUX IN

Connect to the Analogue output of an

external device.

LABEL

●When disconnecting the power cable of the AC power adaptor from a wall outlet, pull the plug.

Do not pull the cable.

●Do not connect this unit or other components to an AC outlet until all connections between components

are complete.

●Make sure to rest the AC/DC Adapter flat on a table or the floor. If you place the AC/DC Adapter so that it

is hanging with the AC cord input facing upwards, water or other foreign substances could enter the

Adapter and cause the Adapter to malfunction.

DESCRIPTIONS

REMOTE CONTROL

Repeat

The Repeat function is available only when playing back music from Songs on phone

or DMS of Samsung Multiroom app.

OFF - REPEAT : Cancels Repeat Playback.

TRACK - REPEAT : Plays a track repeatedly.

ALL - REPEAT : Plays all tracks repeatedly.

Mute

You can turn the volume down to 0 with the push of a button.

Press again to restore the sound to the previous volume level.

SOURCE

Press to select a source connected to the Soundbar.

Skip Forward

If there is more than one file on the device you are playing, and you press

the ]button, the next file is selected.

Bluetooth POWER

Press the Bluetooth POWER button on the remote to turn the Bluetooth

POWER On function on and off. See pages 20 and 25 for details.

SOUND

Surround Sound adds depth and spaciousness to the sound. Pressing the

SOUND button repeatedly cycles through the Surround Sound settings :

ON - SURROUND SOUND,OFF - SURROUND SOUND

SOUND EFFECT

You can select from 6 sound modes - STANDARD (Original Sound), MUSIC,

CLEAR VOICE, SPORTS, MOVIE, and NIGHT MODE - depending on the

content you want to listen to.

Select the STANDARD mode if you want to enjoy the original sound.

*DRC (Dynamic Range Control)

Lets you apply dynamic range control to Dolby Digital.

Press and hold the SOUND EFFECT button for about 5 seconds in

STANDBY mode to turn the DRC (Dynamic Range Control) function on or off.

Press and hold the



button for about 5 seconds to turn the Anynet+ function

on or off.

OFF - ANYNET+, ON - ANYNET+

The Anynet+ function lets you control the Soundbar with the remote from an

Anynet+ compatible Samsung TV.

The Soundbar must be connected to the TV via an HDMI cable.

Press and hold the



button for about 5 seconds to turn the Auto Power Link

function on or off.

OFF - POWER LINK, ON - POWER LINK

* Auto Power Link

Synchronizes the Soundbar to a connected Optical source via the Optical jack

so it turns on automatically when you turn on your TV. (See page 18)

Auto Power Link function is only available in the D.IN mode.

ENG

DESCRIPTIONS

Volume

Adjusts the volume level of the unit.

Power

Turns the Soundbar on and off.

SOUND CONTROL

Press to select TREBLE, BASS, SUBWOOFER LEVEL or AUDIO SYNC.

Then, use the





buttons to adjust the TREBLE or BASS volume from

-3 ~ +3, SUBWOOFER LEVEL volume from -12, -6 ~ +6.

Press and hold the SOUND CONTROL button for about 5 seconds to adjust

the sound for each frequency band. 150Hz, 300Hz, 600Hz, 1.2KHz, 2.5KHz,

5KHz, and 10KHz are selectable and each can be adjusted to a setting between

-6 ~ +6.

If the Soundbar is connected to a digital TV and the video appears out of sync

with the audio, press the SOUND CONTROL button to sync the audio with the

video. Use the





buttons to set the audio delay between

0 ms ~ 300 ms. In TV mode, and BT mode, the Audio Sync function may not

available.

Play / Pause

Press the

button to pause a file temporarily.

Press the

button again to play the selected file.

Skip Back

If there is more than one file on the device you are playing, and you press

the

[

button, the previous file is selected.

●Operate the TV using the TV's remote control.

DESCRIPTIONS

+Controlling the Soundbar using Your TV Remote Control

1. Press and hold the SOUND button for more than 5 seconds while the Soundbar is turned on.

2. “ON - TV REMOTE” appears on the Soundbar’s display.

3. In the TV’s menu, set the TV speaker to external speaker.

●Not available if the TV ARC function or HDMI mode is in use.

●All buttons are not available except the VOL +/- and the buttons in this function.

●TV menus differ by manufacturer and model. Refer to the TV's user manual for further information.

●Manufacturers supporting this function:

- VIZIO, LG, Sony, Sharp, PHILIPS, PANASONIC, TOSHIBA, GRUNDIG, Hisense, RCA

- This function may not be compatible with your TV's remote depending on the remote control's

manufacturer.

●To turn off this function, press the SOUND button for 5 seconds.

"OFF - TV REMOTE" appears on the Soundbar's display.

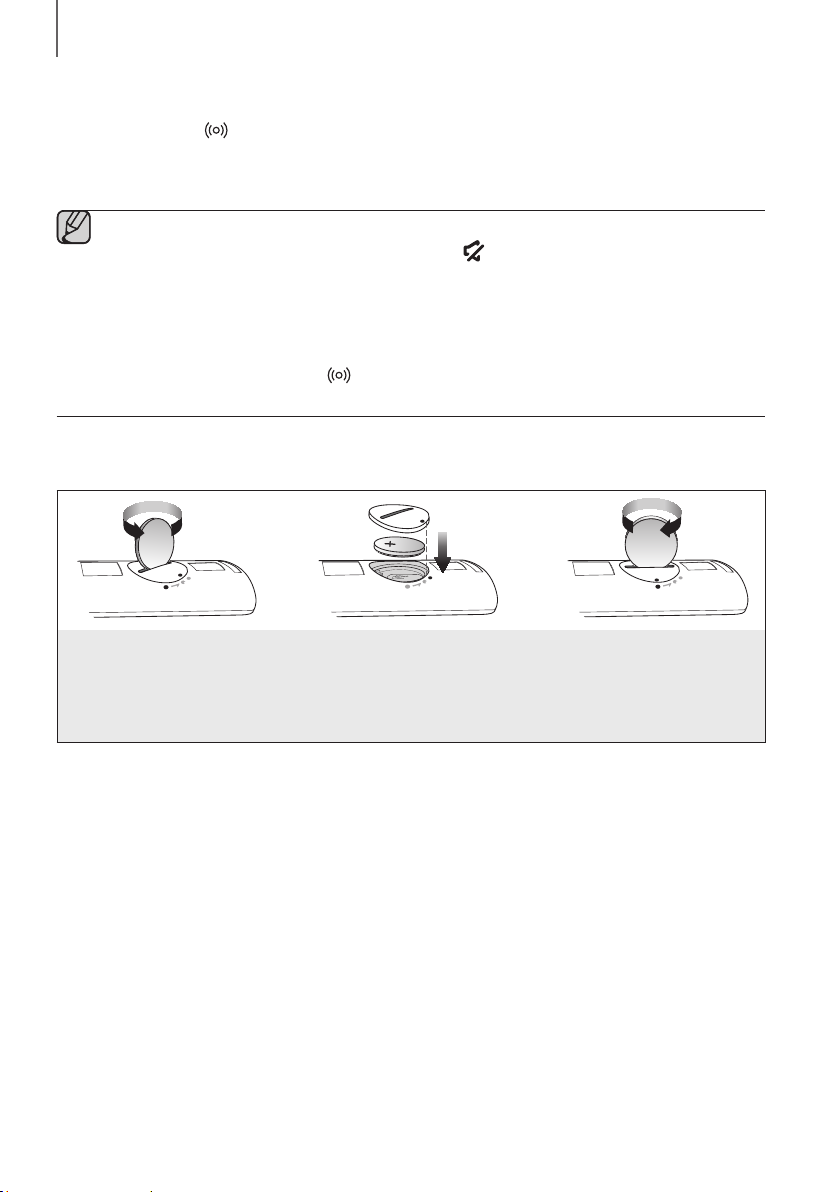

INSTALLING THE BATTERY IN THE REMOTE CONTROL

1. Use a suitable coin to turn the

remote control's battery cover

counterclockwise to remove it

as shown in the figure above.

2. Insert a 3V lithium battery. Keep the

positive (+) pole facing up when inserting

the battery. Put the battery cover on and

align the '●' marks side by side as

shown in the figure above.

3. Use a suitable coin to

turn the remote control

battery cover clockwise

as far as it will go to fix it

in place.

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Samsung Sistema di altoparlanti

Samsung

Samsung HW-HM60C Manuale utente

Samsung

Samsung HW-Q990C Manuale utente

Samsung

Samsung HW-MS550 Manuale utente

Samsung

Samsung HW-C450 Manuale utente

Samsung

Samsung HW-R430 Istruzioni per l'installazione

Samsung

Samsung CRYSTAL SURROUND AIR TRACK HW-D451 Manuale utente

Samsung

Samsung HT-SB1G Manuale utente

Samsung

Samsung HW-M4500 Istruzioni per l'installazione

Samsung

Samsung HW-K650 Manuale utente

Samsung

Samsung 2020 Q Series Istruzioni per l'installazione

Samsung

Samsung HW-A47M Istruzioni per l'installazione

Samsung

Samsung HW-M4500 Manuale utente

Samsung

Samsung HW-MS750 Manuale utente

Samsung

Samsung HW-Q930B Istruzioni per l'installazione

Samsung

Samsung HW-Q6CB Istruzioni per l'installazione

Samsung

Samsung HW-Q59CT Istruzioni per l'installazione

Samsung

Samsung MX-T50 Istruzioni per l'installazione

Samsung

Samsung HW-K360 Manuale utente

Samsung

Samsung SWA-W700 Manuale utente

Samsung

Samsung HW-S800B Istruzioni per l'installazione

Samsung

Samsung HW-R450 Manuale utente

Samsung

Samsung Harman Kardon HW-Q60R Manuale utente

Samsung

Samsung HW-H560 Manuale utente

Samsung

Samsung HW-T550 Istruzioni per l'installazione

Manuali Sistema di altoparlanti popolari di altre marche

JVC

JVC CA-MXK5R Manuale utente

LG NB4532B Manuale utente

JVC

JVC CA-FSH100 Manuale utente

5Core

5Core Pro Series Manuale utente

EAW

EAW MQV1394e Manuale utente

Lynx

Lynx GXR-LA10A Manuale utente

iLive

iLive ITB066B Manuale utente

RDX

RDX QuickStation 4 Manuale utente

Electro-Voice

Electro-Voice S-122 Manuale utente

Sven

Sven SPS-619 GOLD Manuale utente

Pioneer

Pioneer CS-7070 Manuale utente

EAW

EAW UB82e Manuale utente

Sondpex

Sondpex Active Speaker System and Digital Music... Manuale utente

JVC

JVC NX-PN7 Manuale utente

Marshall Amplification

Marshall Amplification AR-DM61-BT Manuale utente

Yamaha

Yamaha NX-A01 - Speaker Sys Manuale utente

SE Audiotechnik

SE Audiotechnik I-LINE Manuale utente

Gemini

Gemini WRX-843 Series Manuale utente
