Sangean DT-250 Manuale utente
DT-250
Operatinginstruction
Moded’emploi
Instruccions de manejo
Gebruiksaanwijzing
Bedienungsanleitung
GB
F
E
NL
D
3A81QG110000A
AM/FM stereo 2 bands
PLL Synthesized Personal Radio
Radio portable synthétisée
AM/FM stéréo 2 bandes PLL
AM/FM stereo 2 bands
PLL Synthesized Personal Radio
Draagbare AM/FM stereo
2 bands PLL Synthesizer Radio
Tragbares MW/UKW-Stereoradio
mit PLL-Synthese
1
GB
2
2
3

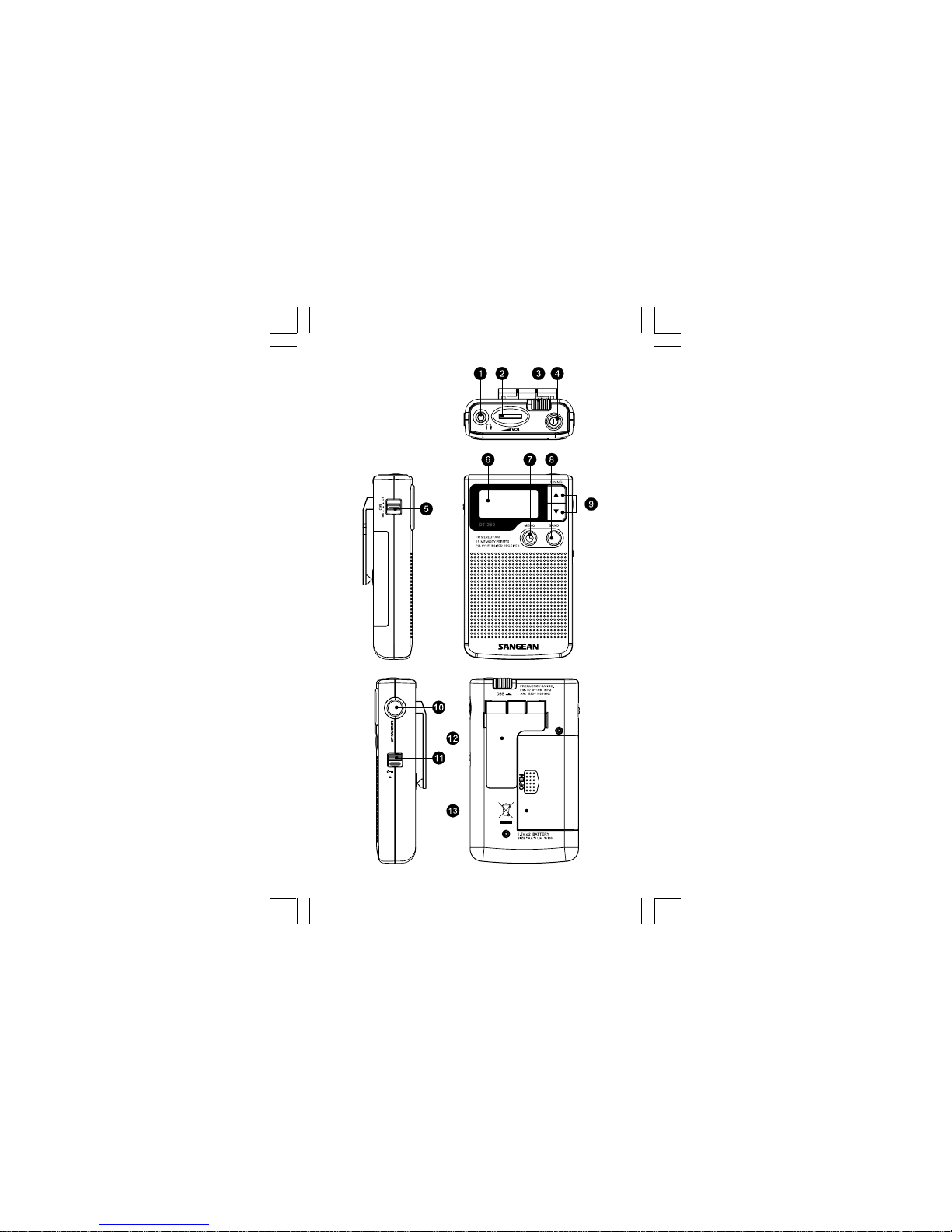

Controls
Headphone/Antenna jack
To improve FM reception during speaker
use, leave headphones or external
antenna device plugged in through
headphone jack.
Volume Control
Rotate the volume control clockwise to
increase volume, counter-clockwise to
decrease volume.
Deep Bass Boost selector
Deep Bass Boost provides better bass
response. Best result will be achieved
when using headphones. To select Deep
Bass Boost, slide switch to the left.
To turn off, slide switch to right.
Power switch
Turn the radio on and off. For battery
saving, the radio will auto shut off after
90 minutes operation, LCD display will
show 90 minutes timer icon. You may
turn on the radio again pressing power
switch if needed.
1
4
3
Speaker/Headphone selector
With this selector switch, you can choose
to use the built-in speaker,
or headphones.
To use speaker: Set selector switch to
SP. Selection
To use headphones
a. In Stereo Mode:
set selector to ST. If the station is
tuned in stereo, there will be a
headphones indicator with ST.
on the display.
b. In Mono Mode: Set selector to MO.
LCD display
Memory Button/Clock Set
Band Selection
Tuning Up/Down
My Favorites
5
6
7
8
9
10
GB
4
Lock Switch
The lock switch is to prevent unintentional
operation of your radio. To enable the
lock function, slide the lock switch to the
up position. When lock is activated,
there will be a key icon shown on the
display. To disable the lock function,
slide the switch to the down position.
Belt clip
A removable belt clip is provided on the
back of the radio. It can be removed by
gently pushing on the center tab of the
clip where indicated, and sliding the clip
downward towards the bottom of the
radio. You can easily connect the belt clip
by inserting the top of the clip into the
designated receiver slots and gently
pushing the clip in an upwards motion
towards the top of the radio.
Battery Compartment
11
12
13
5
LCD Display
90 minutes auto shut off
Stereo icon
Key locked
Memory presets
My favorite station
Battery power indicator
Frequency and Time
Band
A
B
C
D
E
F
G
H
GB
6
Battery Installation
1. Open the battery cover located on the
radio of your radio by sliding in the
direction shown by the arrows.
2. Insert twoAA( UM-3 ) size batteries,
one in each compartment. Close the
battery cover.
3. Aflashing “ E ” appearing on the LCD
display indicates a weak battery and that
replacement of batteries is required.
4. Turn the radio off and replace the
batteries within three minutes to avoid
reset presets and clock setting during
battery replacement.
7
Tuning the radio
Antenna
The lead connecting earphones to your
radio acts as an FM antenna when plugged
into the headphone jack. The lead should be
extended as much as possible to increase
FM reception. There is a separate
directional antenna built into the radio forAM
reception. To achieve the best AM reception,
it may be necessary rotate the radio.
Seek Tuning
1. Turn on the radio pressing the
On/Off button.
2. Select desired band by pressing the
Band button.
3. Press and hold the Tuning UP/Down
button for approximately 1/2 second.
Radio will seek for next active signal
station.
4. Repeat as many times as desired.
GB
8
Manual Tuning
1. Turn on the radio, select desired band.
2. Press Tuning Up/Down button repeatedly
until desired frequency is found.
Memory Tuning
To tune in stations already programmed into
memory. See Setting Memory instruction
below on how to program stations into radio
memory.
1. Turn radio on.
2. Press “ My Favorites “ button, MY will
appear on the display indicating function
is on.
3. Press Tuning control ( UP/DOWN ) to
recall memory programmed stations.
4. Press “ My Favorites “ button to turn off
memory tuning.
9
Setting Memory
1. Turn radio on.
2. Select desired band by pressing the
Band button.
3. Tune to desired station using either
Manual Tuning or Seeking tuning.
4. Press Memory button and use tuning
controls ( UP/DOWN) to reach memory
position as indicated on the display.
5. Press Memory button again to complete
memory setting.
All together there are 19 memory presets
available in this radio.
