Sanus Systems Motorized Mount LA112 Manuale utente
Sanus Systems 2221 Hwy 36 West, Saint Paul, MN 55113 USA
LA112
(6901-100189 <01>)
Thank you for choosing the Sanus Systems LA112 motorized mount. The LA112 is a remote-controlled automated
mount for flat panel monitors designed to be fully adjustable.The LA112 supports flat panel monitors with a
maximum weight of 81 kg (180 lbs.),ranging in size from 40 in.– 63 in. (102 cm – 106 cm).The LA112 extends up to
12 in (30 cm) from the wall.
Do not use this product for any purpose not explicitly specified by Sanus Systems. Improper installation may
cause property damage or personal injury. If you do not understand these directions, or have doubts about
the safety of the installation, contact Sanus Systems Customer Service or call a qualified contractor. Sanus
Systems is not liable for damage or injury caused by incorrect mounting, assembly, or use.
CAUTION
Backed by CLO
6901-100189 <01>

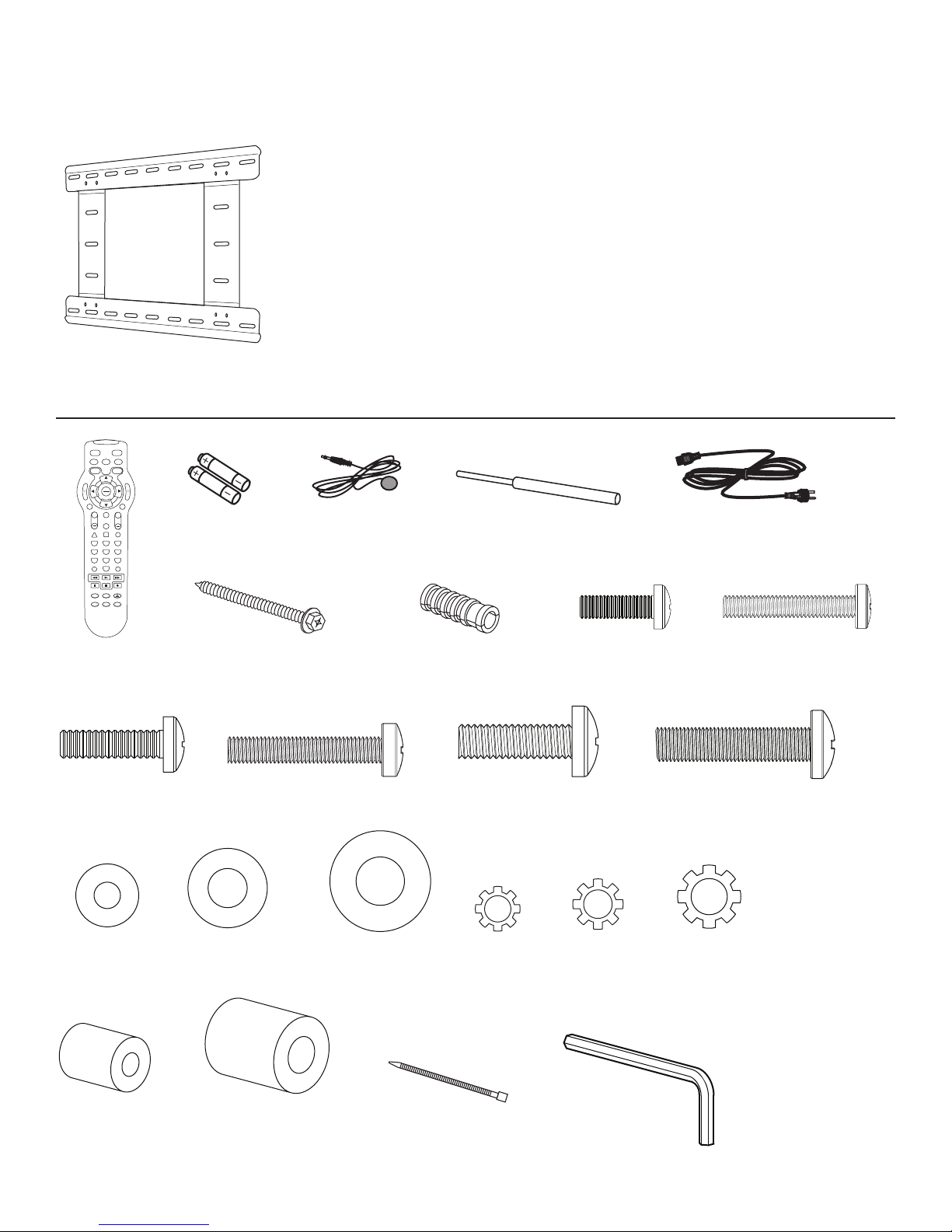

Supplied Parts and Hardware
Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged,do not return the item
to your dealer; contact Sanus Systems Customer Service. Never use damaged parts!
This product contains small items that could be a choking hazard if swallowed. Keep these items away from
young children!
WARNING
1/8 in. 1/2 in.

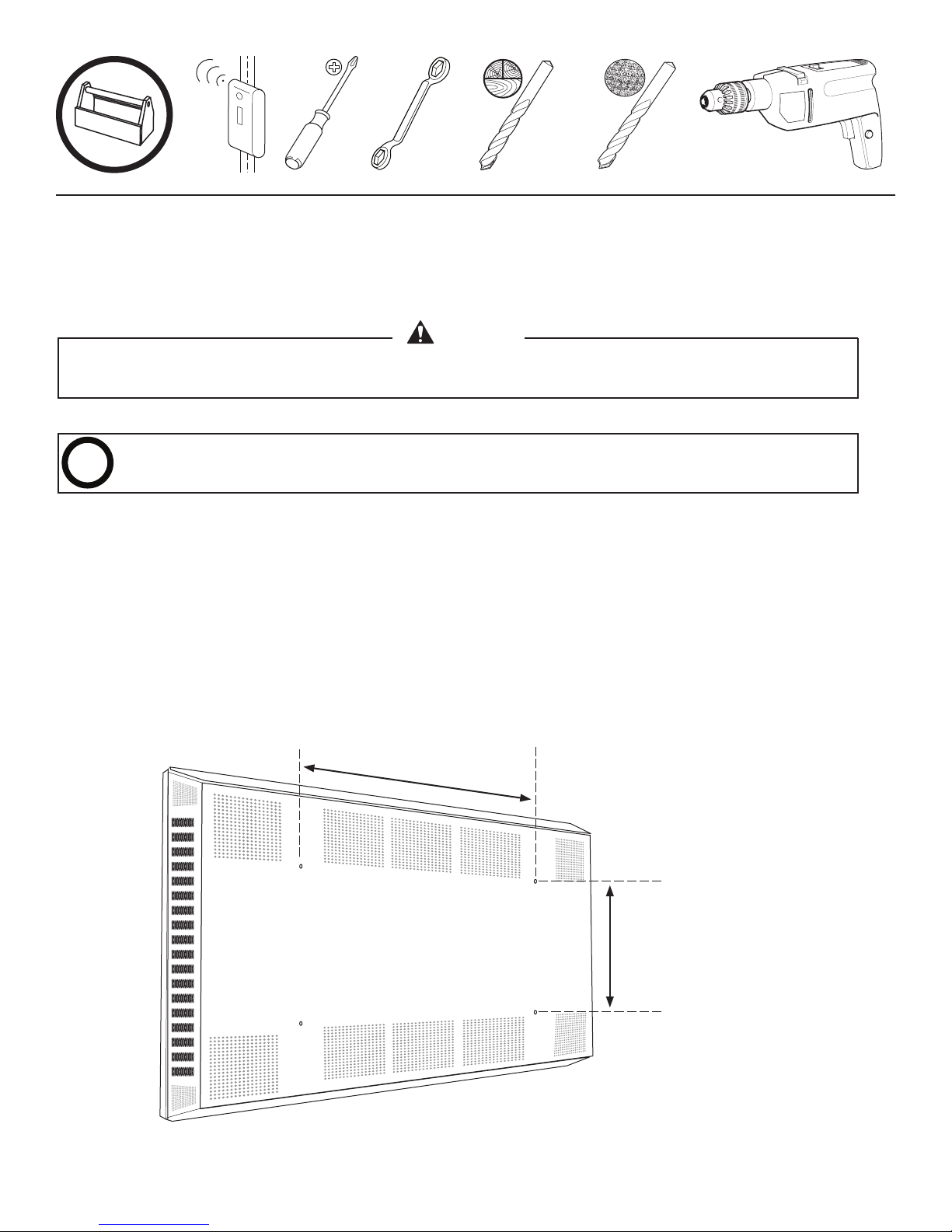

Determine if your monitor will require adapters to fit the LA112. Measure the distance between the mounting holes on the
back of the monitor.
Measure width
between holes
Measure height
between holes
Adapters are not included with the LA112. If you need an adapter, contact Sanus Systems Customer Service at
1-800-359-5520 or email us at info@sanus.com. You may also visit our website: www.sanus.com
OPT
OPT
For monitors with hole patterns less than 21.5 inches (54.6 cm) wide,install Cross Plate adapters.
For monitors with hole patterns 26 - 34.5 inches (66 - 87.6 cm) wide,install Bar Extension
adapters.
For monitors 18.5 - 27.5 inches
(47 - 70 cm) high, install
Bracket Extension adapters.
3/8
6901-100189 <01>
Remote Control
P1 P3
VOL
+
CH
TV
SET
X-ARM
VCR
DVD CBL
SEL
IN/OUT
P
R
E
S
E
T
MENU EXIT
MUTE
FAV
1 2 3
4 5 6
7 8 9
0
P2 P4
+
P1 P3
VOL
+
CH
POWER
TV
SET
X-ARM
VCR
DVD CBL
SEL
IN/OUT
P
R
E
S
E
T
P
R
E
S
E
T
MENU EXIT
MUTE
FAV
1 2 3
4 5 6
7 8 9
0
P2 P4
+
PIP SWAP OPEN/CLOSE
POSITION FREEZE SLEEP
INFO TV/VCR GUIDE
LAST ENTER
[09] x 1
[06] x 1 [08] x 1
[10] x 6 [11] x 6
001602.eps
VM400 - Hardware
5/16 in. 5/16 x 2.5 in.
M4 x 12mm M5 x 12mm M6 x 12mm M4 x 30mm M5 x 30mm M6 x 35mm
M4 M5 M6 M4 / M5 M6 M4 / M5 M6 / M8
[27] x 1
[07] x 1
M5 x 16 mm
[12] x 4
M5 x 30mm
[13] x 4
M6 x 35mm
[15] x 4
[26] x 10
M8 x 35mm
[17] x 4
M8
[20] x 4
M6
[22] x 4
M8x20
[16] x 4
M6 x 18mm
[14] x 4
M4/M5
[18] x 4
M6 / M8
[19] x 4
M5
[21] x 4
M8
[23] x 4
M4/M5
[24] x 4
M6/M8
[25] x 4
[05] x 2
[04] x 4
[03] x2
[02] x 1[01] x 1
NOTE: Items [1] through [4] are pre-assembled.
6901-100189 <01>
Avoid potential injuries or damage to equipment! Always observe the LA112 while in motion. To stop the
motion, press any of the arrow keys on the remote control. Never allow children to operate the LA112.
CAUTION
Avoid potential injuries or damage to equipment! Do not operate the LA112 unless all protective covers and
guards are in place. Keep away from moving parts.
CAUTION
Avoid damage to equipment! Use only accessories distributed or recommended by Sanus Systems. Do
not operate the LA112 if the appliance has malfunctioned, or has been damaged in any way; return to an
authorized service facility for inspection.
CAUTION
Avoid potential injuries or damage to equipment! The LA112 must be connected to a grounded outlet.
Disconnect the LA112 when not in use, or before cleaning or servicing the unit. To disconnect the LA112, turn
off all controls then remove the plug from the outlet.
CAUTION
Avoid potential injuries or damage to equipment. The LA112 is designed to mount to vertical walls only.
Do not attempt to mount the LA112 to ceilings or non-vertical walls. For indoor use only! Do not mount
outdoors.
CAUTION
Do not unplug by pulling on cord. To uplug, grasp the plug, not the cord.
CAUTION
6901-100189 <01>

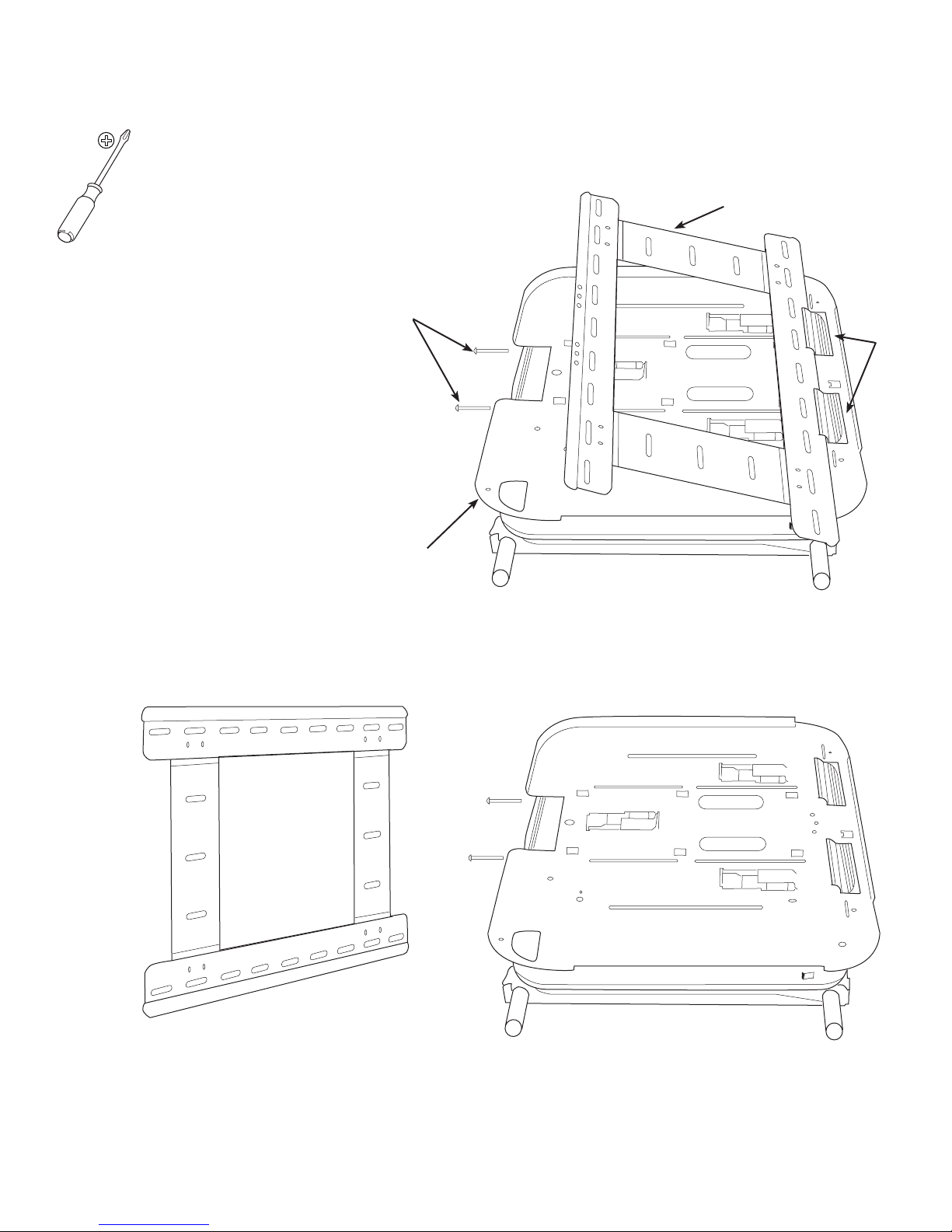

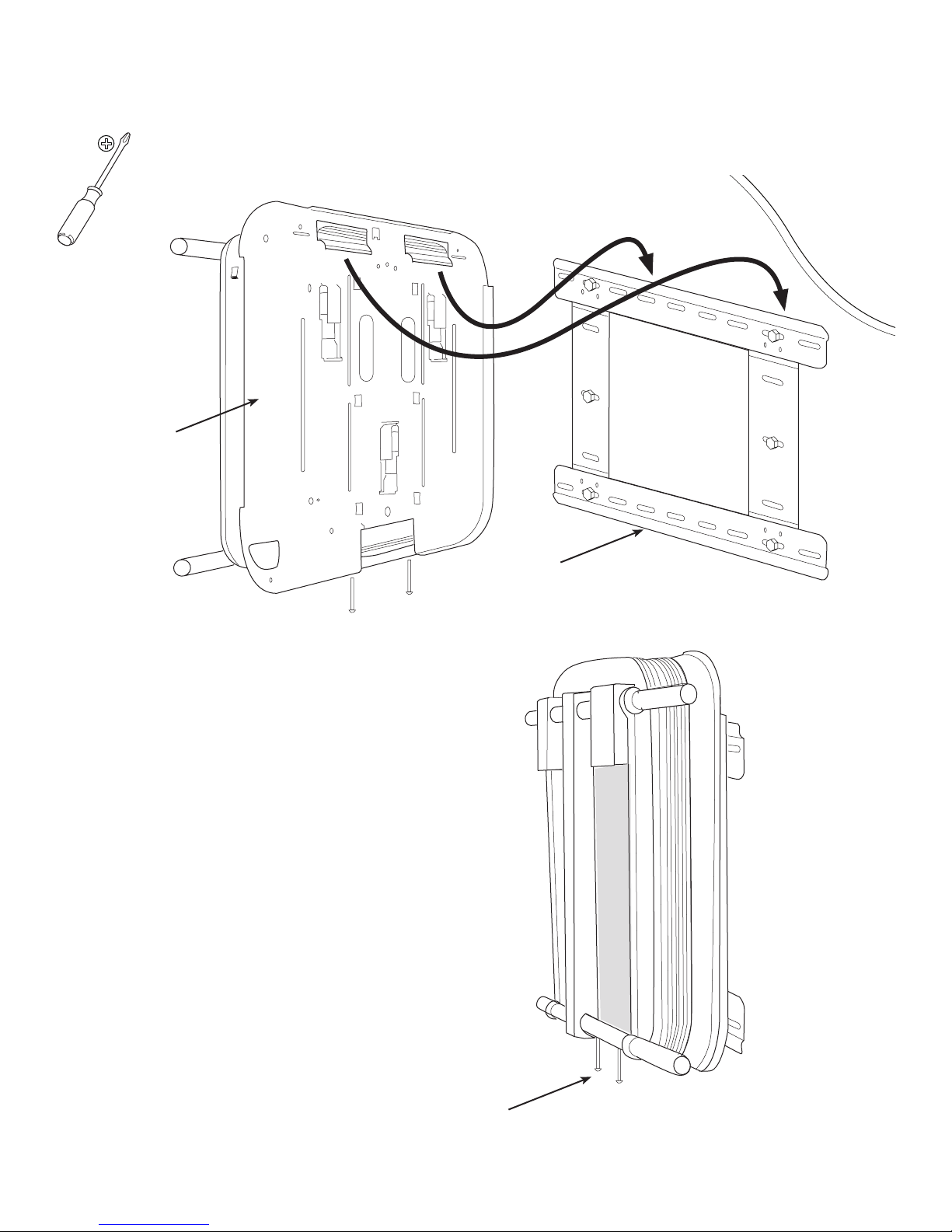

1: Remove Wall Plate from Arm
The LA112 is shipped with the wall plate and arm
assembled.You must remove the wall plate before
installation.
Loosen the two fasteners [A] securing the wall
plate [01] to the arm assembly [02].
Tilt the wall plate away from the arm assembly
then lift the wall plate to disengage it from the
hooks [B].
[A]
[02]
[01]
[B]
6901-100189 <01>

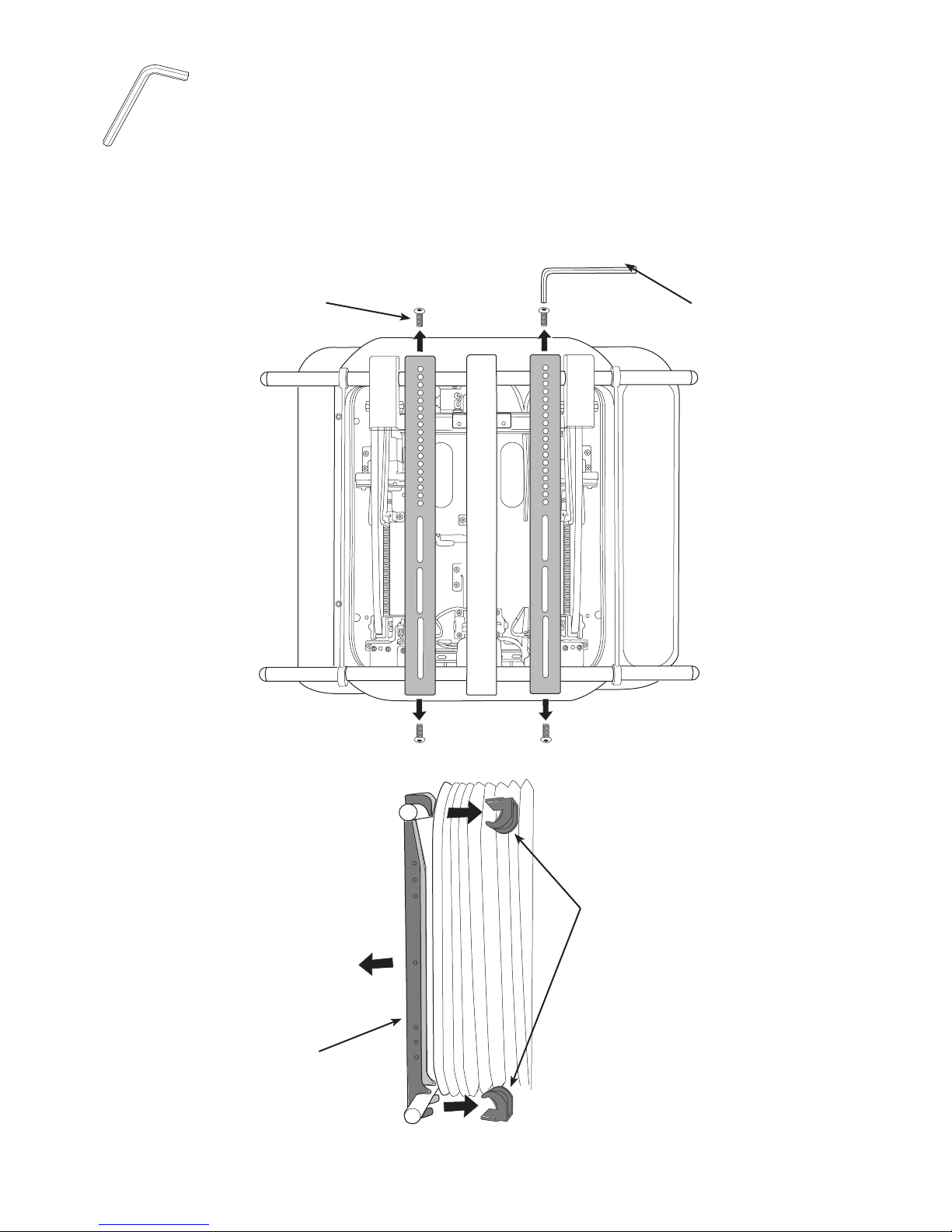

2: Remove Mounting Brackets
[27]
P1 P3
TV
SET
X-ARM
VCR
DVD CBL
SEL
IN/OUT
P
R
E
S
E
T
MENU EXIT
P2 P4
P1 P3
TV
SET
X-ARM
VCR
DVD CBL
SEL
IN/OUT
P
R
E
S
E
T
MENU EXIT
P2 P4
[A]
[03]
[04]
You must remove the two TV Mounting Brackets from the LA112 before attaching the arm to the wall plate.
Remove the hex screws [A] from the mounting brackets [03]. Pull the safety clips [04] from the back of the mounting brackets,
then remove the mounting brackets from the arm assembly.
[27]
6901-100189 <01>
3: Mount Wall Plate

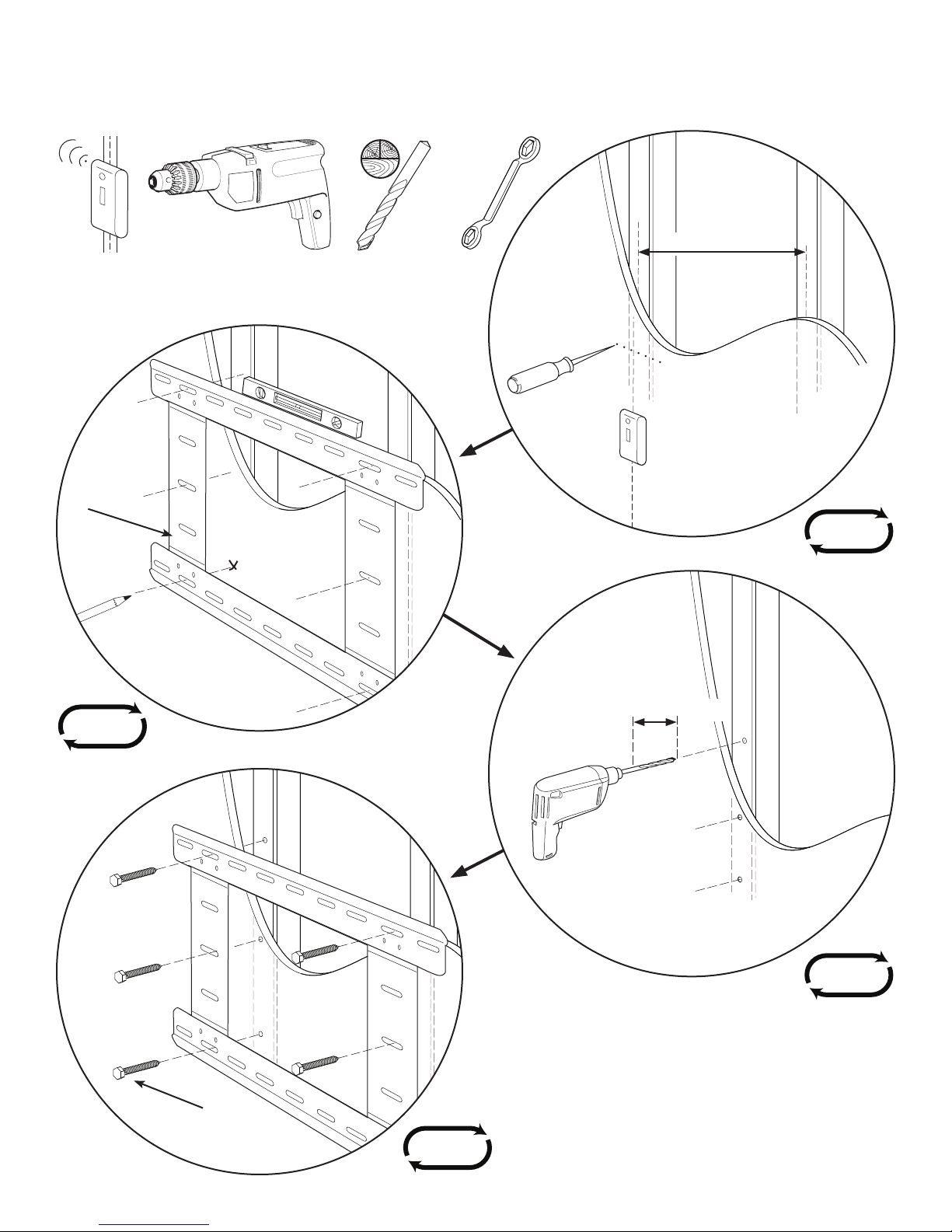

For Wood Stud Walls
Max. 43 cm (17 in.)
Min. 6.5 cm (2.5 in.)
1/8 in.
6x
6x
6x
2x
[01]
[10]
6901-100189 <01>

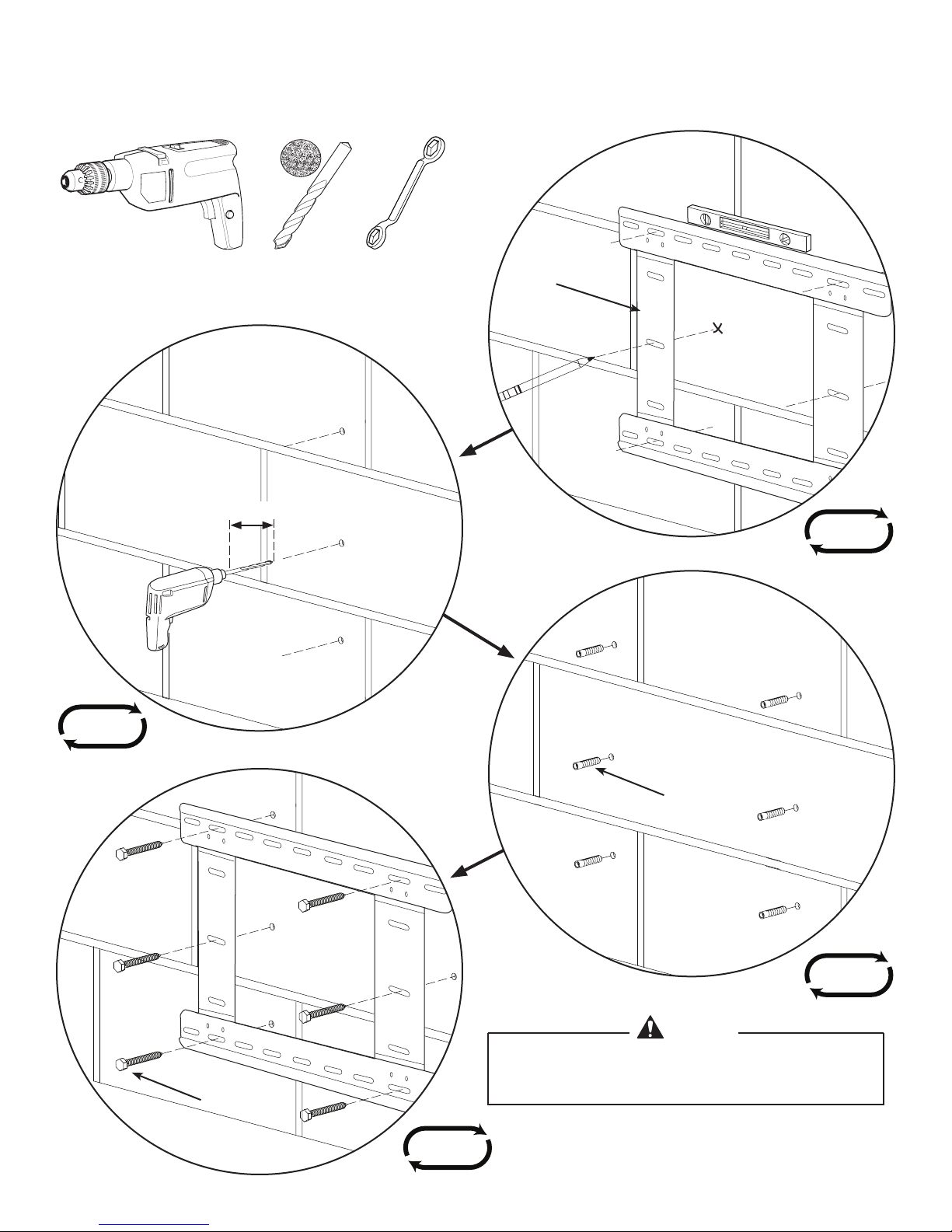

For Concrete Block or Brick Walls
1/2 in.
Min. 6.5 cm (2.5 in.)
6x
6x
6x
6x
Avoid potential injuries and / or property damage!
Never drill into the mortar between concrete blocks!
CAUTION
[10]
[01]
[11]
6901-100189 <01>
4: Install Arm Assembly to Wall Plate
Hang the arm assembly [02] over the top rail of the wall plate
[01]. Be sure both hooks on the arm assembly engage with the
rail.
Align the arm assembly to the desired location on the wall
plates. Secure the bottom of the arm assembly to the wall
plate by tightening the two fasteners [A] at the bottom of
the arm assembly.
[02]
[01]
[A]
6901-100189 <01>

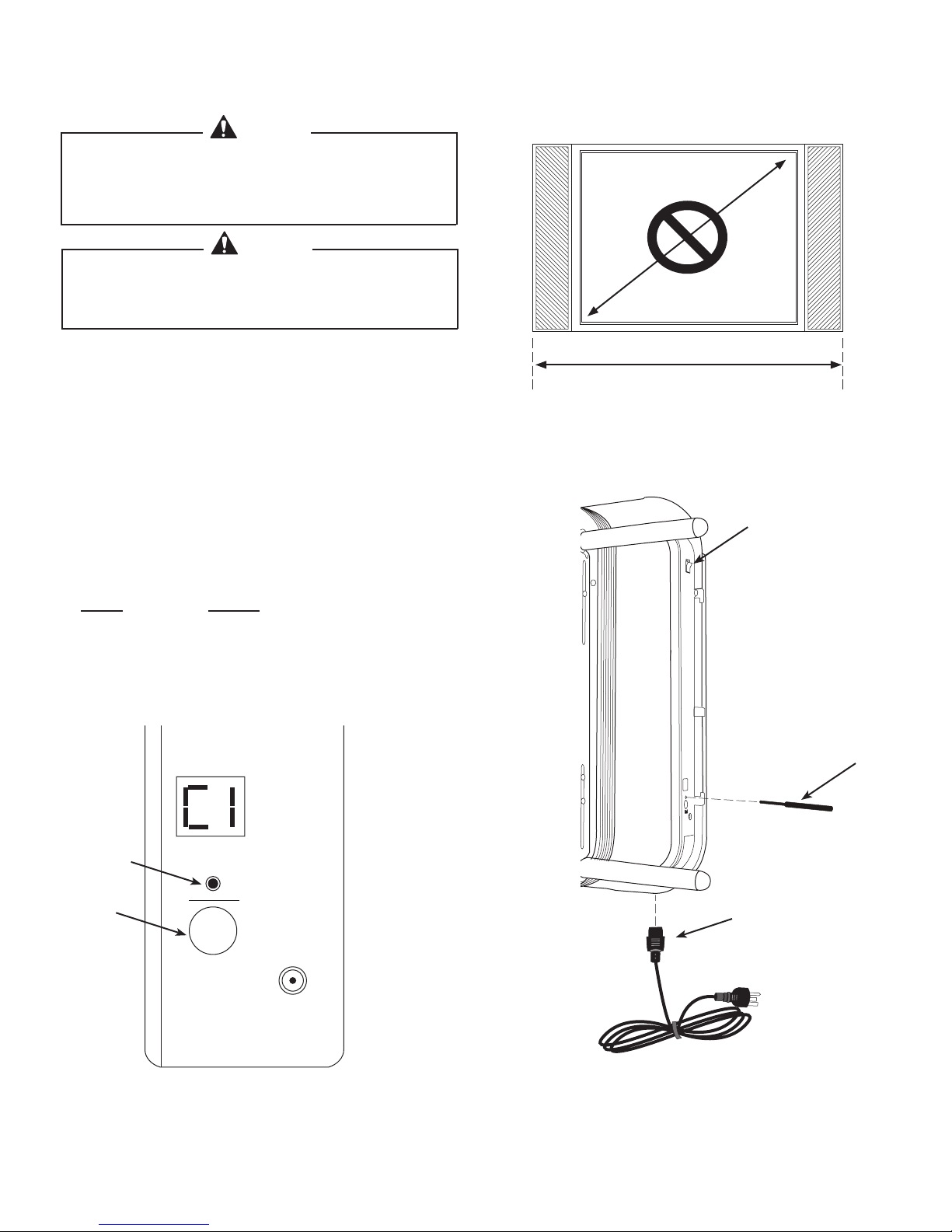

5: Set the Monitor Width
Avoid potential injuries and / or property damage! Do
not use the monitor manufacturer’s “screen size”; you
must measure the width of the monitor case, including
any speakers attached to the sides.
CAUTION
Set
Measure monitor width,
including any speakers
C1 102 - 113 cm (40 - 44.9 in.)
C2 114 - 123 cm (45 - 48.9 in.)
C3 124 - 140 cm (49 - 55.9 in.)
C4 141 - 155 cm (56 - 61.0 in.)
CODE WIDTH
To set the monitor width, determine the correct code from
the chart below.
Insert the power cord [08] into the plug on the arm assembly,
then connect the power cord to a grounded outlet.
Turn the power switch [A] to the ON position. Insert the
selector pin [07] into the receptacle [B] and press until the
correct code is displayed.
Press and hold the“Set” button [C] until the display stops
blinking to accept the code.
Set
[07]
[08]
[A]
Selector
Set
[B]
[C]
The LA112 restricts movement based up on the TV
widteh set on the side controls. The TV widthe must be
set correctly before operating the LA112.
CAUTION
