Recommended placement Our US-based
install experts
are standing
by to help.
Call us at:
888-384-1115
Or, chat at:
SANUS.com/chatSH
Get it right the
first time.
HeightFinder™
shows you
where to drill.
Check it out at:
SANUS.com/2933
Want to watch a
video that shows
how easy this DIY
project will be?
Watch it now at:
SANUS.com/2944
WE’RE HERE TO HELP
HLF
122
INSTRUCTION MANUAL
Para Español ver página 20
2
CAUTION: Avoid potential personal injuries and property damage!
●This product is designed ONLY to be installed into wood studs, solid concrete or concrete block.
—DO NOT INSTALL INTO DRYWALL ALONE — DRYWALL ALONE WILL NOT HOLD THE WEIGHT OF YOUR TV.
●This product is designed for INDOOR USE ONLY.
●The wall must be capable of supporting five times the weight of the TV and mount combined.
●Do not use this product for any purpose not explicitly specified by manufacturer.
●Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.
125 lbs.
(56.6 kg)
Please read through these instructions completely to be sure you’re comfortable with this easy install process.
Check your TV owner’s manual to see if there are any special requirements for mounting your TV.
If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product,
contact Customer Service: 888-384-1115.
TV Weight Limit
(including accessories)
DO NOT EXCEED
If your TV (plus accessories) weighs MORE, this mount is NOT compatible.
Visit MountFinder.Sanus.com or call customer service to find a compatible mount.
CAUTION: DO NOT exceed the
maximum weight indicated. This mounting
system is intended for use only with the
maximum weights indicated. Use with
products heavier than the maximum weights
indicated may result in collapse of the mount
and its accessories, causing possible injury.
CAUTION: IMPORTANT SAFETY INSTRUCTIONS
PLEASE READ ENTIRE MANUAL PRIOR TO USE —SAVE THESE INSTRUCTIONS
3
Call Customer Service: 888-384-1115

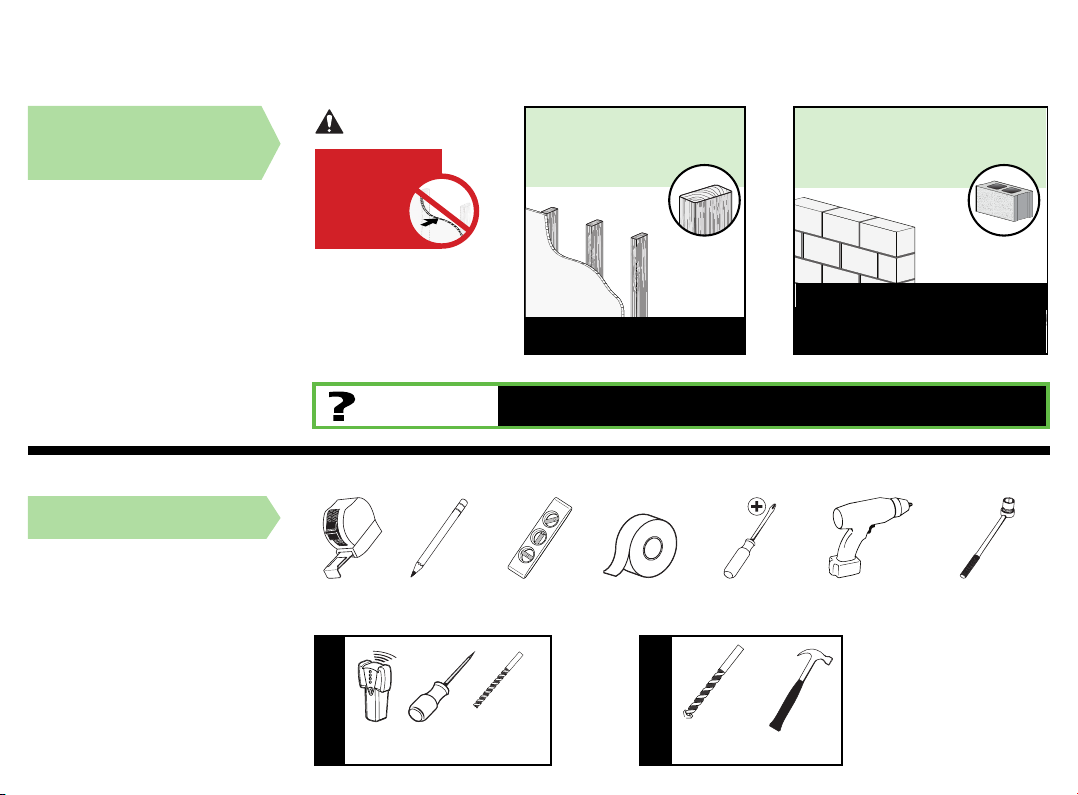

Tools Needed
Wall
Construction
ONLY install on
these acceptable
wall types. Drywall alone
will NOT hold the
weight of your TV
Unsure
wood studs Solid concrete or
concrete block
ACCEPTABLE Concrete kit CMK1 is required
[NOT INCLUDED] Call Customer Service
Wood Stud Install
Concrete Install
Awl
Pencil Level Tape
Stud
Finder
ScrewdriverTape
Measure
7/32 in.
(5.5 mm)
Wood
Drill Bit
Electric
Drill
Hammer
1/2 in.
(13 mm)
Socket
Wrench
Drill Bit
3/8 in.
(10 mm)
Concrete
CAUTION:
DO NOT
install in
drywall
alone
ACCEPTABLE
4
0.35in
9mm
15.98in
406mm
0.87in
22mm
9.00in
228.5mm
7.62in
193.5mm
5.31in
135mm
5.31in
135mm
25.91in
658mm
17.13in
435mm
35deg
35deg
2.53in
64.2mm
9.24in
234.6mm
7.89in
200.4mm
22.00in
558.8mm
15deg
DOWN
8deg TILT
SIMULATED 70"
FLAT SCREEN TV
WALL PLATE
TOP VIEW - SWIVEL
3-D
SIDE VIEW - EXTENSION/TILT
SIDE VIEW - RETRACTED
FRONT VIEW - TILT
FULLY ASSEMBLED MOUNT
WALL IS ON RIGHT
WALL IS ON RIGHT
WALL IS ON TOP
WALL IS ON TOP
15.75in
400mm
MAX
23.62in
600mm
MAX
7.87in
200mm
MIN
TV INTERFACE
MIN
200mm
7.87in

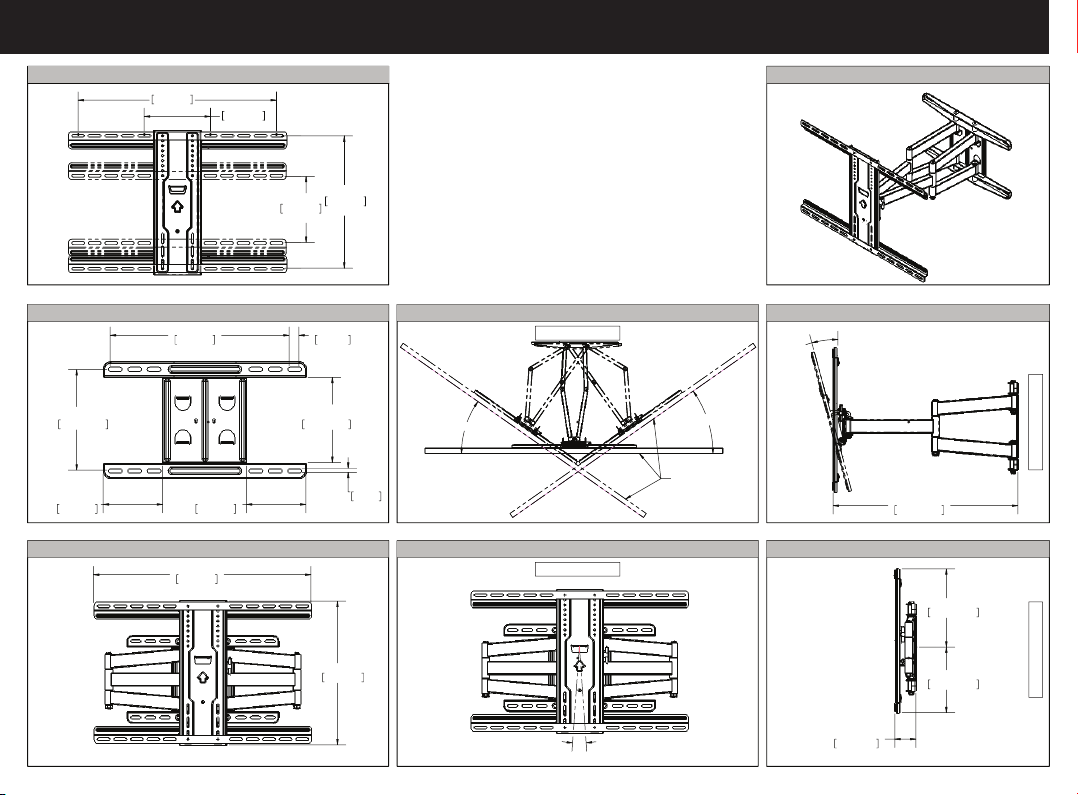

Dimensions
5
5/16 in.
5/16 x 2¾ in.
M5 x 8mm
M6/M8
2.5mm
22mm
M8 x 25mm M8 x 50mm
M6 x 12mm
M8 x 16mm
M6 x 35mmM6 x 20mm
M8 x 35mm
Supplied Parts and Hardware
WARNING: This product contains small items that could be a choking hazard if swallowed.
Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return
the damaged item to your dealer; contact Customer Service. Never use damaged parts!
NOTE: Not all hardware included will be used.

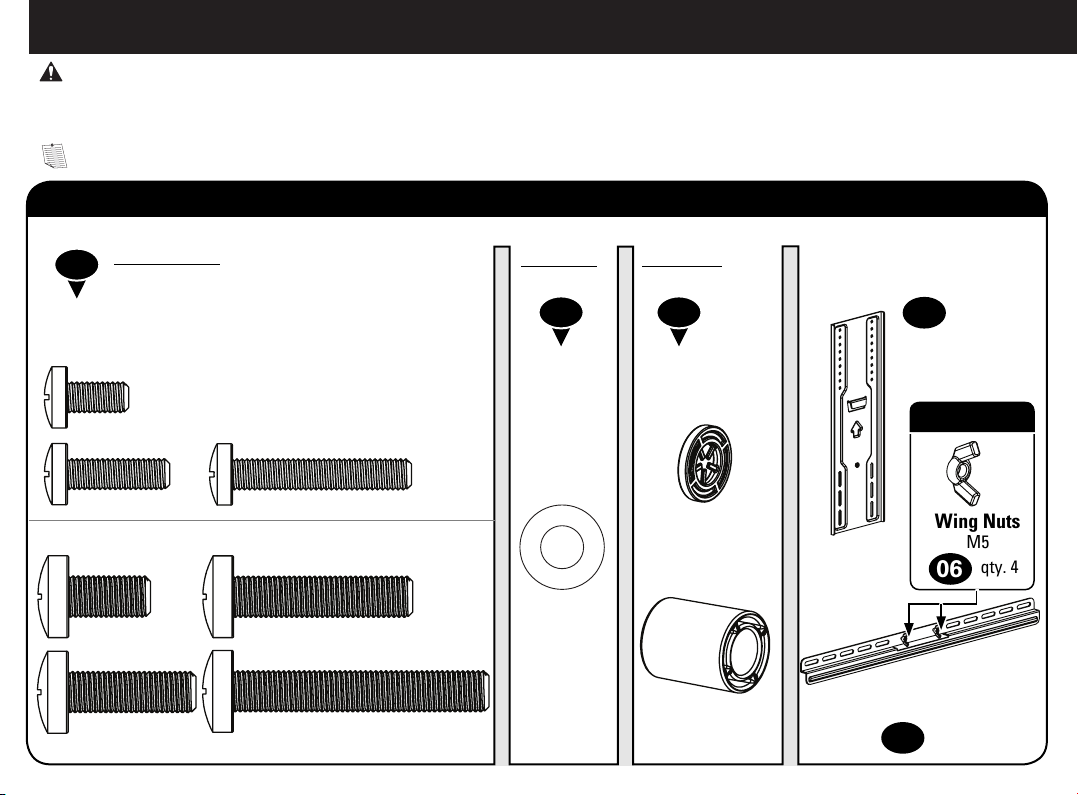

STEP 1 Parts and Hardware
TV Screws
(qty. 4 each)
[Only one size fits your TV]
M6
M8
Washer
(qty. 4 each)
Spacers
[If necessary]
0302
01 Vertical TV Bracket
Horizontal TV Bracket
Wing Nuts
M5
05
04
qty. 8
qty. 1
qty. 2
06 qty. 4
qty. 4
Shipped Attached
6
5/16 in.
5/16 x 2¾ in.
M5 x 8mm
M6/M8
2.5mm
22mm
M8 x 25mm M8 x 50mm
M6 x 12mm
M8 x 16mm
M6 x 35mmM6 x 20mm
M8 x 35mm

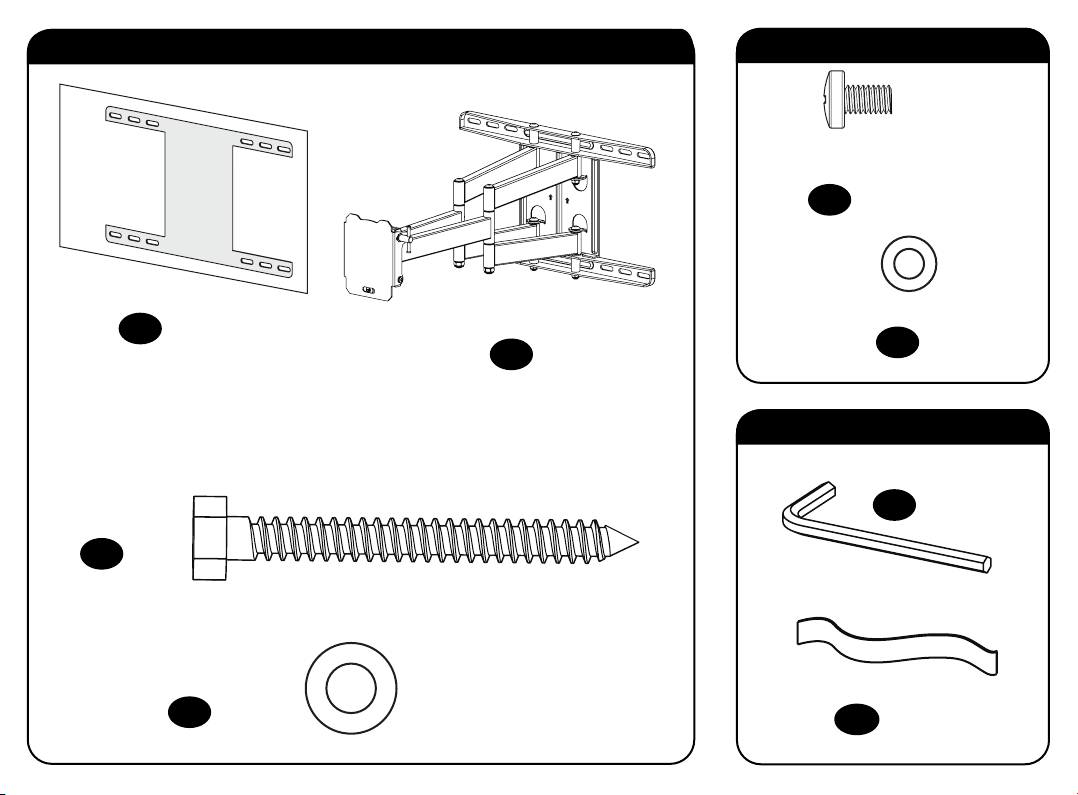

Wall Plate Assembly
Wall Plate Template
Securement Screw
Washer [Securement Screw]
Hex Key
Cable Tie
11
12
13
14
Lag Screw
09
07
08
10
Washer [Lag Screw]
STEP 2 Parts and Hardware STEP 3 Hardware
Installation / Adjustments
qty. 1
qty. 1
qty. 1
qty. 1
M4
qty. 4
qty. 4
qty. 4
qty. 1
7
5/16 x 2¾ in.
5/16 in.
Fischer UX10 x 60R
Concrete Anchors
For concrete installations ONLY
CAUTION: Do not use in drywall or wood
1/4-20 x 1.75
1/4 in.
5/16 x 2¾ in.
5/16 in.
Fischer UX10 x 60R
Concrete Anchors
For concrete installations ONLY
CAUTION: Do not use in drywall or wood
1/4-20 x 1.75
1/4 in.
5/16 x 2¾ in.
5/16 in.
Fischer UX10 x 60R
Concrete Anchors
For concrete installations ONLY
CAUTION: Do not use in drywall or wood
1/4-20 x 1.75
1/4 in.
Lag Bolt
Washer
C2
C3
C1

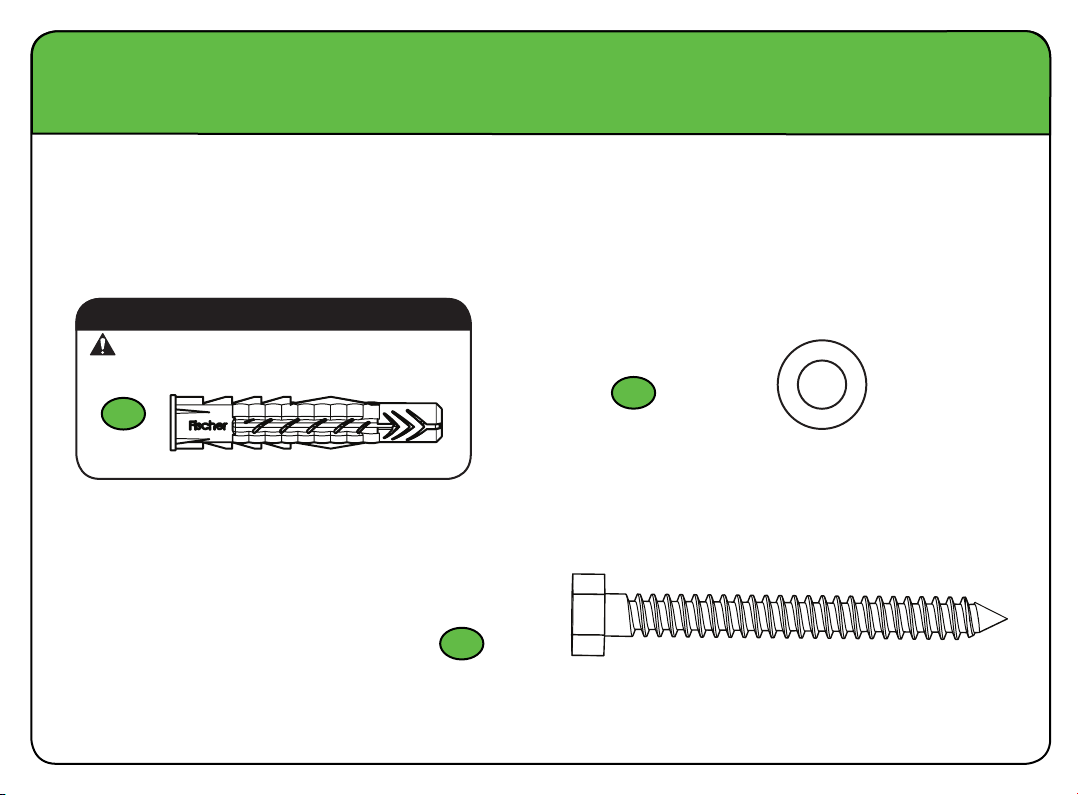

Hardware for STEP 2B
Concrete Installation [Concrete Kit CMK1 is NOT INCLUDED]
Contact Customer Service at 888-384-1115 to inquire about the Concrete Installation
Kit CMK1.
qty. 4
qty. 4
qty. 4
8
STEP 1 Attach TV Bracket to TV

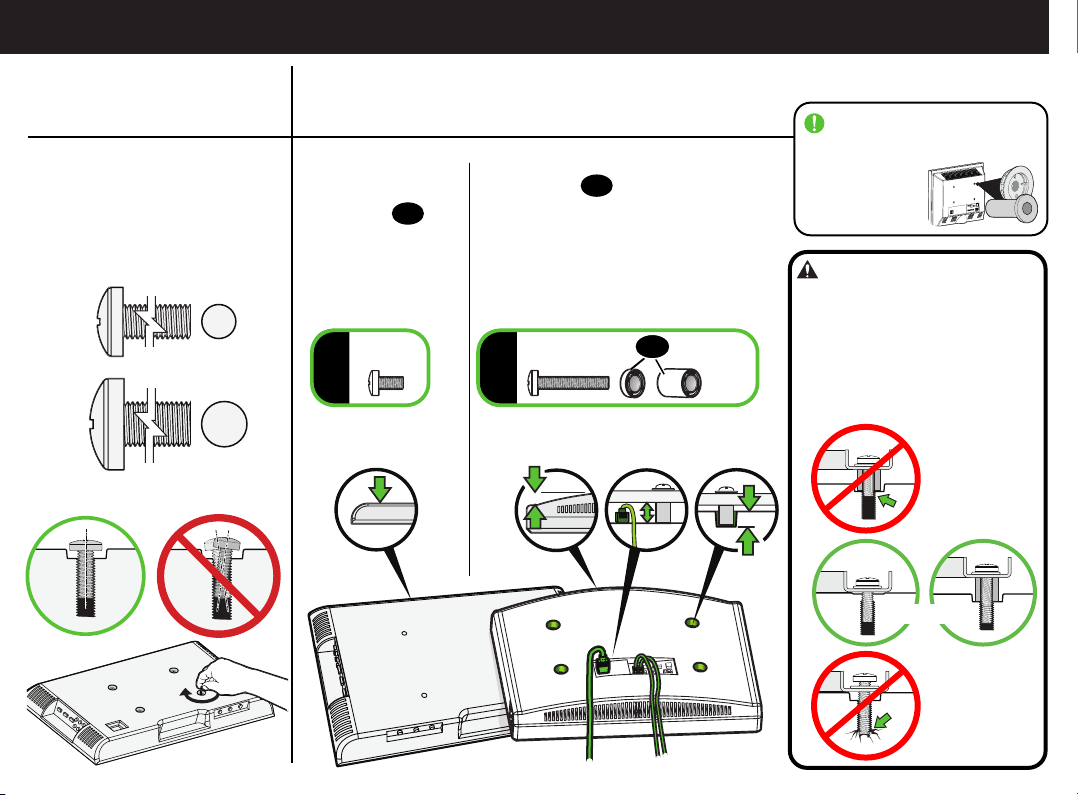

1-1 Select TV Screw
Diameter 1-2 Select TV Screw Length
Too Short
Too Long
CAUTION:
Verify adequate thread
engagement with the screw or
screw/spacer combination.
-Too short will not hold the TV.
-Too long will damage the TV.
Correct
M6
M8
ab
a:For flat-back TVs,
no spacers 03
required.
b:Spacers 03 supplied for:
●Round (irregular) back TVs
●Extra space needed (for cables
or inset mounting holes)
FLAT BACK ROUND BACK CABLES INSET HOLES
03
If your TV included inset
spacers or wall mount adapters,
use them
UNDER the
mount hardware.
Hand thread screws into the
threaded inserts on the back of
your TV to determine which screw
diameter (M6, or M8) to use.
9

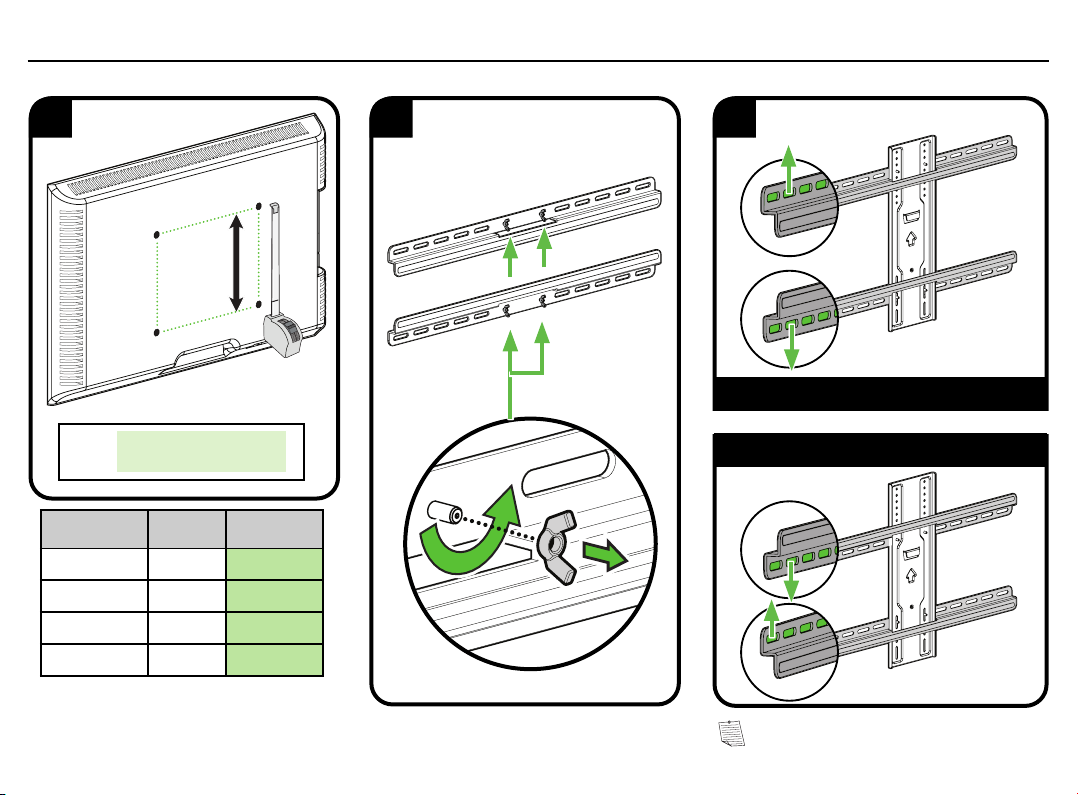

1-3 Attach TV Bracket
Measure the HEIGHT (H) of your TV's
mounting hole pattern.
inch dimensions are approximate
inches cm mm
7⅞20 200
11 ¾ 30 300
15 ¾ 40 400
23 ¾ 60 600
1 2 3
H
Hmm
NOTE: Position the slotted holes as
shown for your TV hole pattern Height (H).
HEIGHT (H) equal (=) 200 mm
HEIGHT (H) greater than (>) 200 mm
10

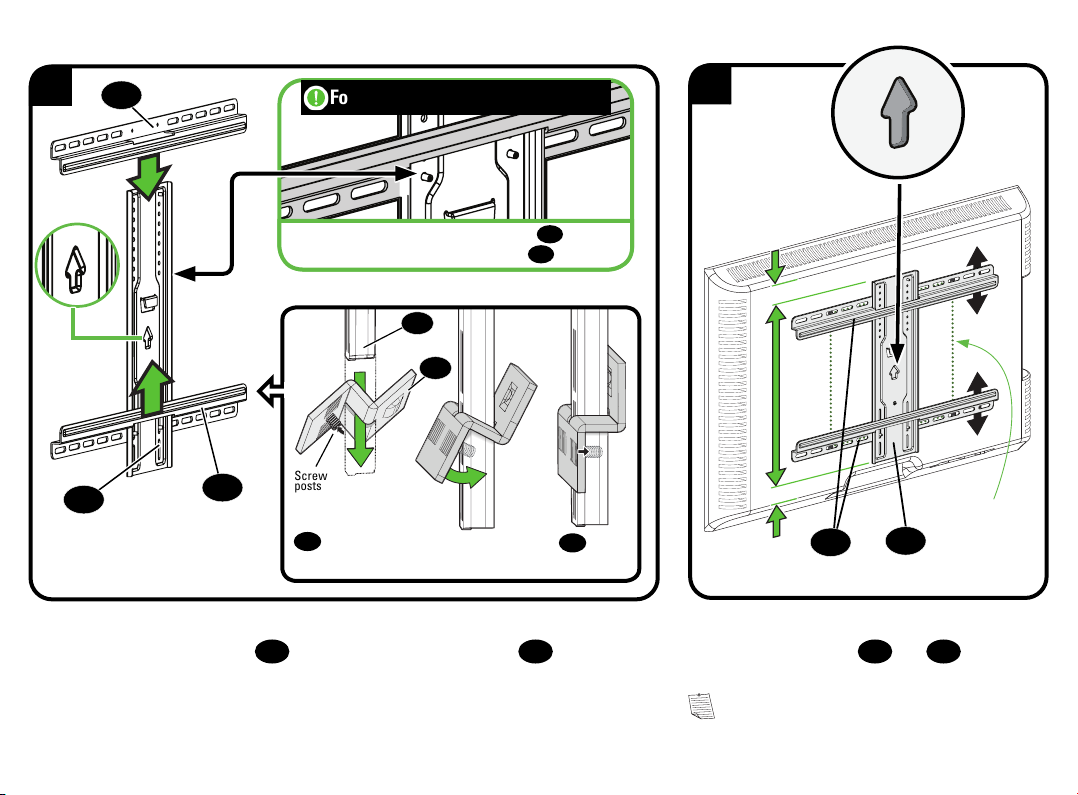

Center the TV brackets 04 and 05 over the
hole pattern on your TV.
NOTE: If the TV brackets are not centered,
you may need to reposition to align properly (see
previous step).
4
05
04
05
Slide horizontal TV brackets 05 onto the vertical TV bracket 04 as shown.
Angle the brackets
05
to clear the
screw posts.
Tilt the brackets 05 to
nest the screw posts.
Screw
posts
04
5
05
TV HOLE
PATTERN
TOP OF TV
05
04
For HEIGHT (H) equal (=) 200 mm
Screw posts on horizontal TV bracket 05 must sit
in bottom hole of vertical TV bracket 04 .
