Save These Instructions!

Cooling only Model

SANYO Electric Co., Ltd.

SA-97P

SA-127P

SA-187P

Pub. OI- 85S64119001001 © S ANYO 2008

INSTRUCTION

MANUAL

Room Air Conditioner

( With Warranty Card )

Thank you for choosing SANYO air conditioner. Our design is based on the best efficiency and the

lowest noise operation and it can keep the room comfortable. Please read this Instruction Manual

carefully before operating the unit and keep it for consultation. If you still have any diculties or

problems, consult your dealer for help.

CONTENT

Function and working temperature range

Technical specifications

Operating condition and power requirement

Installation

Notes for installation

7Part identifications

Air conditioner operation

01Operation tips

Caution

Care and maintenance

When trouble shooting

Warranty card

Function and working temperature range

Introduction

Window type room air conditioners of SANYO can regulate the room temperature,dry

the room. It is convenient for your work,study and life. It can be widely used in residence,

shop, hotel, office, library and laboratory, and so on.

Cooling in summer

In hot summer, Air conditioner can cool down

room air by transferring heat out.

Open storm door to keep the fresh air in the

room.

Exchange fresh air

Technical specifications

All the above subject to chaneg without notice and the correct parameter is on the name

plate of your air conditioner.

The product specifications are based on the following rating conditions.

Voltag e: AC 230 V + 10%

27 / 19

--- ---

35 / 27

450 × 350 × 580

9,300

12,600 18,00

52/47

59/53

1.33

5.9

720

50/46

58/54

0.90

4.2

49/43

56/52

560 × 375 × 600 660 × 428 × 70

.39.5

10.3

Table 1

SA-97P SA-187P

SA-127P

Cooling Cooling

Cooling

230V 60Hz

Function

Refrigerant R22

Current

Power input

Cooling Capacity

Power Supply

E.E.R

Noise

(Cooling)

(Hi / Low)

dB (A)

Dimension

Width x Height x Depth

Net Weight

Model

(KJ/h)

(A)

(kW)

(g)

(KJ/Wh)

Indoor

(Hi / Low)

Outdoor

(Hi / Low)

(mm)

(kg)

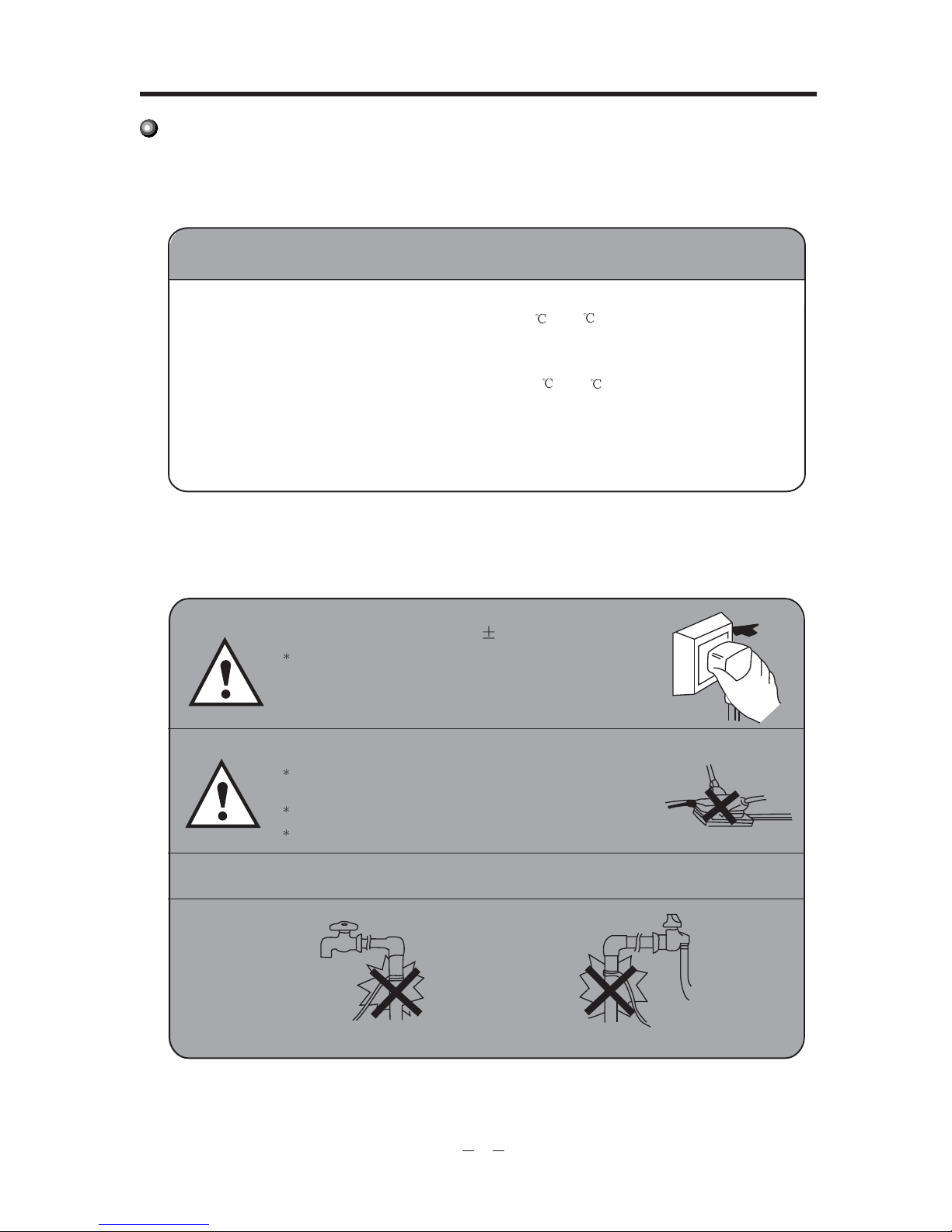

Electric circuit:

Must use special socket, do not use longer power lines, do not share

a same socket with other electric appliances to avoid fire etc.

The earthing method must be reliable.

Work within correct voltage range.

Earth wire do not connect earth wire to following places.

Water pipe Gas pipe

Rated voltage range: AC 230V 10 %

The compressor would vibrate violently to damage the

refrigerant system, when voltage is too high.

AC 230V

Cool mode operation

Operating condition

Power requirement

1. Outdoor temperature should be in range of 19 to 43 . Otherwise it is possible

for air conditioner to breakdown.

2. Room temperature should be in the range of 19 to 32 .

3. Room humidity should be lower than 90%, Otherwise it is possible to dew at air

conditioner surface and even drop water.

Please operate air conditioner in correct conditions as following:

Installation precaution:

Window type conditioner is so valuable and the improper installation of

it will cause a lot of damage! Please associate the professional techni-

cian to install the unit and don’ t install it by yourself.

Otherwise, wearenotresponsibleforthedamagelikethis.

Location:

The condensation water must be drained away conveniently.

Install air conditioner unit far away from TV set or radio etc. to avoid disturbing video or voice.

In salt and coastal area or place where is near thermal springs and polluted by sulphurous gas, or other special areas,

please contact the seller before use.

Avoid a place where is possible for inflammable gas to leak out.

Avoid other heat sources or direct sun light.

Avoid a place where is easy for children to touch.

How to install:

Choose a location where there are no any obstacle surrounding the unit.

Prepare the installation hole slightly bigger than unit size.

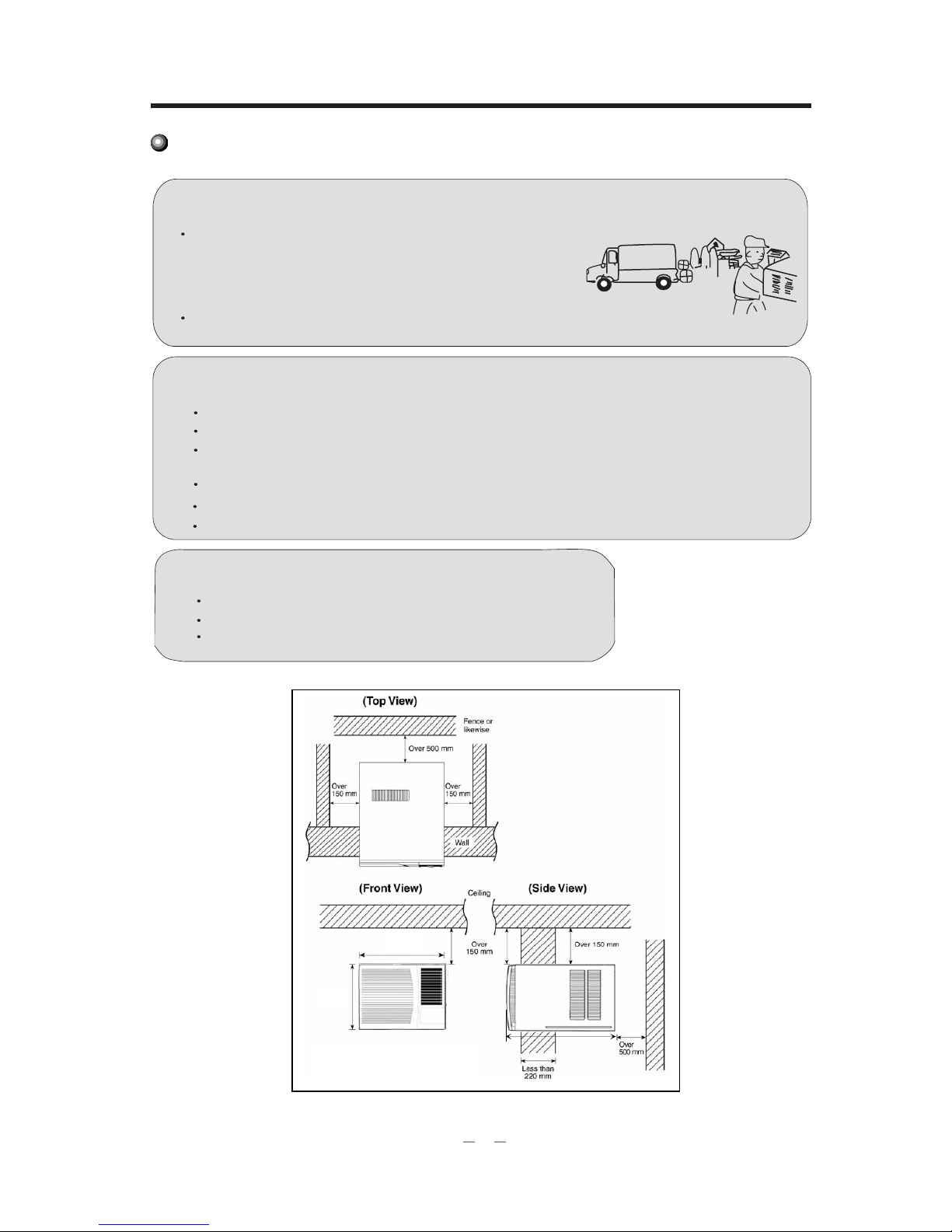

Choose the installation space according to the following diagram.

Before installation, check that the voltage of the electric supply in your

home or office is the same as the voltage shown on the name plate.

Installation

* See Table 1 on page 2 for unit

dimension (WxDxH)mm.

*D mm

*W mm

*H mm

Horizontal line

Sunshade board

Wall

Wooden frame

Rubber plate

Support

Horizontal line

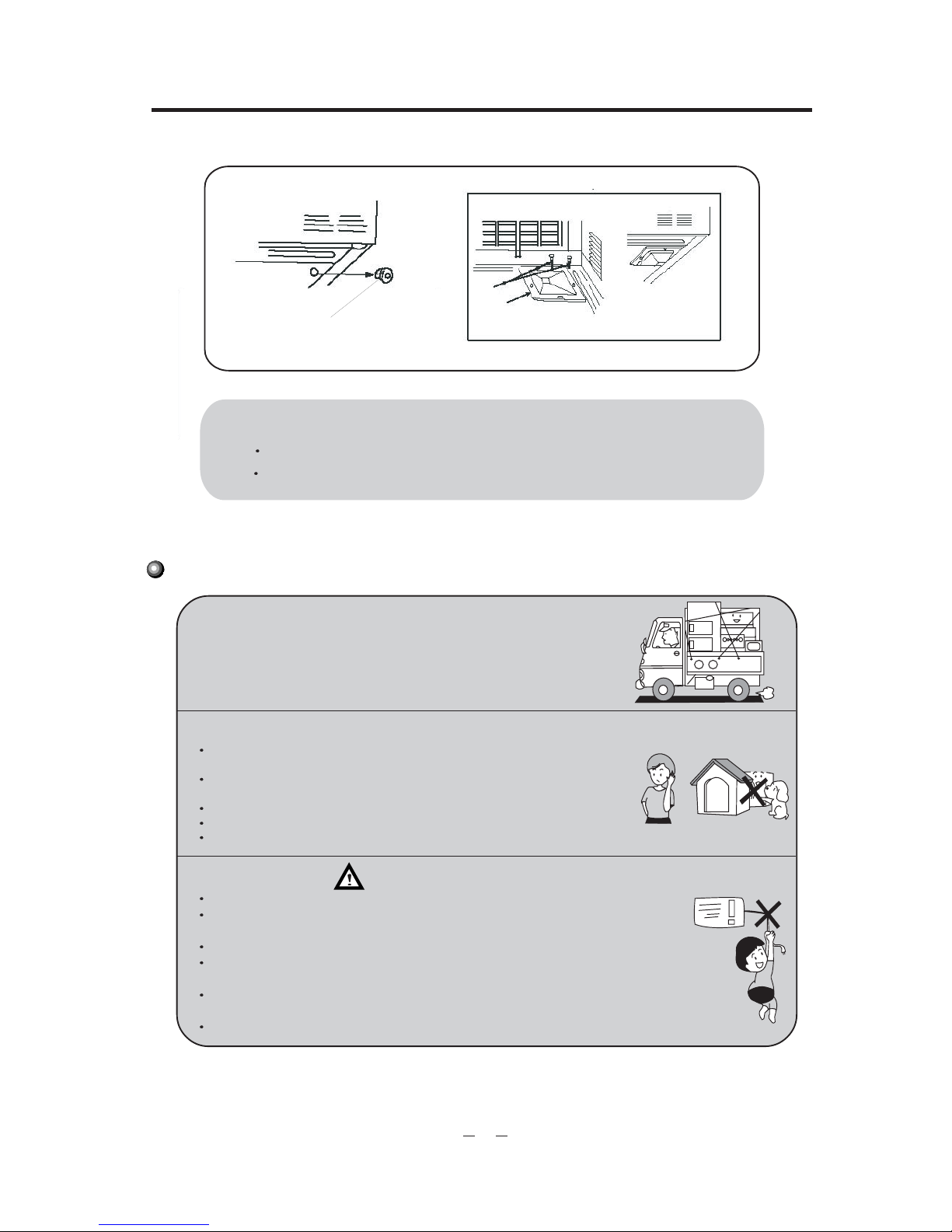

Drain water:

To get the maximum cooling efficiency, the air conditioner is designed to splash the condensation water on the

condenser coil.

If the splashing sound annoys you, you can provide an outside drain by using the following procedure, which

may however cause a small loss of performance.

1. Slide out the chassis from the cabinet.

2. Remove the rubber plug from the body base plate.

3. Install the drain pan to the corner of the cabinet with 2 screws.

4. Connect the drain hose to the outlet on the drain pan bottom.

5. Slide the chassis into its original place in the cabinet.

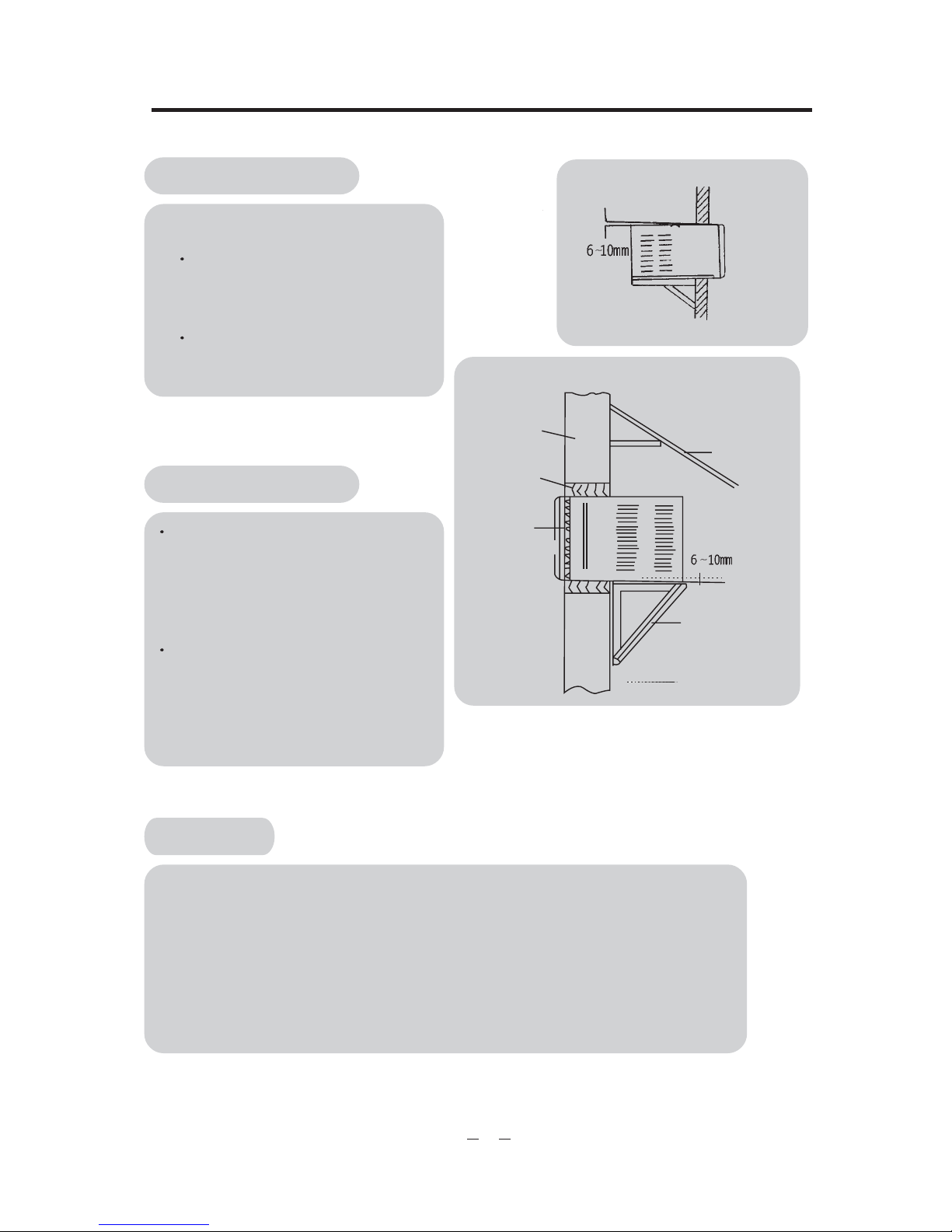

Installation procedure:

1) Remove the sticker from the front panel.

2) Put the unit into the installation hole.

When installing the unit, it should be slanted

down to the back to avoid the enlargement of

noise or vibration. (Slant between 6-10mm.)

(Shown at right figure.)

The installation place should be strong enough

to avoid the enlargement of noise or vibration.

3) Fill up sews in the cabinet with sponge or foam.

Installation assistance:

Use iron support

The installation hole should be strong enough to

support the air conditioner. If it cannot, iron sup-

port has to be used outdoors.

Iron support should be fixed on the building (Shown

at right figure.)

Use sunshade board

Air conditioner should avoid anything to be dropped

into it and avoid direct sunshine. If there is no cover

on it, you should contact the seller for installing

the sunshade board. When installing the sunshade

board, don’t let it block the air inlet at the side grille.

Notes for installation

Remove

Before removing air conditioner to the other place, you should

contact the seller firstly.

Then it must be done under the direction of the professional

technician. In addition, the charge of this must be paid.

Noise

Electric wiring

Install in a location where is firm enough to avoid the enlargement of noise

and vibration.

Don’t put anything in front of the outlet of outdoor unit to avoid increasing

noise.

Be sure that hot air or noise will not inconvenience neighbors.

Please contact the seller as soon as there is strange noise during operation.

Please use the safety support.

Must connect with ground reliably.

The exclusive circuit must be used. But removable socket can’t be used because poor

contact of it can cause over heat or fire.

Don’t pull the power cord strongly.

In fixed circuit, there must be electricity leakage protection switch and leakage current

is less than 30mA.

Air switch (thermal-magnetic breaker) should be installed in the circuit and its recommended

capacity is 10A (SA-97-P & SA-127P) and 15A (SA-187P).

The fixed wiring should be more than 2.5mm

in area.

Exterior View

Inside View

Screw Bottom Side View

of Drainage Pan

Drainage Pan

Exterior V iew

Inside V iew

Screw Bottom Side V iew

of Drainage Pan

Drainage Pan

Note:

Drain hose or tubing can be purchased locally to satisfy your particular needs.

Remove the rubber plug

The drainage pipe shall be steadily connected with the drainage faucet without leakage.
