Sanyo STB0810C1 Manuale utente

INSTRUCTION MANUAL

26" Through The Wall

Air Conditioner

Cool Only Models

Cool/Heat Models

Save These Instructions!

STB Series

Pub. OI-85164119637001 ©SANYO 2000

STB0810C1

STB1010C1

STB1020C1

STB1220C1

STB0811C1

STB1023C1

STB1123C1

Contents

Page

Product Information..............................................................................................2

Alert Symbols........................................................................................................2

Installation Location..............................................................................................3

Electrical Requirements........................................................................................3

Safety Instructions ................................................................................................3

Names of Parts......................................................................................................4

Control Panel and Operation Functions..............................................................5

Other Features.......................................................................................................7

Care and Cleaning.................................................................................................8

Tips for Energy Saving.........................................................................................9

Troubleshooting...................................................................................................10

Product Information

If you have problems or questions concerning your Air Conditioner, you will

need the following information. Model and serial numbers are on the

nameplate of the cabinet.

Model No. Serial No.

Date of purchase

Dealer's address

Phone number

Alert Symbols

The following symbols used in this manual, alert you to potentially

dangerous conditions to users, service personnel or the appliance:

This symbol refers to a hazard or unsafe

practice which can result in severe personal

injury or death.

CAUTION This symbol refers to a hazard or unsafe

practice which can result in personal injury

or product or property damage.

2OI-602-02EG

oi602000

Installation Location

•We recommend that this air conditioner be installed properly by

qualified installation technicians in accordance with the Installation

Instructions provided with the unit.

•Before installation, check that the voltage of the electric supply in your

home or office is the same as the voltage shown on the nameplate.

•Do not install this air conditioner where there are fumes or flammable

gases, or in an extremely humid space such as a greenhouse.

•Do not install the air conditioner where excessively high heat-

generating objects are placed.

Electrical Requirements

1. All wiring must conform to the local electrical codes. Consult your

dealer or a qualified electrician for details.

2. Each unit must be properly grounded with a ground (or earth) wire or

through the supply wiring.

3. Wiring must be done by a qualified electrician.

Safety Instructions

•Read this Instruction Manual carefully before using this air conditioner.

If you still have any difficulties or problems, consult your dealer for

help.

•This air conditioner is designed to give you comfortable room

conditions. Use this only for its intended purpose as described in this

Instruction Manual.

•Never use or store gasoline or other flammable vapor or liquid near the

air

•Never use an extension code with this air conditoner.

conditioner – it is very dangerous.

CAUTION •Do not turn the air conditioner on and off from the power mains switch.

Use the mode selector switch.

•Do not stick anything into the air outlet of the unit. This is dangerous

because the fan is rotating at high speed.

•Do not let children play with the air conditioner.

•Do not cool or heat the room too much if babies or invalids are present.

3OI-602-03EG

oi602000

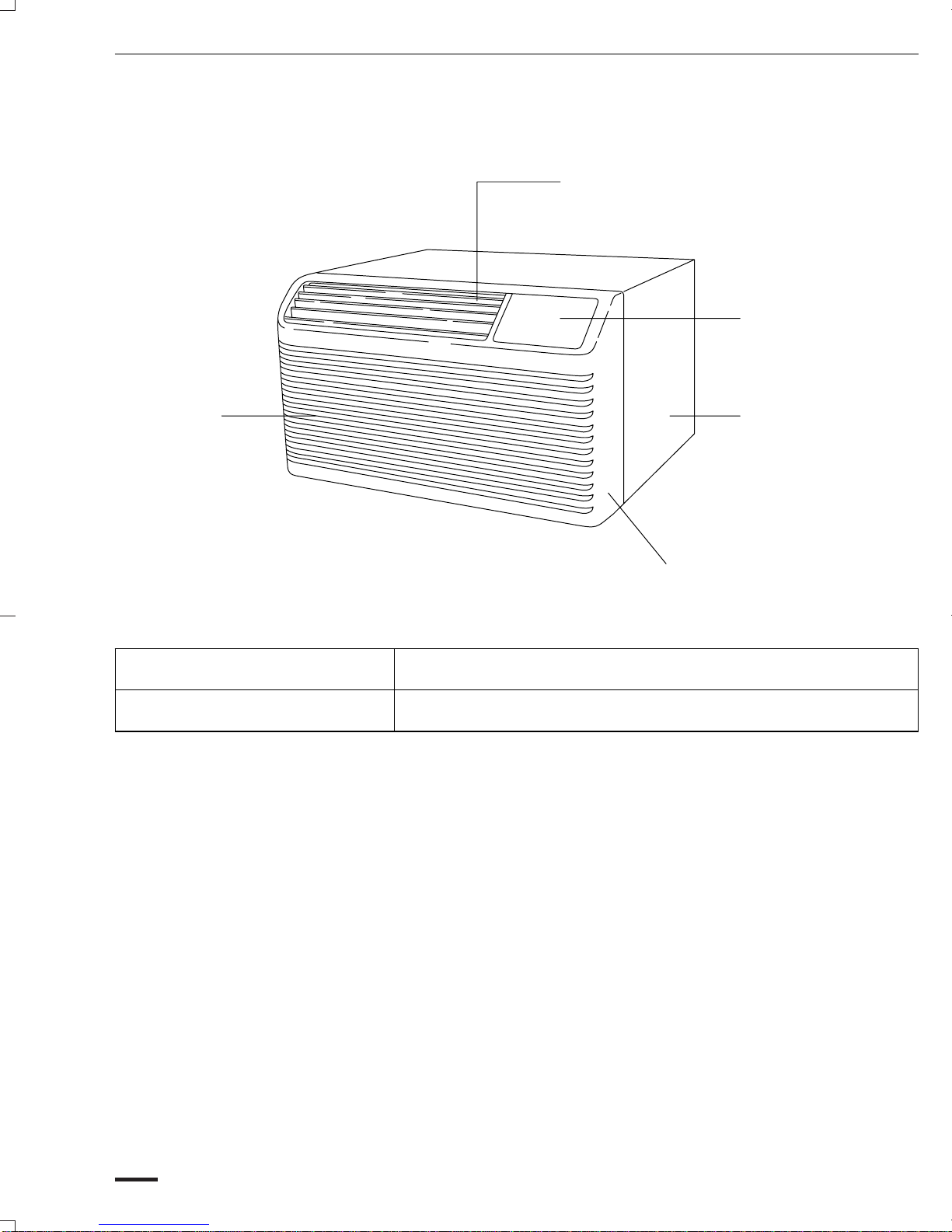

Names of Parts

Air Intake Air from the room is drawn into this section and passes through

air filters which remove dust.

Air Outlet Conditioned air is blown out of the air conditioner through the air

outlet.

4OI-602-04EG

oi602000

Air intake

Air outlet

Cover switch and

control panel

Wall case

Front grille

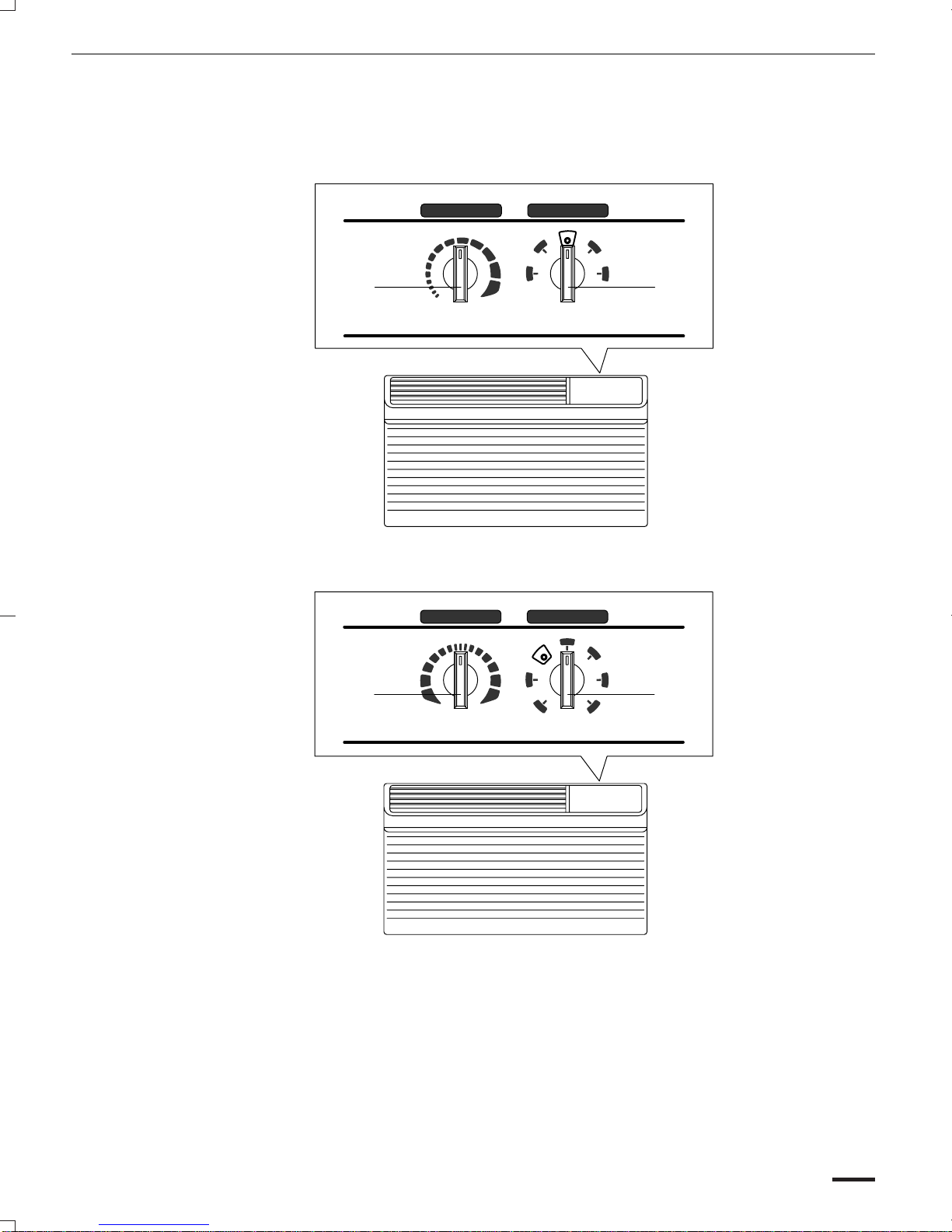

Control Panel and Operation

Functions

Thermostat

Cool Only Model

Cool/Heat Model

Control The thermostat knob is used to control the room temperature. The unit

automatically cycles on and off to maintain room temperature.

A comfortable temperature will be maintained in most rooms when the

control is set to about intermediate range.

Mode Selector HI HEAT provides heating with high fan speed operation.

LOW HEAT provides heating with low fan speed operation.

OFF setting stops heating or cooling operation. However, power remains

connected to the unit Hi FAN/Lo FAN provides fan operation without

cooling or heating.

HI COOL provides cooling with high fan speed operation.

LO COOL provides cooling with low fan speed operation.

5OI-602-05EG

oi602000

THERMOSTAT SELECTOR

LOW OFF

FAN

COOLER

LOW

COOL

HIGHHIGH COOL

Thermostat Mode

selector

HIGH

THERMOSTAT SELECTOR

LOW

OFF FAN

FAN

HEAT

COOLERWARMER

HEAT LOW

COOL

HIGH

COOL

Thermostat Mode

selector

Operation: 1. Set the mode selector for fan, cooling or heating operation.

2. Set the thermostat to the desired position. (Refer to the setting

temperature guide above.)

Set the operation selector switch.

NOTE The above temperatures are provided for reference only, and may differ

from the actual temperature of the room.

How to stop the air

conditioner: To stop the air conditioner, set the mode selector to OFF position.

How to restart the air

conditioner: To restart the air conditioner, set the mode selector to desired position.

CAUTION If the unit is turned off during cooling and heating, DO NOT restart it

immediately, as this can damage it. Wait at least three minutes before

starting

2) Freezing Up:

If you notice that your air conditioner is not cooling as it should, it may

be that ice has formed on the cooling coils. The ice blocks air flow and

stops the unit from cooling the room. This “freezing up” is a temporary

condition that most often occurs at night when the Thermostat is set on

the coldest setting and the Selector is set on LOW COOL.

To correct the condition set the Selector at (H or L) FAN or HIGH COOL

with the Thermostat with turning the thermostat knob to the opposite

direction from ”COOLER”.

it again.

WARMER

(88°F) (55°F)(55°F)

COOLERCOOLER

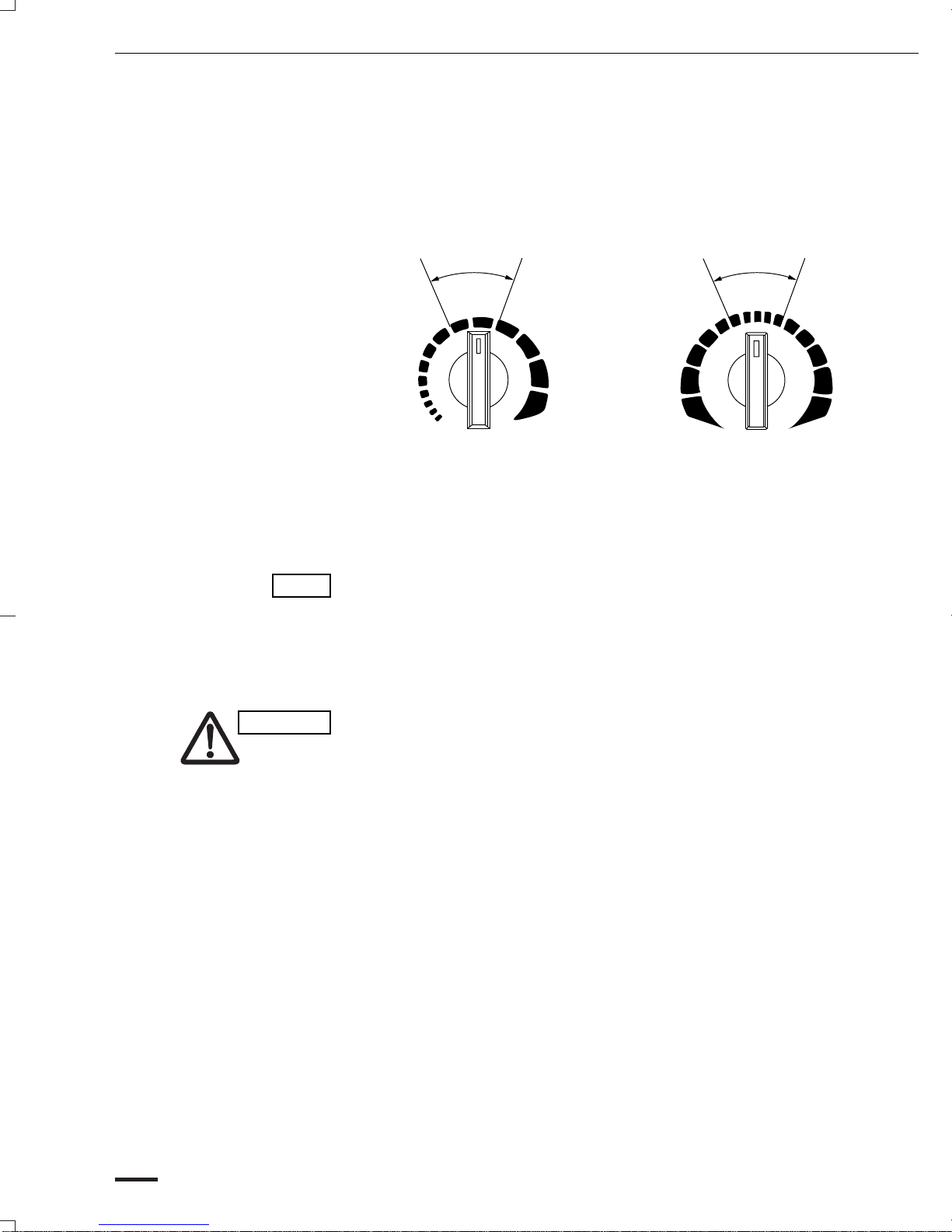

THERMOSTAT

(setting temperature guide)

6OI-602-06EG

oi602000

Cooling Only Model Cool/Heat Model

Control Panel and Operation

Functions (continued)

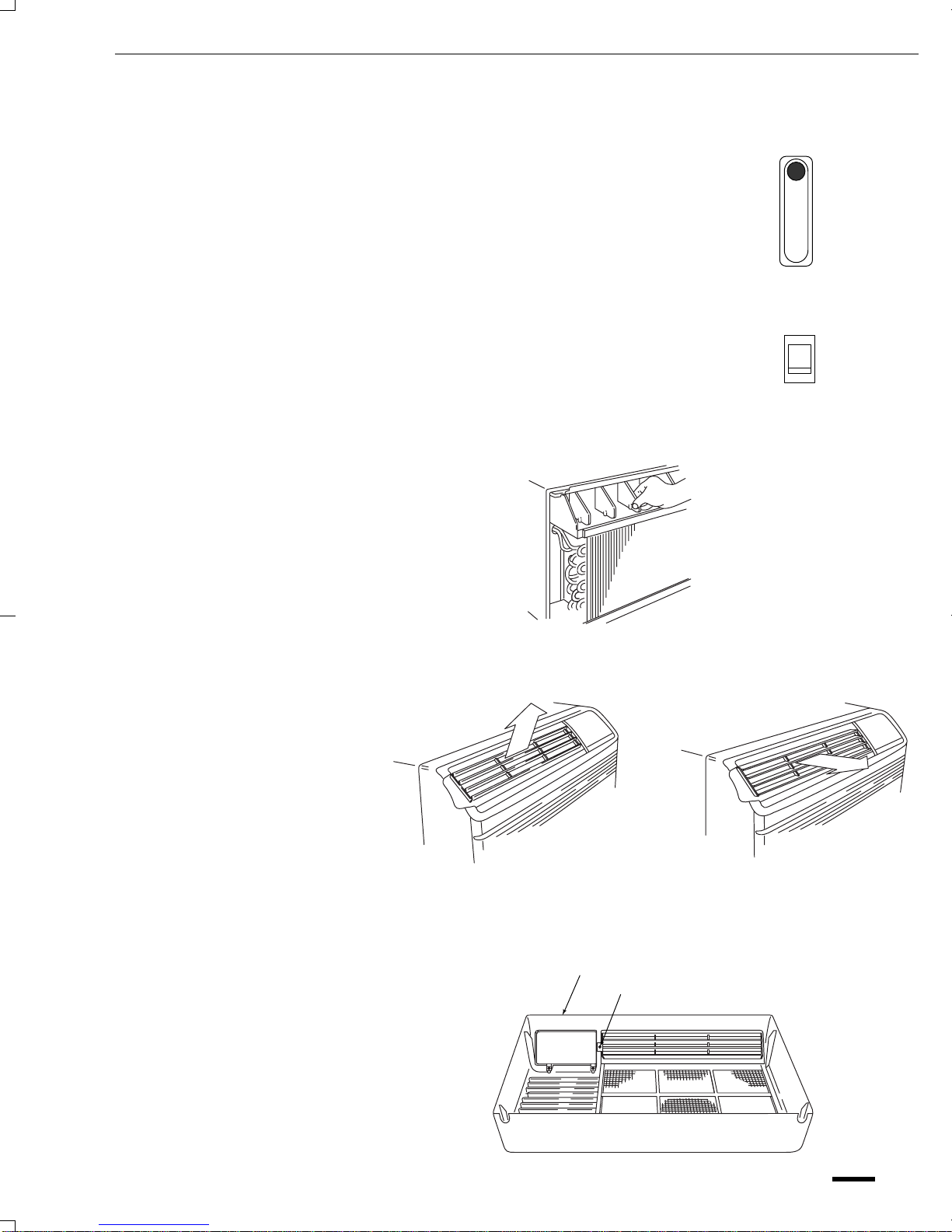

Other Features

Ventilation Control The Vent Control is located behind the front grille.

When set at CLOSE, only the air inside the room

can be circulated and conditioned. When set at OPEN,

some indoor air can be exhausted from the room.

Fan Switch The Fan Switch is located under the control panel.

To reach it, you need to remove the front grille,

knobs and the control panel.

Remove the front grille to adjust the louvers side-to-side.

The direction of the heated or cooled air may be adjusted by removing

and turning the louvers around.

To change the louver direction, remove the front grille and 1 louver screw that

hold the louvers in place. Turn the louver section 180°(end for end), replace the

screws and replace the front grille. The textured face of the louver section must

be facing toward the room side.

To Adjust the Air Direction

7OI-602-03EG

oi602000

VENT

OPEN

FAN

CONT

CYCLE

Louver screw

Front grille

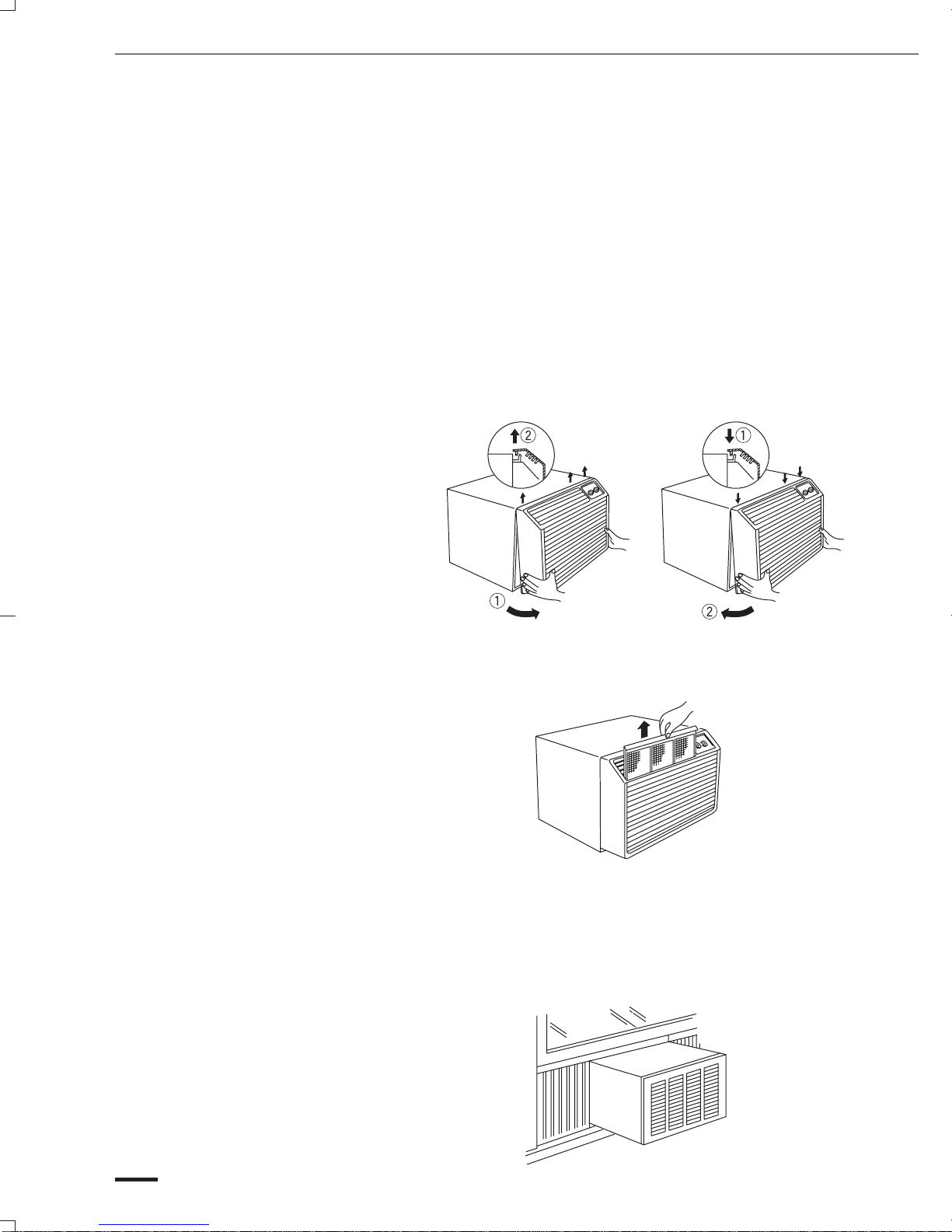

Care and Cleaning

8OI-602-10EG

oi602000

Front Grille & Wall Case Wash the front grille and wall case finish with mild soap or detergent and

lukewarm water.

Control Panel The control panel is shipped with a protective plastic film. This film can be

left on or removed. To clean, use a damp cloth and mild detergent.

Outdoor Coil The coil on the outdoor side of the unit should be checked periodically and

cleaned if clogged with dirt or soot from the atmosphere. If extremely dirty,

it may need to be professionally steam cleaned.

Base Pan

Front Grille Removal

(appearance may vary)

In some installations, dirt or other foreign matter may be blown into the

The front grille can be removal for more through cleaning or to make the

model and serial numbers accessible.

Air Filter

(appearance may vary) The air filter behind the front grille should be checked and cleaned at least

every 30 days or more often if necessary.

Condenser Coils The coils on the weather side of the air conditioner should be checked

regularly. If they are clogged with dirt or soot they may be professionally

steam cleaned, a service available through your Sanyo service outlet.

Clean the filter with a vacuum cleaner to remover light dust. It can also be

washed in warm, soapy water.

from the outside and settle in the base pan (the bottom of the unit).

Check the base pan periodically and clean it out, if necessary.

Tips for Energy Saving

Do not •Block the air intake and outlet of the unit. If they are obstructed, the

unit will not work well, and may be damaged.

•Let direct sunlight into the room. Use sunshades, blinds or curtains. If

the walls and ceiling of the room are warmed by the sun, it will take

longer to cool the room.

Do •Keep the air filter clean. (Refer to “Care and Cleaning”.)

A clogged filter will impair the performance of the unit.

•To prevent conditioned air from escaping, keep windows, doors and any

other openings closed.

•Keep

•Keep outdoor condenser coil clean.

•It’s best to operate your air conditioner at high speed during extremely

hot or cold weather.

the ventilator closed for economy and maximum cooling.

9OI-602-11EG

oi602000

Troubleshooting

PROBLEM POSSIBLE CAUSE AND REMEDY

AIR CONDITIONER DOES

NOT OPERATE •Not plugged in. Plug may have been bumped loose by vacuum cleaner or

furniture.

•If plugged in, fuse could have blown or circuit breaker may have been tripped.

AIR CONDITIONER

“DOES NOT HEAT OR

COOL AS IT SHOULD”

•Curtains, blinds or furniture blocking front of air conditioner will restrict air

flow.

WATER LEAKS INSIDE •Air conditioner is not installed level. Install level or tilt slightly toward the

outside.

WATER LEAKS OUTSIDE •Excess water may overflow in extremely hot and humid weather.

This is normal.

NOISY OPERATION •When compressor or fan switches on and off, a metallic knock may be heard.

This is normal.

•Something is hitting or vibrating inside the cabinet. Turn off air conditioner and

consult your dealer.

•Thermostat Control may not be set high or low enough. Also, when Fan Switch

is at CYCLE, the temperature in the room will vary more than when it’s at

CONTINUOUS. Turn knob to another number. Highest setting should provide

maximum cooling. The lowest setting should provide maximum heating.

•Air filter dirty, should be cleaned at least every 30 days.

•Room may have been very hot or cold when air conditioner was first turned on.

Allow time for it to cool down or warm up.

•Conditioned air may be escaping through open furnace floor registers and cold

air returns.

•Cooling coils have iced up. To melt ice, set the Fan at high speed and the

Thermostat Control to a lower number.

10 OI-602-12EG

oi602000

Altri manuali per STB0810C1

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Sanyo Condizionatore d'aria

Sanyo

Sanyo KS0911 Manuale utente

Sanyo

Sanyo DHX4852 Manuale utente

Sanyo

Sanyo 09KHS71 Manuale utente

Sanyo

Sanyo RS1211 / C1211 Manuale utente

Sanyo

Sanyo CMH2472A Manuale utente

Sanyo

Sanyo CH3632 Manuale del proprietario

Sanyo

Sanyo THHW3672R Manuale utente

Sanyo

Sanyo STW0633C1-S Manuale utente

Sanyo

Sanyo PNR-XS1872 Manuale utente

Sanyo

Sanyo KHS1232 Manuale di istruzioni

Sanyo

Sanyo C4272R Manuale utente

Sanyo

Sanyo ECOi C0705DXHN8 Manuale utente

Sanyo

Sanyo SA-58S5 Manuale operativo

Sanyo

Sanyo SPW-C0705DZH8 Manuale di istruzioni

Sanyo

Sanyo XS3632 / C3632 Manuale utente

Sanyo

Sanyo KHS1222 Manuale utente

Sanyo

Sanyo SAP361VC Manuale utente

Sanyo

Sanyo KHS1822 Manuale utente

Sanyo

Sanyo ECO G SGP-EW120M2G2W Manuale di istruzioni

Sanyo

Sanyo CH0971 Manuale operativo

Sanyo

Sanyo KHS3672R Manuale utente

Sanyo

Sanyo STB1023C1-S Manuale utente

Sanyo

Sanyo TS2432 Manuale utente

Sanyo

Sanyo 24KL12W Manuale utente

Manuali Condizionatore d'aria popolari di altre marche

Spheros

Spheros CC 355 Manuale utente

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuale utente

Panasonic

Panasonic CS-E12HKEW Manuale utente

nedis

nedis ACMB1WT7 Manuale utente

Samsung

Samsung AR KV Series Guida

Daikin

Daikin FCFV50A Manuale utente

Fujitsu

Fujitsu Inverter ASBA30JFC Manuale utente

Toshiba

Toshiba RAS-M10SMUV-E Manuale utente

Daikin

Daikin FXLQ20MAVE Manuale utente

Hitachi

Hitachi RAS-E24CAK Manuale utente

CIAT

CIAT Magister 2 Series Guida

Bestron

Bestron AAC6000 Manuale utente

Hisense

Hisense 7K Manuale tecnico

Frigidaire

Frigidaire FFRE0533S1E0 Manuale utente

Samsung

Samsung AS09HM3N Manuale utente

Frigidaire

Frigidaire CRA073PU11 Manuale del proprietario

Soleus Air

Soleus Air GB-PAC-08E4 Manuale utente

McQuay

McQuay MCK020A Manuale utente
