Sanyo DVD-DX500 Manuale utente

FILE NO.

DVD-DX500

(Product Code: 1 682 340 51)

(Australia, New Zealand)

DVD-DX510

(Product Code: 1 682 340 52)

(Australia, New Zealand)

(Product Code: 1 682 342 82)

(India)

SERVICE MANUAL

SPECIFICATIONS

REFERENCE No. SM0905003

Power Source: 100-240V~, 50/60Hz

Power Consumption: 12W

Dimensions: 430(W) x 38(H) x 245(D)mm

Net Weight: Approx. 2.2kg

Specifications subject to change without notice.

DVD Player

DVR-DX500.indd01DVR-DX500.indd01 2006/10/309:54:292006/10/309:54:29

SPECIFICATIONS...............................................................................................................2

3

CIRCUIT DIAGRAM.........................................................................................................................

INSTRUMENT DISASSEMBL

PACKING VIEW

Y.....................................................................................................12

.............................................................................................................................13

1

CONTENTS

DVR-DX500.indd1DVR-DX500.indd1 2006/10/309:54:312006/10/309:54:31

AAA

2

S P E C IF IC AT IONS

Laser wave length 650nm

Video PAL/AUTO/NTSC

Frequency response 20Hz ~ 20KHz (±1dB)

Signal/noise ratio  90dB

Channel separation  85dB ( 1KHz)

Dynamic range  80dB ( 1KHz)

Output

Audio

Analog output level : 2.0 + 0/-0.2Vrms

(Load impedance : 1,0K )

Digital output level : 0.5 ±0.1Vp-p

(Load impedance : 75 )

Output

Video

Composite output level : 1.0 ±0.1Vp-p

(Load impedance : 75 , imbalance, negative polarity)

S-video

output level : brightness(Luma) 1.0 ±0.1Vp-p Chromaticity (Color)

0.286 ±20%

(Load impedance : 75 )

Component Y: 1Vp-p, Pb/Pr: 0.7Vp-p (Load impedance : 75 )

Power 100-240V~, 50Hz~60Hz 12W

Dimensiones Body (W x H x D) 430 x 38 x 245 mm

Packing 515 x 95 x 325 mm

Weight (Gross / Net) 2.9Kg / 2.2Kg

Notes : Design and speci“ cations in this instruction manual are subjected to change with-

out prior notice toimprove quality and function.

DVD Audio output standards

Output Disc type

DVD VIDEO-CD CD

AnalogueAudio output 48/96KHz sampling 44.1KHz sampling 44.1KHz sampling

Digital Audio output 48KHz sampling 44.1KHz sampling 44.1KHz sampling

3

1. POWER SUPPLY SCHEMATIC DIAGRAM

CIRCUIT DIAGRAM

DVR-DX500.indd3DVR-DX500.indd3 2006/10/309:54:322006/10/309:54:32

4

2. DECODE BOARD SCHEMATIC DIAGRAM

1) INDEX SCHEMATIC DIAGRAM

CIRCUIT DIAGRAM

DVR-DX500.indd4DVR-DX500.indd4 2006/10/309:54:332006/10/309:54:33

5

2) RF & MPEG SCHEMATIC DIAGRAM

CIRCUIT DIAGRAM

DVR-DX500.indd5DVR-DX500.indd5 2006/10/309:54:352006/10/309:54:35

6

3) SDRAM & FLASH SCHEMATIC DIAGRAM

CIRCUIT DIAGRAM

DVR-DX500.indd6DVR-DX500.indd6 2006/10/309:54:382006/10/309:54:38

7

4) VIDEO OUTPUT PORT SCHEMATIC DIAGRAM

CIRCUIT DIAGRAM

DVR-DX500.indd7DVR-DX500.indd7 2006/10/309:54:402006/10/309:54:40

8

5) AUDIO OUTPUT PORT SCHEMATIC DIAGRAM

CIRCUIT DIAGRAM

DVR-DX500.indd8DVR-DX500.indd8 2006/10/309:54:422006/10/309:54:42

9

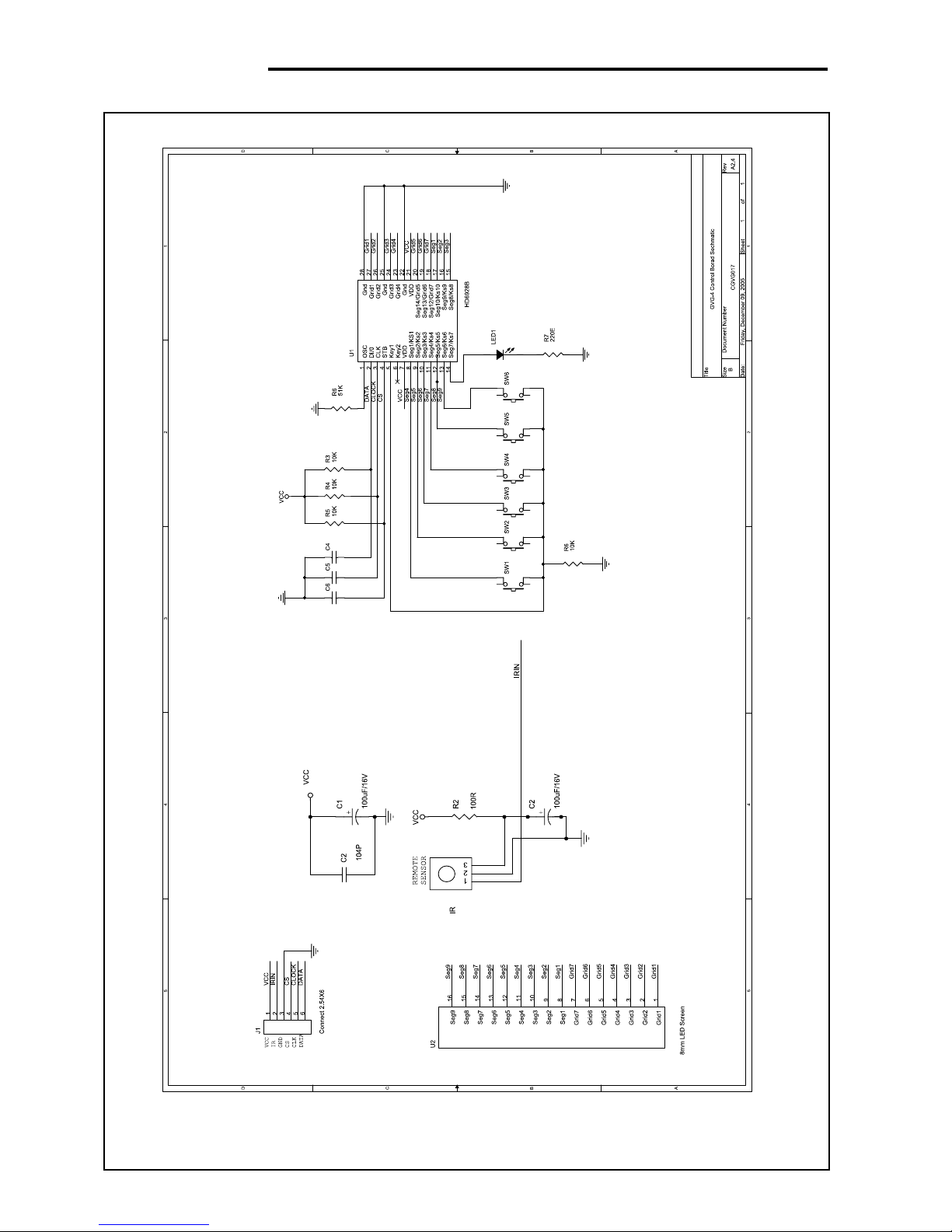

3. CONTROL BOARD SCHEMATIC DIAGRAM

CIRCUIT DIAGRAM

DVR-DX500.indd9DVR-DX500.indd9 2006/10/309:54:452006/10/309:54:45
