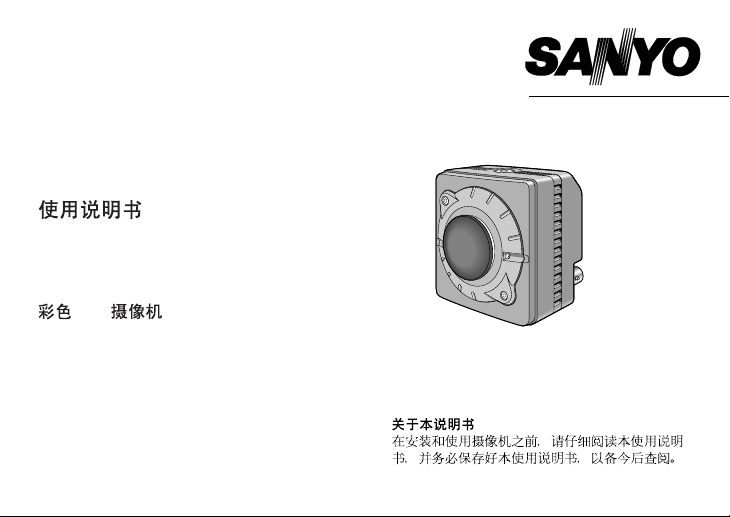

Sanyo Colour CCD Camera VCC-5775P Manuale utente

INSTRUCTION MANUAL

BEDIENUNGSANLEITUNG

MANUEL D’INSTRUCTIONS

VCC-5775P

COLOUR CCD camera

CCD-Farbkamera

Caméra CCD COULEUR

CCD

About this manual

Before installing and using the camera, please read this

manual carefully. Be sure to keep it handy for later reference.

Über diese Bedienungsanleitung

Lesen Sie bitte vor der Montage und dem Inbetriebnehmen

der Kamera zuerst diese Bedienungsanleitung sorgfältig

durch und bewahren Sie sie zum späteren Nachschlagen auf.

A propos de ce manuel

Avant d’installer et d’utiliser la caméra, veuillez lire ce

manuel attentivement. Gardez-le à portée de main pour

toute référence ultérieure.

L53V2/XE (VCC-5775P) GB 2000, 7, 11

Depending on the conditions of use, installation

and environment, please be sure to make the

appropriate settings and adjustments. If you

need help with installation and/or settings,

please consult your dealer.

CONTENTS

PRECAUTIONS 3

PARTS NAMES 5

MOUNTING THE LENS 7

CONNECTIONS 9

FLANGE-BACK ADJUSTMENT 11

SETTINGS 12

TROUBLESHOOTING 15

SPECIFICATIONS 16

ACCESSORIES 18

L5 V2/XE (VCC-5775P) GB 2000, 7, 11

English 1

FEATURES

•Built-in interline transfer method 1/ " CCD,

approx. 470,000 picture elements

•Low smear, anti-blooming, low lag, no

burning and no geometric distortion using

the CCD solid state image device.

•100% solid state components giving

excellent immunity to shock and vibration

•Not subject to interference from magnetic or

electrostatic fields

•High sensitivity, minimum required

illumination is 1.4 lux (F1.2)

•Horizontal resolution, more than 480 TV lines

•Equipped with connectors for AC 24 V and

DC 12 V power supply.

ENGLISH

L5 V2/XE (VCC-5775P) GB 2000, 7, 11

2 English

PRECAUTIONS

In case of problem

Do not use the camera if smoke or a strange odour

comes from the unit, or if it seems not to function

correctly. Disconnect the power cord immediately,

and consult your dealer (or a Sanyo Authorized

Service Centre).

Do not open or modify

Do not open the cabinet, as it may be dangerous

and cause damage to the unit. For internal settings

and repairs, consult your dealer (or a Sanyo

Authorized Service Centre).

Do not put objects inside the unit

Make sure that no metal objects or flammable

substance get inside the camera. If used with a

foreign object inside, it could cause a fire,

short-circuits or damages.

If water or a liquid gets inside the camera, disconnect

the power cord immediately, and consult your dealer

(or a Sanyo Authorized Service Centre). Be careful to

protect the camera from rain, sea water, etc.

Be careful when handling the unit

To prevent damages, do not drop the camera or

subject it to strong shock or vibration.

Install away from electric or magnetic

fields

If installed close to a TV, radio transmitter, magnet,

electric motor, transformer, audio speakers the

magnetic field they generate will distort the image.

Protect from humidity and dust

To prevent damages to the camera, do not install it

where there is greasy smoke or steam, where the

dampness may get too high, or where there is a lot

of dust.

L5 V2/XE (VCC-5775P) GB 2000, 7, 11

English 3

PRECAUTIONS

Protect from high temperatures

Do not install close to stoves, or other heat

generating devices, such as spotlights, etc., or

where it could be subject to direct sunlight, as that

could cause deformation, discoloration or other

damages.

Be careful when installing close to the ceiling, in a

kitchen or boiler room, as the temperature may

raise to high levels.

Install where the temperature range will stay

between –10˚C and 50˚C.

(no condensation)

Cleaning

•Dirt can be removed from the cabinet by

wiping it with a soft cloth. To remove stains,

wipe with a soft cloth moistened with a soft

detergent solution and wrung dry, then wipe

dry with dry soft cloth.

•Do not use benzine, thinner or other chemical

product on the cabinet, as that may cause

deformation and paint peeling. Before using a

chemical cloth, make sure to read all

accompanying instructions. Make sure that no

plastic or rubber material comes in contact with

the cabinet for a long period of time, as that

may cause damage or paint peeling.

L5 V2/XE (VCC-5775P) GB 2000, 7, 11

4 English

PARTS NAMES

1Camera mounting screw hole

CAUTION:

When installing the camera, select a location that can support

the total weight of the camera and accessories

2Electronic iris function switch (EI OFF/EI ON)

3Sync switch (INT/L-L)

INT (Internal sync) position

L-L (Line lock) position

4Line phase adjustment volume (LINE PHASE)

5Lens iris level volume (LEVEL)

6Lens iris output connector (LENS)

This 4-pin connector is used to send the DC control signal and power supply to

an auto-iris type lens.

L5 V2/XE (VCC-5775P) GB 2000, 7, 11

English 5

PARTS NAMES

7Flange-back lock screw

8CS mount ring

9Lens mount cap

The cap is installed to protect the lens mount section.

Remove the lens mount cap before installing a lens.

FVideo output connector (VIDEO OUT: BNC type)

Connect this connector to a device such as a VCR or monitor with a

VIDEO IN connector.

G24 V AC or 12 V DC input terminal

(24 V AC, 12 V DC, GND) … See page 9

L5 V2/XE (VCC-5775P) GB 2000, 7, 11

6 English

MOUNTING THE LENS

Please use a DC type auto-iris lens (sold separately)

Checking the lens mount

Do not use lense with a length L more than 5 mm. If not, that may

damage the camera and prevent proper installation.

1Remove the lens mount cap from the camera

2Install the auto-iris lens

CS mount type lens

Carefully align the lens mount with the camera opening, then turn the lens

slowly to install it.

C mount type lens

Install the supplied C-mount adaptor on the lens mount, then carefully

align the lens mount with the camera opening and turn the lens slowly to

install it.

3Connect the lens plug to the lens iris output connector (LENS) on

the side of the camera

The plug shape may not correspond to the terminal on the camera. In such

a case, remove the original plug and using a soldering iron, connect the

supplied lens iris plug according to the diagram. (Refer to page 8.)

C mount

type lens

CS mount

e lens

L5 V2/XE (VCC-5775P) GB 2000, 7, 11

English 7

MOUNTING THE LENS

Pin layout

1Brake coil (–)

2Brake coil (+)

3Drive coil (+)

4Drive coil (–)

Rewiring the lens cable in the lens iris plug

1Prepare the lens cable

Cut the cable at the plug, then remove approx. 8 mm of the cable sheath and

strip about 2 mm from each wire.

2Install the lens iris plug

Solder the cable to the pins following the correct pin layout (refer to the

table and illustrations), then close the plug cover.

Compatible auto-iris lenses (1/3 inch COSMICAR DC type lens)

•Standard angle, f= 8 mm (TS812E Equivalent)

•Wide angle, f= 4 mm (TS412E Equivalent)

•Ultra-wide angle, f= 2.8 mm (TS212E Equivalent)

L5 V2/XE (VCC-5775P) GB 2000, 7, 11

8 English

CONNECTIONS

Basic connection for monitoring or recording

(Video signal connections)

: VIDEO IN

: VIDEO OUT

AC 24 V connection DC 12 V connection

Fig 1 Fig 2

+–

DC12V

–

Push to insert the cable

Note:

The polarities for the 24 V AC and

the 12 V DC input connectors are

indicated on the rating label found

on the unit back panel.

AC 24 V ~ ~

DC 12 V + –GND

L5 V2/XE (VCC-5775P) GB 2000, 7, 11

English 9
