Sanyo VCC-3944 - 1/4" Color CCD DSP Camera Manuale utente

• Built In DSP (Digital Signal Processing) Circuitry

• More than 350 TV Lines of Horizontal Resolution

• High Sensitivity – Minimum Illumination of 0.3 Lux

(High Gain, F1.2)

• Two Types of Backlight Compensation

• 24V AC and 12V DC, Dual Power Operation

1/4” Color CCD DSP

High Performance Camera

VCC-3944

ISO

9001

LENS

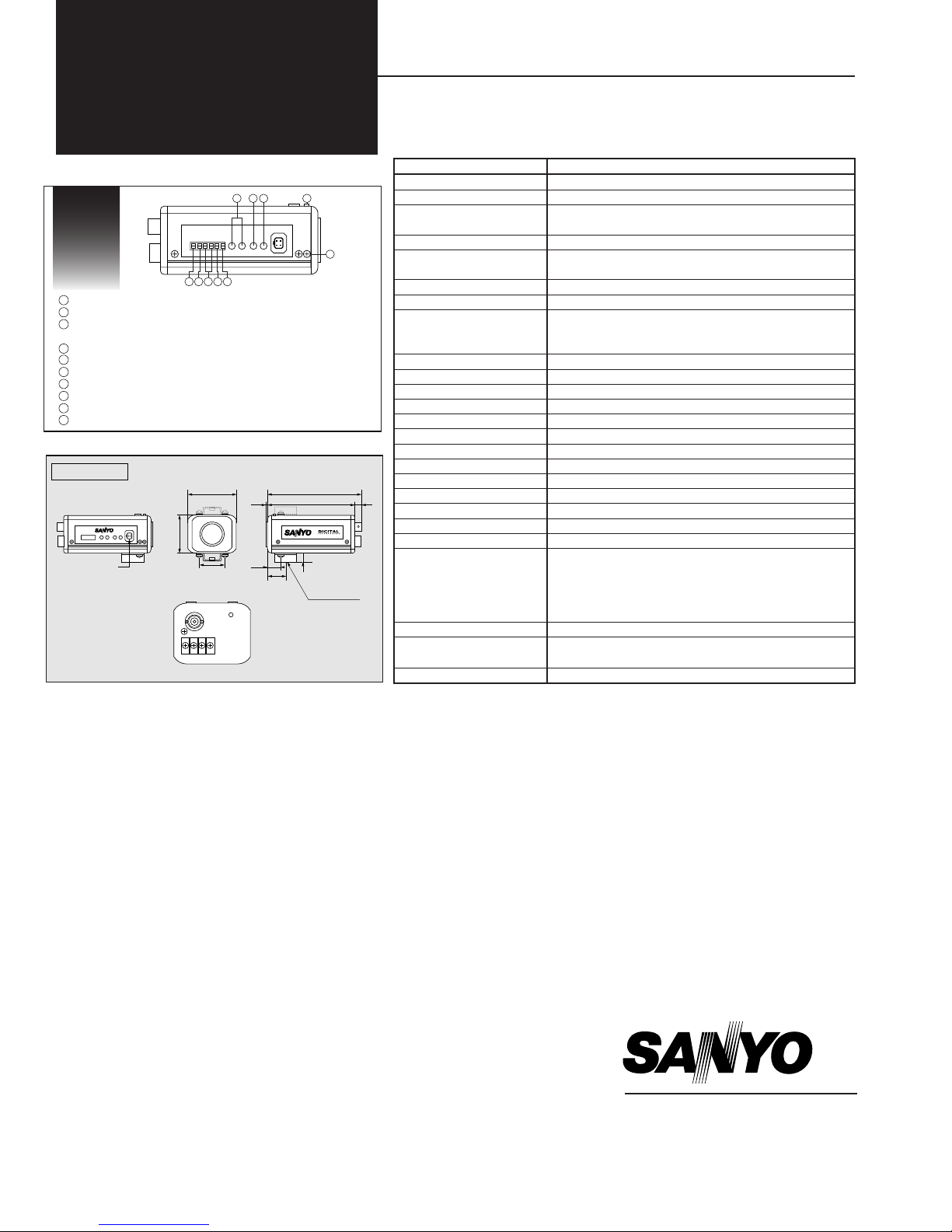

Controls

1 Electronic Iris (EI) / Auto iris (AI) setting

2 Gain up setting (HI / NORM)

3 Backlight compensation

(Multi-spot photometry (64-section) / Center-zone light measuring system)

4 White balance

5 Sync setting

6 White balance adiustment volume (R, B)

7 Line phase

8 Lens iris adjustment volume

9 Flange-back adiustment dial

Flange-back lock screw

6 8

1 2 3 4 5

7 9

(Unit: mm)

VCC-3944

1/4"–20UNC

threaded hole

(top / bottom selectable)

25.8

10.7

1.4 99 9

108

COLORCCD CAMERA

LENS

LENS 4-pin

POWERVIDEO OUT

GND AC24V

DC12V

CLASS 2

WIRING

Rear panel

SANYO Security Video

21605 Plummer Street

Chatsworth, CA 91311

Phone: (818) 998-7322, ext. 282

Fax: (818) 717-2716

Technical Support: (888) 66-SANYO

www.sanyocctv.com

Specifications

Specifications and product design are subject to change without notice.

MODEL VCC-3944

Scanning system NTSC standard 525 lines,30 frames/sec

Image sensor 1/4” Interline transfer CCD

Picture elements 537(H) x 505(V) picture elements

510(H) x 492(V) effective picture elements

Horizontal resolution Horizontal: 350TV lines

Minimum illumination Approx.0.9 lx (Gain: NORM @ F1.2)

Approx 0.3lx (Gain: HI @ F1.2)

Video output level 1.0Vp-p ( 75 ohms, composite )

Video S/N ratio More than 48dB

Backlight compensation ON/OFF – Slide SW (side)

ON = Multi-spot photometry (64-section)/

Center focus photometry

White balance ATW/MANUAL

Color adjust at manual Red, Blue – VR (side)

Gain control HI (High)/NORM (Normal) – Slide SW (side)

Light control Optical auto iris lens/Electronic iris (indoor use)

Lens mount CS mount

Flange back 12.5mm +/- 0.5mm adjustment

Auto iris lens DC auto iris

Lens iris level LEVEL: L to H – VR (side)

Electronic iris ON/OFF – Slide SW (side)

Electronic iris range 0.9 lx to 45,000 lux (F1.2)

Synchronizing system Internal Sync/ Line lock -- Slide SW (side)

V phase adjustment LINE PHASE – VR (side)

Camera mount 1/4” – 20 UNC ( top or bottom selectable)

Environmental condition

Operating: Temperature: 14˚F to 122˚F (-10˚C to +50˚C)

Humidity : within 90% RH

Storage: Temperature: -20˚C to +70˚C

Humidity : within 70% RH

Power requirement 24V AC, 60 Hz/12 to 15V DC

Power consumption approx. 2.8W (with AI lens), 2.1W (without AI lens)

Size 2.2 (W) x 1.77(H) x 3.92(D) in.

[56(W) x 45(H) x 99.5(D) mm]

Weight 9.9 oz. (280g) without lens

VCC-3944

1/4” COLOR CCD DSP HIGH

PERFORMANCE CAMERA
